Dodge Nitro. Manual - part 655

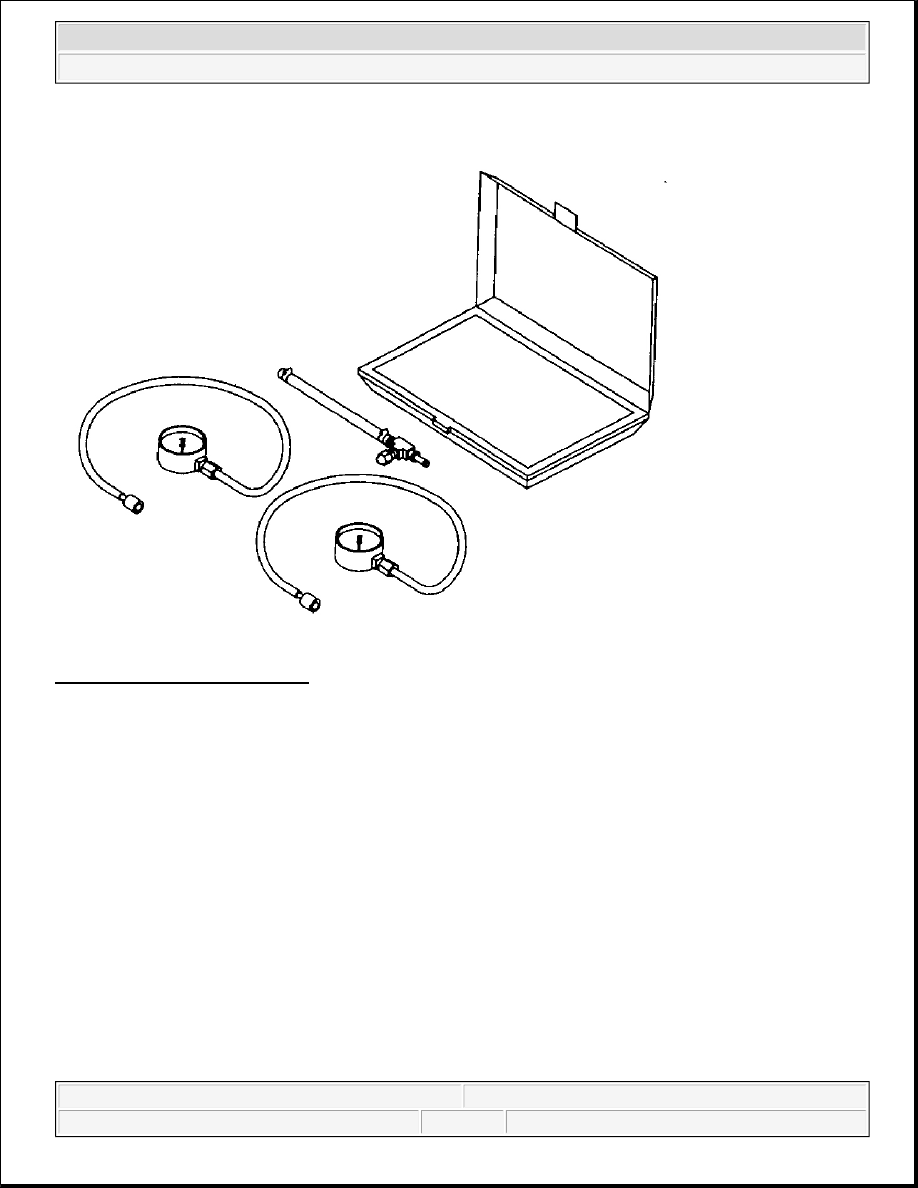

Fig. 2: Test Kit, Fuel Pressure 50
Courtesy of CHRYSLER LLC



2007 Dodge Nitro R/T

2007 ENGINE Fuel System - Nitro



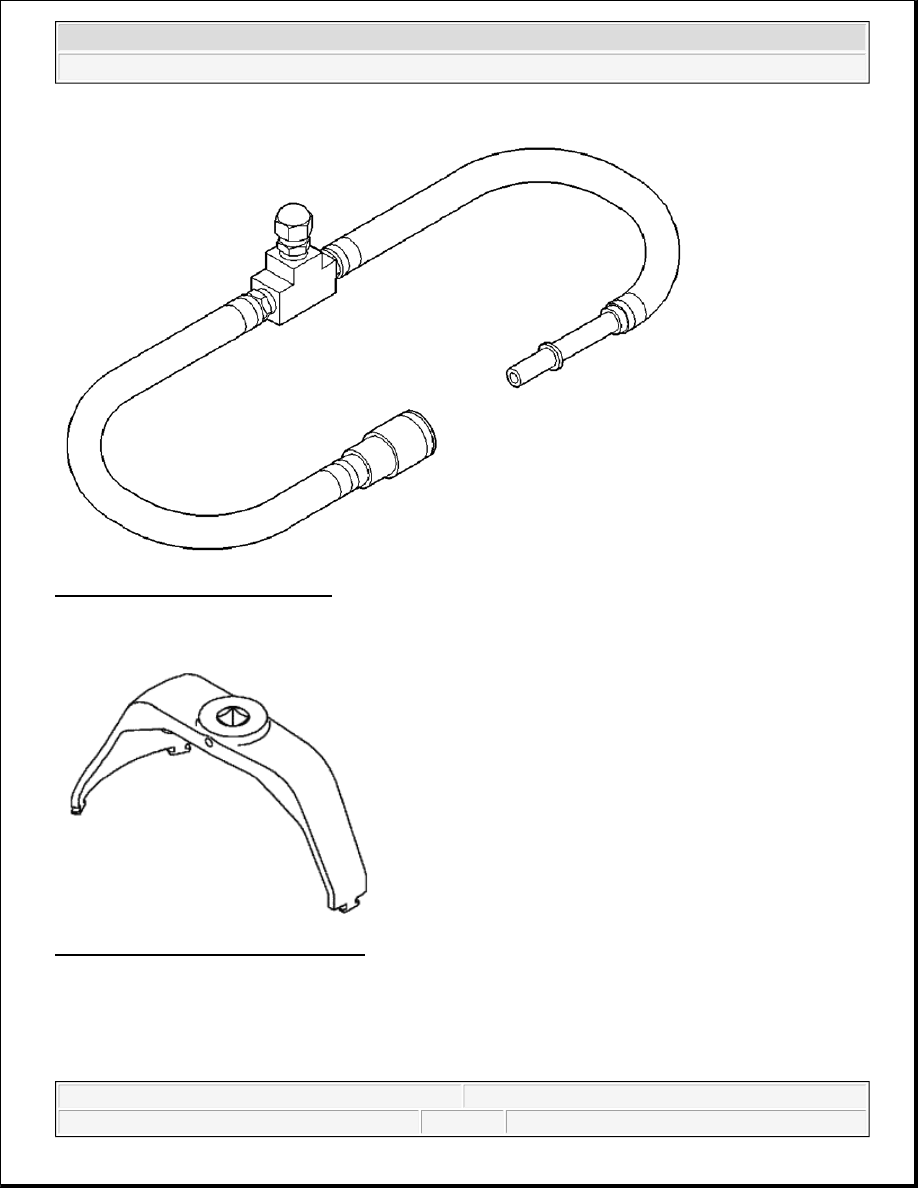

Fig. 3: Adapters, Fuel Pressure Test
Courtesy of CHRYSLER LLC

Fig. 4: Lockring Remover/Installer 9340
Courtesy of CHRYSLER LLC



2007 Dodge Nitro R/T

2007 ENGINE Fuel System - Nitro



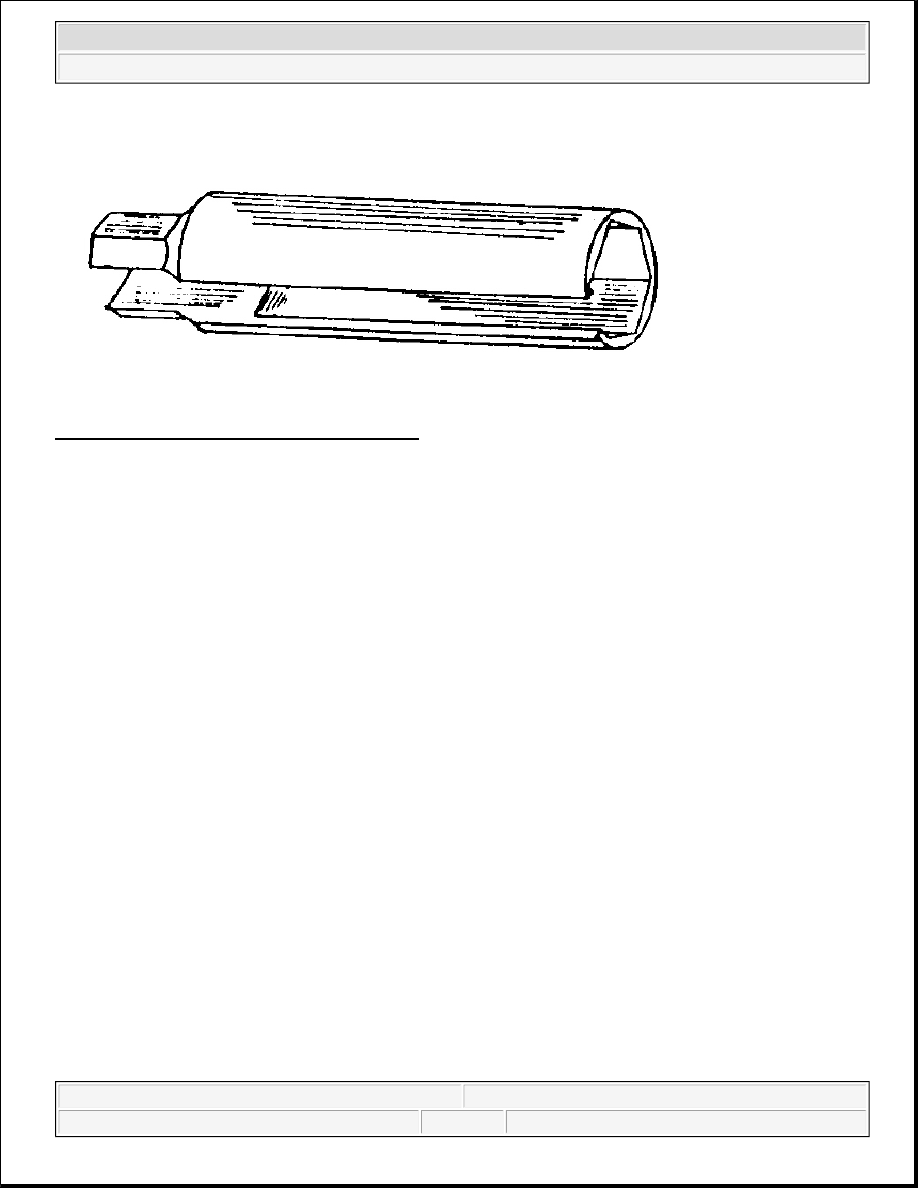

Fig. 5: O2S (Oxygen Sensor) Remover/Installer
Courtesy of CHRYSLER LLC

FILTER-FUEL

DESCRIPTION

DESCRIPTION

The fuel filter and fuel pressure regulator are combined within the fuel pump module assembly. They are not
serviceable.

SENSOR-FUEL LEVEL SENDING UNIT

DESCRIPTION

FUEL LEVEL SENDING UNIT SENSOR

The fuel gauge sending unit (fuel level sensor) is attached to the fuel pump module. The sending unit consists of
a float, an arm, and a variable resistor track (card).

The sensor is serviceable.

REMOVAL

SENSOR-FUEL LEVEL SENDING UNIT



2007 Dodge Nitro R/T

2007 ENGINE Fuel System - Nitro



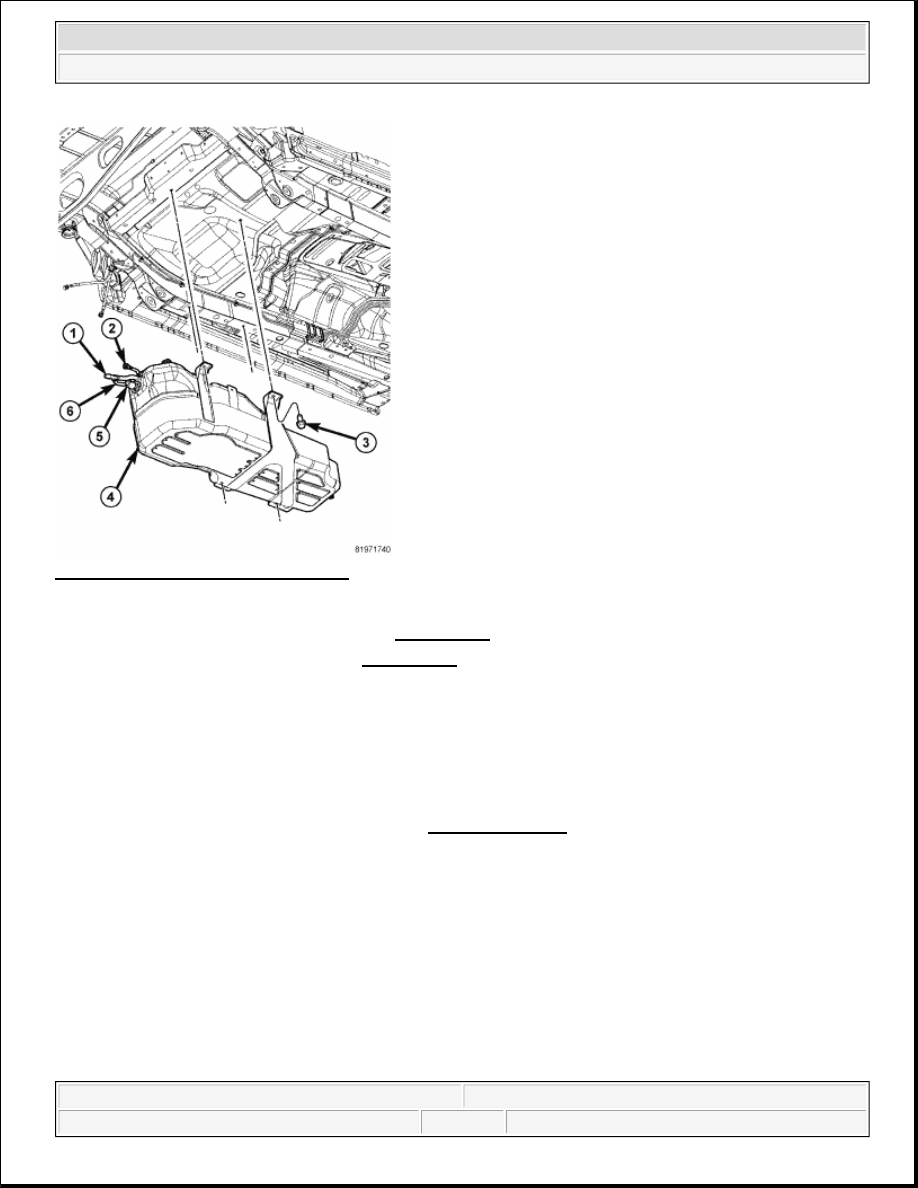

Fig. 6: Removing/Installing Fuel Tank
Courtesy of CHRYSLER LLC

1. Drain and remove fuel tank (4). Refer to REMOVAL .

2. Remove the fuel pump module. See REMOVAL.

3. Remove the fuel level sending unit.

INSTALLATION

SENSOR-FUEL LEVEL SENDING UNIT

1. Install the fuel level sending unit to the module.

2. Install the fuel pump module in the tank. See INSTALLATION.
