PARK LAMPS

REAR FOG LAMPS

required.

NOTE:

As part of the exterior lighting fail-safe feature, upon ignition ON, all exterior
park lamps and the headlamp low beams will illuminate regardless of the left
multi-function switch control knob position if the SCM cannot detect an input
from the left multi-function switch, or if there is a loss of communication
between the left multi-function switch/SCM and the EMIC or between the EMIC
and the TIPM. Diagnose and repair those problems before attempting to repair
the Park Lamps.

CONDITION

POSSIBLE CAUSES

CORRECTION

PARK LAMP DOES NOT

ILLUMINATE

1. Ineffective or missing bulb. 1. Test and replace park lamp bulb if

required.

2. Ineffective ground circuit.

2. Test and repair open park lamp ground
circuit if required.

3. Ineffective feed circuit.

3. Test and repair open park lamp feed
circuit if required.

4. Ineffective EMIC (CCN)
inputs or outputs.

4. Use a diagnostic scan tool to test the
EMIC (CCN) inputs and outputs. Refer to
the appropriate diagnostic information.

5. Ineffective TIPM inputs or
outputs.

5. Use a diagnostic scan tool to test the
TIPM inputs and outputs. Refer to the
appropriate diagnostic information.

PARK LAMP DOES NOT

EXTINGUISH

1. Ineffective feed circuit.

1. Test and repair shorted park lamp feed
circuit if required.

2. Ineffective EMIC (CCN)
inputs or outputs.

2. Use a diagnostic scan tool to test the
EMIC (CCN) inputs and outputs. Refer to
the appropriate diagnostic information.

3. Ineffective TIPM inputs or
outputs.

3. Use a diagnostic scan tool to test the
TIPM inputs and outputs. Refer to the
appropriate diagnostic information.

NOTE:

The rear fog lamp switch is integral to the left multi-function switch/SCM, which
communicates with the EMIC/CCN over the LIN data bus. Before performing any
of the following tests, determine whether the other functions of the left multi-
function switch/SCM are operational. If the other left multi-function switch/SCM
functions are ineffective, diagnose and repair that problem before attempting to
repair the Rear Fog Lamps.

CONDITION

POSSIBLE CAUSES

CORRECTION

REAR FOG LAMP DOES

1. Ineffective or missing bulb. 1. Test and replace rear fog lamp bulb if



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Lamps/Lighting - Exterior - Service Information - Nitro



TURN SIGNAL LAMPS

NOT ILLUMINATE

required.

2. Ineffective ground circuit.

2. Test and repair open rear fog lamp
ground circuit if required.

3. Ineffective feed circuit.

3. Test and repair open fog lamp relay
control rear circuit if required.

4. Ineffective EMIC (CCN)
inputs or outputs.

4. Use a diagnostic scan tool to test the
EMIC (CCN) inputs and outputs. Refer to
the appropriate diagnostic information.

5. Incorrect TIPM
configuration.

5. Use a diagnostic scan tool to check and
correct the TIPM configuration settings if
required. Refer to the appropriate
diagnostic information.

6. Ineffective TIPM inputs or
outputs.

6. Use a diagnostic scan tool to test the
TIPM inputs and outputs. Refer to the
appropriate diagnostic information.

REAR FOG LAMP DOES
NOT EXTINGUISH

1. Ineffective feed circuit.

1. Test and repair shorted fog lamp relay
control rear circuit if required.

2. Ineffective EMIC (CCN)
inputs or outputs.

2. Use a diagnostic scan tool to test the
EMIC (CCN) inputs and outputs. Refer to
the appropriate diagnostic information.

3. Ineffective TIPM inputs or
outputs.

3. Use a diagnostic scan tool to test the
TIPM inputs and outputs. Refer to the
appropriate diagnostic information.

NOTE:

The turn signal switch is integral to the left multi-function switch/SCM, which
communicates with the EMIC/CCN over the LIN data bus. Before performing any
of the following tests, determine whether the other functions of the left multi-
function switch/SCM are operational. If the other left multi-function switch/SCM
functions are ineffective, diagnose and repair that problem before attempting to
repair the Turn Signal Lamps.

CONDITION

POSSIBLE CAUSES

CORRECTION

ONE TURN SIGNAL LAMP

DOES NOT ILLUMINATE

1. Ineffective or missing bulb. 1. Test and replace turn signal bulb if

required.

2. Ineffective ground circuit.

2. Test and repair open ground circuit if
required.

3. Ineffective feed circuit.

3. Test and repair open right or left turn
signal feed circuit if required.

4. Ineffective TIPM inputs or
outputs.

4. Use a diagnostic scan tool to test the
TIPM inputs and outputs. Refer to the
appropriate diagnostic information.

ALL RIGHT SIDE OR ALL

LEFT SIDE TURN SIGNAL

1. Ineffective feed circuit.

1. Test and repair open right or left turn
signal feed circuit if required.



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Lamps/Lighting - Exterior - Service Information - Nitro



STANDARD PROCEDURE

FRONT LAMP AIMING

VEHICLE PREPARATION FOR LAMP ALIGNMENT

1. Check for and correct any burnt out bulbs.

2. If the vehicle is equipped with headlamp leveling, be certain that the headlamp leveling switch is in the 0

position.

3. Repair or replace any ineffective, worn or damaged body or suspension components that could hinder

proper lamp alignment.

4. Verify proper tire inflation pressures.

5. Remove any accumulations of mud, snow or ice from the vehicle underbody and clean the front lamp

lenses.

6. Verify that there is no load in the vehicle (cargo or passengers), except for the driver.

7. The fuel tank should be FULL. Add 2.94 kilograms (6.5 pounds) of weight over the fuel tank for each

estimated gallon of missing fuel.

8. Verify correct vehicle suspension height.

LAMP ALIGNMENT SCREEN PREPARATION

LAMPS (OR BOTH SIDES)

DO NOT FLASH

2. Ineffective EMIC (CCN)
inputs or outputs.

2. Use a diagnostic scan tool to test the
EMIC (CCN) inputs and outputs. Refer to
the appropriate diagnostic information.

3. Ineffective TIPM inputs or
outputs.

3. Use a diagnostic scan tool to test the
TIPM inputs and outputs. Refer to the
appropriate diagnostic information.

ALL RIGHT SIDE OR ALL

LEFT SIDE TURN SIGNALS

FLASH TOO RAPIDLY

(MORE THAN 100 FLASHES

PER MINUTE)

1. Ineffective or missing bulb. 1. Test and replace turn signal bulb if

required.

2. Ineffective ground circuit.

2. Test and repair open bulb ground
circuit if required.

3. Ineffective feed circuit.

3. Test and repair open right or left turn
signal feed circuit if required.

TURN SIGNALS DO NOT

AUTOMATICALLY

CANCEL

1. Ineffective cancel cam.

1. Inspect and replace the turn signal
cancel cam (clockspring) if required.

-

2. Ineffective cancel actuator.

2. Inspect and replace the turn signal
cancel actuator (left multi-function
switch) if required.



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Lamps/Lighting - Exterior - Service Information - Nitro



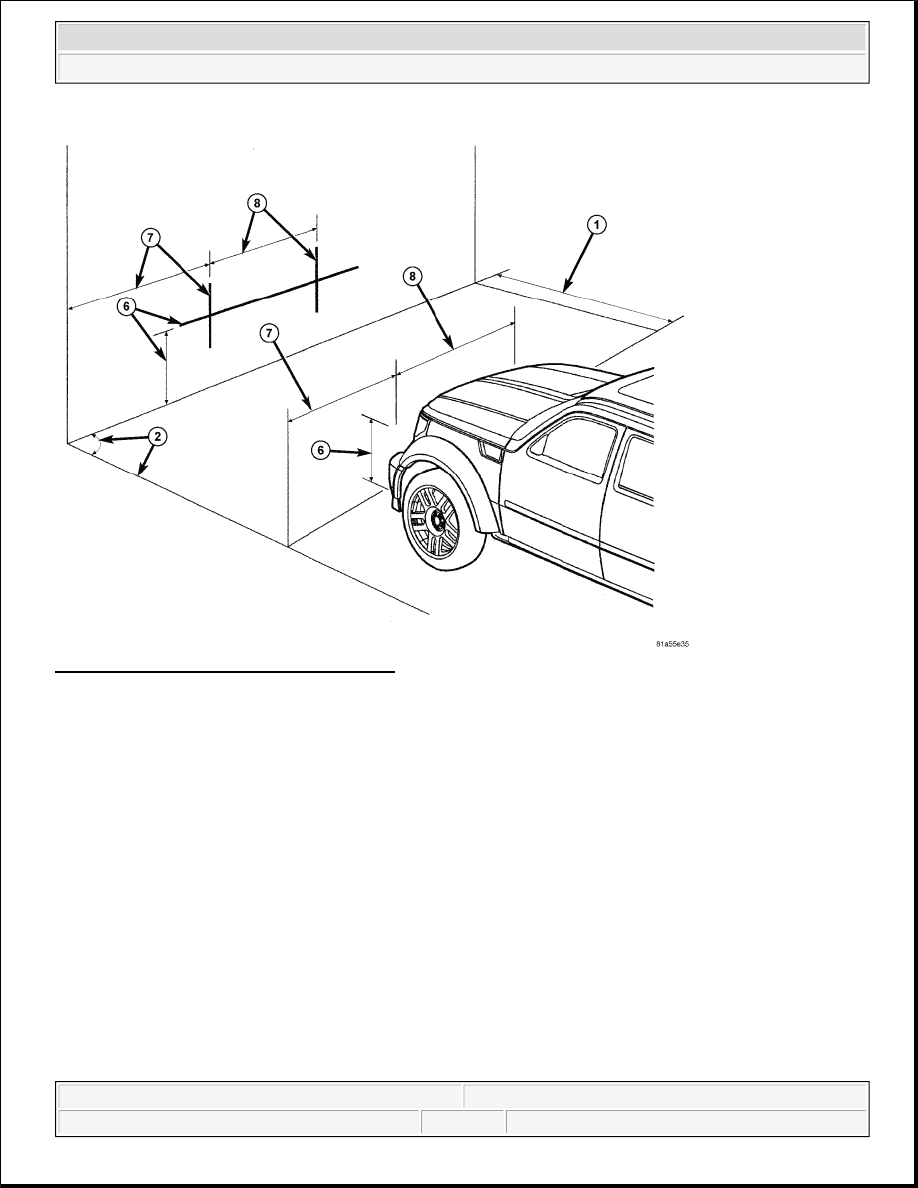

Fig. 2: Lamp Alignment Screen Preparation
Courtesy of CHRYSLER LLC

The procedure that follows will prepare a suitable front lamp alignment screen.

1. Tape a line on a level floor 7.62 meters (25 feet) away from and parallel to the flat wall that will be used

as the lamp alignment screen. The level floor will be used as the horizontal zero reference.

2. An adjacent wall or floor member that is perpendicular to the alignment screen can be used as the vertical

zero reference. If there is no adjacent wall or floor member that is perpendicular to the screen, tape a
second line on the floor perpendicular to both the alignment screen and the first line, and outboard of
either side of where the vehicle will be positioned. This will be used as the vertical zero reference.

3. Position the vehicle so that the side of the vehicle is parallel to the vertical zero reference, and so that the

front of the lamp lenses are in the vertical plane of the parallel line taped on the floor 7.62 meters (25
feet) away from the screen.

4. Rock the vehicle side-to-side three times to allow the suspension to stabilize.

5. Jounce the front suspension three times by pushing downward on the front bumper and releasing.

6. Measure the distance between the optical center of one of the lamps being aimed (head or fog) and the

floor (horizontal zero reference). Transfer this measurement to the alignment screen with a piece of tape
placed horizontally to the floor. This line will be used as the lamp horizontal reference.
