1. Remove differential from the housing.

2. Remove bearings (3) from the differential case (4) with Puller C-293-PA (1), Adapters C-293-48 (2) and

Plug SP-3289 (5).

INSTALLATION

BEARINGS-DIFFERENTIAL CASE

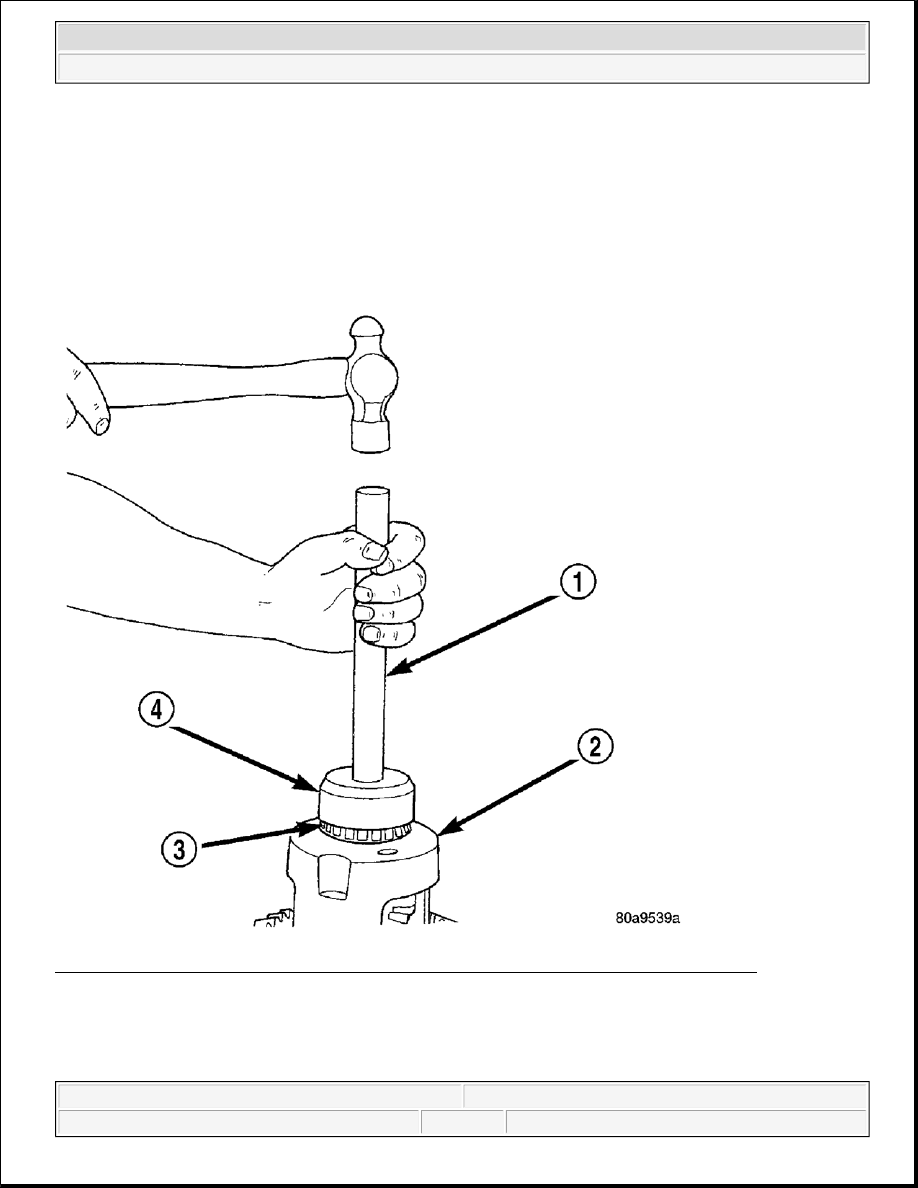

Fig. 186: Installing Differential Case Bearings With Installer C-3716-A And Handle C-4171
Courtesy of CHRYSLER LLC

1. Install differential case (2) bearings (3) with Installer C-3716-A (4) and Handle C-4171(1).

2. Install differential into the housing.



2007 Dodge Nitro R/T

2007 DRIVELINE Differential & Driveline - Nitro



GEAR-PINION/RING

REMOVAL

GEAR-PINION/RING

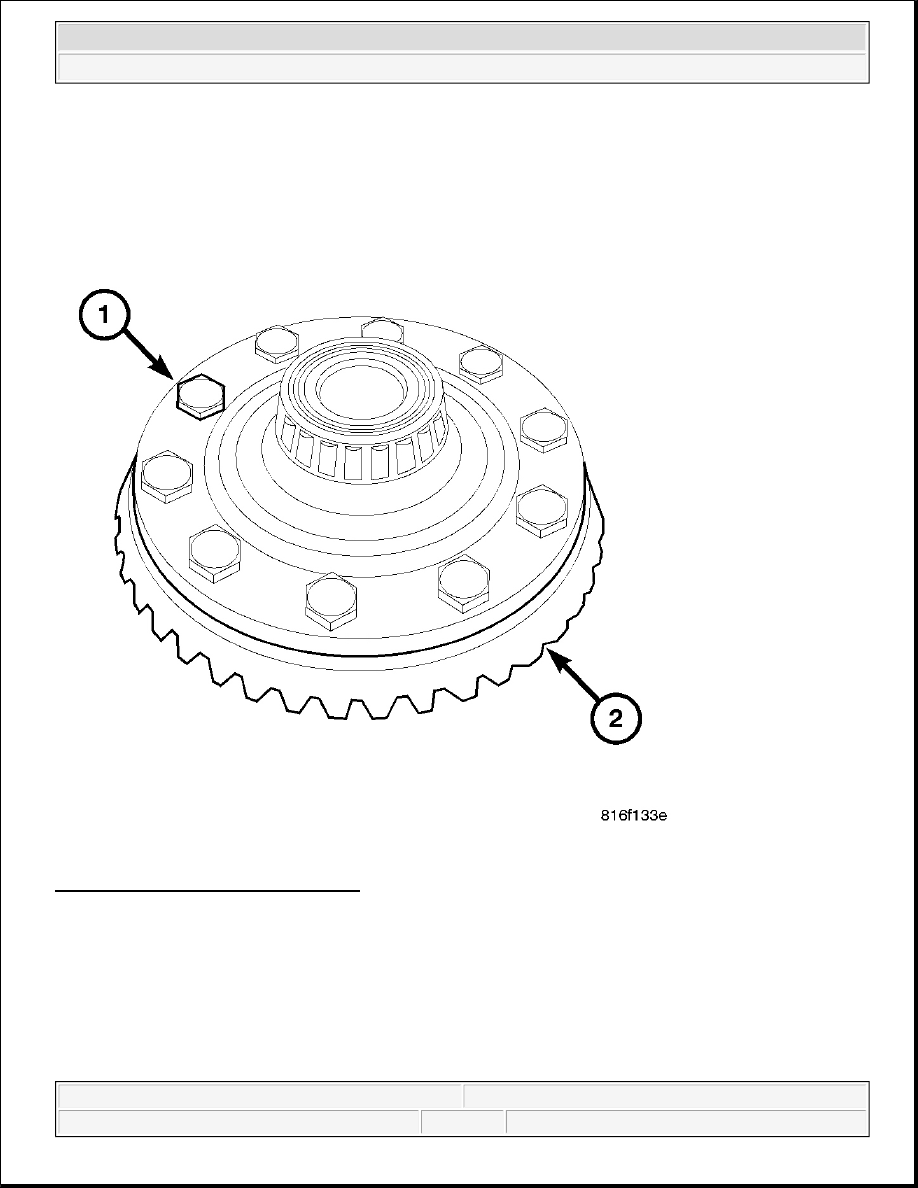

Fig. 187: Identifying Ring Gear & Bolts
Courtesy of CHRYSLER LLC

1. Remove differential from axle housing.

2. Place differential case in a vise with soft jaws.

3. Remove ring gear bolts (1) and tap ring gear (2) off differential case with a dead-blow hammer.

NOTE:

The ring gear and pinion are serviced as a matched set. Never replace ring gear
without replacing the matched pinion gear.



2007 Dodge Nitro R/T

2007 DRIVELINE Differential & Driveline - Nitro

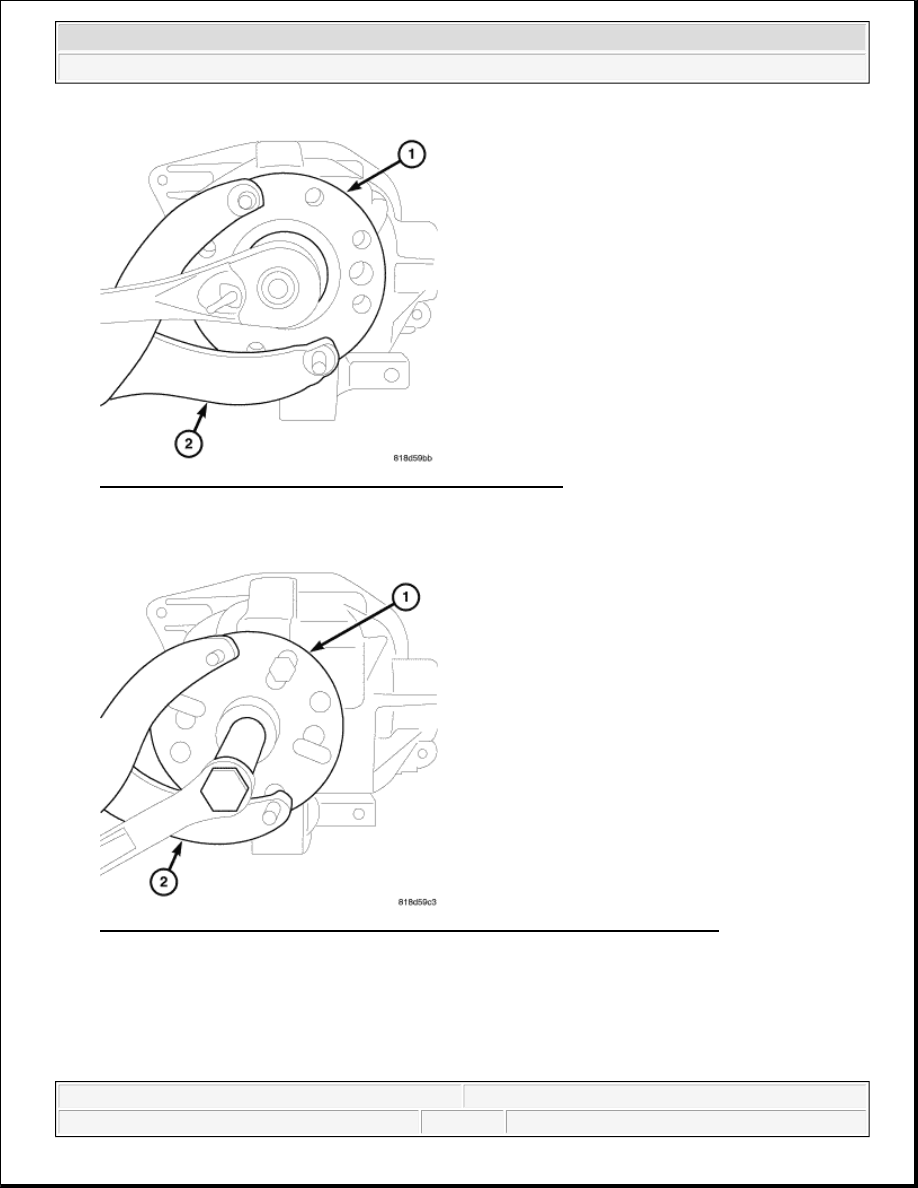

Fig. 188: Holding Pinion Flange With Flange Holder C-3281
Courtesy of CHRYSLER LLC

4. Hold pinion flange (1) with Flange Holder C-3281 (2) and remove pinion nut.

Fig. 189: Removing Pinion Flange With Puller C-452 And Flange Holder C-3281
Courtesy of CHRYSLER LLC

5. Remove pinion flange with Puller C-452 (1) and Flange Holder C-3281 (2).

6. Remove pinion gear from housing with dead-blow hammer.



2007 Dodge Nitro R/T

2007 DRIVELINE Differential & Driveline - Nitro

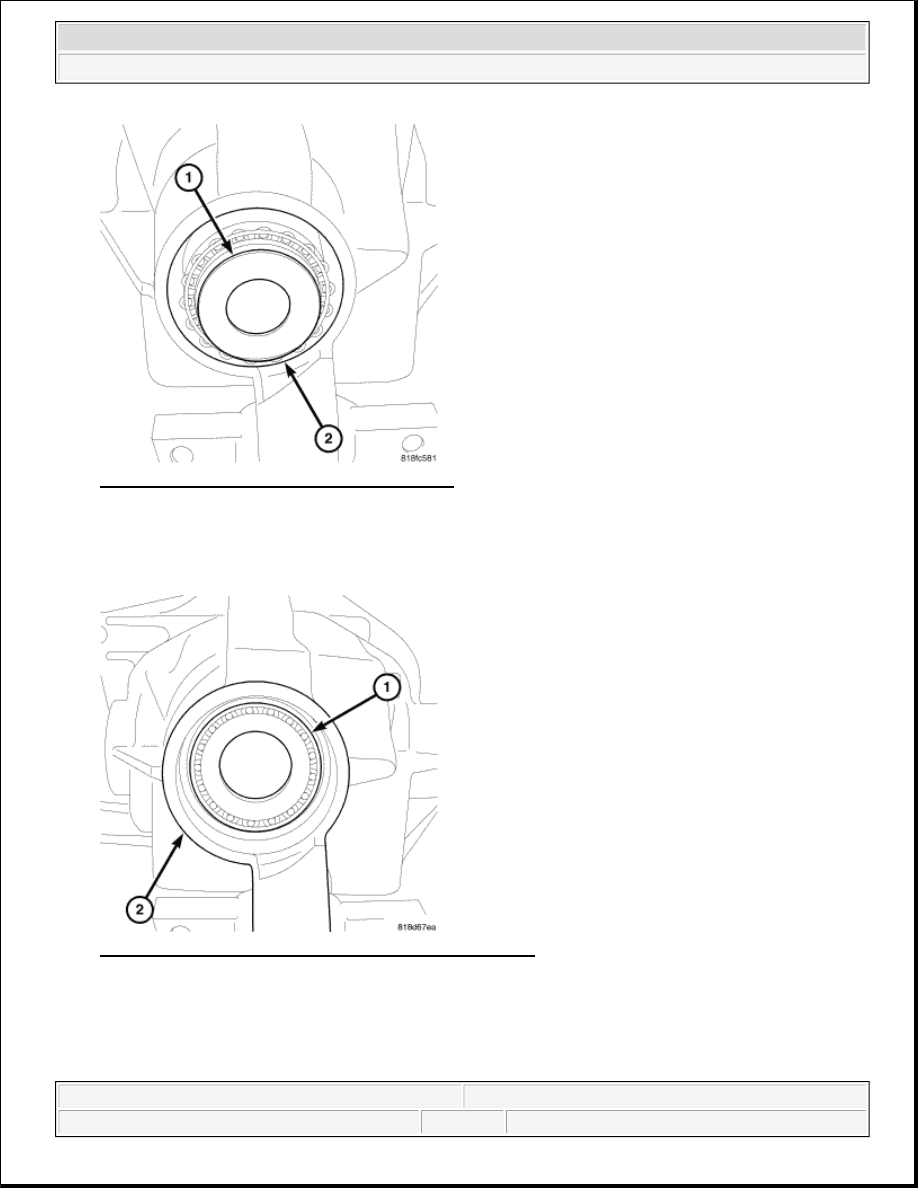

Fig. 190: Removing Oil Slinger From Housing
Courtesy of CHRYSLER LLC

7. Remove pinion seal with seal puller.

8. Remove oil slinger (1) from housing (2).

Fig. 191: Removing Front Pinion Bearing From Housing
Courtesy of CHRYSLER LLC

9. Remove front pinion bearing (1) from housing (2).



2007 Dodge Nitro R/T
