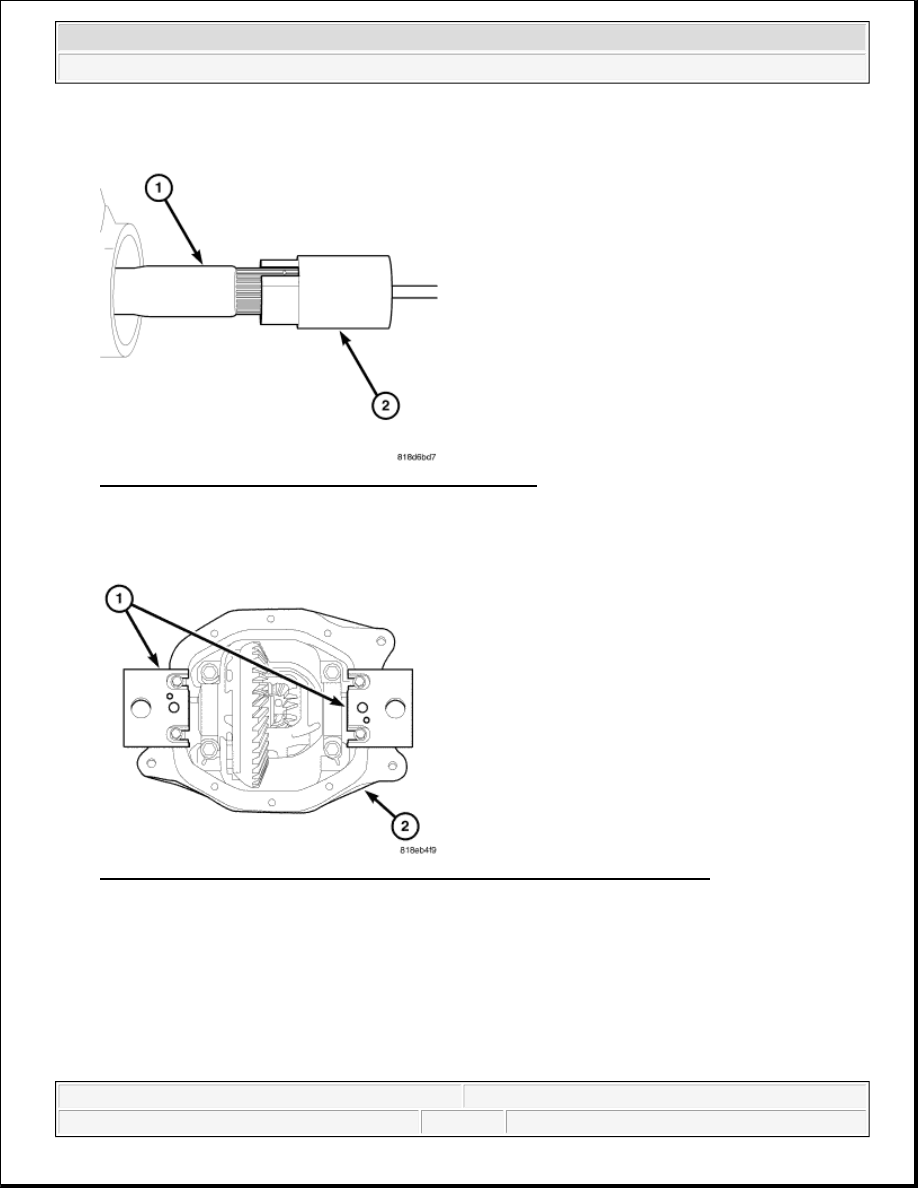

Fig. 170: Identifying Right Axle Shaft & Remover 8420A
Courtesy of CHRYSLER LLC

2. Remove half shafts and remove right axle shaft (1) with Remover 8420A (2) and Slide Hammer C-3752.

Fig. 171: Removing/Installing Spreader Adapters 9959 On Differential Housing
Courtesy of CHRYSLER LLC

3. Mark differential bearing caps for installation reference.

4. Loosen bearing cap bolts.

5. Install Spreader Adapters 9959 (1) on differential housing (2).



2007 Dodge Nitro R/T

2007 DRIVELINE Differential & Driveline - Nitro



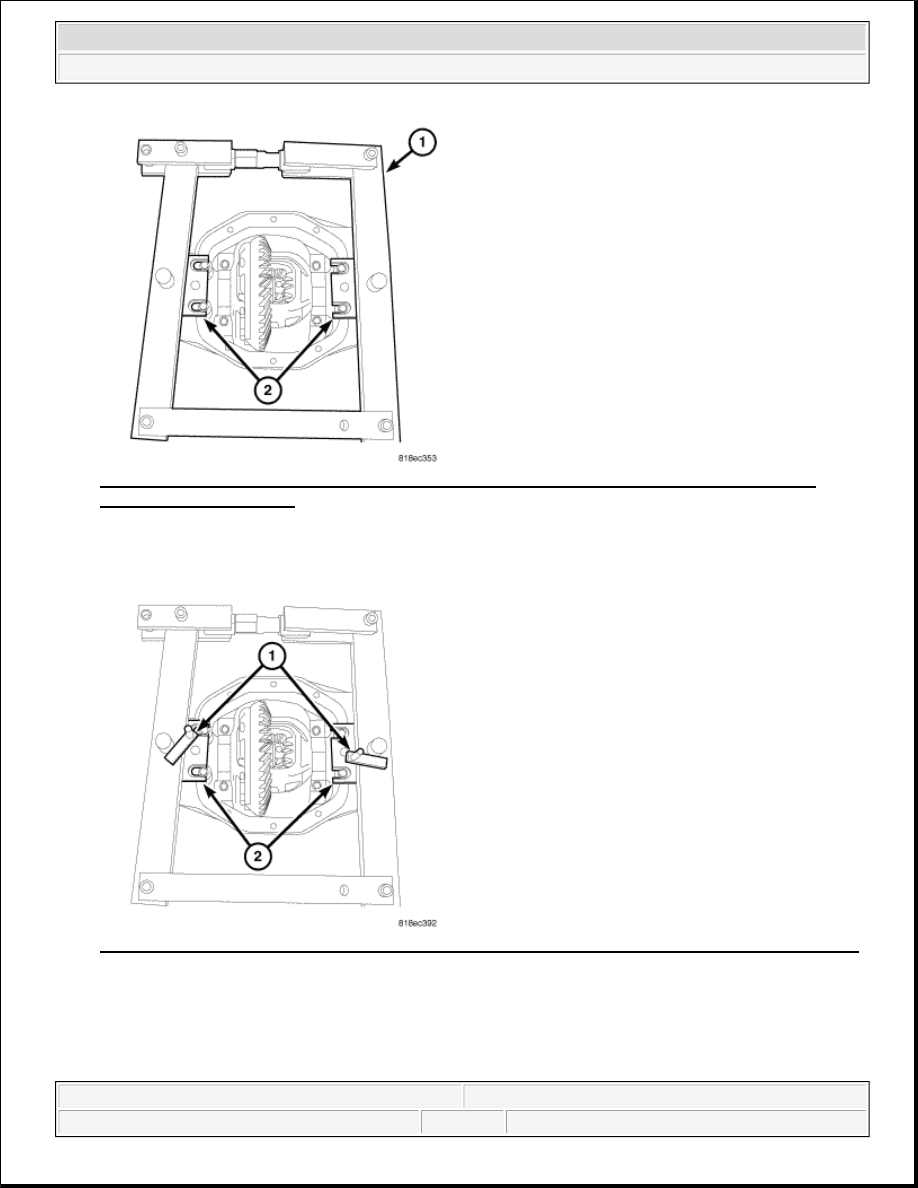

Fig. 172: Installing Spreader W-129-B On Spreader Adapters 9959 And Tightening Spreader
Turnbuckle Finger-Tight
Courtesy of CHRYSLER LLC

6. Install Spreader W-129-B (1) on Spreader Adapters 9959 (2) and tighten spreader turnbuckle finger-tight.

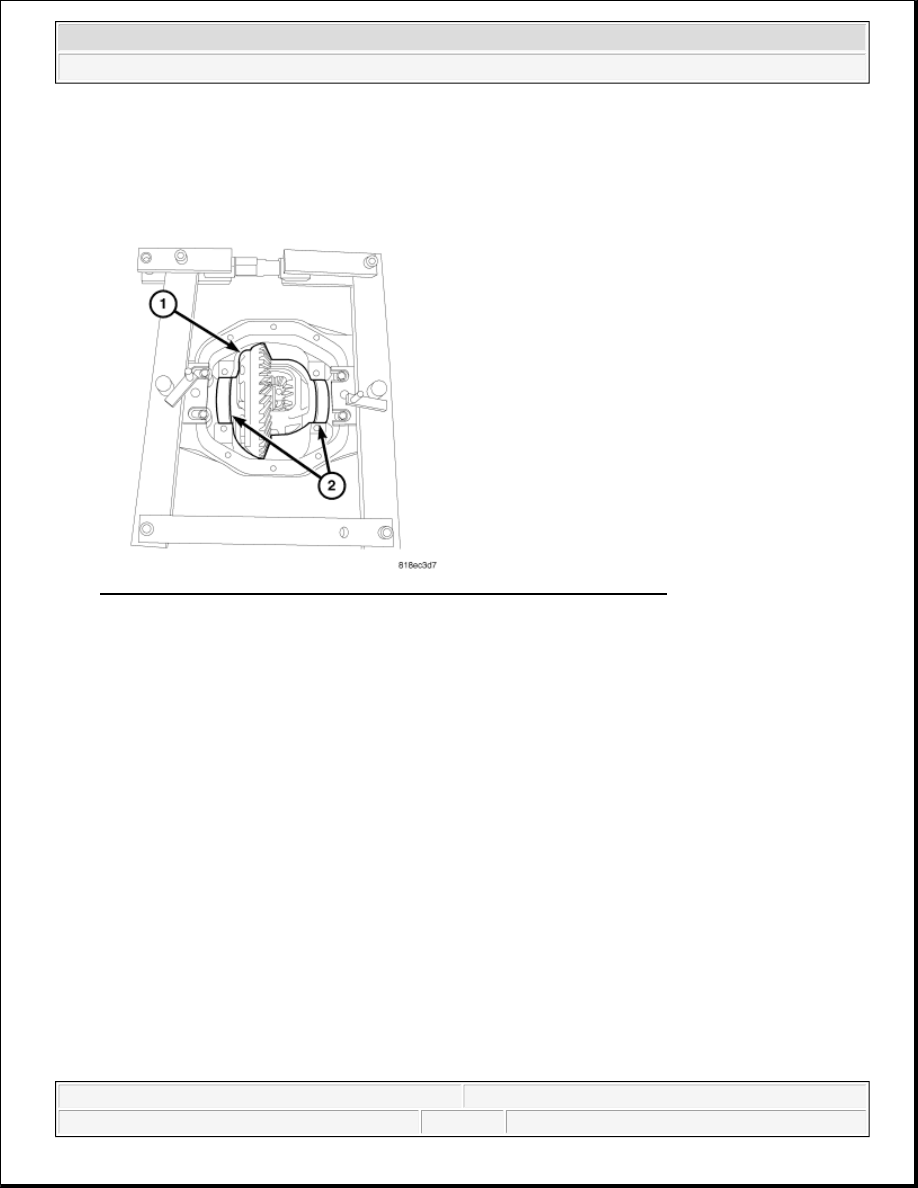

Fig. 173: Installing Spreader Retainers W-129-1 On Spreader Adapters 9959 And Across Spreader
Courtesy of CHRYSLER LLC

7. Install Spreader Retainers W-129-1 (1) on Spreader Adapters 9959 (2) and across spreader.



2007 Dodge Nitro R/T

2007 DRIVELINE Differential & Driveline - Nitro



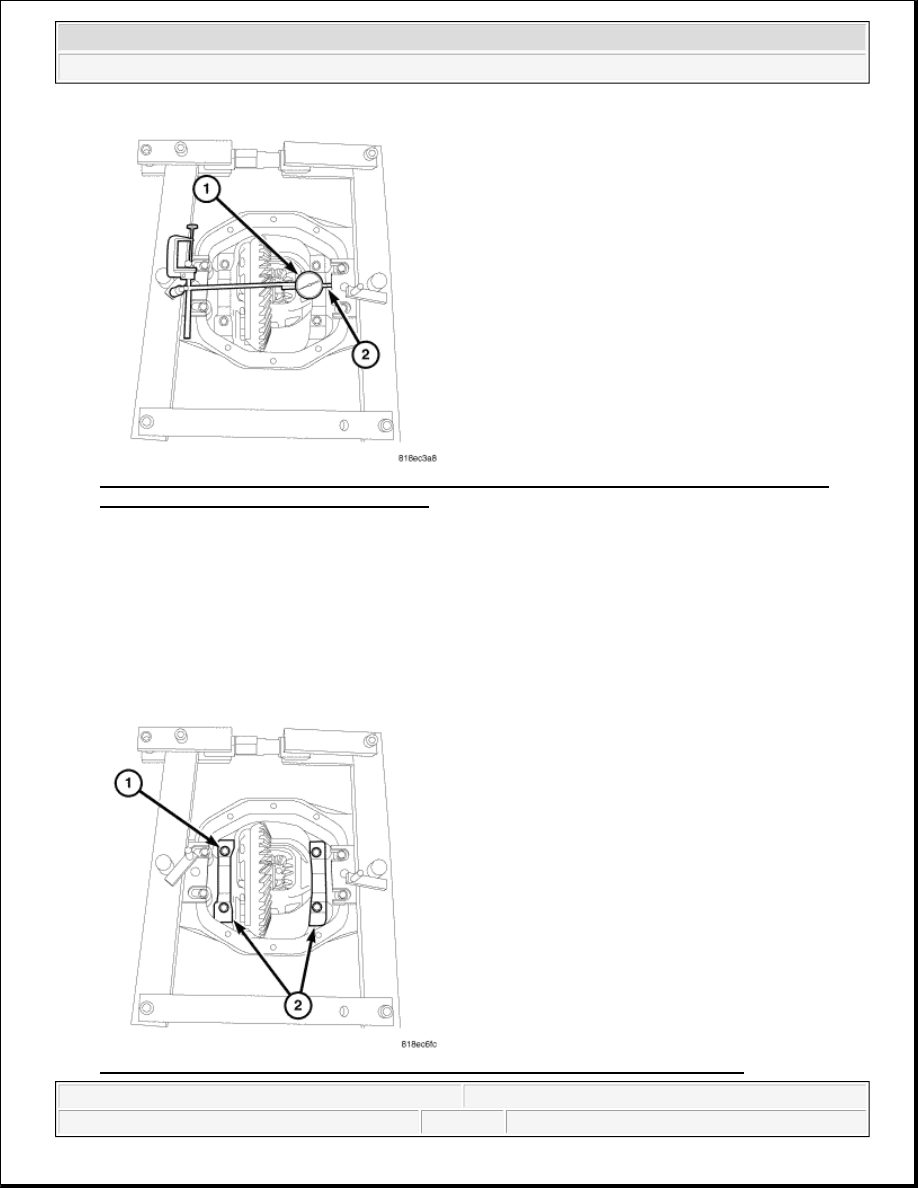

Fig. 174: Attaching Dial Indicator C-3339A To Spreader Retainer Stud And Loading Indicator
Plunger Against Opposite Side Of Housing
Courtesy of CHRYSLER LLC

8. Attach Dial Indicator C-3339A (1) to spreader retainer stud. Load indicator plunger (2) against the

opposite side of the housing and zero the indicator

9. Spread the differential case 0.34 mm (0.013 in).

Fig. 175: Holding Differential Case And Removing Bearing Cap Bolts/Bearing Caps

CAUTION: Never spread the differential housing over 0.34 mm (0.013 in). Failure

to follow these instructions will damage the housing.



2007 Dodge Nitro R/T

2007 DRIVELINE Differential & Driveline - Nitro



Courtesy of CHRYSLER LLC

10. Remove dial indicator.

11. Hold differential case and remove bearing cap bolts (1) and bearing caps (2).

Fig. 176: Removing/Installing Differential Case, Bearing Cups And Shims
Courtesy of CHRYSLER LLC

12. Remove differential case (1), bearing cups (2) and shims from housing.

13. Tag differential bearing cups and shims to indicate location.

14. Remove spreader from housing.

DISASSEMBLY

DIFFERENTIAL
