Dodge Nitro. Manual - part 549

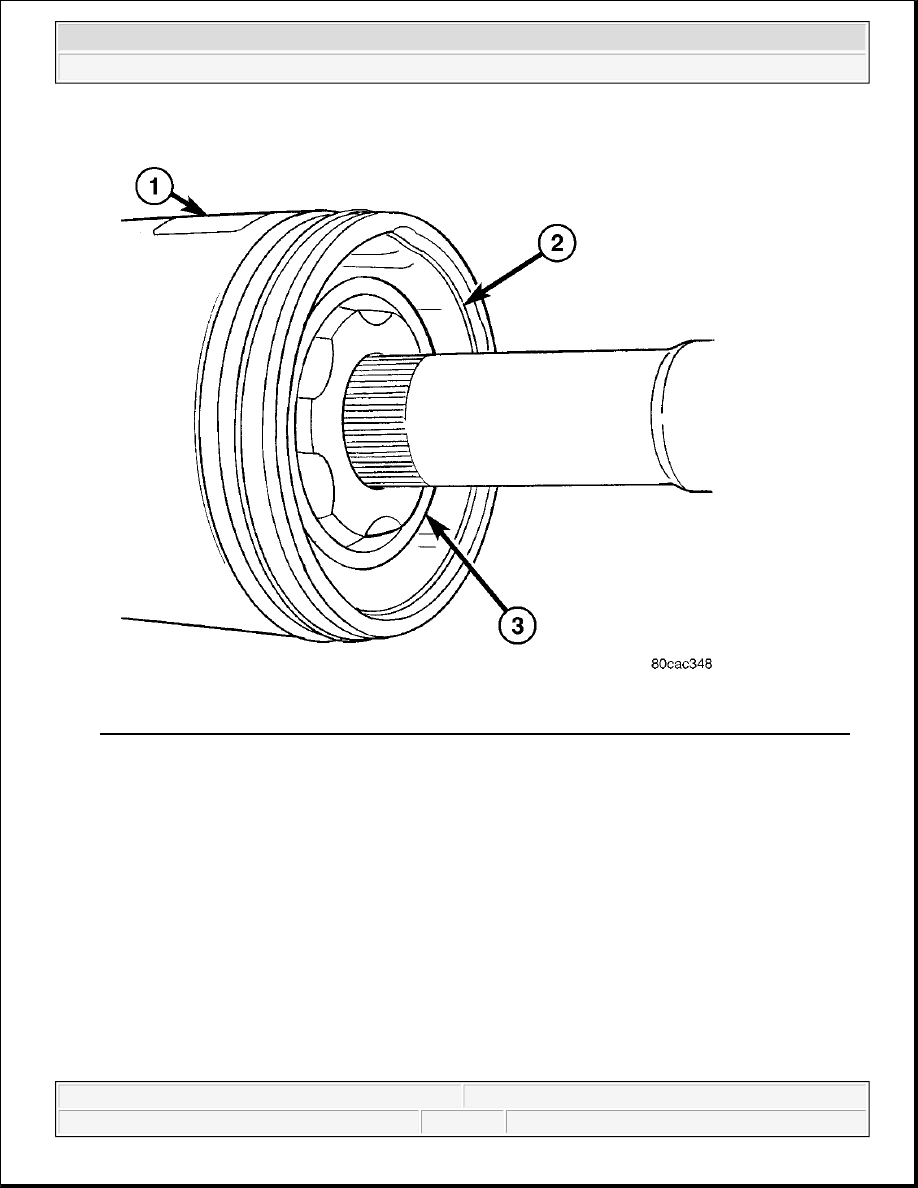

Fig. 49: Removing Lubricant From Housing To Expose C/V Snap Ring And Removing Snap Ring
Courtesy of CHRYSLER LLC

4. Remove lubricant from housing (1) to expose the C/V snap ring (2) and remove snap ring.



2007 Dodge Nitro R/T

2007 DRIVELINE Differential & Driveline - Nitro



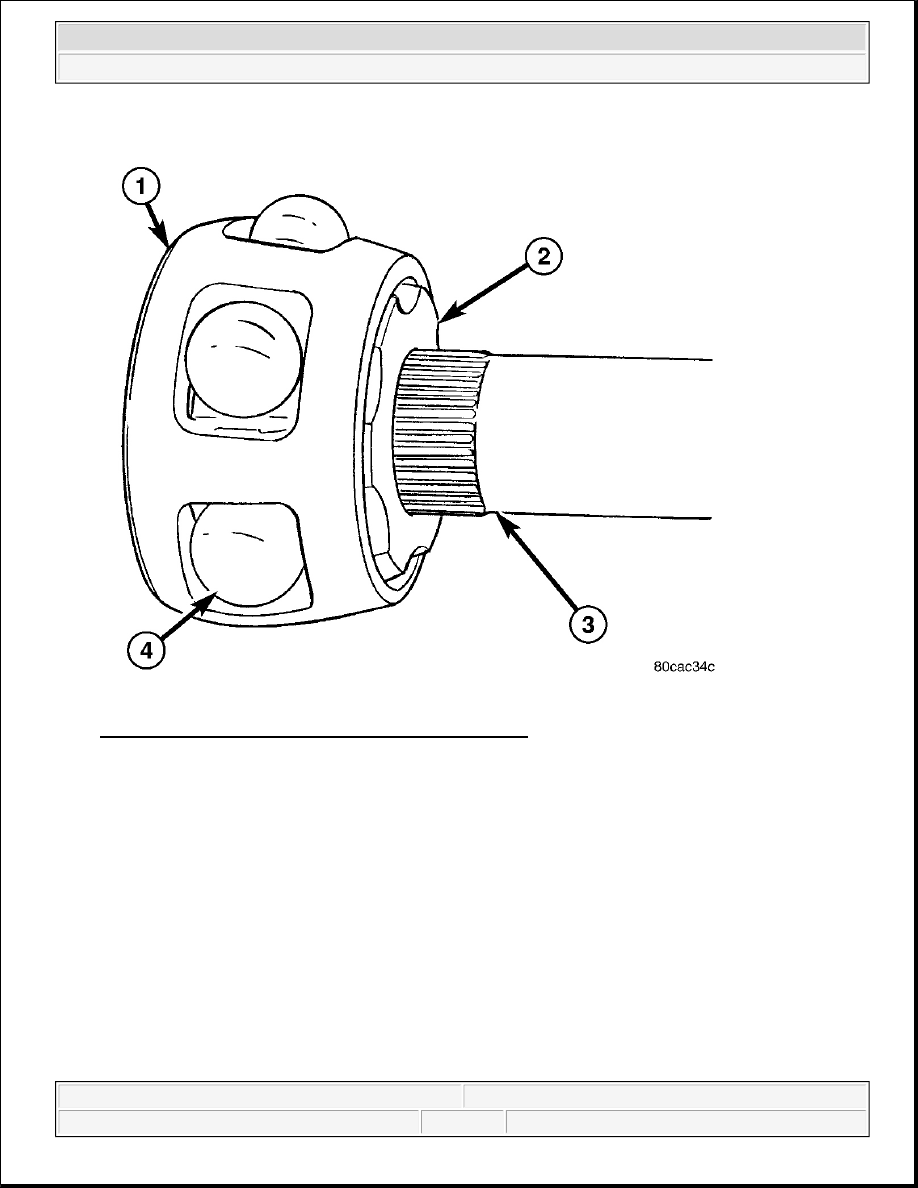

Fig. 50: Identifying Cage, Inner Race, Shaft & Bearings
Courtesy of CHRYSLER LLC

5. Remove bearings (4) from the cage (1).

6. Rotate cage (1) 30° and slide cage off the inner race (2) and down the shaft (3).



2007 Dodge Nitro R/T

2007 DRIVELINE Differential & Driveline - Nitro



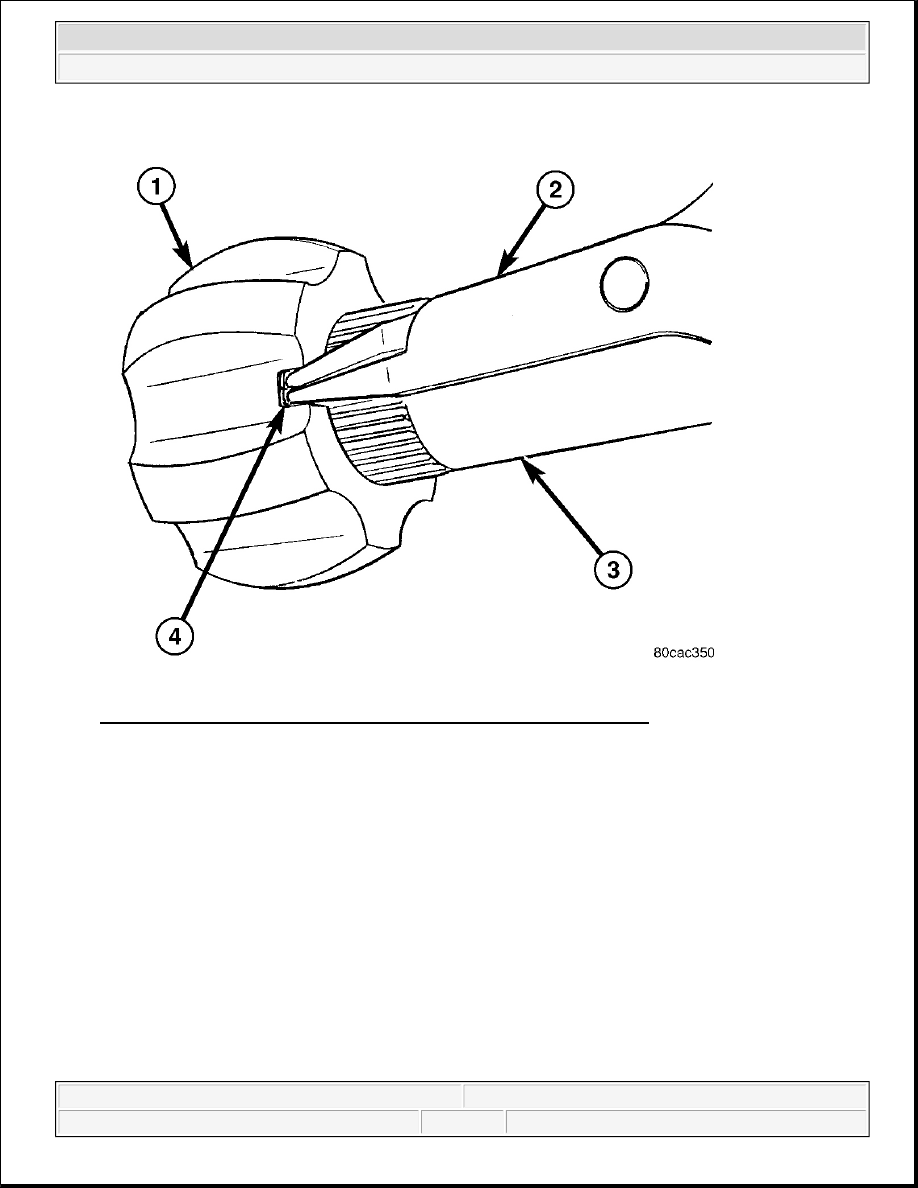

Fig. 51: Removing Spread Inner Race Snap Ring And Race From Shaft
Courtesy of CHRYSLER LLC

7. Remove spread inner race (1) snap ring (4) and remove race (1) from the shaft (3).

8. Remove boot from the shaft and discard.



2007 Dodge Nitro R/T

2007 DRIVELINE Differential & Driveline - Nitro



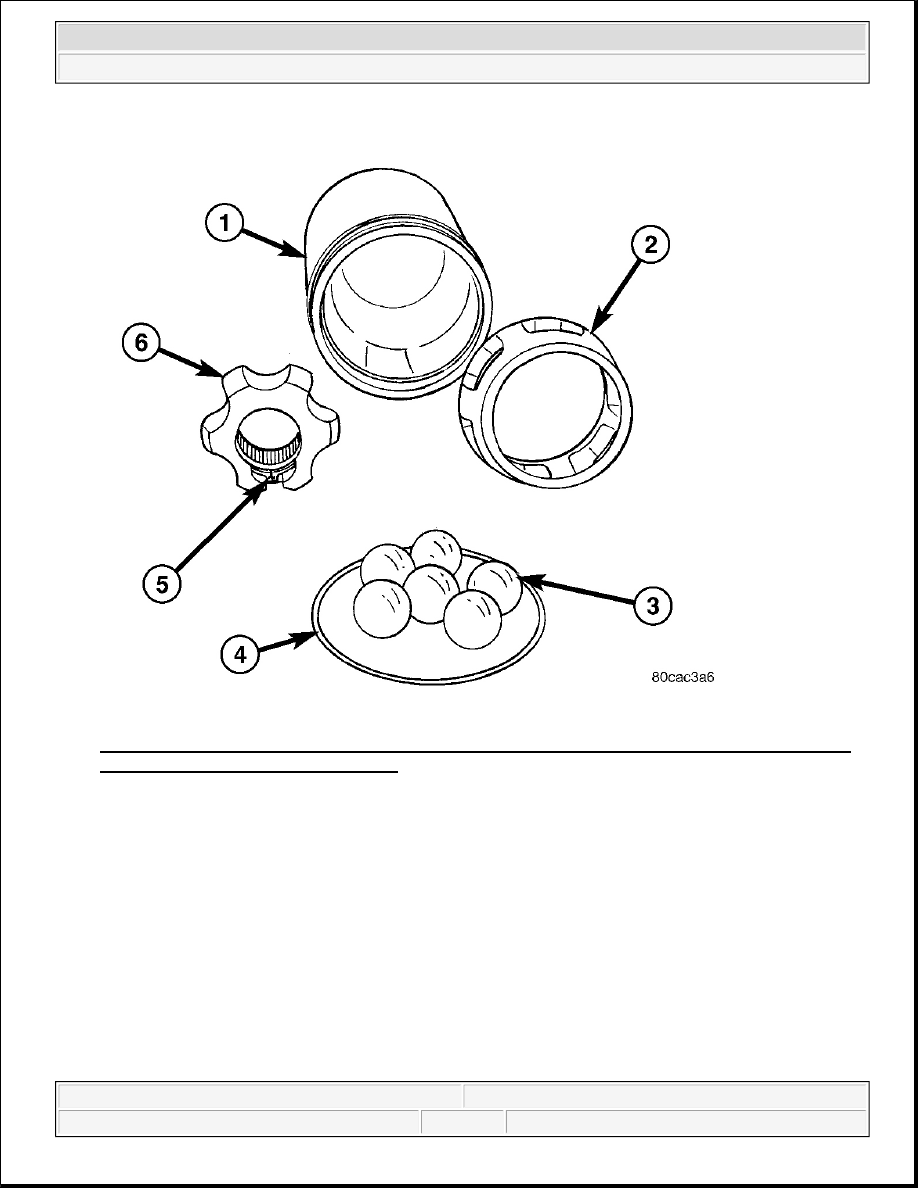

Fig. 52: Cleaning/Inspecting Housing, Cage, Bearings, Housing Snap-Ring, Inner Race Snap-Ring
And Inner Race For Wear Or Damage
Courtesy of CHRYSLER LLC

9. Clean and inspect housing (1), cage (2), bearings (3), housing snap-ring (4), inner race snap-ring (5) and

inner race (6) for wear or damage.

INSTALLATION

C/V JOINT-INNER
