10. The lower part of radiator is equipped with two alignment dowel pins (2). They are located on the bottom

of radiator tank and fit into rubber grommets. These rubber grommets are pressed into the radiator lower
crossmember.

11. Gently lift up and remove radiator from vehicle. Be careful not to scrape the radiator fins against any

other component. Also be careful not to disturb the air conditioning condenser (if equipped).

CLEANING

CLEANING

Clean radiator fins With the engine cold, apply cold water and compressed air to the back (engine side) of the
radiator to flush the radiator and/or A/C condenser of debris.

INSPECTION

INSPECTION

The radiator cooling fins should be checked for damage or deterioration. Inspect cooling fins to make sure they
are not bent or crushed, these areas result in reduced heat exchange causing the cooling system to operate at
higher temperatures. Inspect the plastic end tanks for cracks, damage or leaks.

Inspect the radiator neck for damage or distortion.

INSTALLATION

INSTALLATION

WARNING:

The air conditioning system (if equipped) is under a constant
pressure even with the engine off. Refer to refrigerant warnings in,
heating and air conditioning before handling any air conditioning
component.

NOTE:

The radiator and radiator cooling fan can be removed as an assembly. It is
not necessary to remove the cooling fan before removing or installing the
radiator.



2007 Dodge Nitro R/T

2007 ENGINE Cooling - Nitro



Fig. 74: Identifying Air Dam, Radiator, Air Dam, A/C Condenser & Air Seal
Courtesy of CHRYSLER LLC

1 - AIR DAM
2 - RADIATOR
3 - AIR DAM
4 - A/C CONDENSER
5 - AIR SEAL

CAUTION: Before installing the radiator or A/C condenser, be sure the radiator-to-

body and radiator-to-A/C condenser rubber air seals are properly fastened
to their original positions. These are used at the top, bottom and sides of
the radiator and A/C condenser. To prevent overheating, these seals must



2007 Dodge Nitro R/T

2007 ENGINE Cooling - Nitro



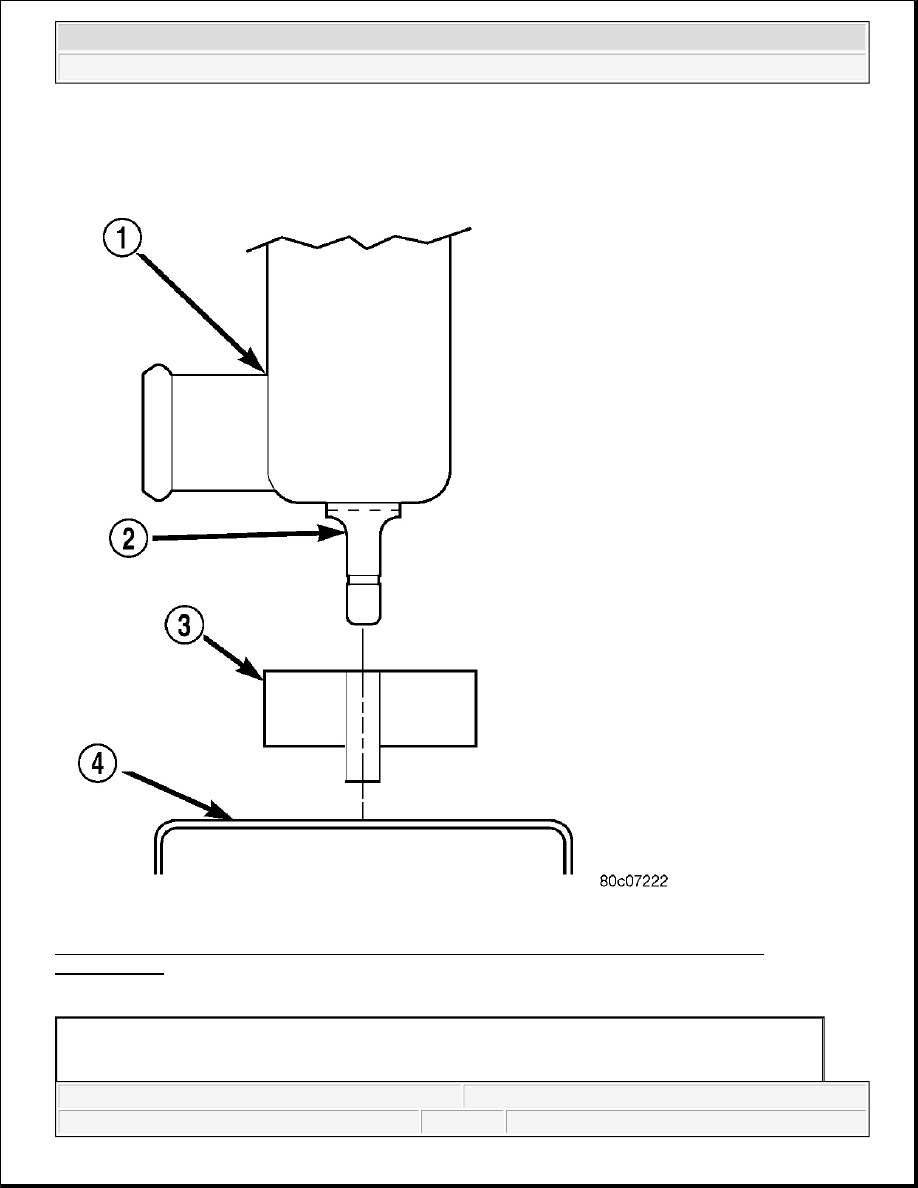

Fig. 75: Identifying Radiator, Alignment Dowel, Radiator Lower Isolator & Radiator Lower
Crossmember
Courtesy of CHRYSLER LLC

be installed to their original positions.

1 - RADIATOR
2 - ALIGNMENT DOWEL



2007 Dodge Nitro R/T

2007 ENGINE Cooling - Nitro



1. Gently lower the radiator and fan shroud into the vehicle. Guide the two radiator alignment dowels into

the rubber grommets located in lower radiator crossmember.

2. Connect the radiator upper and lower hoses and hose clamps to radiator.

3. Install coolant reserve/overflow tank hose at radiator.

4. Install both radiator mounting bolts.

5. Reconnect the electric cooling fan.

6. Install the grille. Refer to INSTALLATION .

7. Reinstall the cooling fan to the engine.

8. Rotate the fan blades (by hand) and check for interference at fan shroud.

9. Refill cooling system. See STANDARD PROCEDURE.

10. Connect battery cable at battery.

11. Start and warm engine. Check for leaks.

CAP-RADIATOR PRESSURE

DESCRIPTION

DESCRIPTION

3 - RADIATOR LOWER ISOLATOR
4 - RADIATOR LOWER CROSSMEMBER

CAUTION: The tangs on the hose clamps must be positioned straight down.
