Dodge Nitro. Manual - part 369

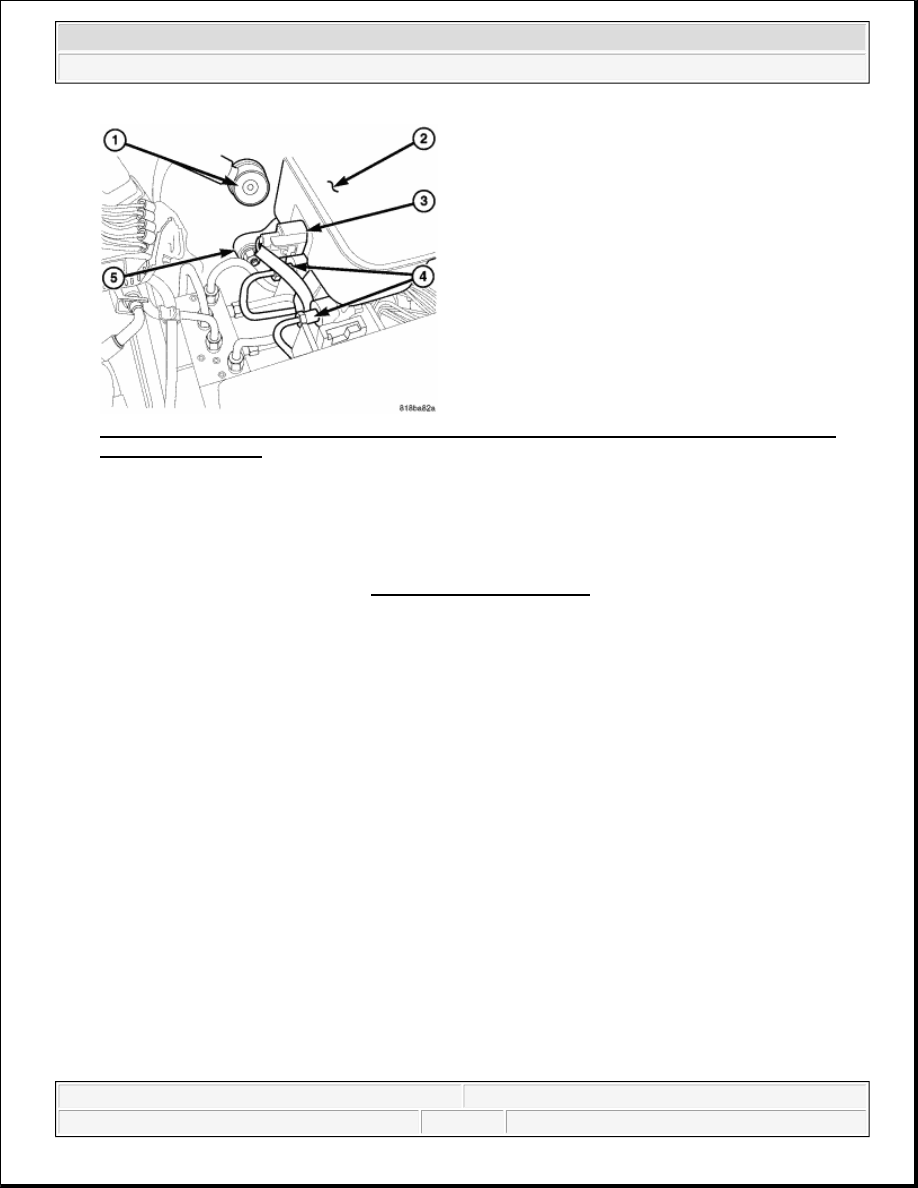

Fig. 68: Identifying Reservoir, Fluid Level Electrical Connector, Brake Lines, Mounting Nuts &
Booster Check Valve
Courtesy of CHRYSLER LLC

3. Install mounting nuts (5) and tighten to 17 N.m (151 in. lbs.).

4. Connect the brake lines (4) to the master cylinder and tighten to 19 N.m (168 in. lbs.).

5. Connect fluid level electrical connector (3) to the reservoir (2).

6. Fill and bleed base brake system, see STANDARD PROCEDURE.

FLUID

DESCRIPTION

BRAKE FLUID

The brake fluid used in this vehicle must conform to DOT 3 specifications and SAE J1703 standards. No other
type of brake fluid is recommended or approved for usage in the vehicle brake system. Use only Mopar brake
fluid or an equivalent from a tightly sealed container.

STANDARD PROCEDURE

BRAKE FLUID LEVEL

CAUTION: Never use reclaimed brake fluid or fluid from a container which has been

left open. An open container of brake fluid will absorb moisture from the
air and contaminate the fluid.

CAUTION: Never use any type of a petroleum-based fluid in the brake hydraulic

system. Use of such type fluids will result in seal damage of the vehicle
brake hydraulic system causing a failure of the vehicle brake system.
Petroleum based fluids would be items such as engine oil, transmission
fluid, power steering fluid, etc.



2007 Dodge Nitro R/T

2007 BRAKES Base - Service Information - Nitro



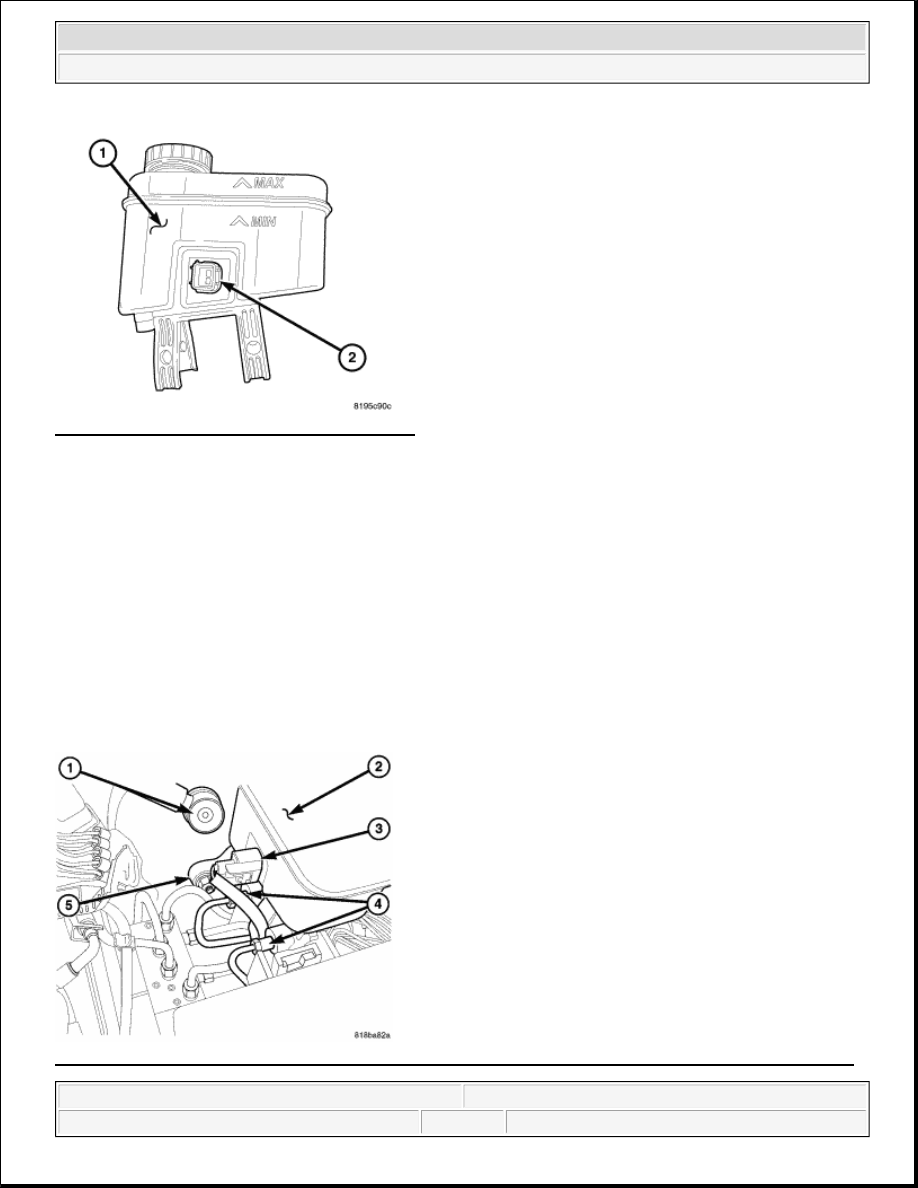

Fig. 69: Identifying Master Cylinder Reservoir
Courtesy of CHRYSLER LLC

Always clean the master cylinder reservoir and caps before checking fluid level. If not cleaned, dirt could enter
the fluid.

The fluid fill level is indicated on the side of the master cylinder reservoir (1).

The correct fluid level is to the MAX indicator on the side of the reservoir. If necessary, add fluid to the proper
level.

FLUID RESERVOIR

REMOVAL

RESERVOIR

Fig. 70: Identifying Reservoir, Fluid Level Electrical Connector, Brake Lines, Mounting Nuts & Booster
Check Valve



2007 Dodge Nitro R/T

2007 BRAKES Base - Service Information - Nitro



Courtesy of CHRYSLER LLC

1. Install prop rod on brake pedal to keep pressure on the brake system.

2. Remove reservoir cap and siphon fluid into drain container.

3. Remove the electrical connector (3) from the fluid level switch in the reservoir (2).

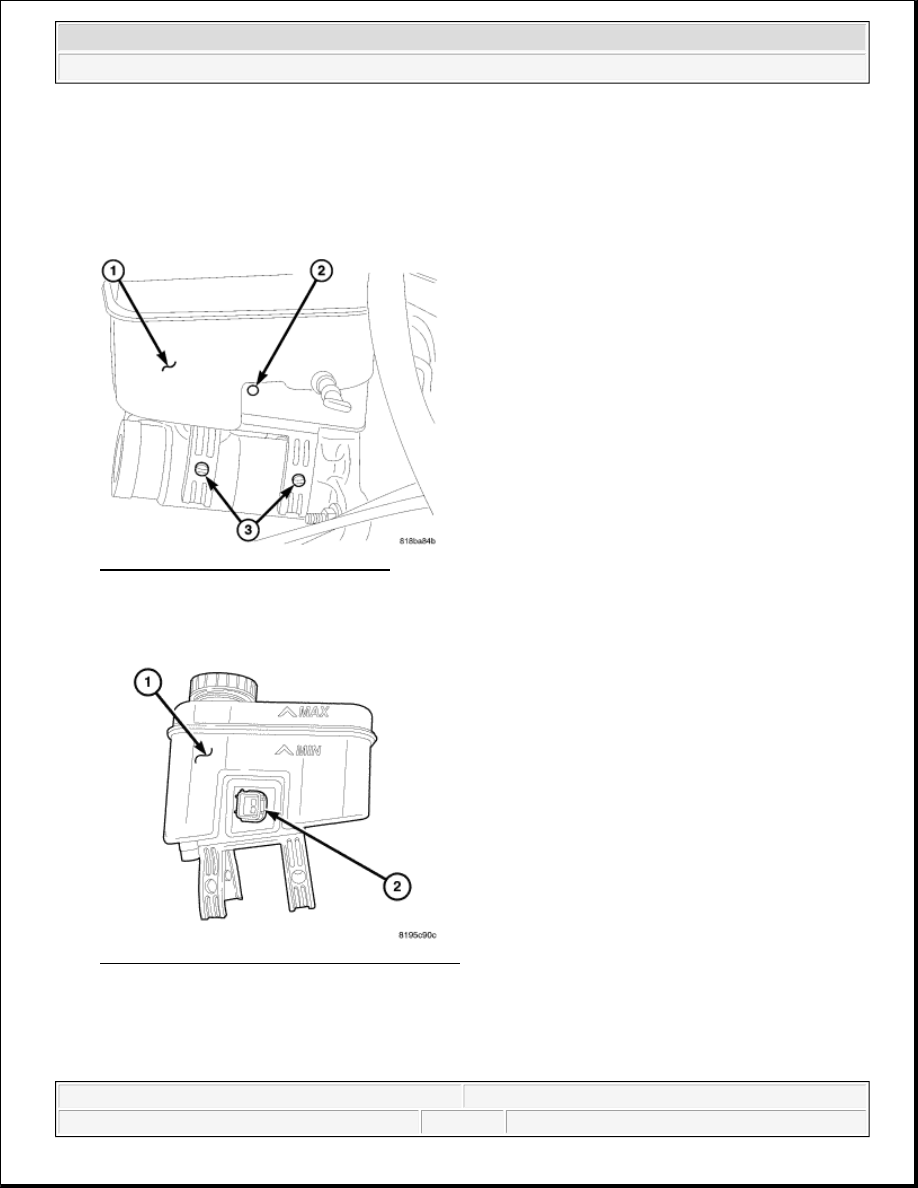

Fig. 71: Identifying Reservoir & Tabs
Courtesy of CHRYSLER LLC

4. Remove the reservoir (1) from the master cylinder by pulling the four tabs (3) outward to release.

Fig. 72: Identifying Master Cylinder Reservoir
Courtesy of CHRYSLER LLC

5. Remove the reservoir (1) from the master cylinder by pulling upwards.

6. If replacing the reservoir (1) remove the fluid level sensor (2) by squeezing the tabs together while pulling

on the sensor (2).



2007 Dodge Nitro R/T

2007 BRAKES Base - Service Information - Nitro



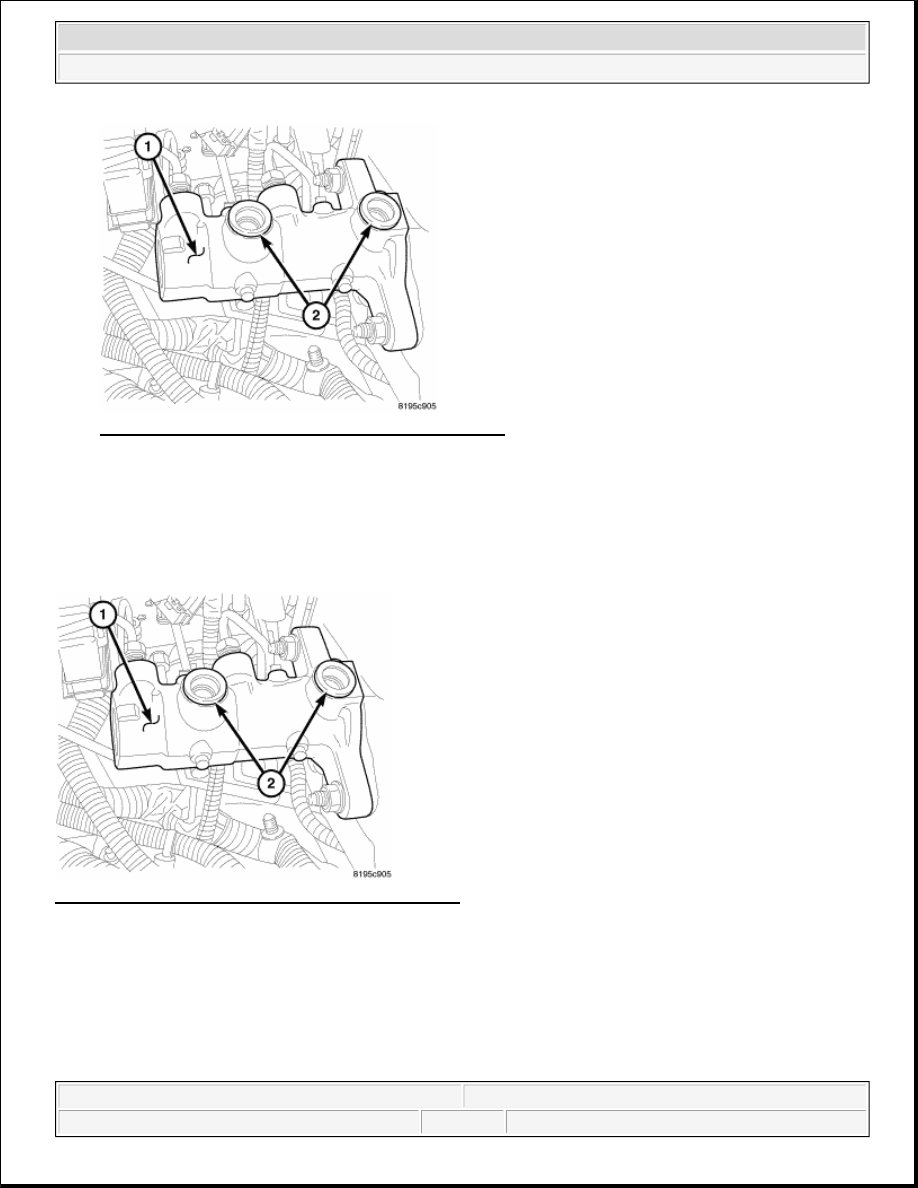

Fig. 73: Identifying Old Grommets & Cylinder Body
Courtesy of CHRYSLER LLC

7. Remove old grommets (2) from cylinder body (1).

INSTALLATION

RESERVOIR

Fig. 74: Identifying Old Grommets & Cylinder Body
Courtesy of CHRYSLER LLC

1. Lubricate new grommets (2) with clean brake fluid and Install new grommets (2) onto reservoir outlets

CAUTION: Do not use any type of tool to install the grommets (2). Tools may cut, or

tear the grommets creating a leak problem after installation. Install the
grommets using finger pressure only and insure that the grommets are
properly seated and checked for leaks after installation.
