Fig. 43: Brake Pedal
Courtesy of CHRYSLER LLC

A suspended-type brake pedal is used, the pedal pivots on a shaft mounted in the steering column support
bracket. The bracket is attached to the dash panel.

OPERATION

BRAKE PEDAL

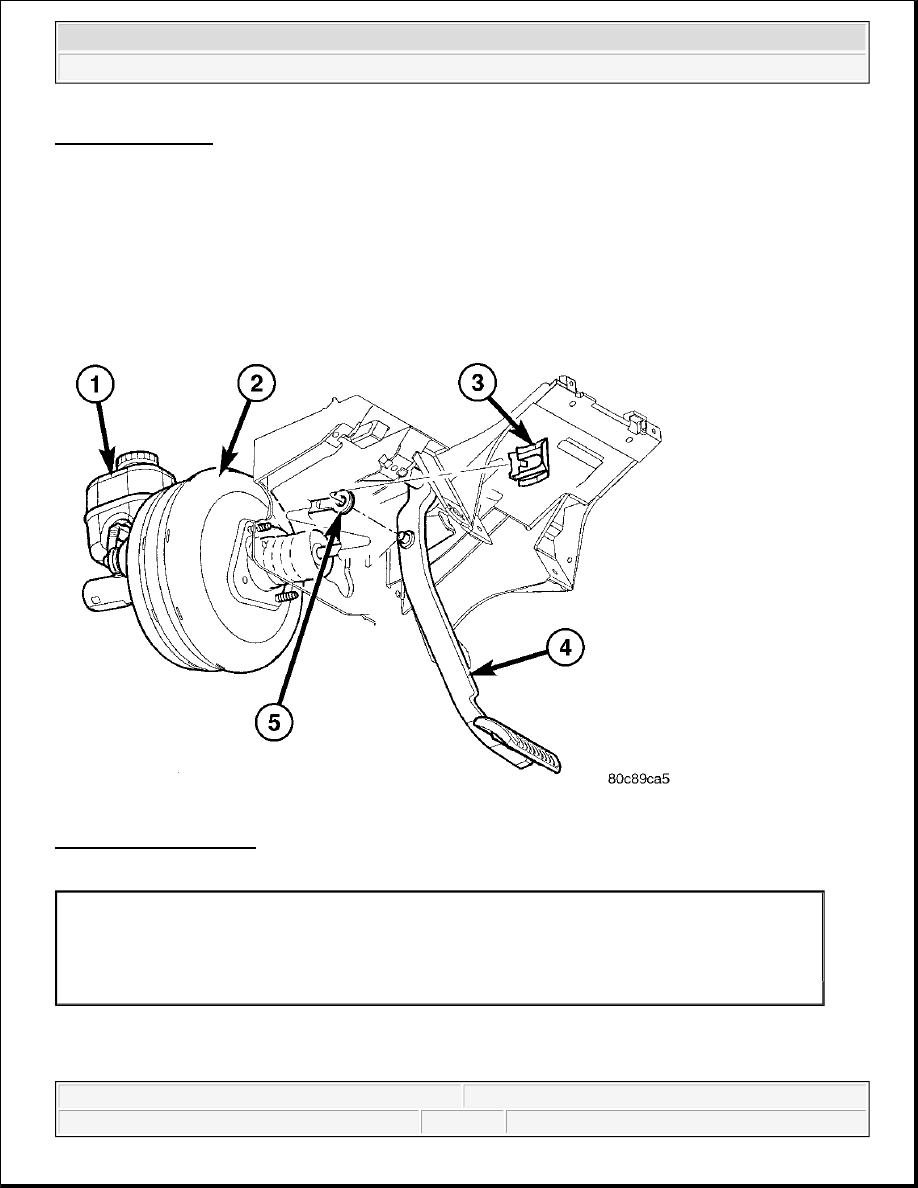

Fig. 44: Booster Push Rod
Courtesy of CHRYSLER LLC

The brake pedal (4) is attached to the booster push rod (5). When the pedal is depressed, the primary booster
push rod (5) is depressed which moves the booster secondary rod. The booster secondary rod depresses the

1 - MASTER CYLINDER ASSEMBLY
2 - BRAKE BOOSTER
3 - CLIP
4 - BRAKE PEDAL
5 - BOOSTER ROD



2007 Dodge Nitro R/T

2007 BRAKES Base - Service Information - Nitro



master cylinder piston (1). See Fig. 44.

REMOVAL

BRAKE PEDAL

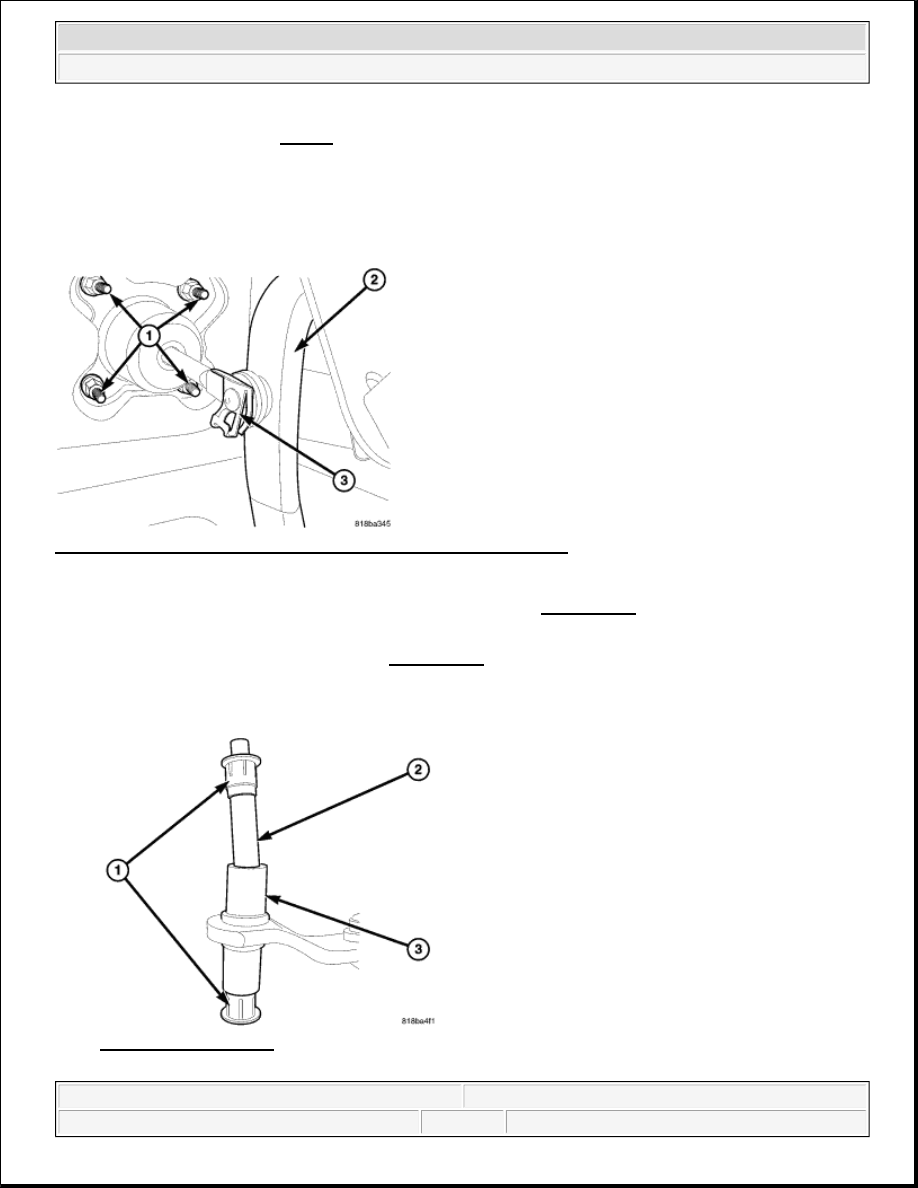

Fig. 45: Identifying Retainer Clip, Pedal & Booster Mounting Nuts
Courtesy of CHRYSLER LLC

1. Remove the knee blocker under the steering column, refer to REMOVAL .

2. Remove the retainer clip (3) securing the booster push rod to pedal (2).

3. Remove the brake lamp switch, refer to REMOVAL .

4. Remove the two nuts securing the pedal to the column bracket.

5. Remove the pedal from the vehicle.

Fig. 46: Pedal Bushing
Courtesy of CHRYSLER LLC



2007 Dodge Nitro R/T

2007 BRAKES Base - Service Information - Nitro



6. Remove the pedal bushing if necessary.

INSTALLATION

BRAKE PEDAL

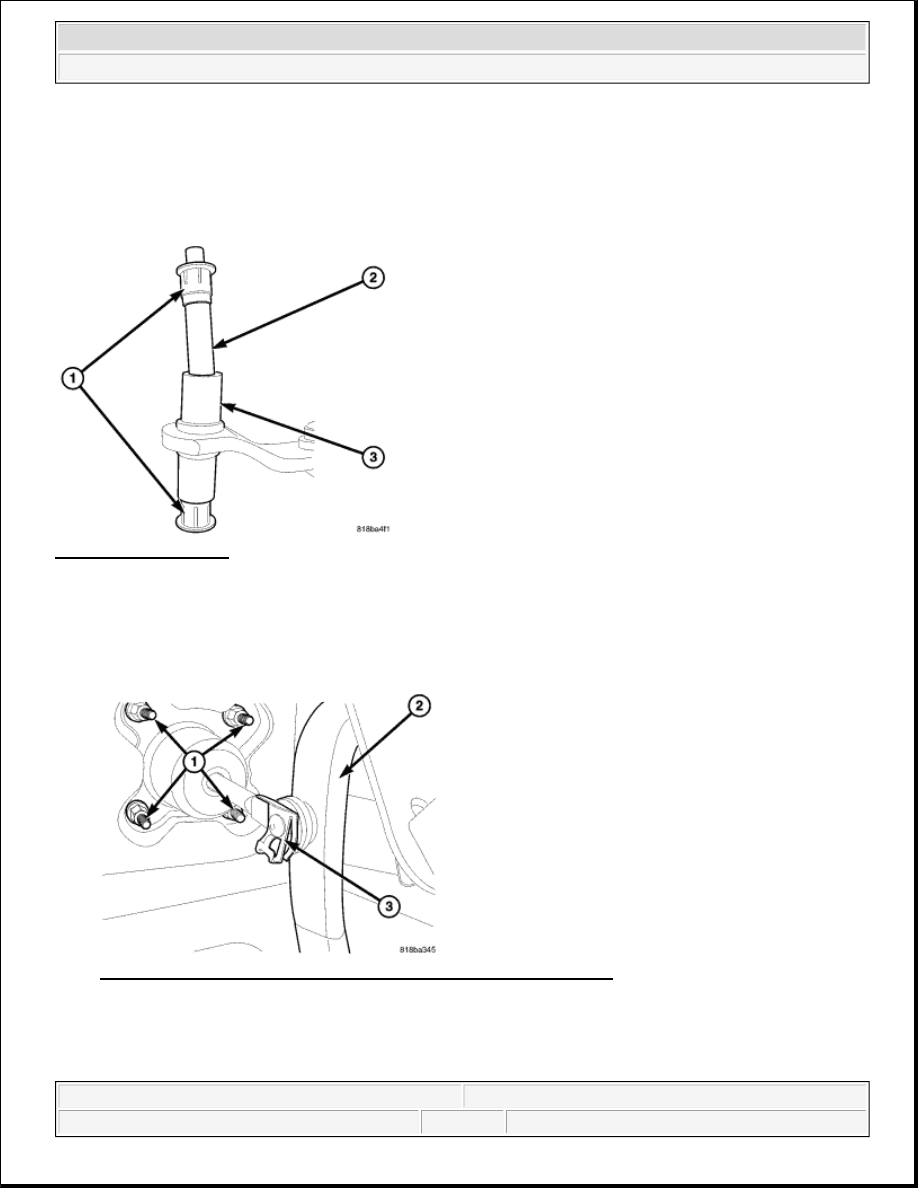

Fig. 47: Pedal Bushing
Courtesy of CHRYSLER LLC

1. Lubricate the brake pedal pin and bushings with Mopar multi-mileage grease.

2. Install the pedal bushings if removed.

Fig. 48: Identifying Retainer Clip, Pedal & Booster Mounting Nuts
Courtesy of CHRYSLER LLC

3. Install the pedal into the vehicle.

4. Install the nuts securing the pedal to the column bracket.



2007 Dodge Nitro R/T

2007 BRAKES Base - Service Information - Nitro



5. Tighten the nuts to 22.6 N.m (200 in. lbs.).

6. Install the booster push rod on the pedal pin and install a new retainer clip (3).

7. Install the brake lamp switch, refer to INSTALLATION .

8. Install the knee blocker, refer to INSTALLATION .

POWER BRAKE BOOSTER

DESCRIPTION

POWER BRAKE BOOSTER

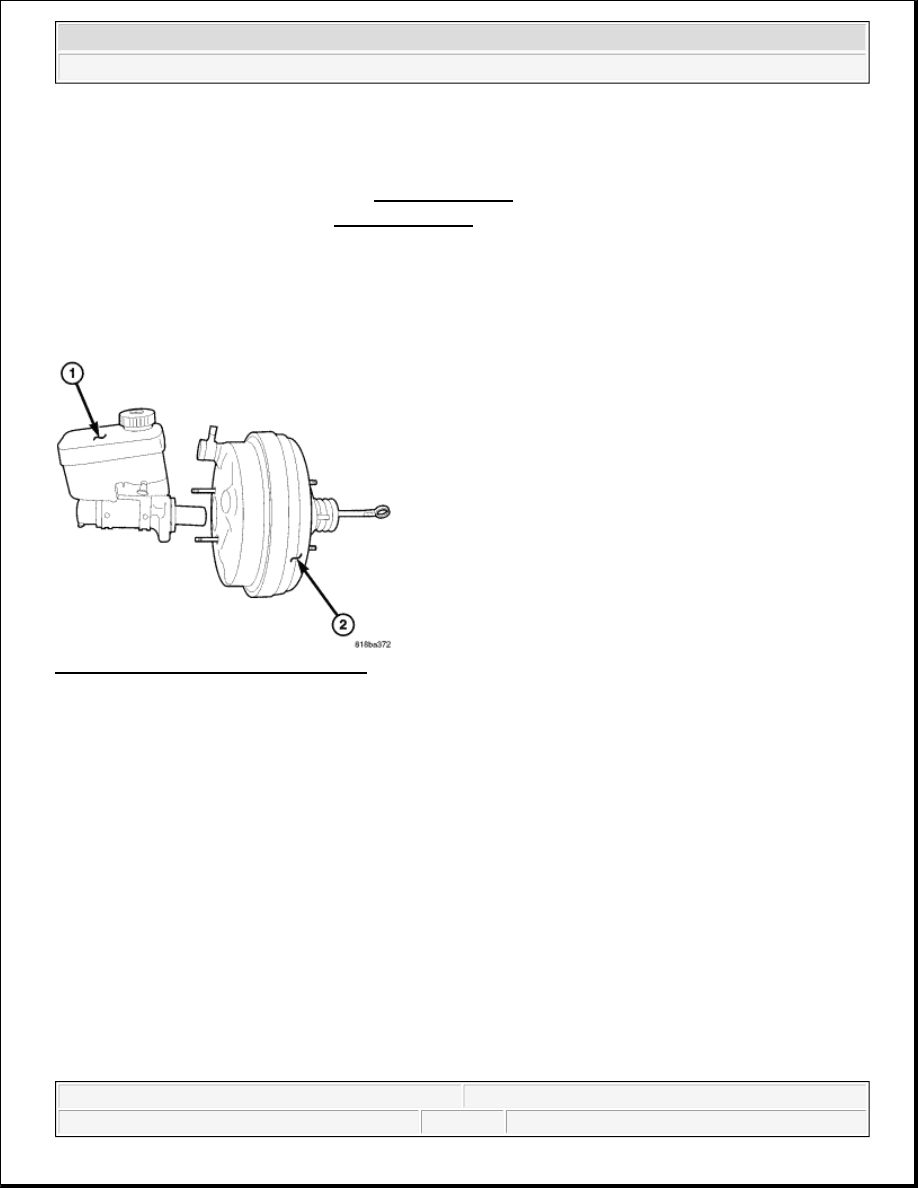

Fig. 49: Brake Master/Booster Assembly
Courtesy of CHRYSLER LLC

The booster assembly consists of a housing divided into separate chambers by two internal diaphragms. The
outer edge of each diaphragm is attached to the booster housing. The diaphragms are connected to the booster
primary push rod.

Two push rods are used in the booster. The primary push rod connects the booster to the brake pedal. The
secondary push rod connects the booster (2) to the master cylinder (1) to stroke the cylinder pistons.

The booster assembly is of the tie-bar design. This means the structural support of the assembly is through the
tie-bars, whose ends protrude through the booster shell. One end is the master cylinder mounting stud and the
other end is the booster mounting stud. The booster assembly (with properly functioning check valve installed)
may not have a good vacuum seal unless the booster is installed on the dash panel mounting bracket with master
cylinder and booster mounting nuts properly torqued.

OPERATION

POWER BRAKE BOOSTER
