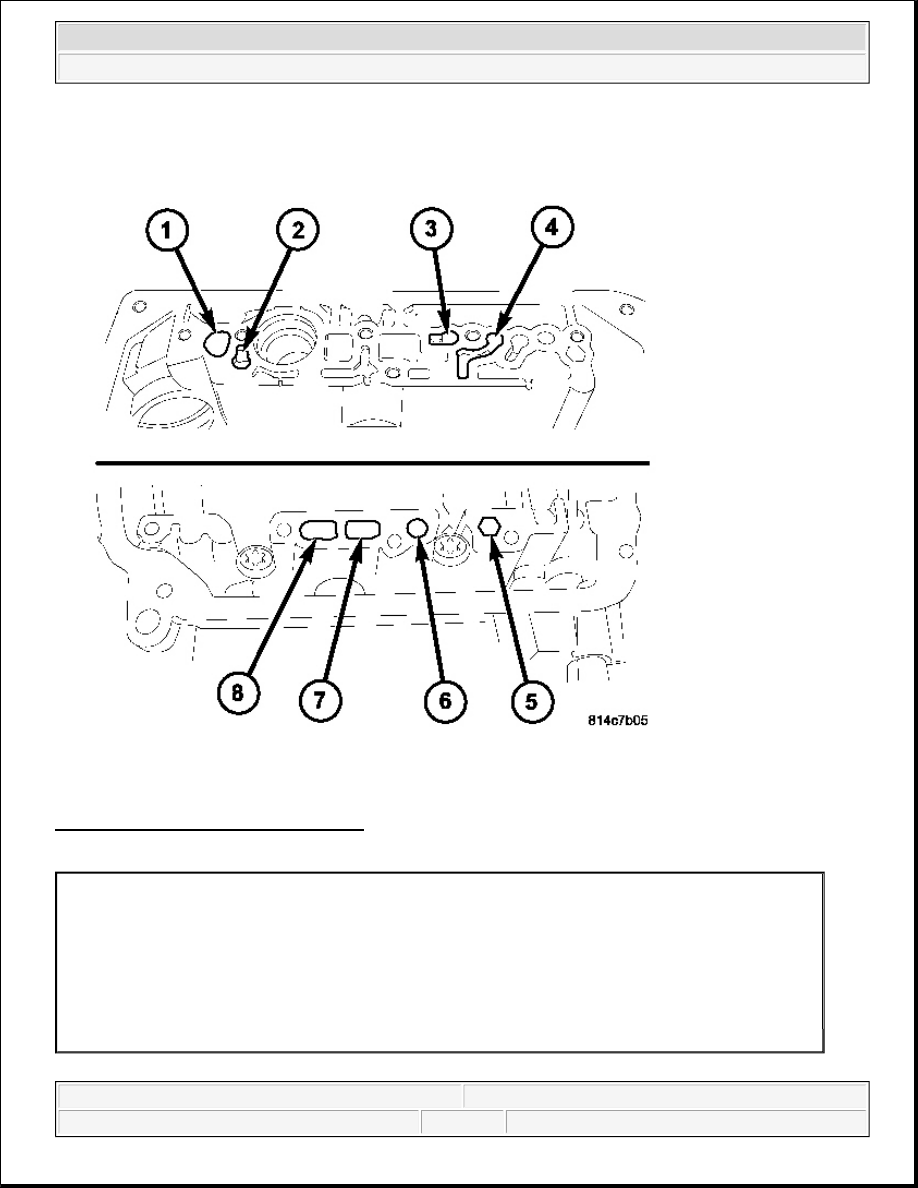

Fig. 26: NAG1 Clutch Application Ports
Courtesy of CHRYSLER LLC

1 - K1 CLUTCH APPLY PORT
2 - B1 CLUTCH APPLY PORT
3 - K2 CLUTCH APPLY PORT
4 - TORQUE CONVERTER CLUTCH APPLY PORT
5 - B3 CLUTCH APPLY PORT
6 - B2 CLUTCH COUNTER-PRESSURE PORT
7 - K3 CLUTCH APPLY PORT
8 - B2 CLUTCH APPLY PORT



2007 Dodge Nitro R/T

2007 AUTOMATIC TRANSMISSION NAG1 - Service Information - Nitro



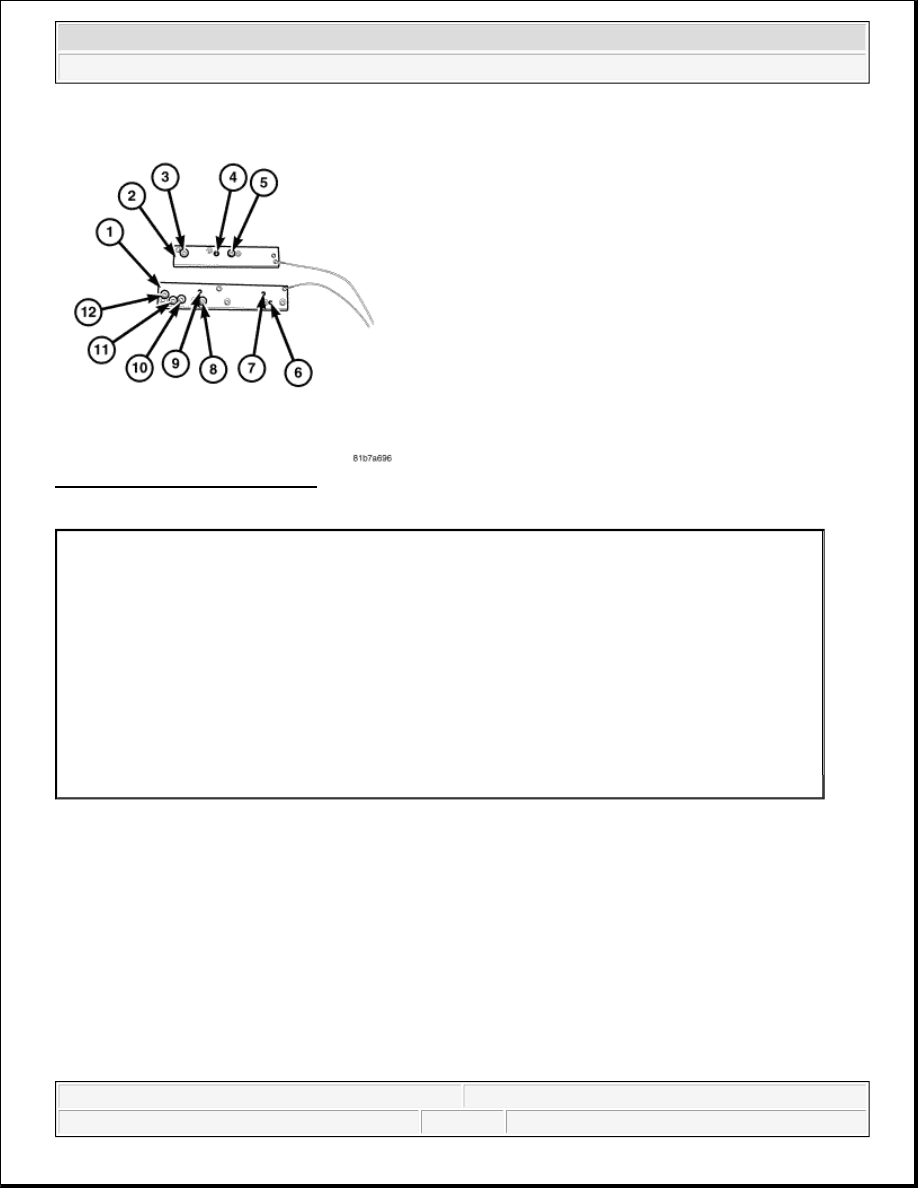

Fig. 27: NAG1 Air Adapter Plates
Courtesy of CHRYSLER LLC

With the use of Air Adapter Plates 10007-1,10007-2, air-pressure testing can be used to check transmission
clutch operation. The test can be conducted with the transmission either in the vehicle (where applicable) or on
the work bench, as a final check.

Air-pressure testing requires that the oil pan and valve body be removed from the transmission.

1 - NAG1 AIR CHECK ADAPTER PLATE 10007-1
2 - NAG1 AIR CHECK ADAPTER PLATE 10007-2
3 - B3 CLUTCH PORT
4 - K3 CLUTCH PORT
5 - B2 CLUTCH PORT
6 - K1 CLUTCH PORT
7 - B1 CLUTCH PORT
8 - K2 CLUTCH PORT
9 - TORQUE CONVERTER CLUTCH LOCK - UP PORT
10 - TORQUE CONVERTER IN PORT
11 - COOLER OUT PORT
12 - TORQUE CONVERTER OUT PORT



2007 Dodge Nitro R/T

2007 AUTOMATIC TRANSMISSION NAG1 - Service Information - Nitro



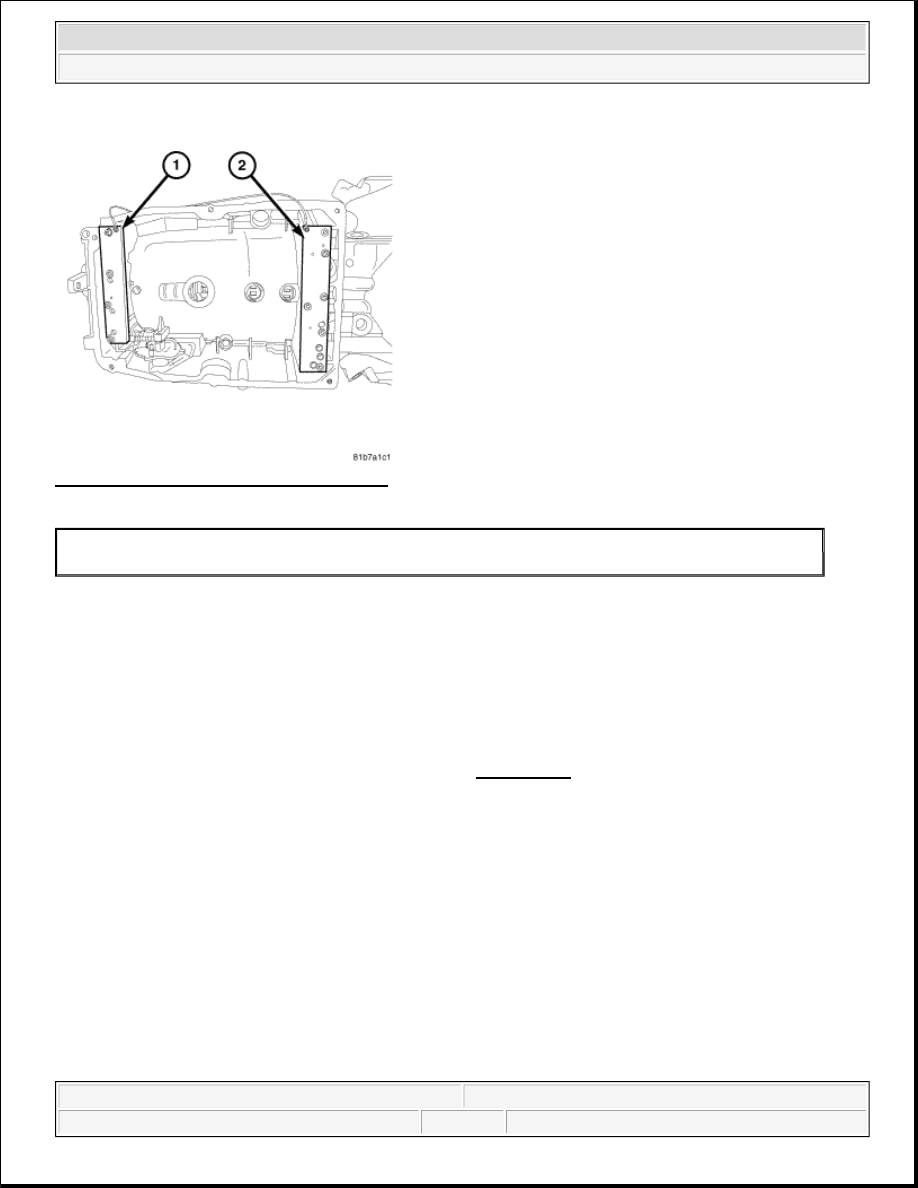

Fig. 28: NAG1 Transmission Adapter Plate
Courtesy of CHRYSLER LLC

1. Remove the oil pan.

2. Remove the valve body (electrohydraulic unit). See REMOVAL.

3. Using the existing valve body (electrohydraulic unit) mounting bolts attach the Air Adapter Plates 10007-

1, 10007-2. Tighten the bolt to 8 N.m (71 in. lbs.).

4. Apply 30 psi of air pressure to each port

If the clutch is functioning, a soft thump will be heard as the clutch is applied. The clutch application can also
be felt by touching the appropriate element while applying air pressure. As the air pressure is released, the
clutch should also release.

1 - AIR ADAPTER PLATE 10007-2
2 - AIR ADAPTER PLATE 10007-1

NOTE:

The air supply which is used must be free of moisture and dirt. Use a pressure
of 30 psi to test clutch operation.

NOTE:

When checking the K1 clutch , air must pass through numerous passages to
reach the clutch it's self, therefore only a slight application will be noted.



2007 Dodge Nitro R/T

2007 AUTOMATIC TRANSMISSION NAG1 - Service Information - Nitro



DISASSEMBLY

AUTOMATIC TRANSMISSION - NAG1

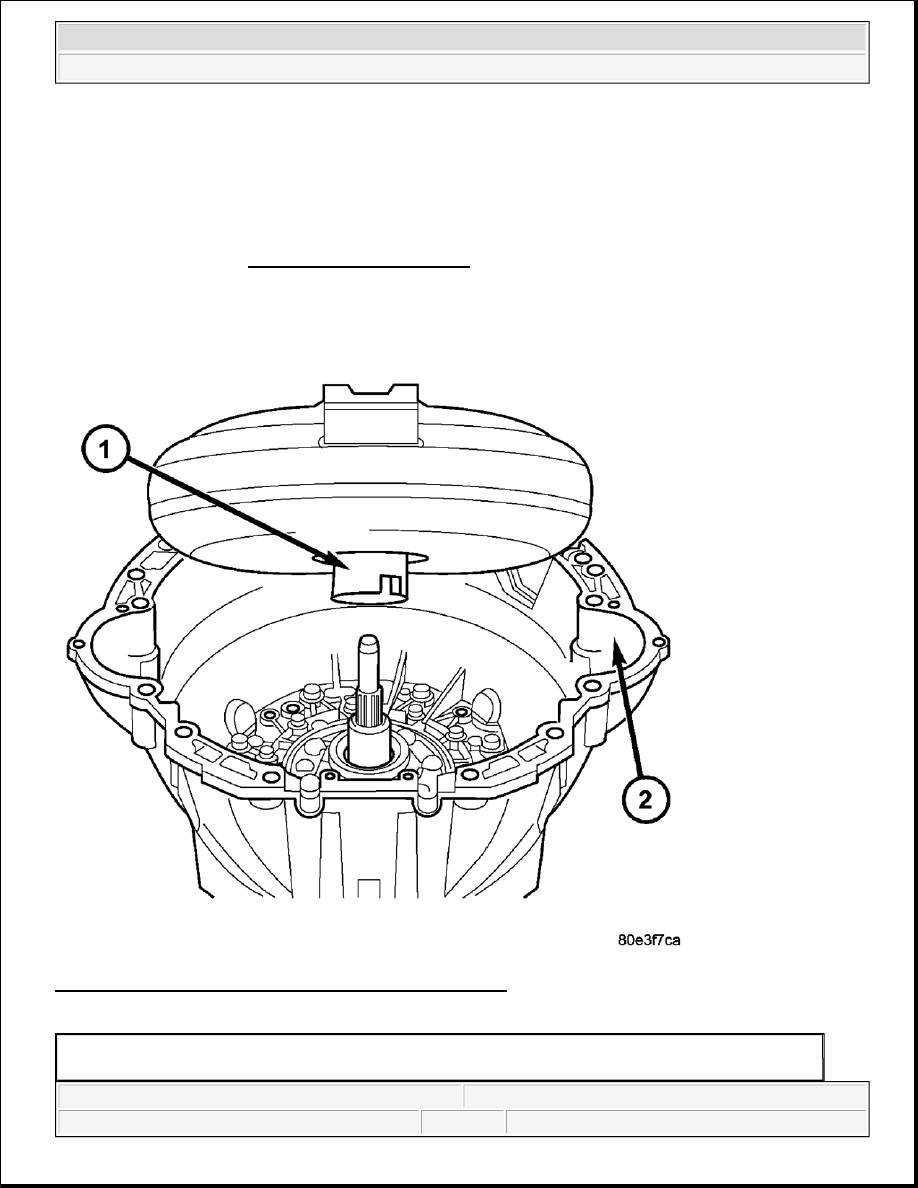

Fig. 37: Removing/Installing Torque Converter & Housing
Courtesy of CHRYSLER LLC

NOTE:

If the transmission is being reconditioned (clutch/seal replacement) or replaced,
it is necessary to perform the TCM Adaptation Procedure using the scan tool.
Refer to STANDARD PROCEDURE .

NOTE:

Tag all clutch pack assemblies, as they are removed, for reassembly
identification.

1 - TORQUE CONVERTER
2 - CONVERTER HOUSING
