lbs.). See Fig. 71.

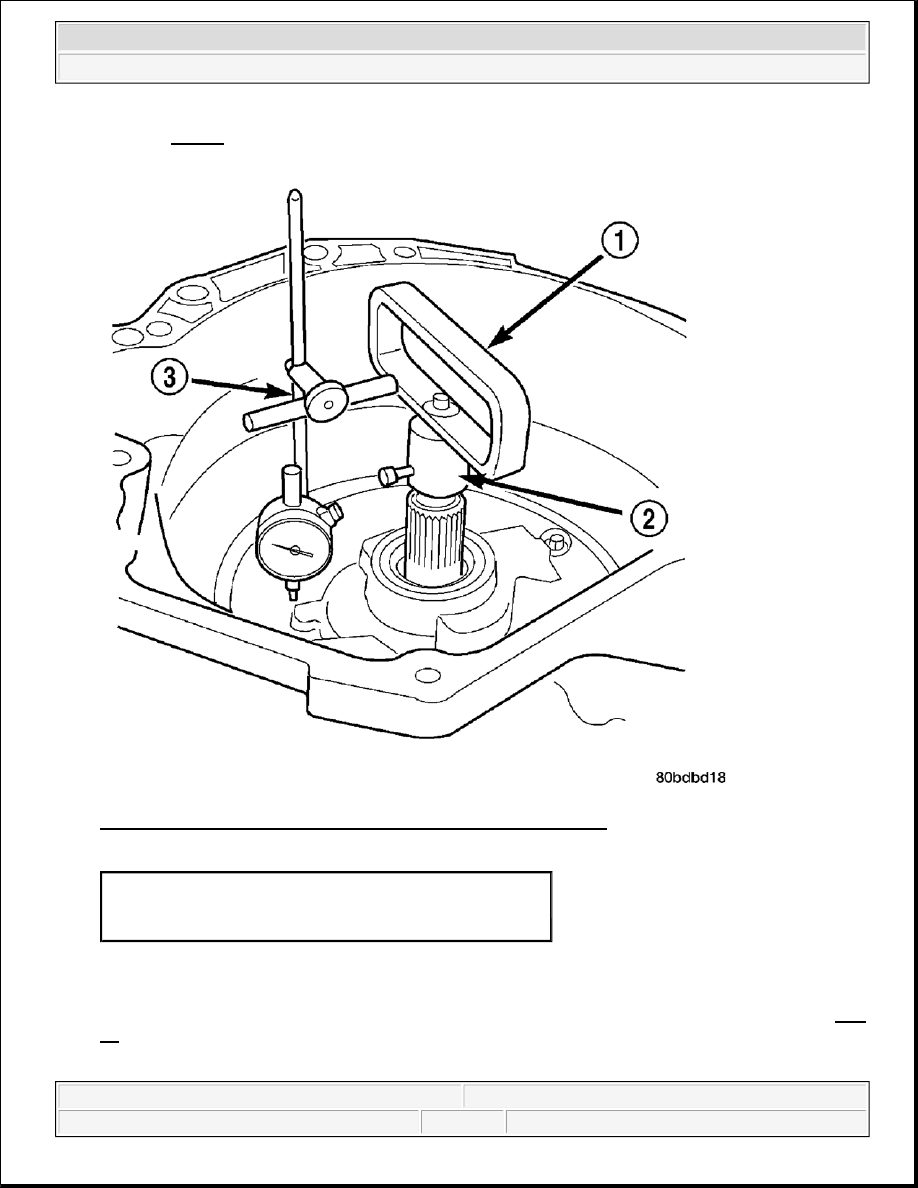

Fig. 72: Measuring Input Shaft End Play Using End Play Set 8266
Courtesy of CHRYSLER LLC

62. As a final check of the transmission, measure the input shaft end play. This will indicate when a #4 thrust

plate change is required. The #4 thrust plate is located behind the overdrive clutch hub. Attach a dial
indicator C-3339A to transmission bell housing with its plunger seated against end of input shaft. See Fig.
72. Install tool 8266-2 (2), 8266-8 (1) and move input shaft in and out to obtain end play reading. Input
shaft end play must be 0.127 to 0.635 mm (0.005 to 0.025 inch). If not within specifications, make the
necessary thrust plate adjustment.

1 - TOOL 8266-8
2 - TOOL 8266-2
3 - TOOL C-3339A



2007 Dodge Nitro R/T

2007 AUTOMATIC TRANSMISSION 42RLE - Service Information - Nitro



63. On 4X2 transmissions, perform the following, if necessary:

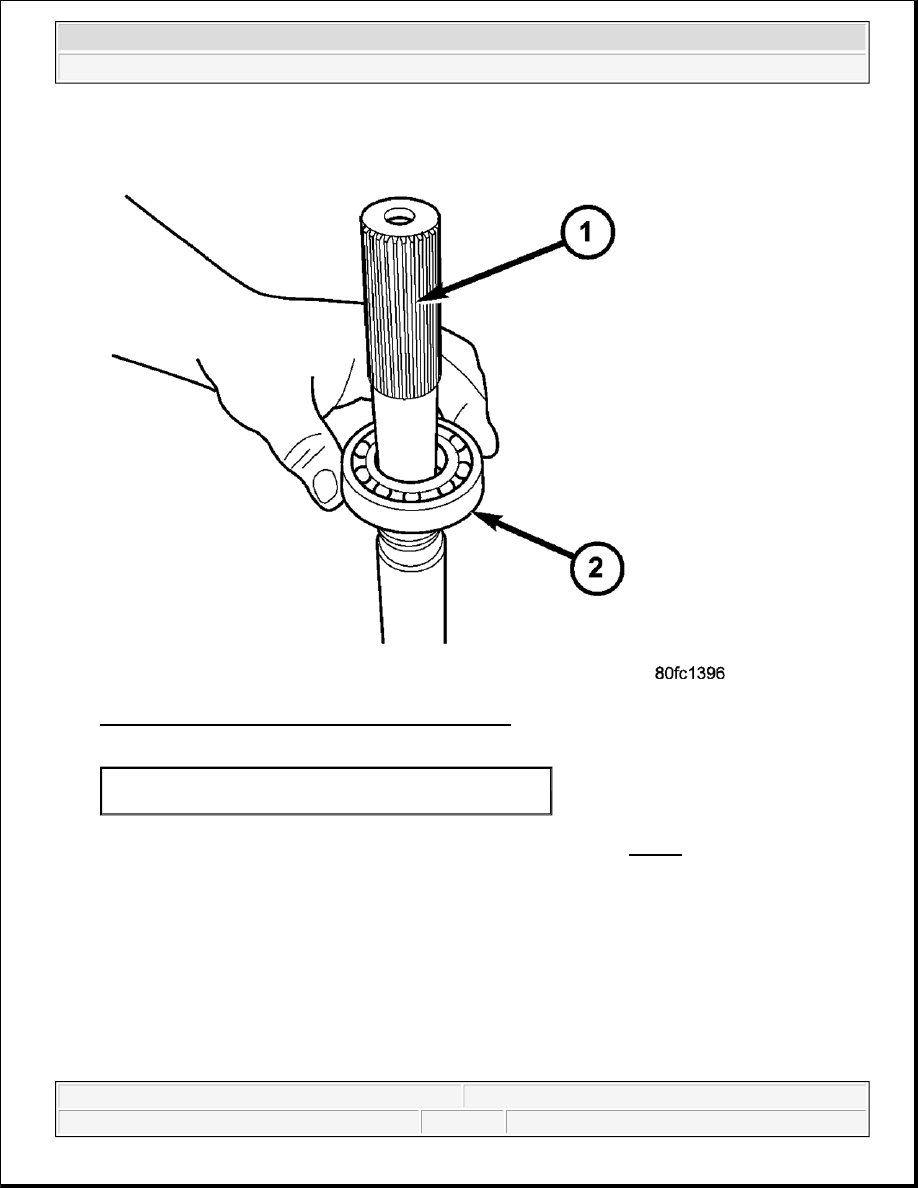

Fig. 73: Removing/Installing Extension Shaft Bearing
Courtesy of CHRYSLER LLC



Install the extension shaft bearing (2) onto the extension shaft. See Fig. 73.

1 - EXTENSION SHAFT
2 - BEARING



2007 Dodge Nitro R/T

2007 AUTOMATIC TRANSMISSION 42RLE - Service Information - Nitro



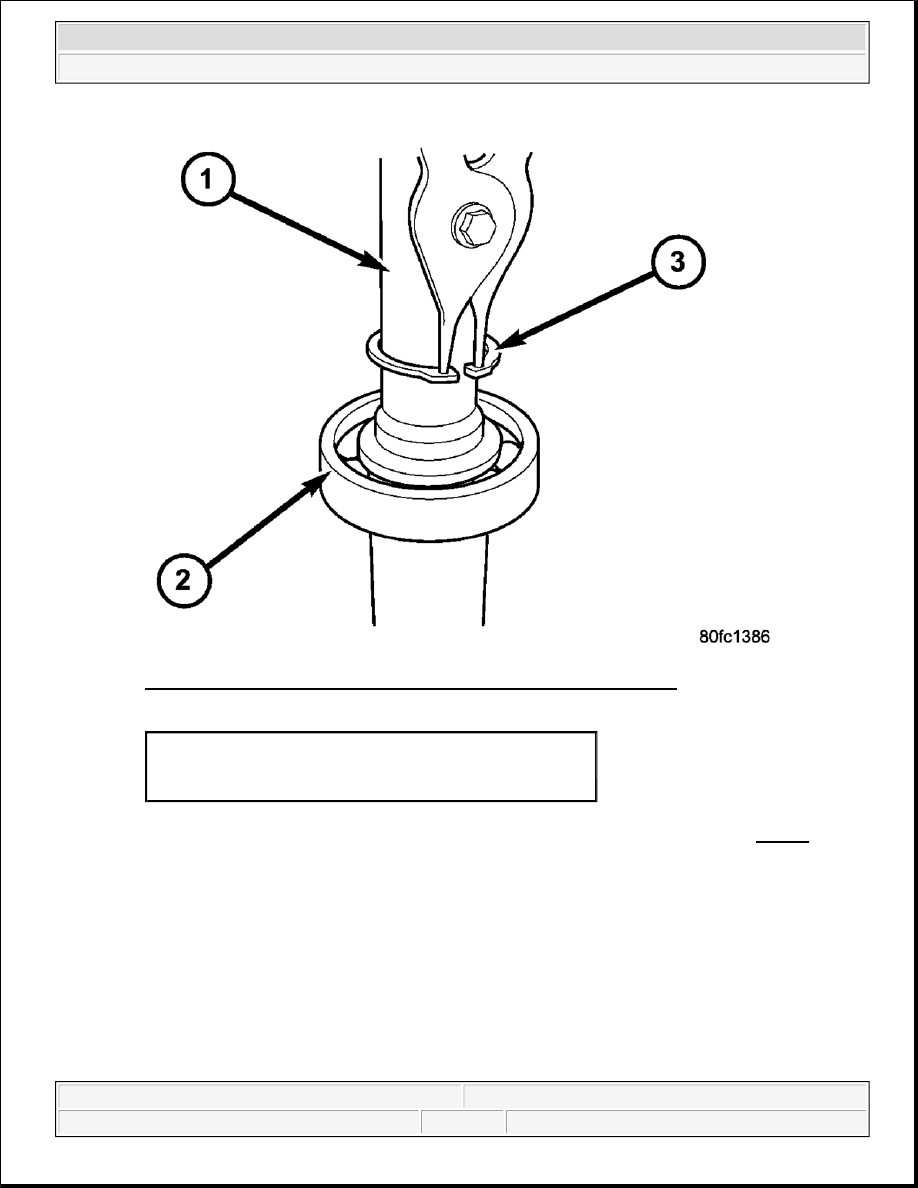

Fig. 74: Removing/Installing Extension Shaft Bearing Retaining Ring
Courtesy of CHRYSLER LLC



Install the extension shaft bearing retaining ring (3) onto the extension shaft (1). See Fig. 74.

1 - EXTENSION SHAFT
2 - BEARING
3 - RETAINING RING



2007 Dodge Nitro R/T

2007 AUTOMATIC TRANSMISSION 42RLE - Service Information - Nitro



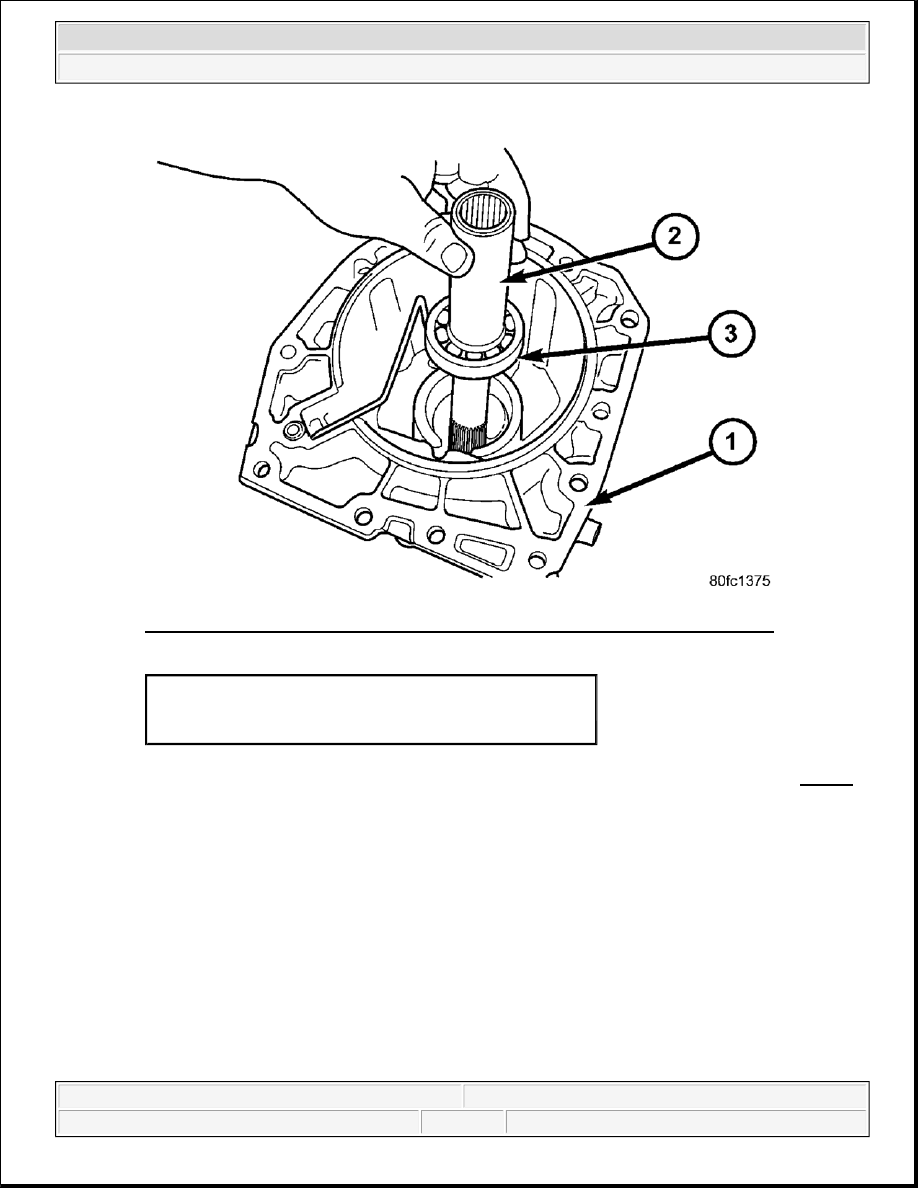

Fig. 75: Installing Extension Shaft And Bearing Assembly Into Extension Housing
Courtesy of CHRYSLER LLC



Install the extension shaft (2) and bearing assembly (3) into the extension housing (1). See Fig. 75.

1 - EXTENSION HOUSING
2 - EXTENSION SHAFT
3 - BEARING
