Dodge Nitro. Manual - part 292

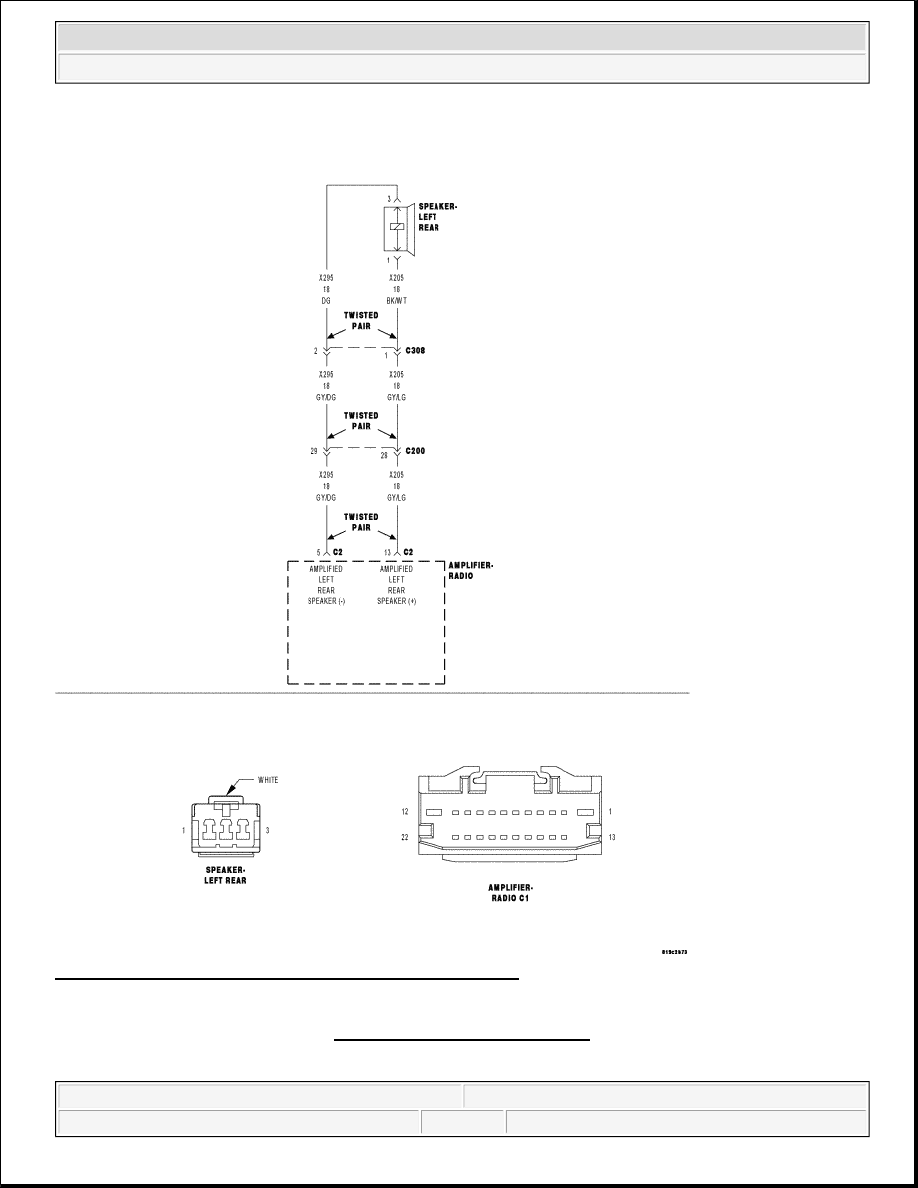

Fig. 88: Channel 5 Audio Speaker Output Circuit Schematic
Courtesy of CHRYSLER LLC

For complete wiring diagrams refer to SYSTEM WIRING DIAGRAMS article.

When Monitored:



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Audio/Video Systems - Electrical Diagnostics - Nitro



With the ignition on.

Set Condition:

The amplifier detects a shorted to ground condition on the speaker output circuit.

Diagnostic Test

1) CHECK FOR AN INTERMITTENT CONDITION

Turn the ignition on, then off, and then on again.

With the scan tool, read Amplifier DTCs.

Does the scan tool display active: B1475-CHANNEL 5 AUDIO SPEAKER OUTPUT CIRCUIT
LOW?

Yes

Go to 2).

No

The condition that caused this symptom is currently not present. Check for an intermittent
condition by inspecting the related wiring harness for chafed, pierced, pinched, and partially broken
wires. Also, inspect the related connectors for broken, bent, pushed out, spread, corroded, or
contaminated terminals. Repair as necessary.

Perform BODY VERIFICATION TEST - VER 1 .

2) CHECK THE (X205) AMPLIFIED LEFT REAR SPEAKER (+) CIRCUIT FOR A SHORT TO
GROUND

Possible Causes

(X205) AMPLIFIED LEFT REAR SPEAKER (+) CIRCUIT SHORTED TO GROUND
(X295) AMPLIFIED LEFT REAR SPEAKER (-) CIRCUIT SHORTED TO GROUND
LEFT REAR SPEAKER
AMPLIFIER



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Audio/Video Systems - Electrical Diagnostics - Nitro



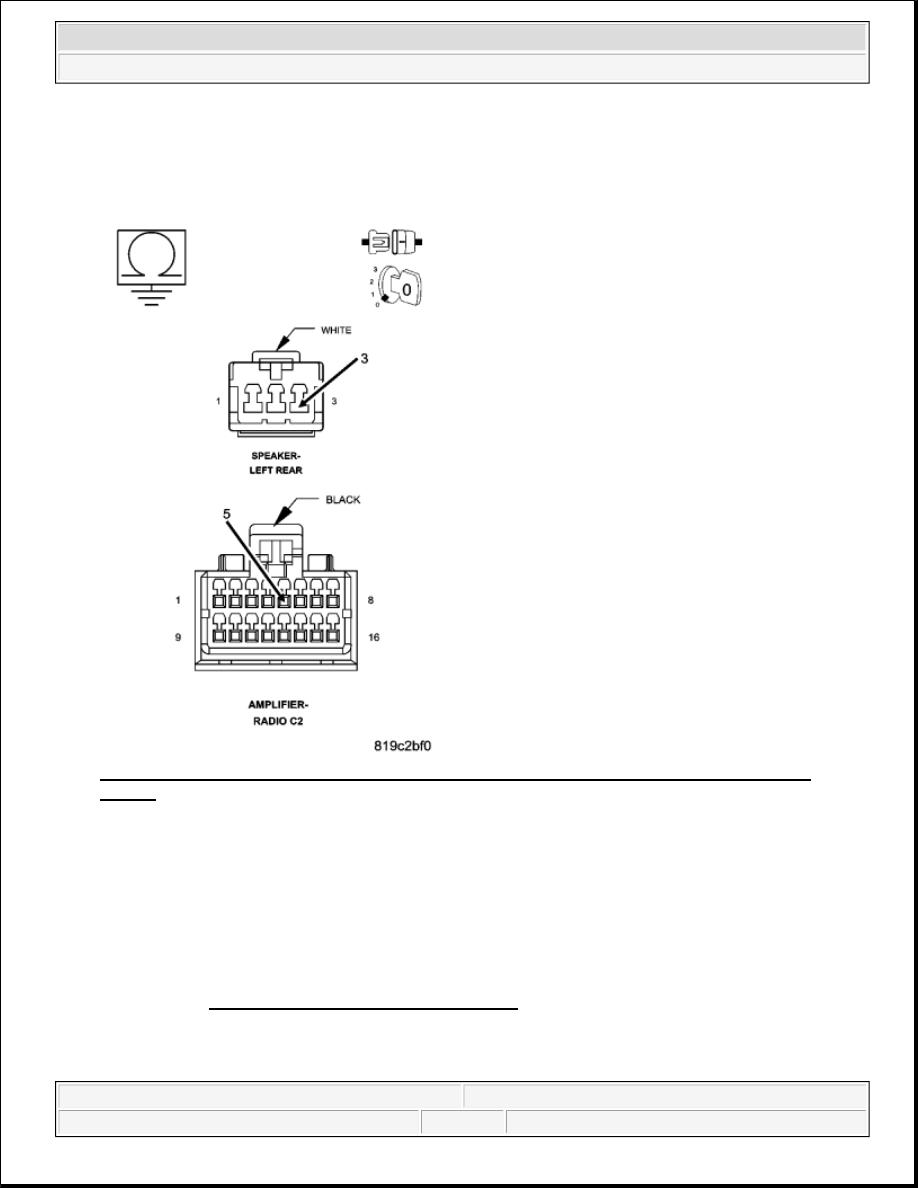

Fig. 89: Measuring Resistance Between Ground And (X205) Amplified Left Rear Speaker (+)
Circuit
Courtesy of CHRYSLER LLC

Turn the ignition off.

Disconnect the Amplifier C2 harness connector.

Disconnect the Left Rear Speaker harness connector.

Measure the resistance between ground and the (X205) Amplified Left Rear Speaker (+) circuit.

Is the resistance below 10K ohms?

Yes

Repair the (X205) Amplified Left Rear Speaker (+) circuit for a short to ground.

Perform BODY VERIFICATION TEST - VER 1 .

No



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Audio/Video Systems - Electrical Diagnostics - Nitro



Go to 3).

3) CHECK THE (X295) AMPLIFIED LEFT REAR SPEAKER (-) CIRCUIT FOR A SHORT TO
GROUND

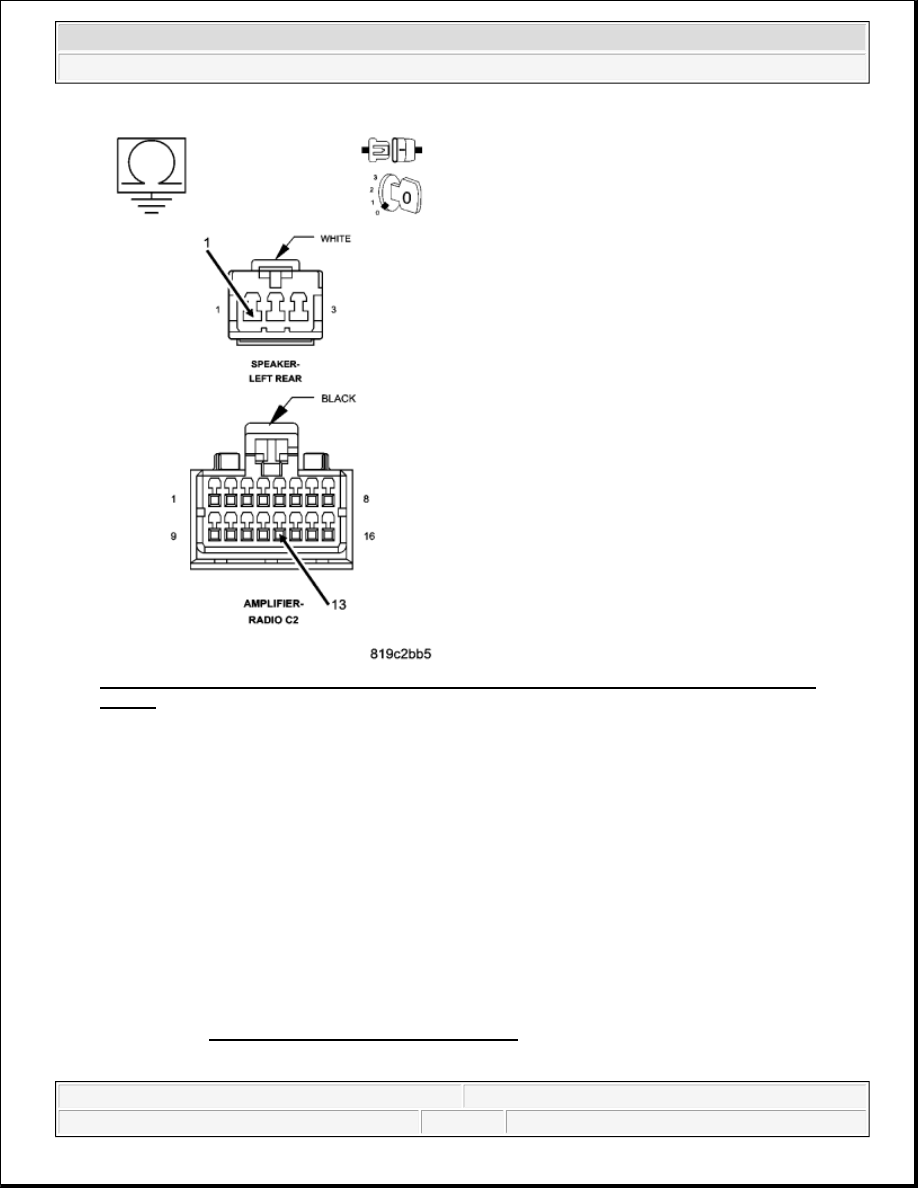

Fig. 90: Measuring Resistance Between Ground And (X295) Amplified Left Rear Speaker (-)
Circuit
Courtesy of CHRYSLER LLC

Measure the resistance between ground and the (X295) Amplified Left Rear Speaker (-) circuit.

Is the resistance below 10K ohms?

Yes

Repair the (X295) Amplified Left Rear Speaker (-) for a short to ground.

Perform BODY VERIFICATION TEST - VER 1 .

No
