system.

When severe wheel slippage is detected (as on snow-covered roads), the Winter Mode feature of All-Speed
Traction Control causes the transmission to up-shift to higher gears at lower speeds than normal. Once a
slippery launch condition is detected, the transmission will remain in Winter Mode for a minimum of three
minutes. After that, if the road is providing normal traction, the system returns to providing normal up-shifts.

ELECTRONIC VARIABLE BRAKE PROPORTIONING

Upon entry into EVBP the inlet valve for the rear brake circuit is switched ON so that the fluid supply from the
master cylinder is shut off. In order to decrease the rear brake pressure, the outlet valve for the rear brake circuit
is pulsed. This allows fluid to enter the Low Pressure Accumulator (LPA) in the Hydraulic Control Unit (HCU)
resulting in a drop in fluid pressure to the rear brakes. In order to increase the rear brake pressure, the outlet
valve is switched off and the inlet valve is pulsed. This increases the pressure to the rear brakes. This back-and-
forth process will continue until the required slip difference is obtained. At the end of EVBP braking (brakes
released) the fluid in the LPA drains back to the master cylinder by switching on the outlet valve and draining
through the inlet valve check valve. At the same time the inlet valve is switched on in case of another brake
application.

The EVBP will remain functional during many ABS fault modes. If both the red BRAKE and amber ABS
warning indicators are illuminated, the EVBP may not be functioning.

DIAGNOSIS AND TESTING

ANTILOCK BRAKING SYSTEM

The ABS brake system performs several self-tests every time the ignition switch is turned on and the vehicle is
driven. The ABM monitors the systems input and output circuits to verify the system is operating correctly. If
the on board diagnostic system senses that a circuit is malfunctioning the system will set a trouble code in its
memory.

STANDARD PROCEDURE

ABS BRAKE BLEEDING

ABS system bleeding requires conventional bleeding methods plus use of a scan tool. The procedure involves
performing a base brake bleeding, followed by use of the scan tool to cycle and bleed the HCU pump and
solenoids. A second base brake bleeding procedure is then required to remove any air remaining in the system.

1. Perform base brake bleeding, see PRESSURE BLEEDING - BASE BRAKES .

NOTE:

An audible noise may be heard during the self-test. This noise should be
considered normal.

NOTE:

The scan tool is used to diagnose the ABS system. For additional information
refer to the Electrical, Electronic Control Modules section.



2007 Dodge Nitro R/T

2007 BRAKES ABS Service Information - Nitro



2. Connect scan tool to the Data Link Connector.

3. Select ANTILOCK BRAKES, followed by MISCELLANEOUS, then ABS BRAKES. Follow the

instructions displayed. When scan tool displays TEST COMPLETE, disconnect scan tool and proceed.

4. Perform base brake bleeding a second time, see PRESSURE BLEEDING - BASE BRAKES .

5. Top off master cylinder fluid level and verify proper brake operation before moving vehicle.

SPECIFICATIONS

ABS BRAKES

TORQUE SPECIFICATIONS

ELECTRICAL

DESCRIPTION

REAR WHEEL SPEED SENSOR

A wheel speed sensor is used at each wheel. The front sensors are mounted to the steering knuckles. Front tone
wheels are internal to the front bearing. The rear sensors are mounted at the outboard end of the axle. Tone
wheels are mounted to the outboard ends of the front and rear axle shafts. The gear type tone wheel serves as
the trigger mechanism for each sensor.

OPERATION

REAR WHEEL SPEED SENSOR

The sensors convert wheel speed into a small digital signal. The ABM sends 12 volts to the sensors. The sensor
has an internal magneto resistance bridge that alters the voltage and amperage of the signal circuit. This voltage
and amperage is changed by magnetic induction when the toothed tone wheel passes the wheel speed sensor.
This digital signal is sent to the ABM. The ABM measures the voltage and amperage of the digital signal for

DESCRIPTION

N.m

Ft. Lbs.

In. Lbs.

(HCU) Hydraulic Control

Unit Mounting Nuts

14

-

125

(HCU) Hydraulic Control

Unit Brake Lines

20

-

180

(ABM) Antilock Brake

Module Mounting Screws

2

-

16

Wheel Speed Sensors

Front Mounting Bolt

8

-

71

Wheel Speed Sensor Rear

Mounting Bolt

9

-

80

Dynamics Sensor Nuts

9

-

80

ESP Module Bolt

10

-

85

ESP Module Nut

10

-

85



2007 Dodge Nitro R/T

2007 BRAKES ABS Service Information - Nitro



each wheel.

SENSOR-WHEEL SPEED-FRONT

REMOVAL

SENSOR-WHEEL SPEED-FRONT

1. Raise and support the vehicle.

2. Remove the tire and wheel assembly.

3. Remove the caliper adapter. Refer to REMOVAL .

4. Remove the disc brake rotor. Refer to REMOVAL

CAUTION: Never allow the disc brake caliper to hang from the brake hose.

Damage to the brake hose will result. Provide a suitable support to
hang the caliper securely.



2007 Dodge Nitro R/T

2007 BRAKES ABS Service Information - Nitro



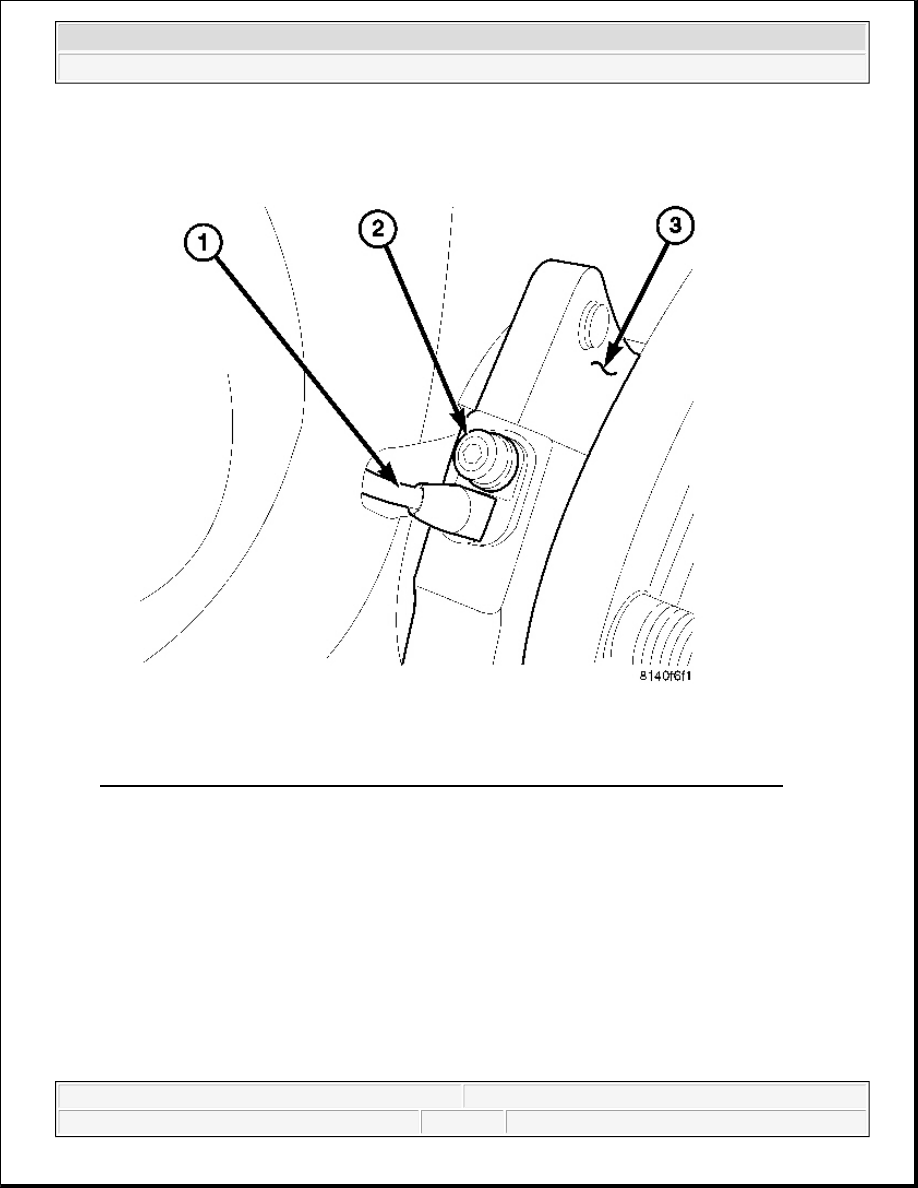

Fig. 1: Identifying Wheel Speed Sensor Wire, Wheel Speed Sensor Mounting Bolt & Hub
Courtesy of CHRYSLER LLC

5. Remove the wheel speed sensor mounting bolt (2) to the hub (3).

6. Remove the wheel speed sensor wire (1) from the hub/bearing and through the brake shield.

7. Remove the wheel speed sensor wire hold down clips.

8. Remove the locking connector at the wheel liner from the sensor connector.

9. Remove the wheel speed sensor from the vehicle.

INSTALLATION

SENSOR-WHEEL SPEED-FRONT
