Replace the Anti-Lock Brake Module

Perform ABS VERIFICATION TEST.

No

Repair is complete.

C2205-STEERING ANGLE SENSOR INTERNAL



2007 Dodge Nitro R/T

2007 BRAKES ABS - Electrical Diagnostics - Nitro

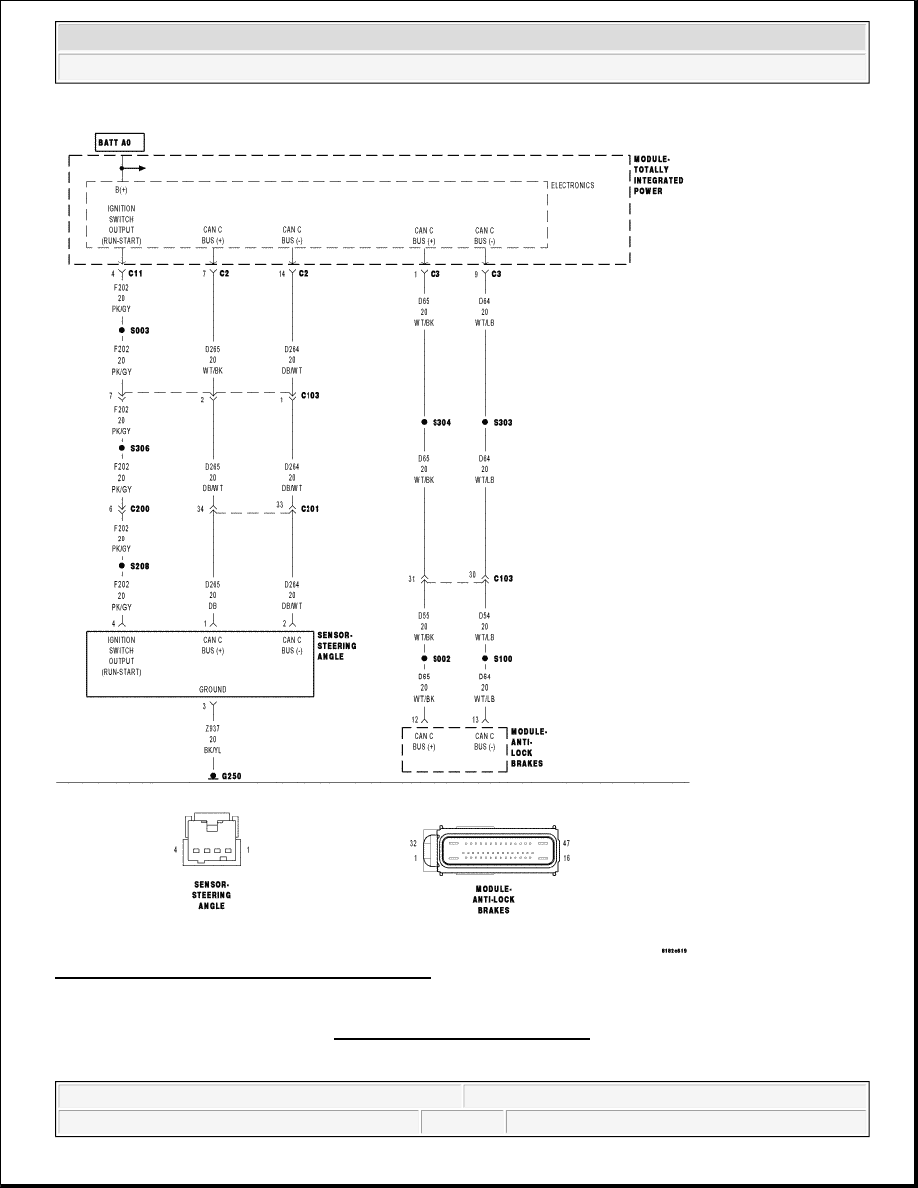

Fig. 60: Steering Angle Sensor Circuit Schematic
Courtesy of CHRYSLER LLC

For complete wiring diagrams refer to SYSTEM WIRING DIAGRAMS article.

When Monitored:



2007 Dodge Nitro R/T

2007 BRAKES ABS - Electrical Diagnostics - Nitro



With ignition on, but not if supply voltage faults are detected.

Set Condition:

If the Anti-Lock Brakes Module detects that the Steering Angle Sensor sends an internal failure message.

Diagnostic Test

1) CHECK FOR A DTC C2205-STEERING ANGLE SENSOR INTERNAL

Turn the ignition on.

With the scan tool, read and record DTCs.

With the scan tool, read and record Freeze Frame information.

With the scan tool, erase DTCs.

Start the vehicle and turn the wheel from lock to lock.

Test drive the vehicle by turning the vehicle left or right in a curving manner at a velocity between 10 and
25 km/h (6 and 15 mph).

Park the vehicle.

With the scan tool, read and record DTCs.

Does the scan tool display: C2205-STEERING ANGLE SENSOR INTERNAL?

Yes

Replace the Steering Angle Sensor in accordance with the Service Information.

Perform ABS VERIFICATION TEST.

No

Refer to the ABS INTERMITTENT CONDITION diagnostic procedure.

Possible Causes

STEERING ANGLE SENSOR

NOTE:

This DTC must be active for the results of this test to be valid.

WARNING:

Ensure brake capability is available before road testing.



2007 Dodge Nitro R/T

2007 BRAKES ABS - Electrical Diagnostics - Nitro



Perform ABS VERIFICATION TEST.

C2206-VEHICLE CONFIGURATION MISMATCH

For complete wiring diagrams refer to SYSTEM WIRING DIAGRAMS article.

When Monitored:

With the ignition on.

Set Condition:

When the Anti-Lock Brake Module detects the signal from the gateway module relevant for vehicle
characteristic is missing or does not match for a period greater than the specified fault duration.

Diagnostic Test

1) CHECK FOR A DTC C2206-VEHICLE CONFIGURATION MISMATCH

Turn the ignition on.

With the scan tool, read and record DTCs.

With the scan tool, read and record Freeze Frame information.

With the scan tool, erase DTCs.

Perform ECU initialization with drive test on ABM. Perform ABS VERIFICATION TEST.

Cycle the ignition switch from off to on.

With the scan tool, read and record DTCs.

Does the scan tool display: C2206-VEHICLE CONFIGURATION MISMATCH?

Possible Causes

TIPM/PCM NOT CONFIGURED CORRECTLY
ANTI-LOCK BRAKE MODULE
ANTI-LOCK BRAKE MODULE NOT INITIALIZED

NOTE:

This DTC must be active for the results of this test to be valid.

NOTE:

This DTC will be active when a new module is installed until initialization is
performed.
