Dodge Nitro. Manual - part 195

Fig. 51: Measuring Resistance Of (G4) Dynamics Sensor Supply Circuit Between Dynamics Sensor
Harness Connector And Anti-Lock Brakes Module Harness Connector
Courtesy of CHRYSLER LLC

Turn the ignition off.

Disconnect the Anti-Lock Brakes Module harness connector.

Measure the resistance of the (G4) Dynamics Sensor Supply circuit between the Dynamics Sensor
harness connector and the Anti-Lock Brakes Module harness connector.

Is the resistance below 5.0 ohms?

Yes

Go to 5).

No

Repair the (G4) Dynamics Sensor Supply circuit for high resistance.

Perform ABS VERIFICATION TEST.

5) CHECK (G94) DYNAMICS SENSOR GROUND CIRCUIT FOR HIGH RESISTANCE



2007 Dodge Nitro R/T

2007 BRAKES ABS - Electrical Diagnostics - Nitro





2007 Dodge Nitro R/T

2007 BRAKES ABS - Electrical Diagnostics - Nitro



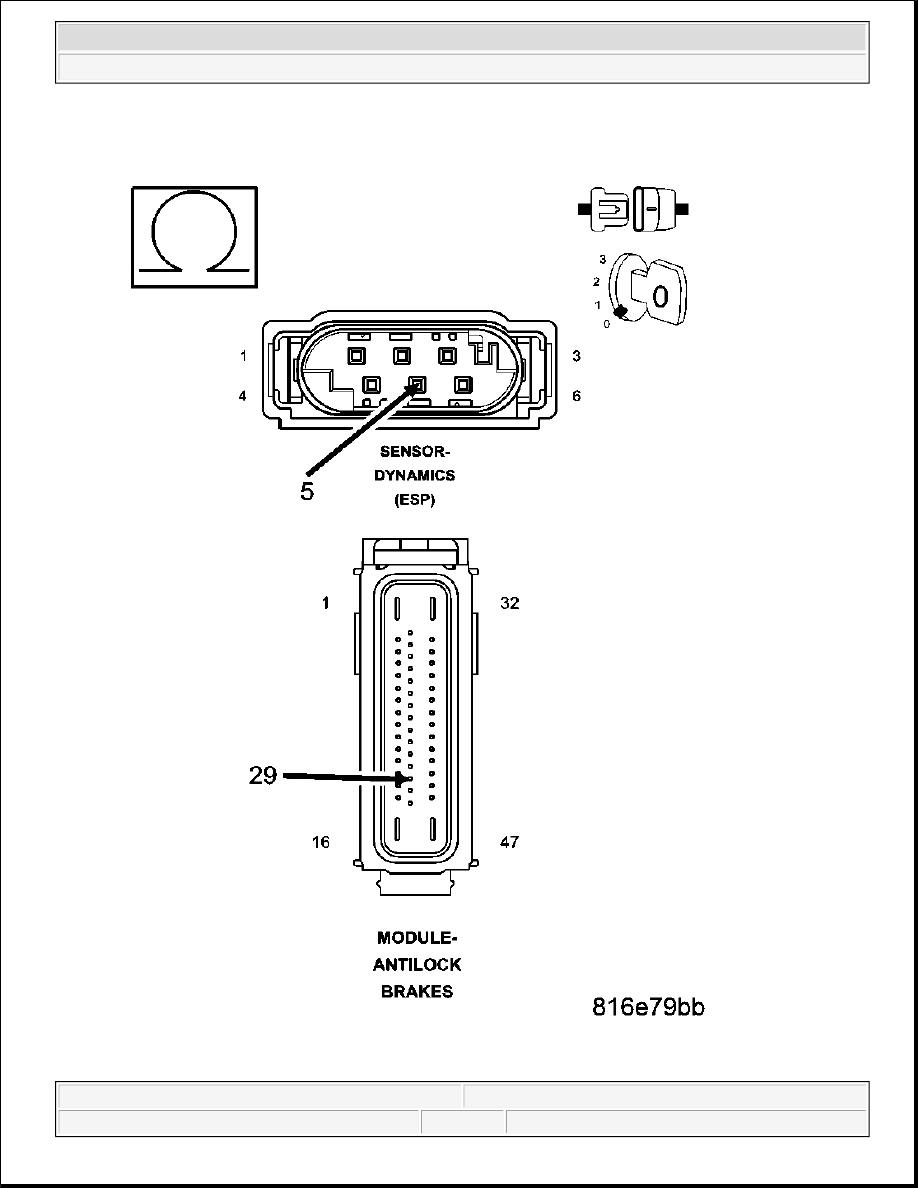

Fig. 52: Measuring Resistance Of (G94) Dynamics Sensor Ground Circuit Between Dynamics
Sensor Harness Connector And Anti-Lock Brakes Module Harness Connector
Courtesy of CHRYSLER LLC

Measure the resistance of the (G94) Dynamics Sensor Ground circuit between the Dynamics Sensor
harness connector and the Anti-Lock Brakes Module harness connector.

Is the resistance below 5.0 ohms?

Yes

Replace the Anti-Lock Brakes Module in accordance with the Service Information.

Perform ABS VERIFICATION TEST.

No

Repair the (G94) Dynamics Sensor Ground circuit for high resistance.

Perform ABS VERIFICATION TEST.

C2115-DYNAMICS SENSOR SUPPLY VOLTAGE HIGH



2007 Dodge Nitro R/T

2007 BRAKES ABS - Electrical Diagnostics - Nitro

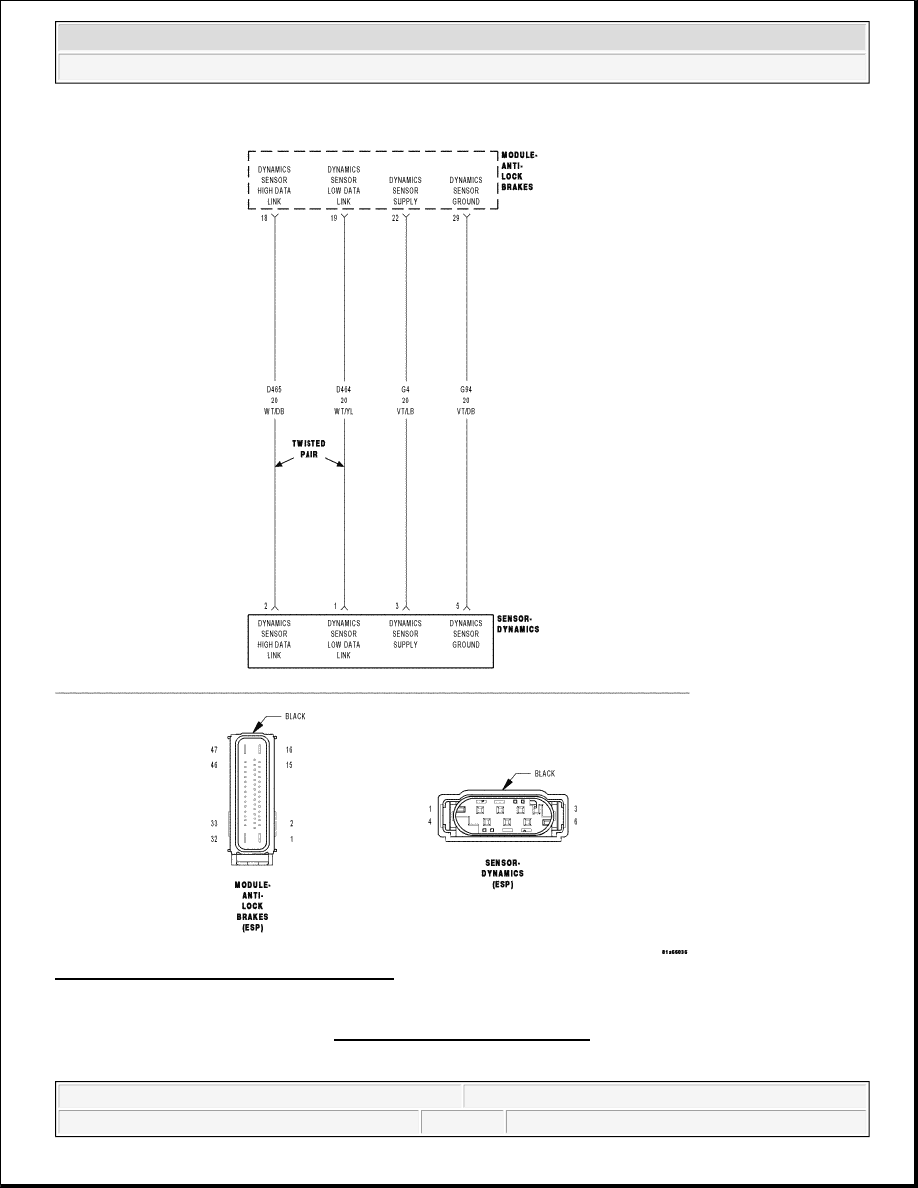

Fig. 53: Dynamics Sensor Circuit Schematic
Courtesy of CHRYSLER LLC

For complete wiring diagrams refer to SYSTEM WIRING DIAGRAMS article.

When Monitored:
