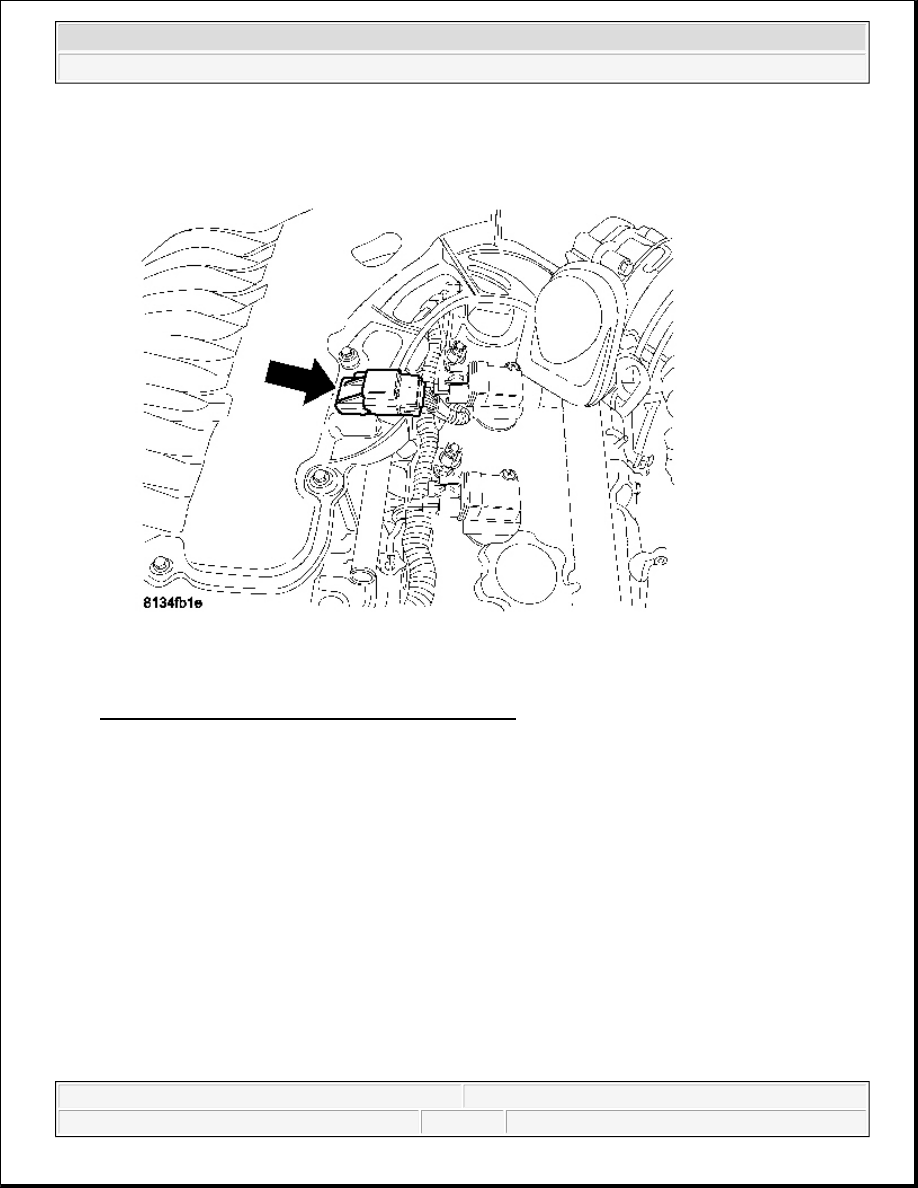

Fig. 285: Locating Manifold Absolute Pressure Sensor
Courtesy of CHRYSLER LLC

11. Connect the MAP sensor harness connector.



2007 Dodge Nitro R/T

2007 ENGINE 4.0L - Service Information - Nitro

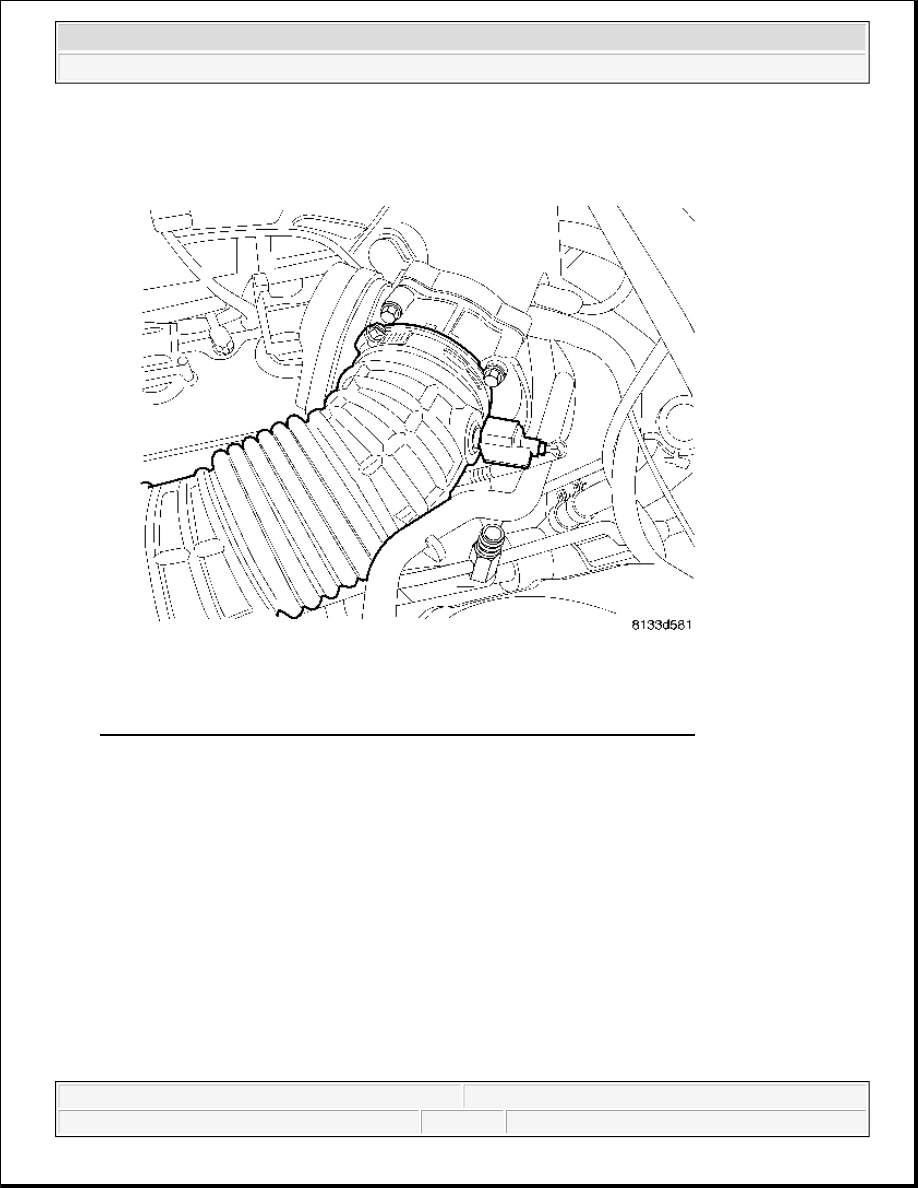

Fig. 286: Removing/Installing Inlet Hose And IAT Sensor Harness Connector
Courtesy of CHRYSLER LLC

12. Install the inlet hose and connect the IAT sensor harness connector.

13. Connect negative battery cable.

MANIFOLD-EXHAUST LEFT

REMOVAL

MANIFOLD-EXHAUST LEFT



2007 Dodge Nitro R/T

2007 ENGINE 4.0L - Service Information - Nitro

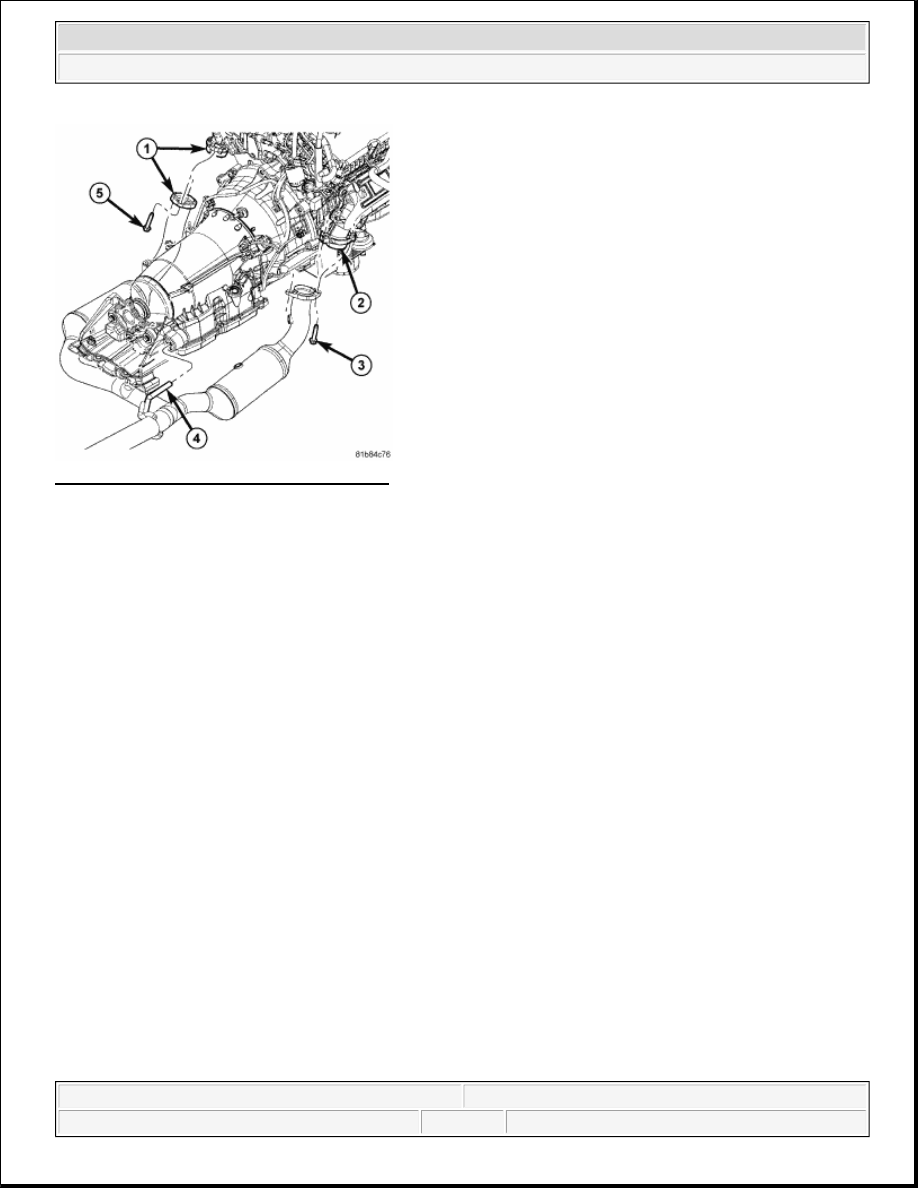

Fig. 287: Removing/Installing Exhaust Pipe
Courtesy of CHRYSLER LLC

1. Disconnect and isolate the negative battery cable.

2. Raise and support the vehicle.

3. Separate the front exhaust pipe to manifold union (2).



2007 Dodge Nitro R/T

2007 ENGINE 4.0L - Service Information - Nitro

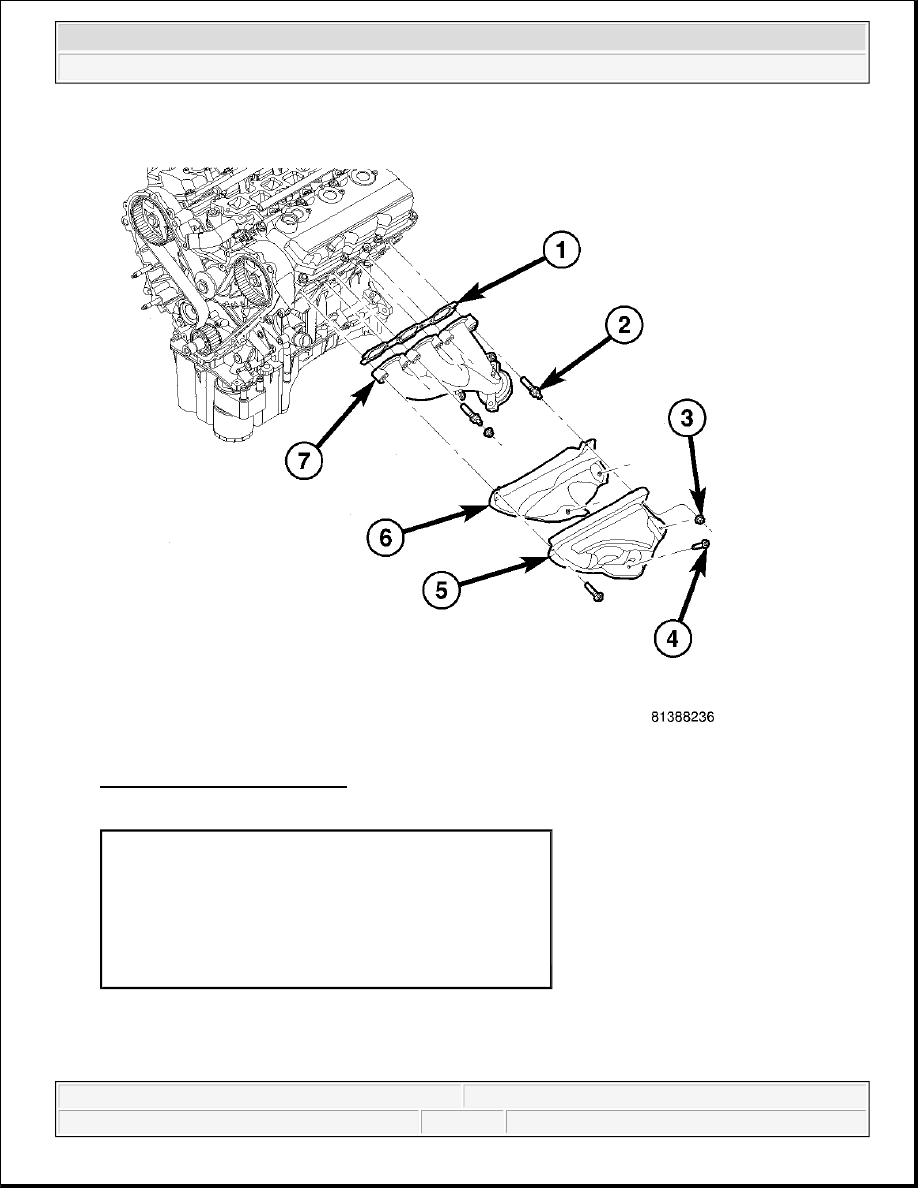

Fig. 288: Left Exhaust Manifold
Courtesy of CHRYSLER LLC

4. Lower the vehicle.

5. Disconnect and remove the oxygen sensor from the exhaust manifold (7)

6. Remove the exhaust manifold shield (5) retaining bolts, exhaust manifold (7) , and discard gasket (1).

1 - GASKET
2 - STUD
3 - NUT
4 - BOLT
5 - UPPER HEAT SHIELD
6 - LOWER HEAT SHIELD
7 - EXHAUST MANIFOLD
