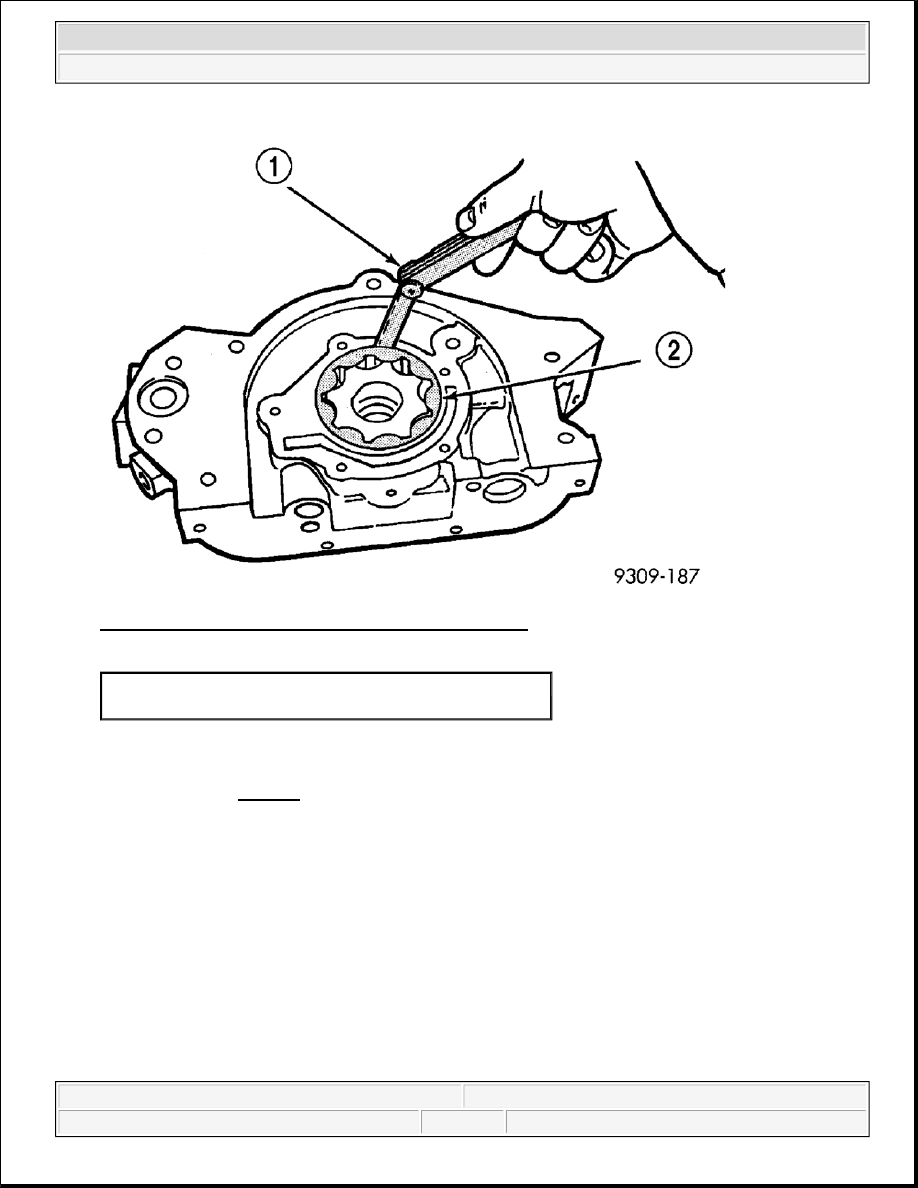

Fig. 265: Measuring Outer Rotor Clearance In Housing
Courtesy of CHRYSLER LLC

6. Slide outer rotor (2) into body, press to one side with fingers and measure clearance between rotor and

body. If measurement is 0.39 mm (0.015 inch.) or more, replace body only if outer rotor is in
specifications. See Fig. 265.

1 - FEELER GAUGE
2 - OUTER ROTOR



2007 Dodge Nitro R/T

2007 ENGINE 4.0L - Service Information - Nitro



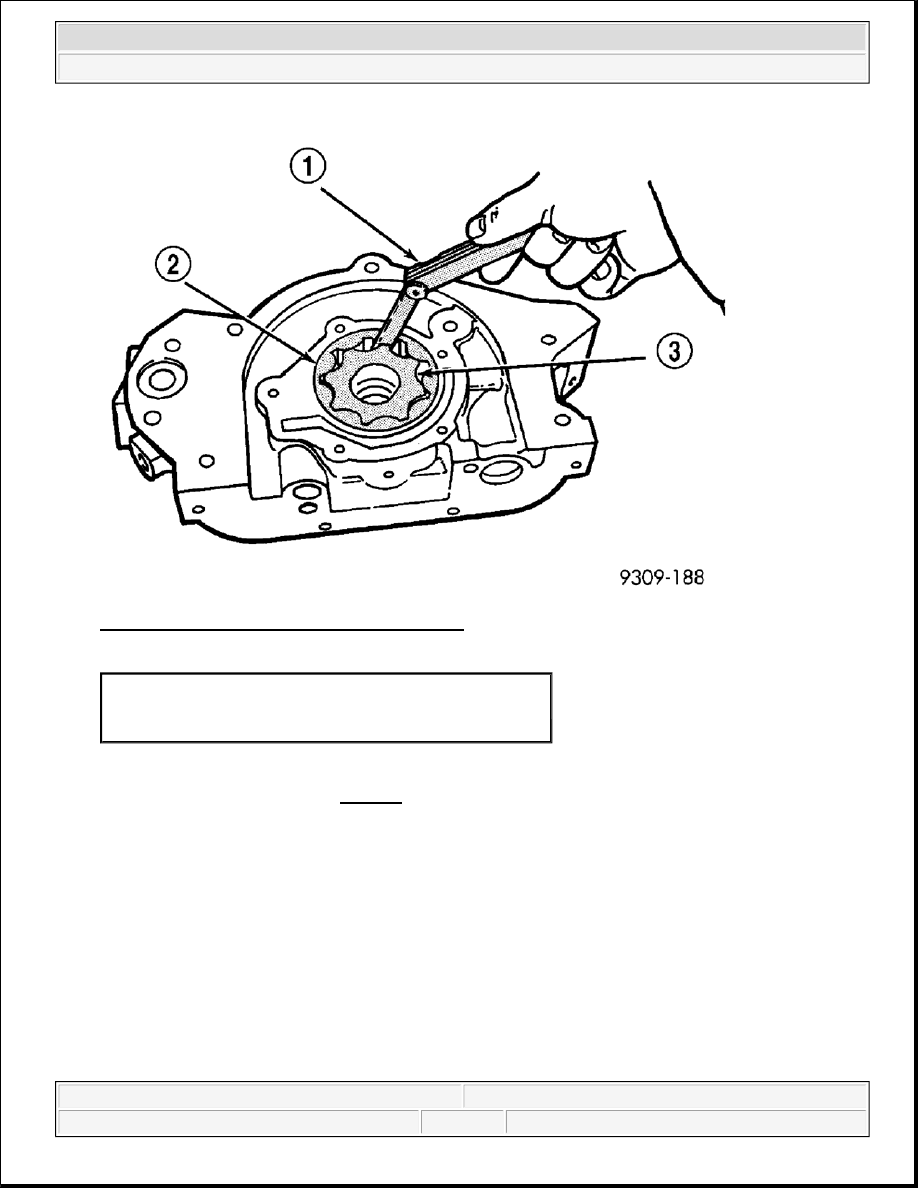

Fig. 266: Measuring Clearance Between Rotors
Courtesy of CHRYSLER LLC

7. Install inner rotor into body. If clearance between inner (3) and outer rotors (2) is 0.20 mm (0.008 inch.)

or more, replace both rotors. See Fig. 266.

1 - FEELER GAUGE
2 - OUTER ROTOR
3 - INNER ROTOR



2007 Dodge Nitro R/T

2007 ENGINE 4.0L - Service Information - Nitro



Fig. 267: Measuring Clearance Over Rotors
Courtesy of CHRYSLER LLC

8. Place a straightedge (1) across the face of the body, between bolt holes. If a feeler gauge of 0.077 mm

(0.003 in.) or more can be inserted between rotors and the straightedge, replace pump assembly. See Fig.
267. ONLY if rotors are in specs.

9. Assemble oil pump. See ASSEMBLY.

ASSEMBLY

PUMP-OIL

1 - STRAIGHT EDGE
2 - FEELER GAUGES



2007 Dodge Nitro R/T

2007 ENGINE 4.0L - Service Information - Nitro



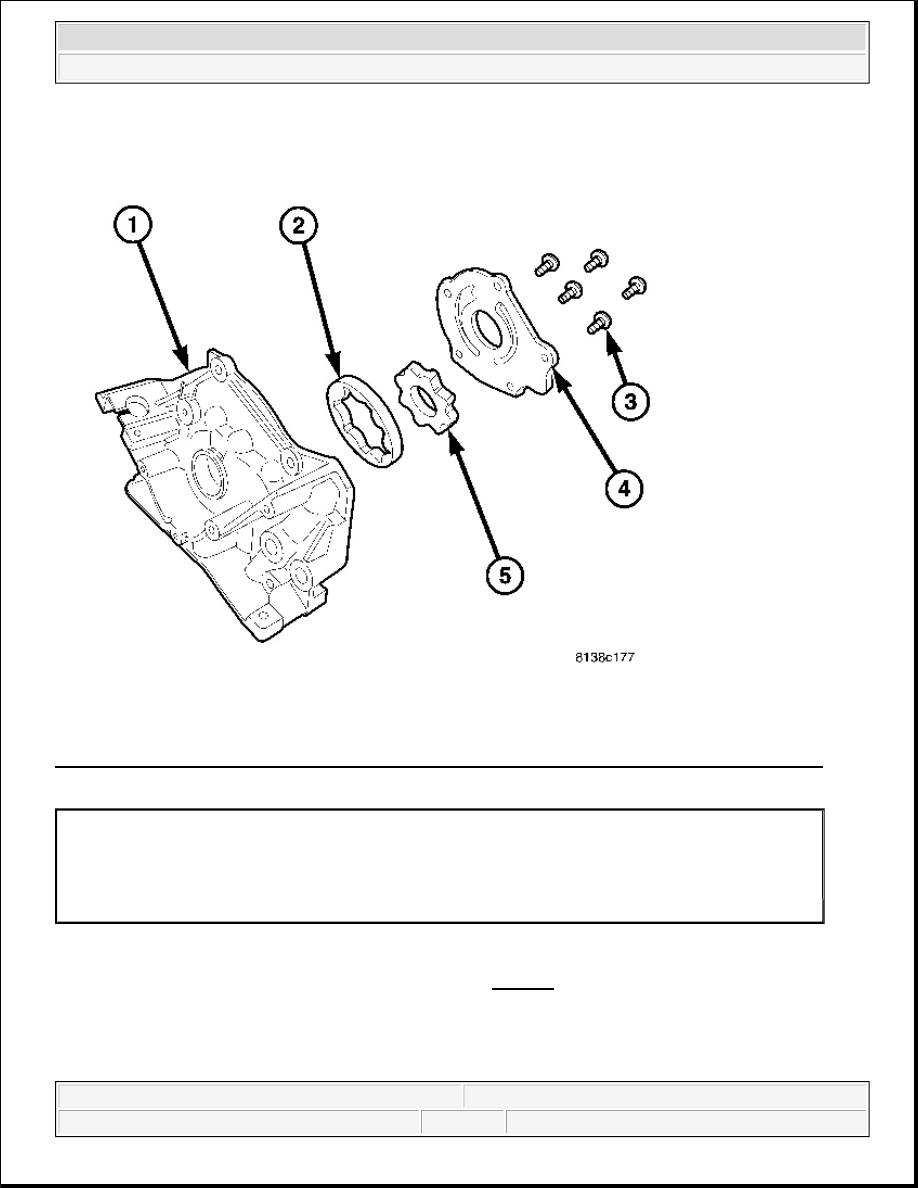

Fig. 268: Oil Pump Body, Oil Pump Outer Rotor, Screws, Oil Pump Cover & Oil Pump Inner Rotor
Courtesy of CHRYSLER LLC

1. Assemble oil pump using new parts as required.

2. Tighten cover screws (3) to 12 N.m (105 in. lbs.). See Fig. 268.

3. Prime oil pump before installation by filling rotor cavity with engine oil.

4. If oil pressure is low and pump is within specifications, inspect for worn engine bearings or other reasons

for oil pressure loss.

1 - OIL PUMP BODY
2 - OIL PUMP OUTER ROTOR
3 - SCREWS
4 - OIL PUMP COVER
5 - OIL PUMP INNER ROTOR
