DISASSEMBLY

SHAFT -ROCKER ARMS

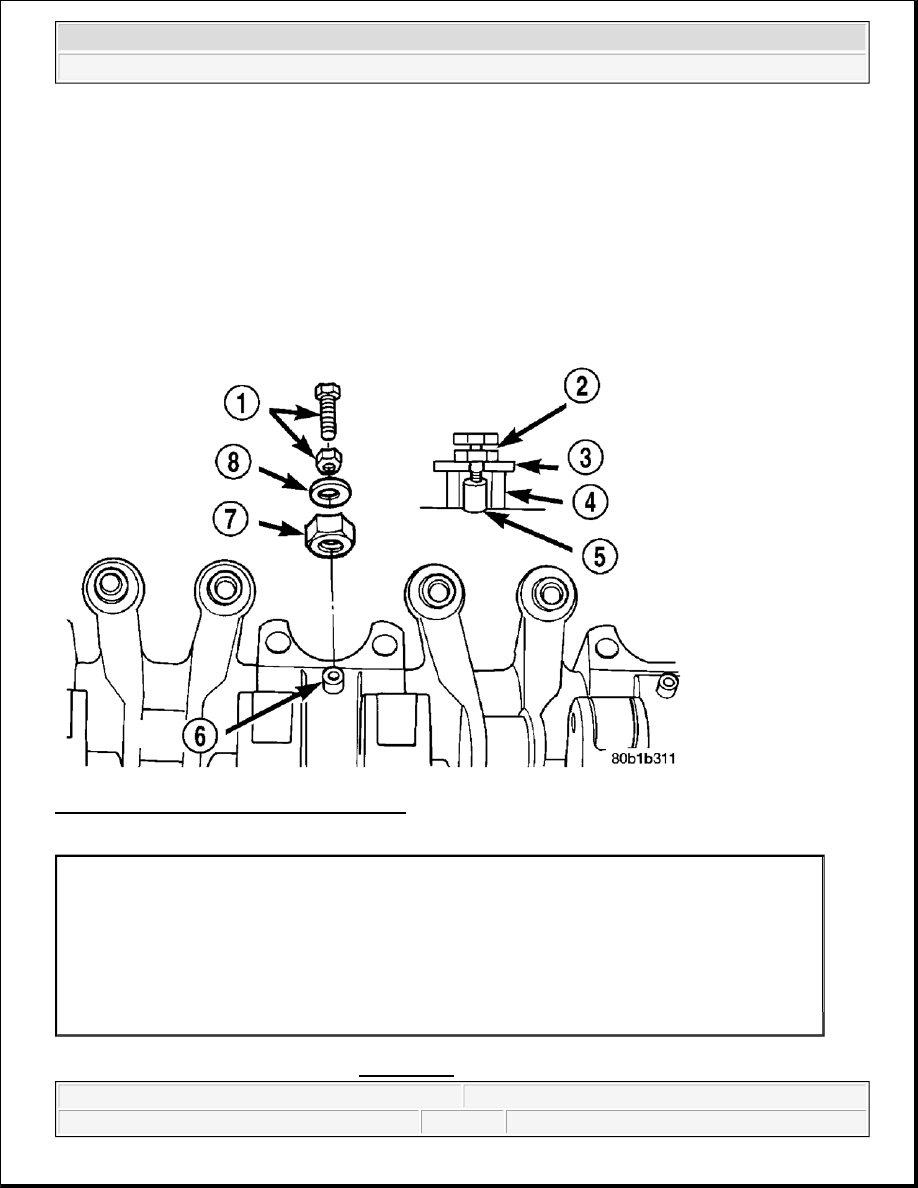

Fig. 158: Rocker Arms & Shaft - Disassembly
Courtesy of CHRYSLER LLC

1. Remove rocker arm and shafts. See REMOVAL.

NOTE:

To prevent air ingestion into lash adjusters, avoid turning rocker arm assembly
upside down.

CAUTION: Do not allow rocker arm assembly to rest on lash adjusters, as damage

may occur to lash adjusters and/or plastic retainers.

1 - 4mm SCREW AND NUT
2 - 4mm SCREW AND NUT
3 - WASHER
4 - SPACER
5 - DOWEL
6 - DOWEL
7 - SPACER
8 - WASHER



2007 Dodge Nitro R/T

2007 ENGINE 4.0L - Service Information - Nitro



2. Remove dowel pin using a 4 mm screw, nut, spacer, and washer installed into the pin. See Fig. 158.

Thread the screw into the pin, then loosen the nut on the screw. This will pull the dowel out of the shaft
support. Do not reuse dowel pins. Remove the rocker arms and pedestals in order.

3. Check the rocker arm mounting portion of the shafts for wear or damage. Replace if damaged or heavily

worn.

4. Check shaft oil holes for clogging with small wire, clean as required.

INSPECTION

SHAFT -ROCKER ARMS

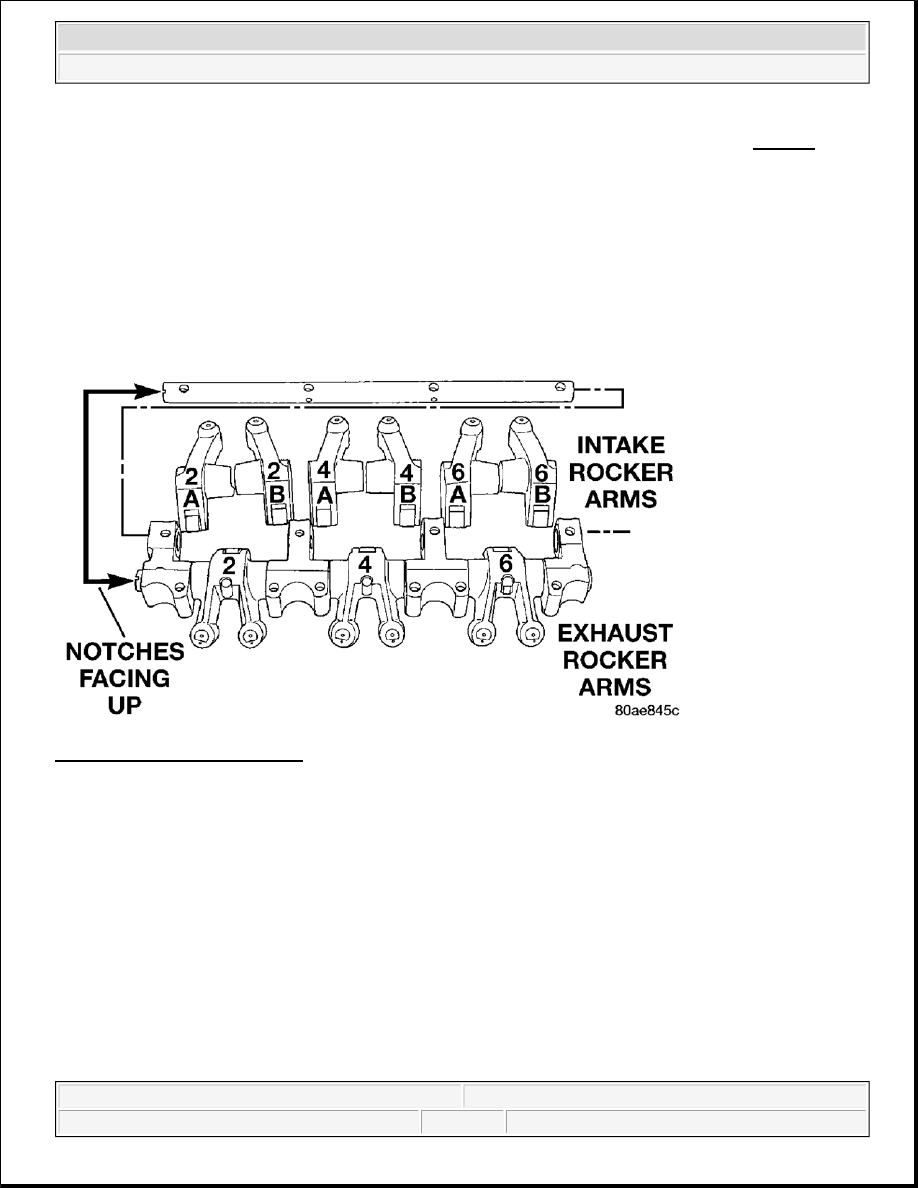

Fig. 159: Rocker Arms & Shafts
Courtesy of CHRYSLER LLC

The rocker arm shafts are hollow and are used as lubrication oil ducts. The rocker arm and shaft assembly on
the right side of the engine has an oil passage hole from the cylinder head located at the third rocker shaft
support pedestal. The rocker arm and shaft assembly on the left side of the engine has an oil passage hole from
the cylinder head located at the second rocker shaft support pedestal.

The intake and exhaust rocker arms are different. They should be identified before disassembling the assembly.

NOTE:

To prevent air ingestion into lash adjusters, avoid turning rocker arm assembly
upside down.

CAUTION: Do not allow rocker arm assembly to rest on lash adjusters, as damage

may occur to lash adjuster and plastic retainer.



2007 Dodge Nitro R/T

2007 ENGINE 4.0L - Service Information - Nitro



See Fig. 159.

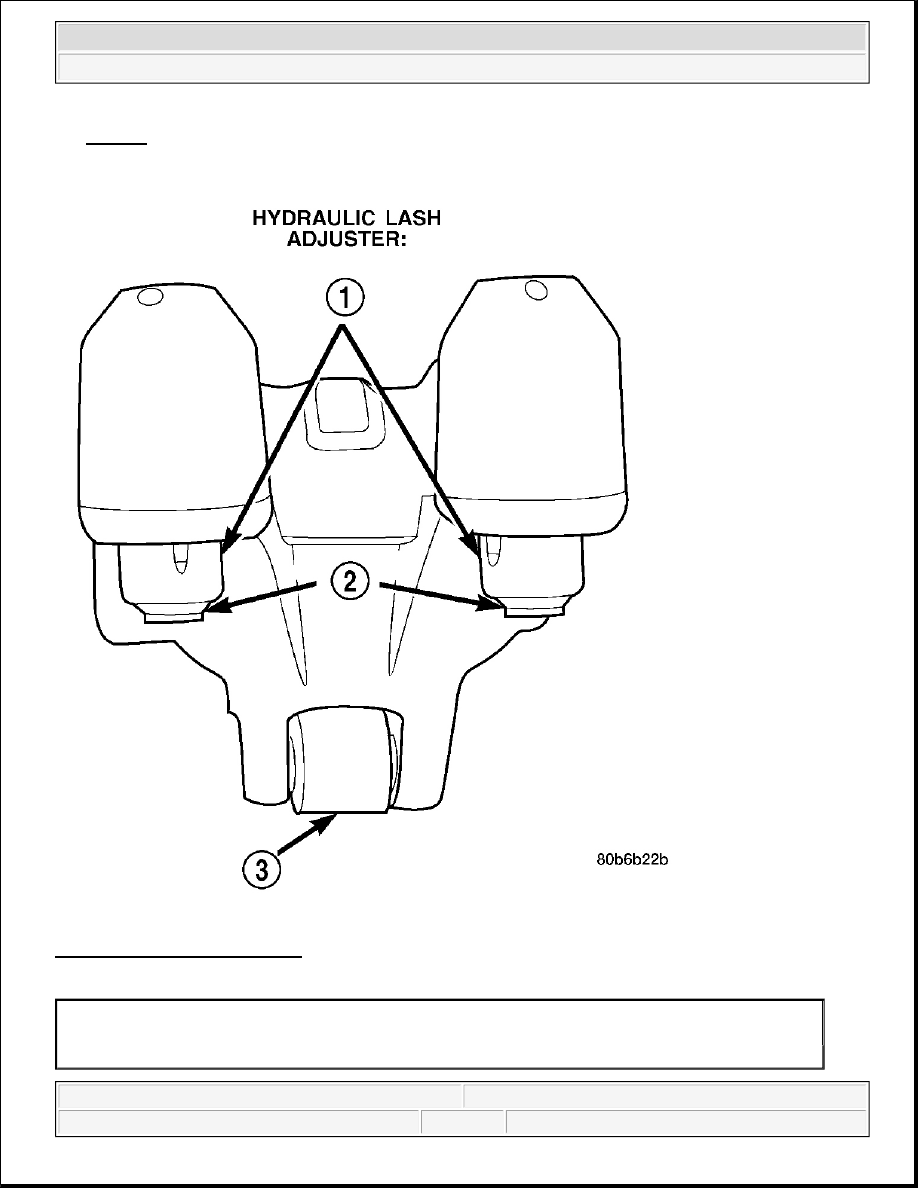

Fig. 160: Rocker Arm Assembly
Courtesy of CHRYSLER LLC

1 - RETAINER
2 - SWIVEL PAD
3 - ROLLER



2007 Dodge Nitro R/T

2007 ENGINE 4.0L - Service Information - Nitro



Check rocker arms for wear or damage. See Fig. 160:

Roller scuffing or wear

Shaft bore scuffing or wear

Swivel pad on lash adjuster missing or broken

Rocker arm showing signs of fatigue or cracking

Roller axle protruding from arm

Replace assembly as necessary if any rocker arms shows signs of wear.

ASSEMBLY

SHAFT -ROCKER ARMS

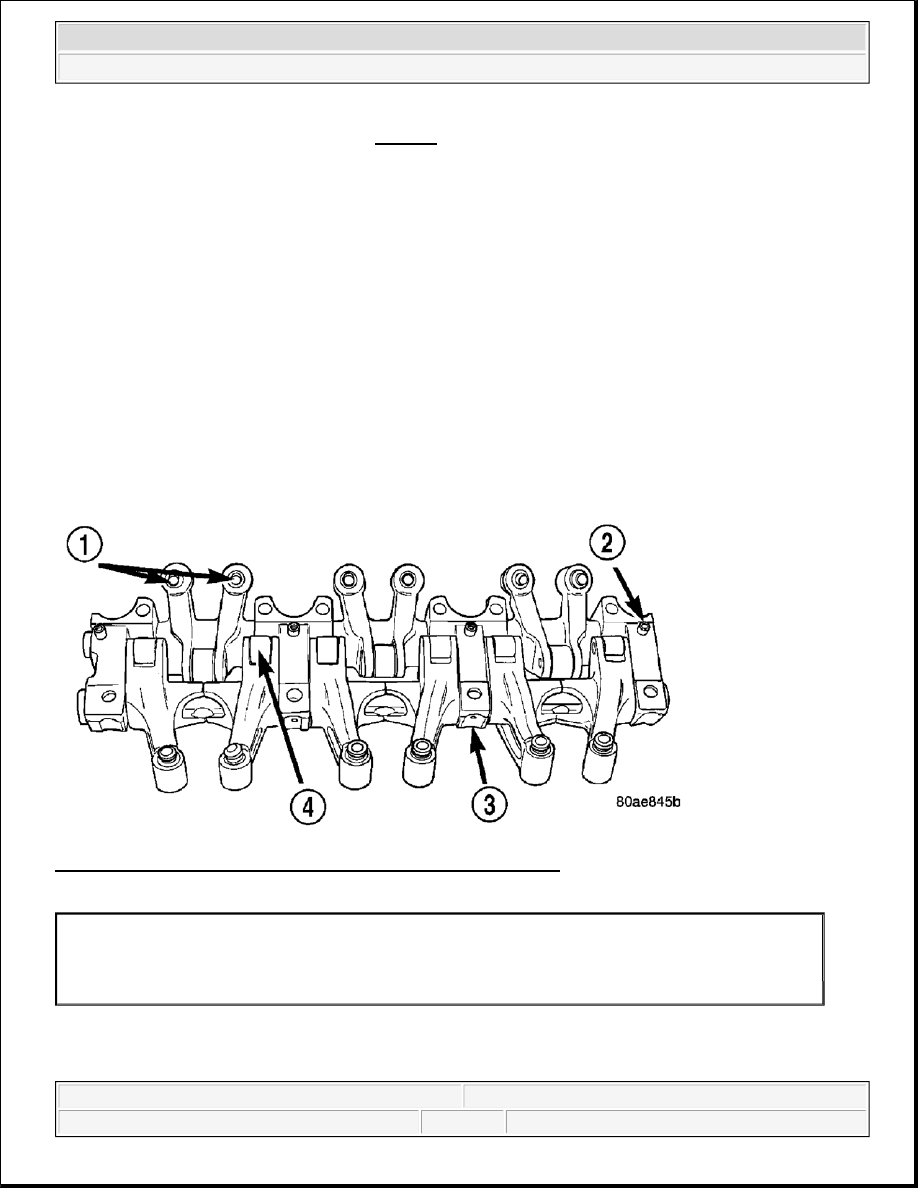

Fig. 161: Hydraulic Lash Adjusters, Dowel Pin, Pedestal & Roller
Courtesy of CHRYSLER LLC

CAUTION: Do Not remove lash adjuster from rocker arm assembly. Damage to the

adjuster and rocker arm will result.

1 - HYDRAULIC LASH ADJUSTERS
2 - DOWEL PIN
3 - PEDESTAL
4 - ROLLER

CAUTION: New dowel pins must be installed when reassembling.



2007 Dodge Nitro R/T

2007 ENGINE 4.0L - Service Information - Nitro
