Dodge Nitro. Manual - part 95

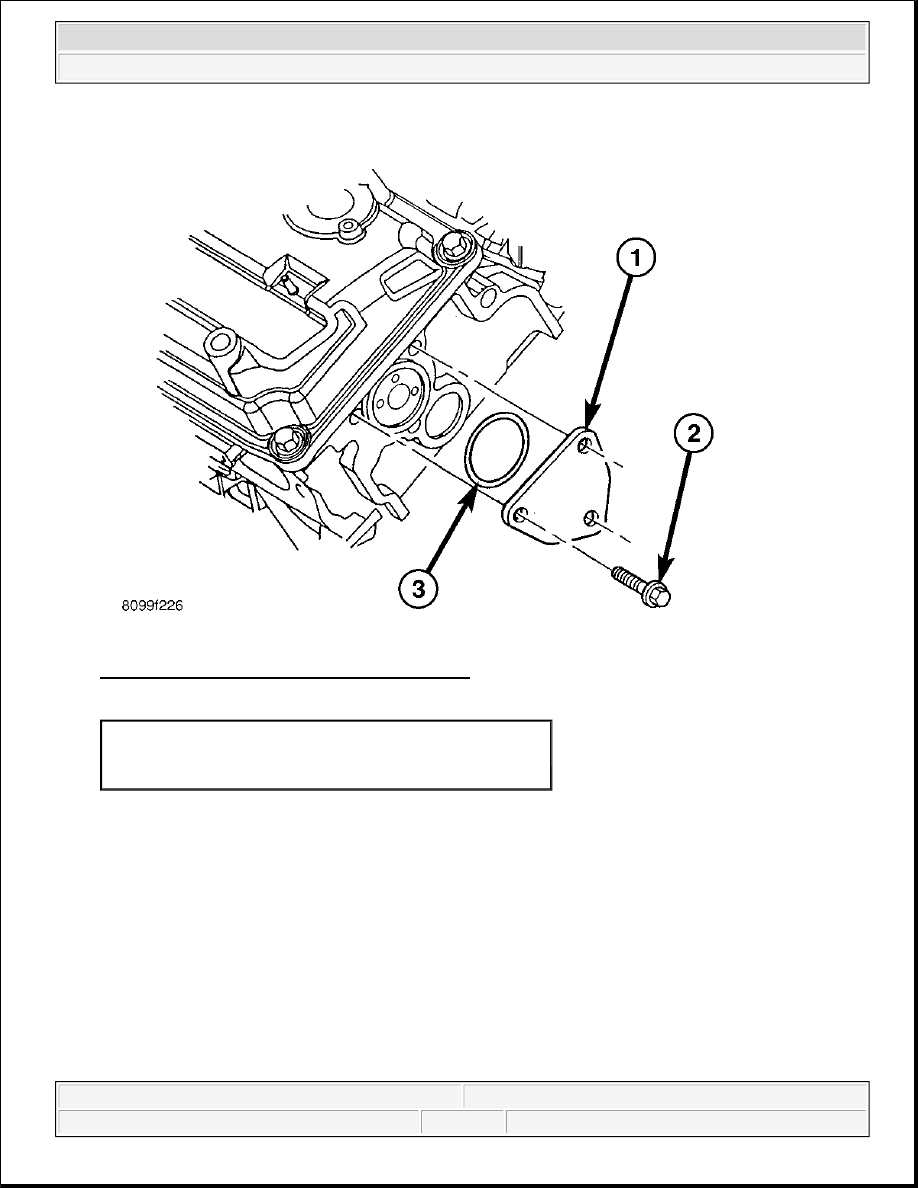

Fig. 121: Camshaft Thrust Plate, Bolt & O-Ring
Courtesy of CHRYSLER LLC

7. Remove the camshaft thrust plate (1) from the rear of the cylinder head.

8. Maneuver the camshaft rearward and out of the cylinder head approximately 3.5 inches.

1 - CAMSHAFT THRUST PLATE
2 - BOLT
3 - O-RING

NOTE:

Care must be taken not to damage the cylinder head to seal or camshaft
journal surfaces when removing the camshaft seal.



2007 Dodge Nitro R/T

2007 ENGINE 4.0L - Service Information - Nitro



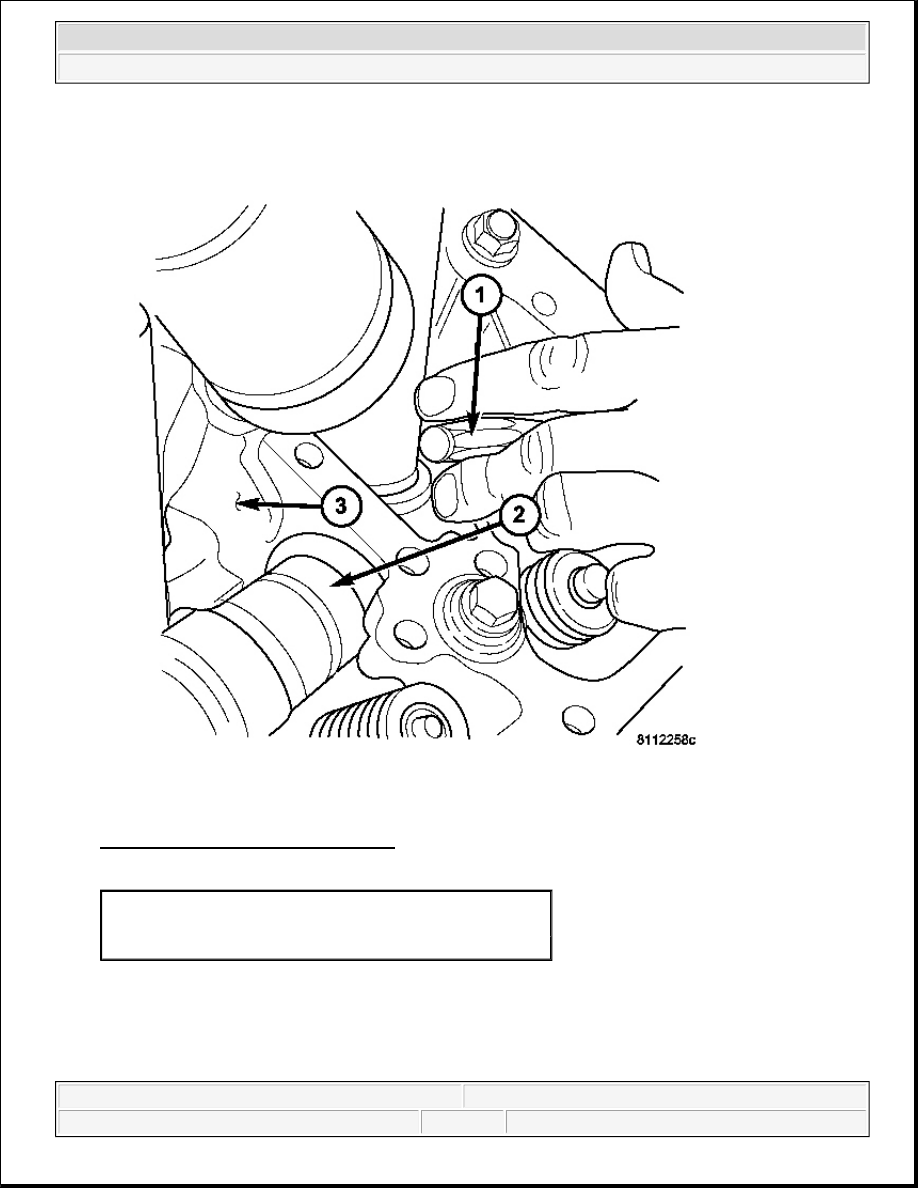

Fig. 122: Removing Camshaft Oil Seal
Courtesy of CHRYSLER LLC

9. Using an appropriate driver (1) carefully remove camshaft oil seal.

INSTALLATION

INSTALLATION

1 - DRIFT
2 - CAMSHAFT
3 - CYLINDER HEAD



2007 Dodge Nitro R/T

2007 ENGINE 4.0L - Service Information - Nitro



RIGHT CYLINDER HEAD

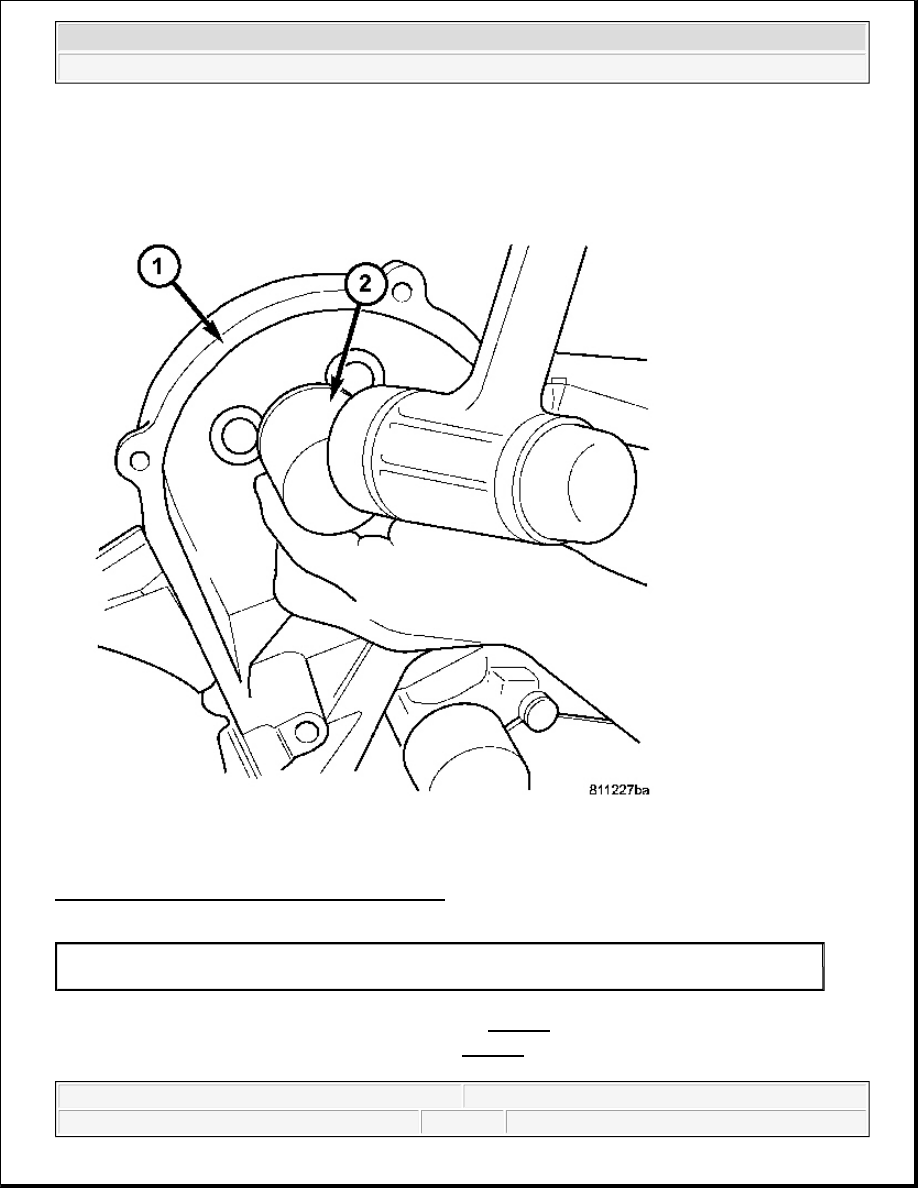

Fig. 123: Using MD-998306 To Tap Seal Into Place
Courtesy of CHRYSLER LLC

1. Position the camshaft seal into the cylinder head. See Fig. 123.

2. Using MD-998306 (2) tap the seal into place. See Fig. 123.

1 - REAR TIMING COVER
2 - SPECIAL TOOL MD-998306



2007 Dodge Nitro R/T

2007 ENGINE 4.0L - Service Information - Nitro



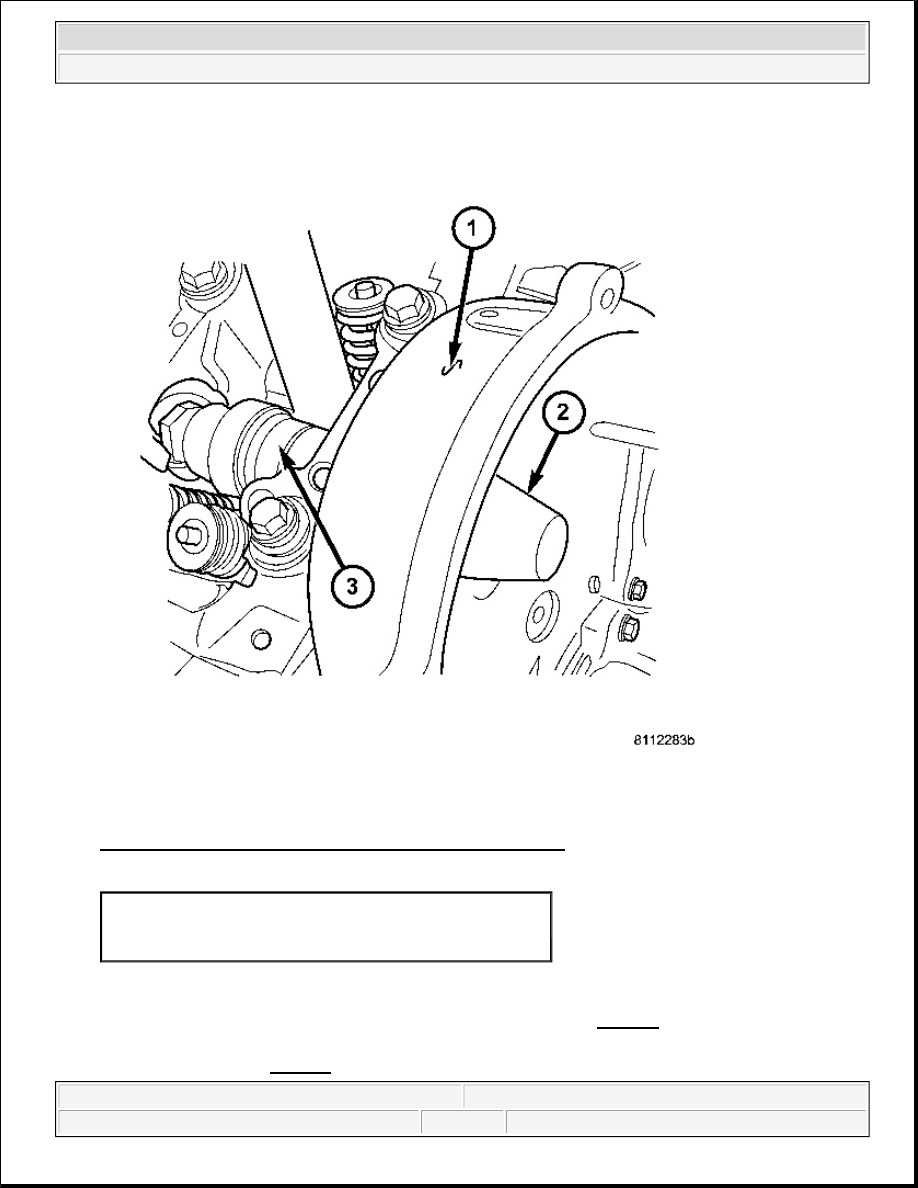

Fig. 124: Rear Timing Cover, Special Tool 6788 & Camshaft
Courtesy of CHRYSLER LLC

3. Apply light coat of clean engine oil to the camshaft oil seal lip and 6788 Seal Protector Sleeve (2).

4. Install oil seal 6788 Seal Protector Sleeve (2) onto the camshaft. See Fig. 124.

5. Slide the camshaft (3) forward, inserting the seal protector (2) through the camshaft seal until the

camshaft (3) seats. See Fig. 124.

1 - REAR TIMING COVER
2 - SPECIAL TOOL 6788
3 - CAMSHAFT
