17. Remove the left side secondary chain tensioner.

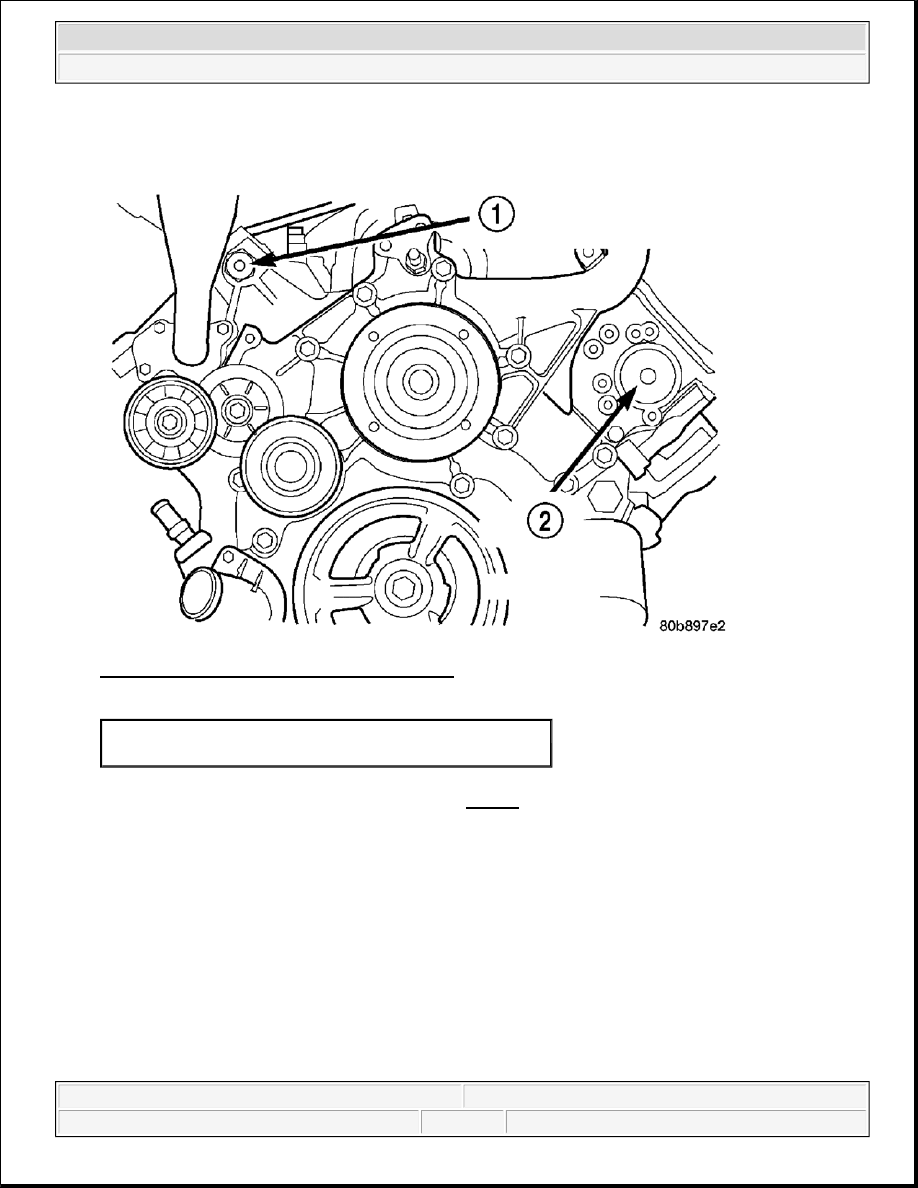

Fig. 51: Removing Cylinder Head Access Plug
Courtesy of CHRYSLER LLC

18. Remove the cylinder head access plug (1) (2). See Fig. 51.

19. Remove the left side secondary chain guide.

20. Remove the retaining bolt and the camshaft drive gear.

1 - RIGHT CYLINDER HEAD ACCESS PLUG
2 - LEFT CYLINDER HEAD ACCESS PLUG

CAUTION: Do not allow the engine to rotate. Severe damage to the valve train

can occur.

CAUTION: Do not overlook the four smaller bolts at the front of the cylinder

head. Do not attempt to remove the cylinder head without removing
these four bolts.

NOTE:

The cylinder head is attached to the cylinder block with twelve bolts.



2007 Dodge Nitro R/T

2007 ENGINE 3.7L - Service Information - Nitro



21. Remove the cylinder head retaining bolts.

22. Remove the cylinder head and gasket. Discard the gasket.

CLEANING

CYLINDER HEADS

Fig. 52: Proper Tool Usage for Surface Preparation
Courtesy of CHRYSLER LLC

CAUTION: Do not lay the cylinder head on its gasket sealing surface, due to the

design of the cylinder head gasket any distortion to the cylinder head
sealing surface may prevent the gasket from properly sealing resulting in
leaks.



2007 Dodge Nitro R/T

2007 ENGINE 3.7L - Service Information - Nitro



To ensure engine gasket sealing, proper surface preparation must be performed, especially with the use of
aluminum engine components. See Fig. 52. See STANDARD PROCEDURE.

INSTALLATION

INSTALLATION

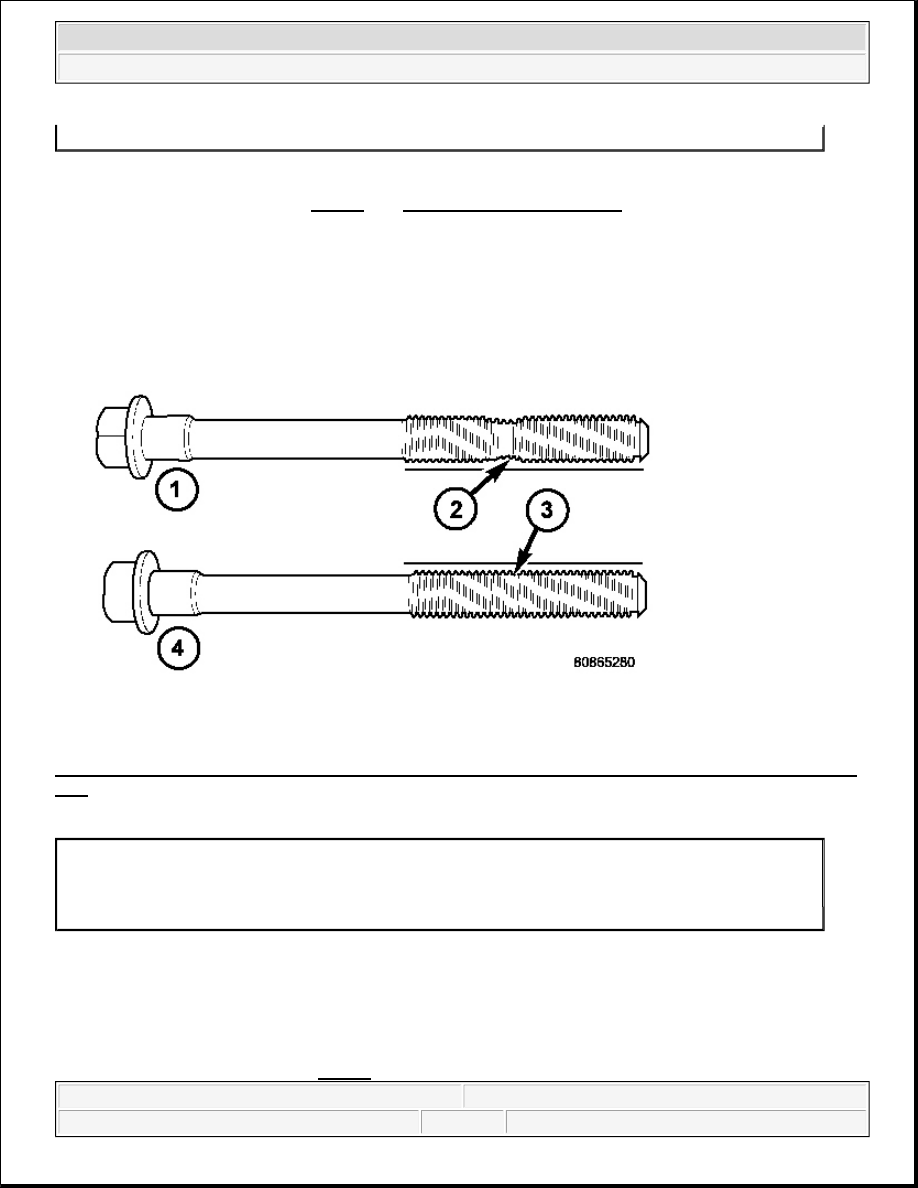

Fig. 53: Stretched Bolt, Threads Are Not Straight On Line, Threads Are Straight On Line & Unstreched
Bolt
Courtesy of CHRYSLER LLC

Necking can be checked by holding a straight edge against the threads. If all the threads do not contact the scale
(1), the bolt should be replaced. See Fig. 53.

1 - PLASTIC/WOOD SCRAPER

1 - STRETCHED BOLT
2 - THREADS ARE NOT STRAIGHT ON LINE
3 - THREADS ARE STRAIGHT ON LINE
4 - UNSTRETCHED BOLT

NOTE:

The cylinder head bolts are tightened using a torque plus angle procedure. The
bolts must be examined BEFORE reuse. If the threads are necked down the
bolts should be replaced.



2007 Dodge Nitro R/T

2007 ENGINE 3.7L - Service Information - Nitro



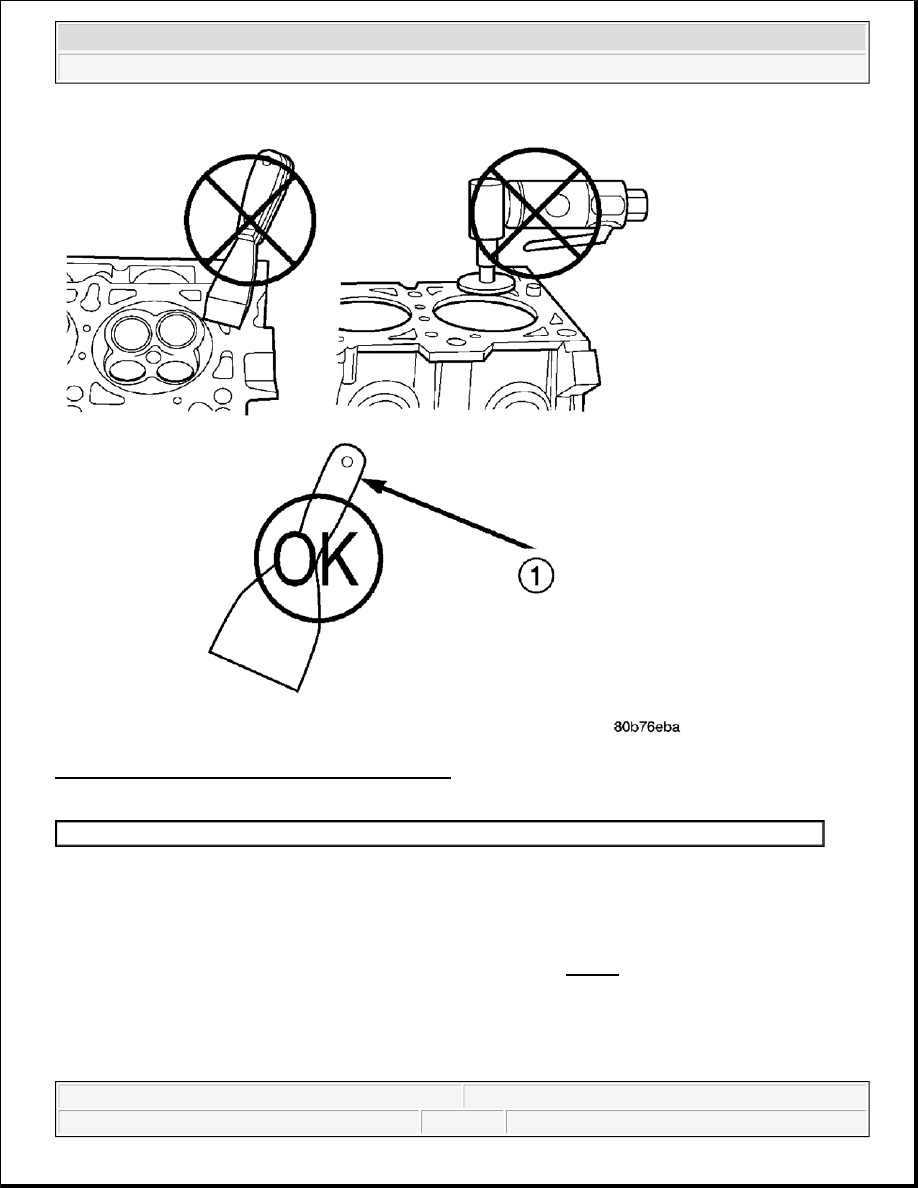

Fig. 54: Proper Tool Usage for Surface Preparation
Courtesy of CHRYSLER LLC

1. Clean the cylinder head and cylinder block mating surfaces. See Fig. 54.

2. Position the new cylinder head gasket on the locating dowels.

1 - PLASTIC/WOOD SCRAPER

CAUTION: When cleaning cylinder head and cylinder block surfaces, DO NOT use a

metal scraper because the surfaces could be cut or ground. Use only a
wooden or plastic scraper.

CAUTION: When installing cylinder head, use care not damage the tensioner

arm or the guide arm.
