Dodge Durango (HB). Manual - part 719

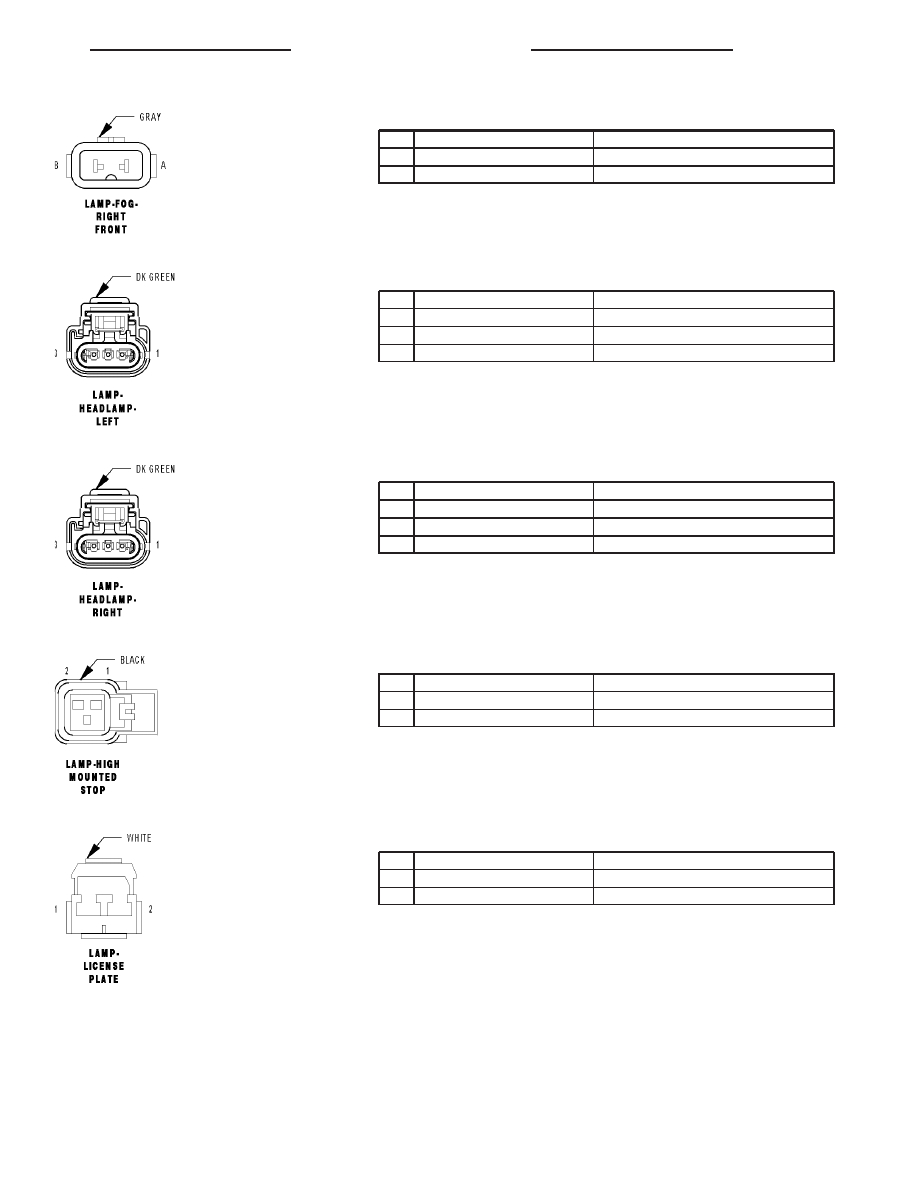

LAMP-FOG-RIGHT FRONT - GRAY 2 WAY

CAV

CIRCUIT

FUNCTION

A

Z348 20BK/OR

GROUND

B

L89 18WT/YL

FRONT FOG LAMP RELAY OUTPUT

LAMP-HEADLAMP-LEFT - DK GREEN 3 WAY

CAV

CIRCUIT

FUNCTION

1

L43 18WT/DB

LEFT LOW BEAM DRIVER

2

Z912 20BK

GROUND

3

L33 18WT/LG

LEFT HIGH BEAM DRIVER

LAMP-HEADLAMP-RIGHT - DK GREEN 3 WAY

CAV

CIRCUIT

FUNCTION

1

L44 18WT/TN

RIGHT LOW BEAM DRIVER

2

Z929 20BK

GROUND

3

L34 18WT/GY

RIGHT HIGH BEAM DRIVER

LAMP-HIGH MOUNTED STOP - BLACK 2 WAY

CAV

CIRCUIT

FUNCTION

1

L50 18WT/TN

BRAKE LAMP SWITCH OUTPUT

2

Z945 18BK

GROUND

LAMP-LICENSE PLATE - WHITE 2 WAY

CAV

CIRCUIT

FUNCTION

1

L77 20PK/RD

FUSED LEFT INBOARD TAIL LAMP

2

Z945 18BK

GROUND

HB

8W-80 CONNECTOR PIN-OUTS

8W - 80 - 51

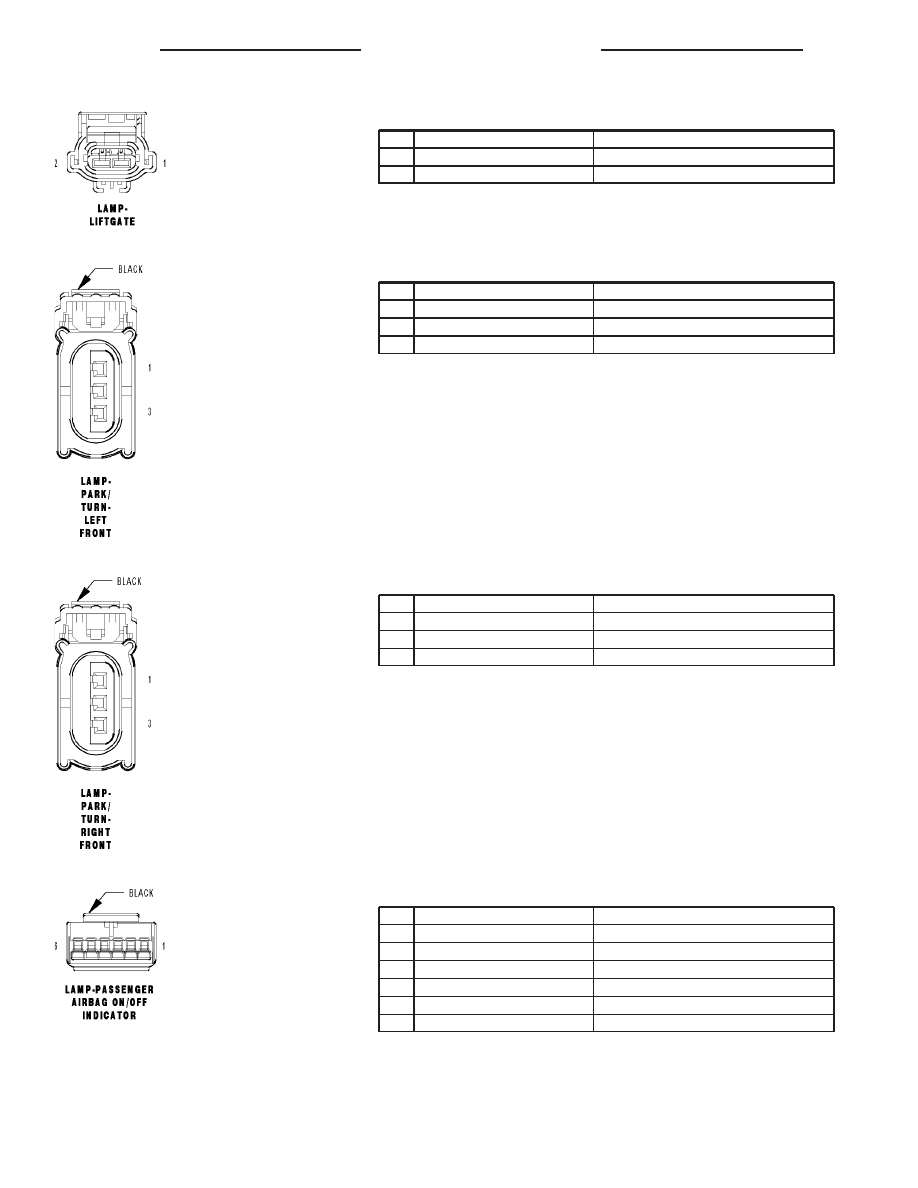

LAMP-LIFTGATE - 2 WAY

CAV

CIRCUIT

FUNCTION

1

M22 20YL/OR

COURTESY LAMPS DRIVER

2

Z945 20BK

GROUND

LAMP-PARK/TURN-LEFT FRONT - BLACK 3 WAY

CAV

CIRCUIT

FUNCTION

1

Z377 20BK/BR

GROUND

2

L77 20PK/RD

FUSED LEFT INBOARD TAIL LAMP

3

L61 18WT/LG

LEFT TURN SIGNAL

LAMP-PARK/TURN-RIGHT FRONT - BLACK 3 WAY

CAV

CIRCUIT

FUNCTION

1

Z378 20BK/TN

GROUND

2

L78 20WT/OR

FUSED PARK LAMP RELAY OUTPUT

3

L60 18WT/TN

RIGHT TURN SIGNAL

LAMP-PASSENGER AIRBAG ON/OFF INDICATOR - BLACK 6 WAY

CAV

CIRCUIT

FUNCTION

1

-

-

2

-

-

3

R104 20LB/LG

PASSENGER AIRBAG INDICATOR DRIVER

4

F201 20PK/OR

FUSED IGNITION SWITCH OUTPUT (RUN-START)

5

-

-

6

-

-

8W - 80 - 52

8W-80 CONNECTOR PIN-OUTS

HB

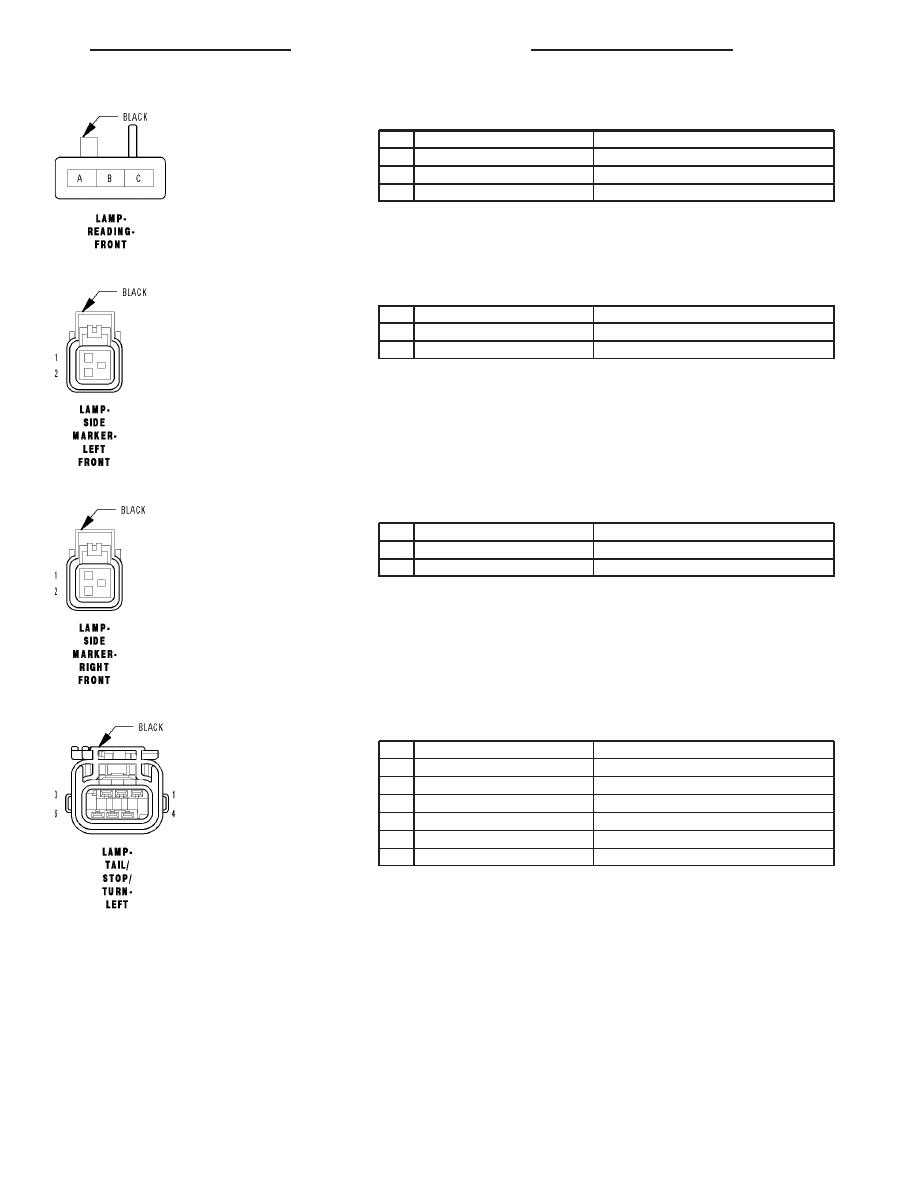

LAMP-READING-FRONT - BLACK 3 WAY

CAV

CIRCUIT

FUNCTION

A

M28 20YL/TN

GLOVE BOX LAMP DRIVER

B

Z955 20BK

GROUND

C

M22 20YL/OR

COURTESY LAMPS DRIVER

LAMP-SIDE MARKER-LEFT FRONT - BLACK 2 WAY

CAV

CIRCUIT

FUNCTION

1

L77 20PK/RD

FUSED LEFT INBOARD TAIL LAMP

2

Z385 20BK

GROUND

LAMP-SIDE MARKER-RIGHT FRONT - BLACK 2 WAY

CAV

CIRCUIT

FUNCTION

1

L78 20WT/OR

FUSED PARK LAMP RELAY OUTPUT

2

Z384 20BK

GROUND

LAMP-TAIL/STOP/TURN-LEFT - BLACK 6 WAY

CAV

CIRCUIT

FUNCTION

1

-

-

2

Z363 20BK/DG

GROUND

3

L77 20PK/RD

FUSED LEFT INBOARD TAIL LAMP

4

L50 18WT/TN

BRAKE LAMP SWITCH OUTPUT

5

L1 16WT/LG

BACK-UP LAMP FEED

6

L63 18WT/DG

LEFT TURN SIGNAL

HB

8W-80 CONNECTOR PIN-OUTS

8W - 80 - 53

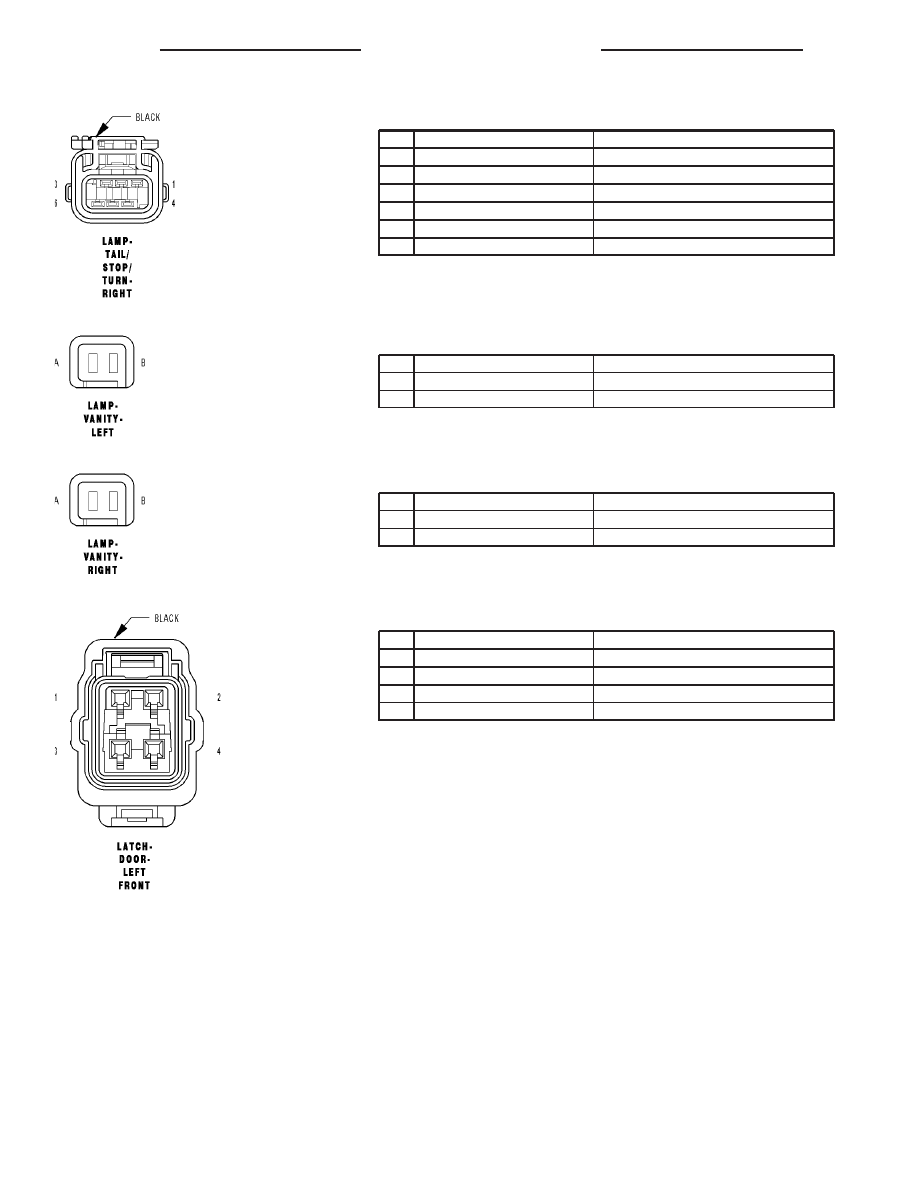

LAMP-TAIL/STOP/TURN-RIGHT - BLACK 6 WAY

CAV

CIRCUIT

FUNCTION

1

L50 18WT/TN

BRAKE LAMP SWITCH OUTPUT

2

L1 16WT/LG

BACK-UP LAMP FEED

3

L62 18VT/GY

RIGHT TURN SIGNAL

4

Z362 20BK/BR

GROUND

5

L78 20WT/OR

FUSED PARK LAMP RELAY OUTPUT

6

-

-

LAMP-VANITY-LEFT - 2 WAY

CAV

CIRCUIT

FUNCTION

A

M28 20YL/TN

GLOVE BOX LAMP DRIVER

B

Z955 20BK

GROUND

LAMP-VANITY-RIGHT - 2 WAY

CAV

CIRCUIT

FUNCTION

A

M28 20YL/TN

GLOVE BOX LAMP DRIVER

B

Z955 20BK

GROUND

LATCH-DOOR-LEFT FRONT - BLACK 4 WAY

CAV

CIRCUIT

FUNCTION

1

G75 20VT

DRIVER DOOR AJAR SWITCH SENSE

2

Z940 20BK

GROUND

3

P1 16TN/LG

DOOR UNLOCK DRIVER LEFT FRONT

4

P393 16LG

DOOR LOCK DRIVER LEFT DOORS

8W - 80 - 54

8W-80 CONNECTOR PIN-OUTS

HB
