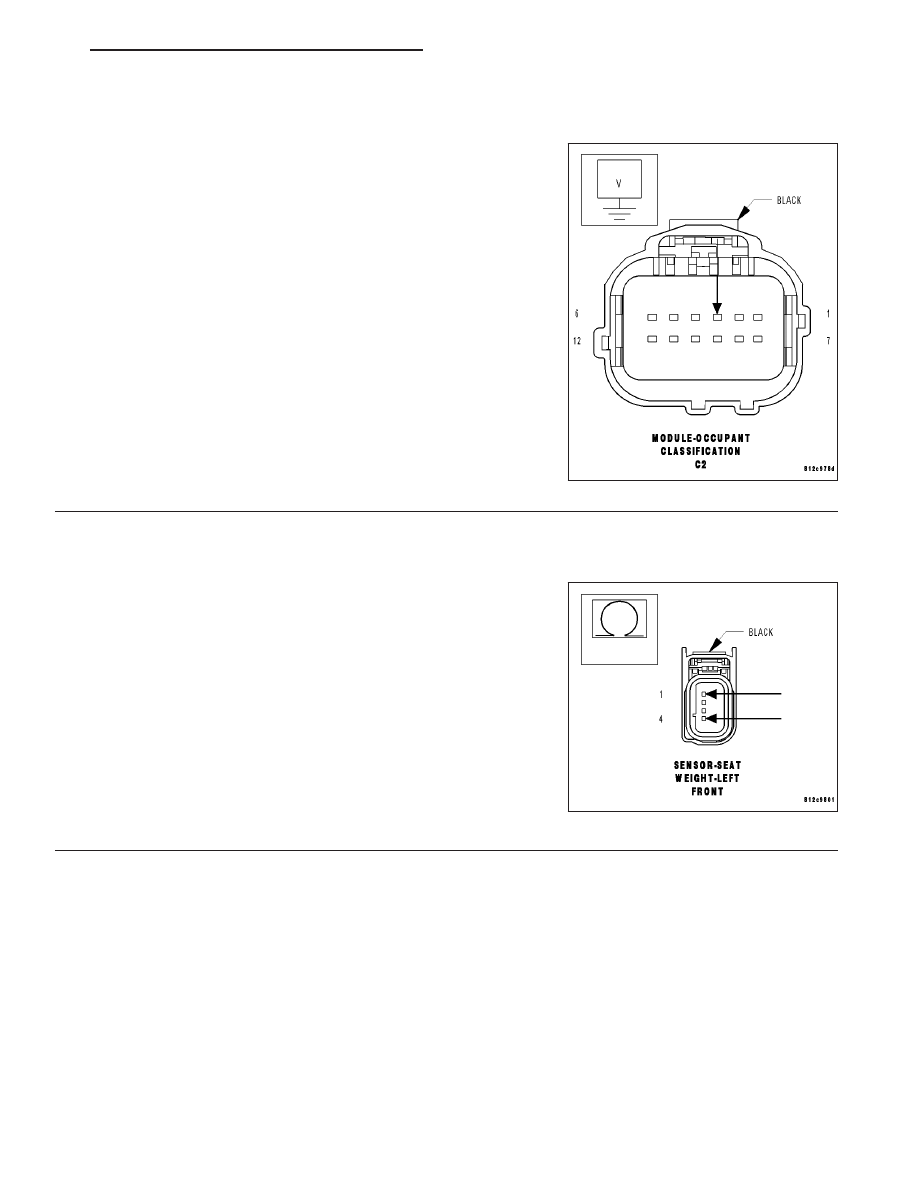

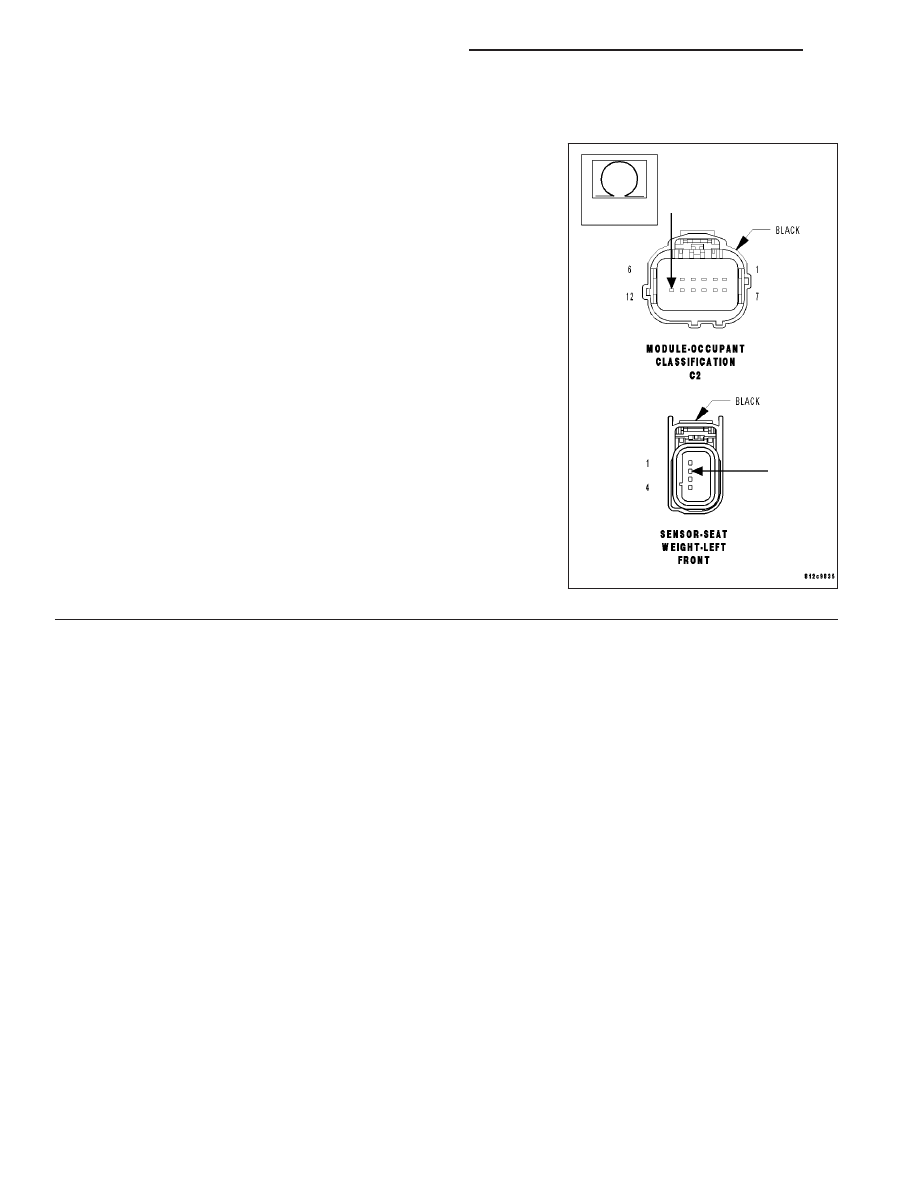

B1B7A- PASSENGER SEAT WEIGHT SENSOR 3 - LEFT FRONT INPUT CIRCUIT HIGH (CONTINUED) 6. CHECK (R717) LT-FT SEAT WEIGHT SENSOR SIGNAL CIRCUIT FOR A SHORT TO VOLTAGE WARNING: To avoid personal injury or death, turn the ignition off, Measure the voltage of the (R717) LT-FT Seat Weight Sensor Signal Is the voltage above 0.2 volts? Yes >> NOTE: Do not attempt to repair the Seat Harness. Replace the Replace the Passenger Seat Harness in accordance with Perform OCS VERIFICATION TEST - VER 1. No >> Go To 7 7. CHECK (R717) LT-FT SEAT WEIGHT SENSOR SIGNAL CIRCUIT FOR A SHORT TO (R701) SEAT WEIGHT Disconnect the Left-Front Seat Weight Sensor connector. Measure the resistance between the (R717) LT-FT Seat Weight Sen- Is the resistance below 10K ohms? Yes >> NOTE: Do not attempt to repair the Seat Harness. Replace the Replace the Passenger Seat Harness in accordance with Perform OCS VERIFICATION TEST - VER 1. No >> Go To 8 HB RESTRAINTS - ELECTRICAL DIAGNOSTICS 8O - 209 |
