Dodge Durango (HB). Manual - part 402

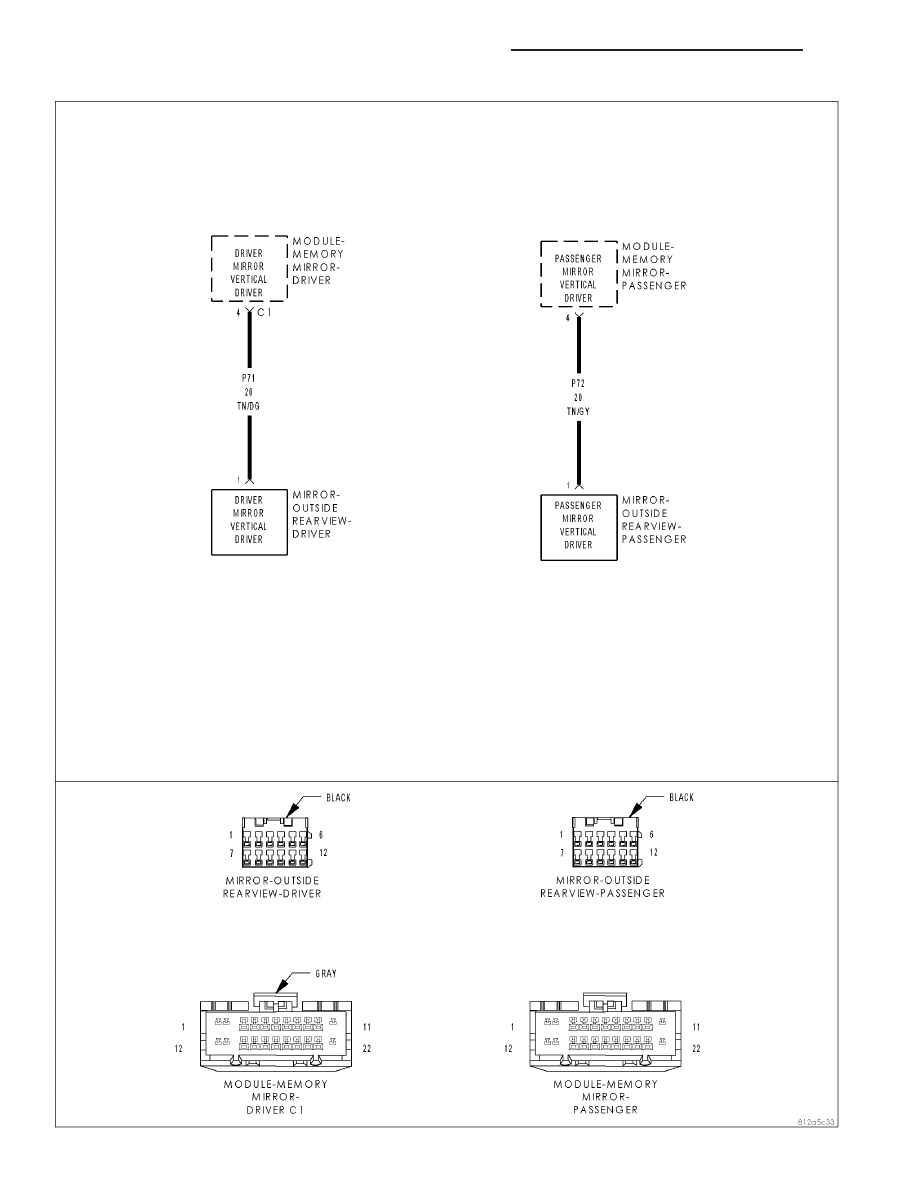

For the Power Memory Mirror System circuit diagram(Refer to 8 - ELECTRICAL/POWER MIRRORS - SCHEMAT-
ICS AND DIAGRAMS)

For a complete wiring diagram Refer to Section 8W.

When Monitored:
Continuously

Set Condition:
When the Memory Mirror Module senses a value below the tolerance of the mirror motor on the Mirror
Vertical Motor Control circuit for over 10ms., this code will set.Note: This test covers both the Driver
and Passenger code depending on the side the code appeared in.

Possible Causes

(P71) OR (P72) MIRROR VERTICAL DRIVER CIRCUIT SHORT TO GROUND

(P71) OR (P72) MIRROR VERTICAL DRIVER CIRCUIT SHORTED TO THE (C910) OR (C917) MIRROR
HEATER GROUND CIRCUIT.

MIRROR SHORTED

MEMORY MIRROR MODULE

Diagnostic Test

1.

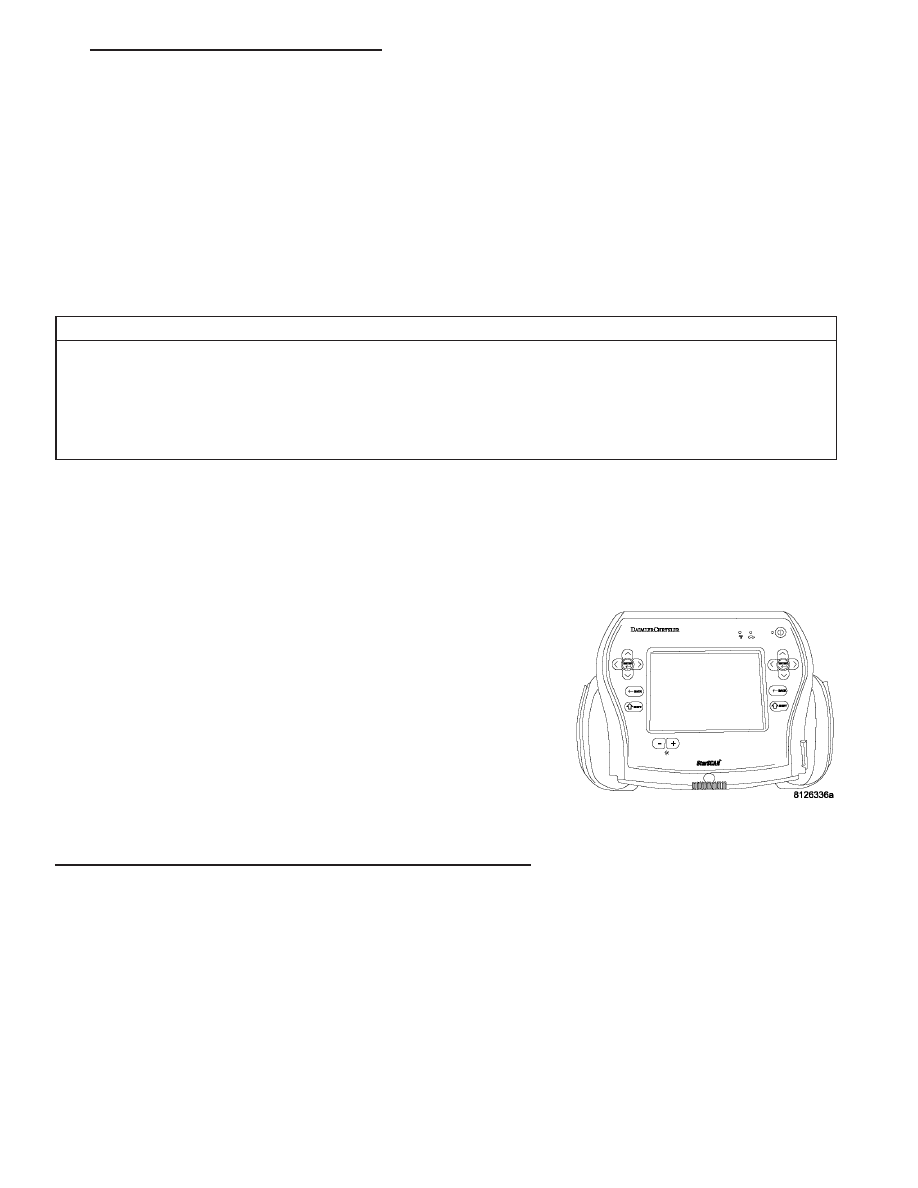

TEST FOR INTERMITTENT CONDITION

Turn the ignition on.

With the scan tool, record and erase DTC’s

Operate the Mirror Switch in all directions several times.

Cycle the ignition from on to off 3 times.

Turn the ignition on.

With the scan tool, read DTC’s.

Does the scan tool display B1D1F or B1D2B–MIRROR VERTI-
CAL MOTOR CONTROL CIRCUIT LOW?

Yes

>> Go To 2

No

>> The conditions that caused this code to set are not

present at this time. Using the wiring diagram/schematic
as a guide, inspect the wiring and connectors.

Perform BODY VERIFICATION TEST - VER 1.

HB

POWER MIRRORS - ELECTRICAL DIAGNOSTICS

8N - 121

B1D1F,B1D2B–MIRROR VERTICAL MOTOR CONTROL CIRCUIT LOW – MEMORY MIRROR MODULE — (CONTINUED)

2.

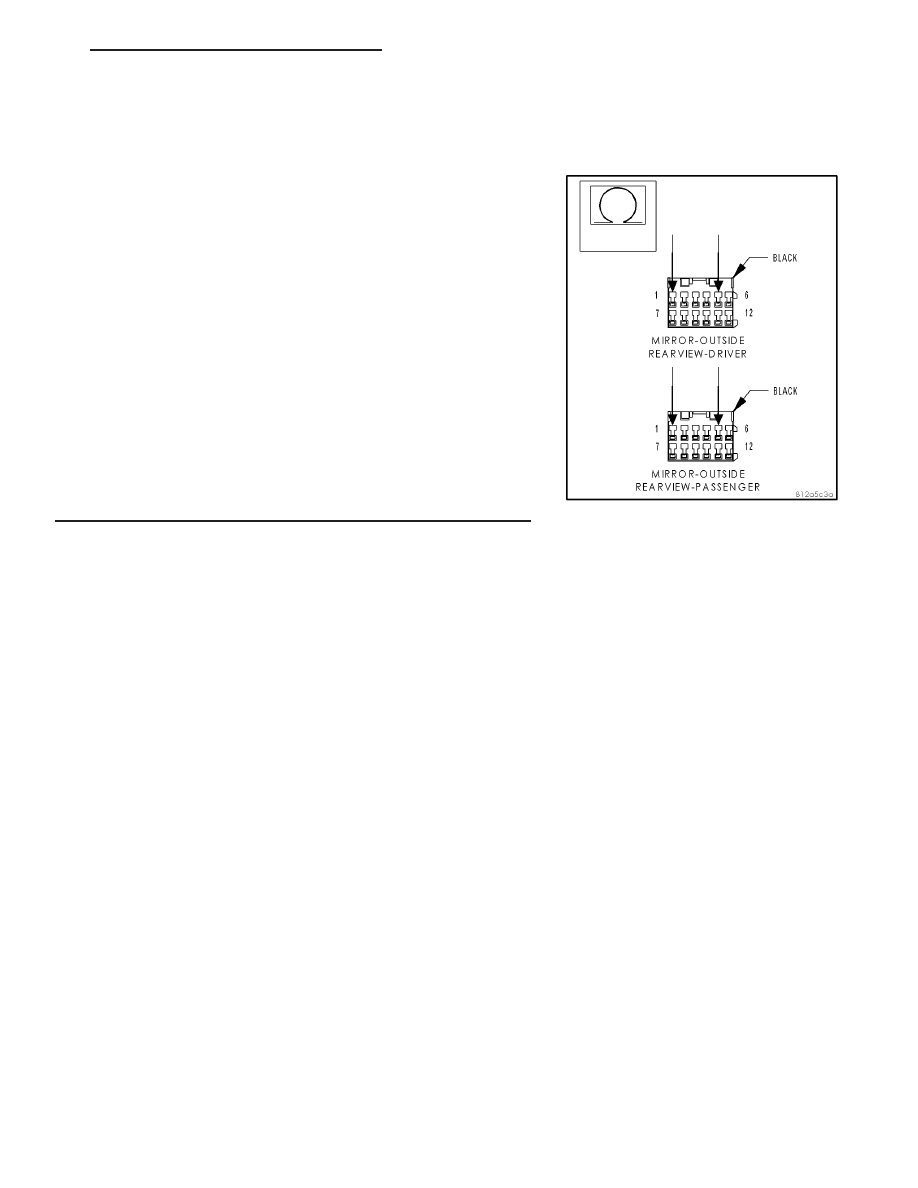

TEST FOR A SHORTED MIRROR

Disconnect the appropriate mirror connector.

With the scan tool, erase DTC’s.

Operate the Mirror Switch in all directions several times.

Cycle the ignition from on to off 3 times.

Turn the ignition on.

With the scan tool, read DTC’s.

Does the scan tool display B1D1F or B1D2B–MIRROR VERTI-
CAL MOTOR CONTROL CIRCUIT LOW?

No

>> Replace the Mirror.

Perform BODY VERIFICATION TEST - VER 1.

Yes

>> Go to 3

3.

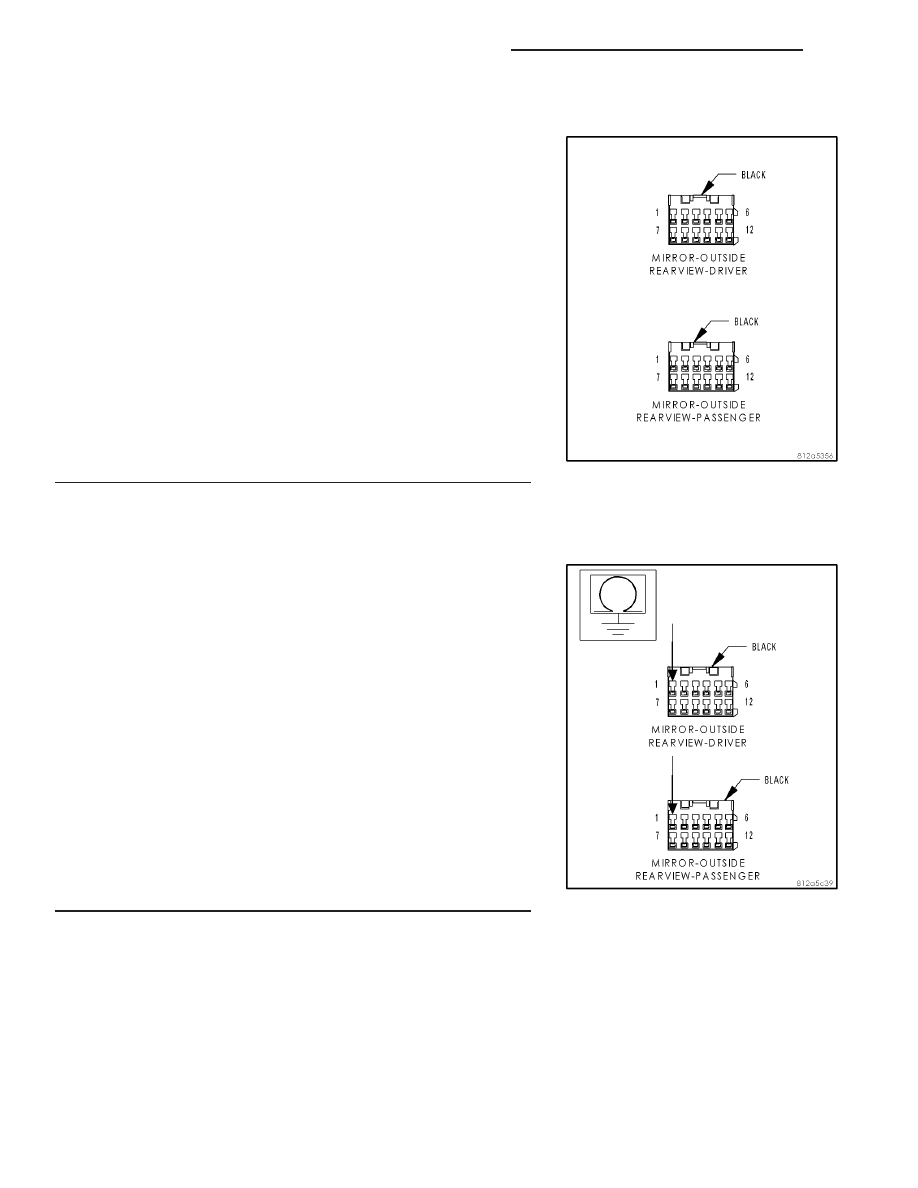

TEST THE (P71) OR (P72) MIRROR VERTICAL MOTOR
DRIVER WIRE FOR A SHORT TO GROUND

Turn the ignition off.

Disconnect the appropriate Memory Mirror Module connector.

Measure the resistance between ground and the (P71) or (P72) Mirror
Vertical Motor Driver circuit.

Is the resistance below 5000.0 ohms?

Yes

>> Repair the (P71) or (P72) Mirror Vertical Motor Driver cir-

cuit for a short to ground.

Perform BODY VERIFICATION TEST - VER 1.

No

>> Go to 4

8N - 122

POWER MIRRORS - ELECTRICAL DIAGNOSTICS

HB

B1D1F,B1D2B–MIRROR VERTICAL MOTOR CONTROL CIRCUIT LOW – MEMORY MIRROR MODULE — (CONTINUED)

4.

TEST THE (P71) OR (P72) MIRROR VERTICAL MOTOR
DRIVER CIRCUIT SHORTED TO THE (C910) OR (C917)
MIRROR HEATER GROUND CIRCUIT.

Measure the resistance between the (P71) or (P72) Mirror Vertical
Motor Driver circuit and the (C910) or (C917) Mirror Heater Ground
circuit.

Is the resistance below 5000.0 ohms?

Yes

>> Repair the (P71) or (P72) Mirror Vertical Motor Driver cir-

cuit for a short to the (C910) or (C917) Mirror Heater
Ground Circuit.

Perform BODY VERIFICATION TEST - VER 1.

No

>> Replace the appropriate Memory Mirror Module.

Perform BODY VERIFICATION TEST - VER 1.

HB

POWER MIRRORS - ELECTRICAL DIAGNOSTICS

8N - 123

B1D1F,B1D2B–MIRROR VERTICAL MOTOR CONTROL CIRCUIT LOW – MEMORY MIRROR MODULE — (CONTINUED)

8N - 124

POWER MIRRORS - ELECTRICAL DIAGNOSTICS

HB

B1D20,B1D2C–MIRROR VERTICAL MOTOR CONTROL CIRCUIT HIGH – MEMORY MIRROR MODULE
