Dodge Durango (HB). Manual - part 387





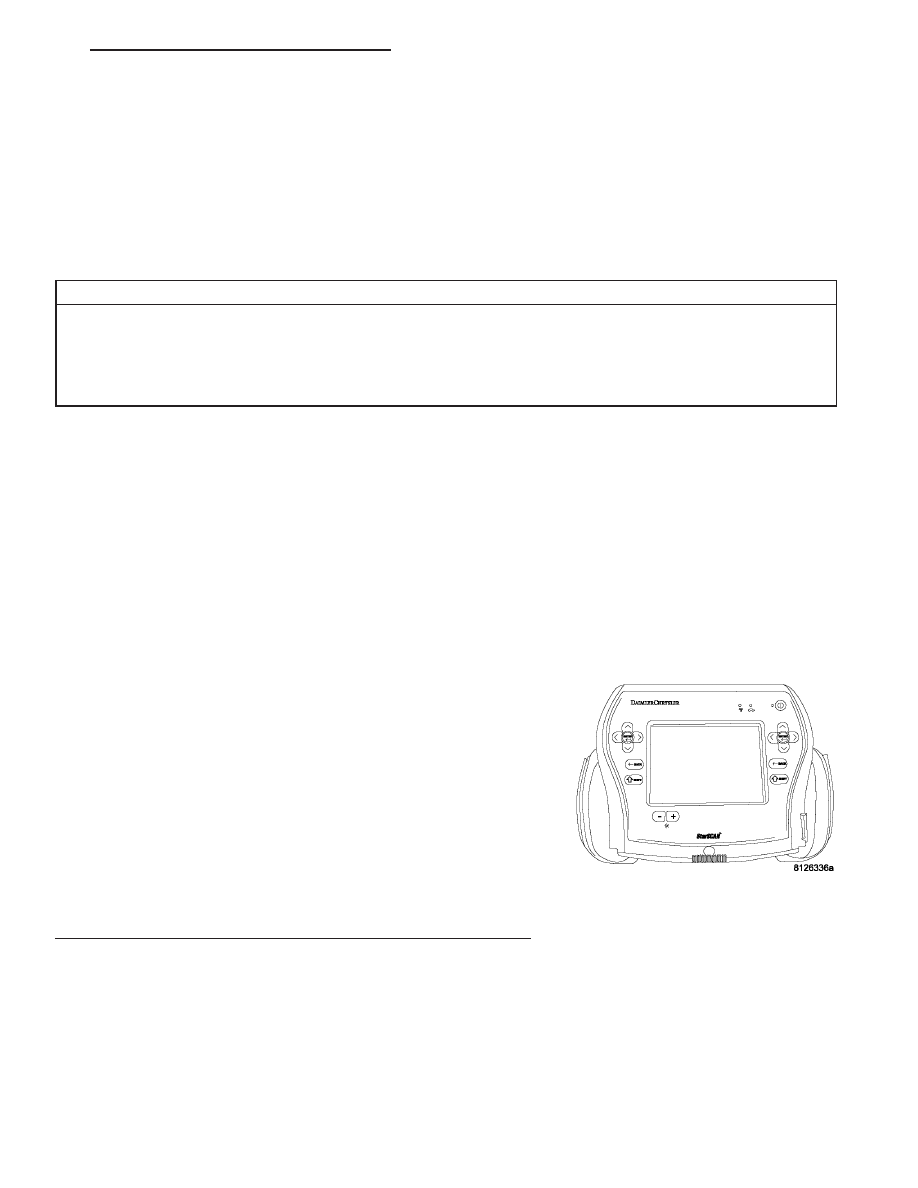

For the Memory Mirror System circuit diagram (Refer to 8 - ELECTRICAL/POWER MIRRORS - SCHEMATICS AND
DIAGRAMS).

For a complete wiring diagram Refer to Section 8W.

When Monitored:
Continuously

Set Condition:
Whenever the Mirror Switch Supply circuit is below 6.8 volts for over 2 seconds, this code will set.

Possible Causes

PCM BATTERY VOLTAGE LOW DTC

(P550) MIRROR SWITCH SUPPLY CIRCUIT PARTIAL SHORT TO GROUND

MIRROR SWITCH

DRIVER MEMORY MIRROR MODULE

Theory of Operation

On vehicles with the memory system, the Mirror Switch receives its power supply from the Driver Memory Mirror
Module. When this code is logged in the Passenger Memory Mirror Module, it has received a bus message from the
Driver Module that the power supply for the mirror switch is low. There are no repairs for the passenger side. All
repairs are done to the driver side.

Diagnostic Test

1.

TEST FOR INTERMITTENT CONDITION

Turn the ignition on.

With the scan tool, record and erase DTC’s

Operate the driver mirror several times from the mirror switch

Cycle the ignition from on to off 3 times.

Turn the ignition on.

With the scan tool, read DTC’s.

Does the scan tool display SWITCH POWER SUPPLY CIRCUIT
LOW?

Yes

>> Go To 2

No

>> The conditions that caused this code to set are not

present at this time. Using the wiring diagram/schematic
as a guide, inspect the wiring and connectors.

HB

POWER MIRRORS - ELECTRICAL DIAGNOSTICS

8N - 61

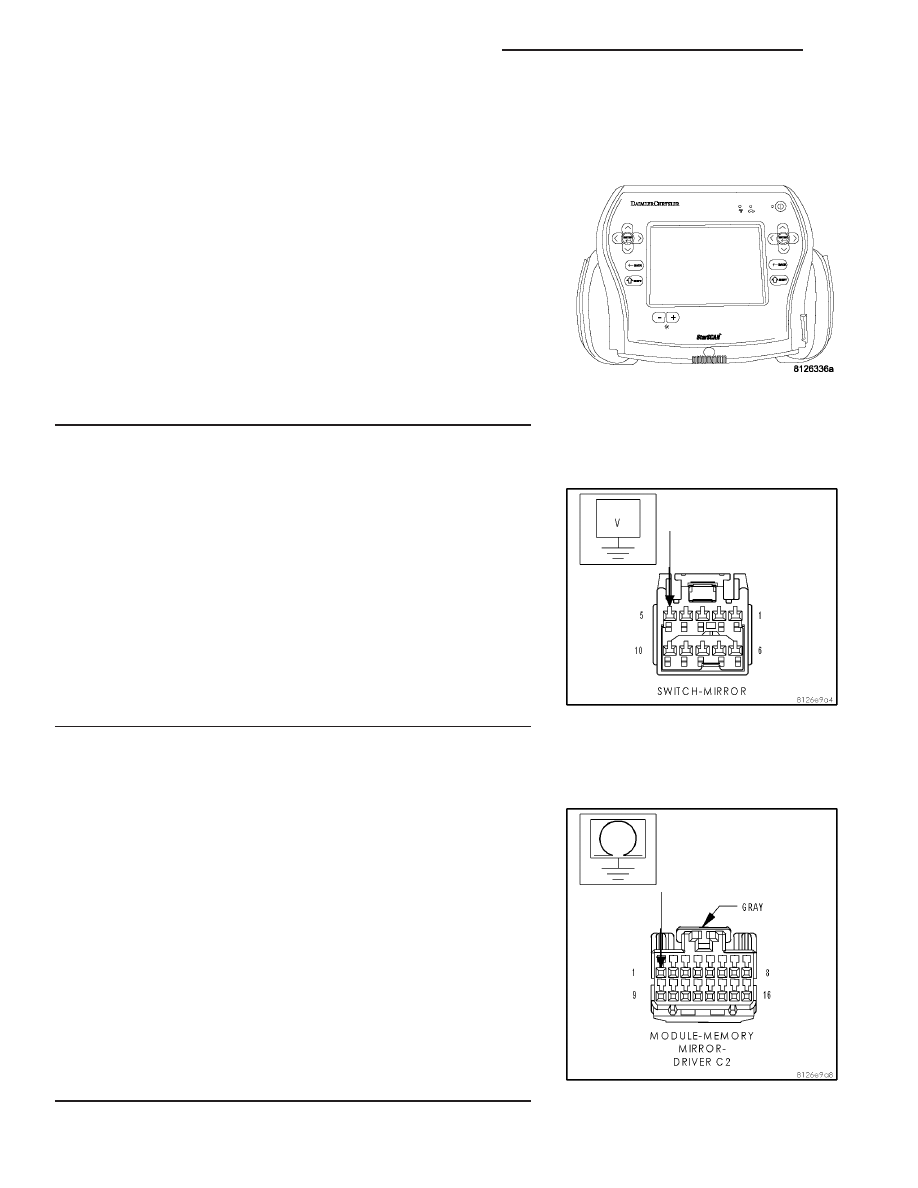

B1D53,B1DA7–SWITCH POWER SUPPLY CIRCUIT LOW — MMM —

(CONTINUED)

2.

CHECK ENGINE DTC’s

With the scan tool, read engine DTC’s

Does the scan tool display any BATTERY VOLTAGE LOW
related DTC’s?

Yes

>> Refer to the symptom list for problems related to ENGINE.

No

>> Go to 3

3.

MIRROR SWITCH SHORTED

Disconnect the Mirror Switch connector.

Measure the voltage between the (P550) Mirror Switch Supply circuit
and ground.

Is the voltage above 10.0 volts?

Yes

>> Replace the Mirror Switch.

Perform BODY VERIFICATION TEST - VER 1.

No

>> Go to 4

4.

(P550) MIRROR SWITCH SUPPLY CIRCUIT PARTIAL SHORT
TO GROUND

Turn the ignition off.

Disconnect the Driver Memory Mirror Module connector.

Measure the resistance between ground and the (P550) Mirror Switch
Supply circuit.

Is the resistance below 5000.0 ohms?

Yes

>> Repair the (P550) Mirror Switch Supply circuit for a short

to ground.

Perform BODY VERIFICATION TEST - VER 1.

No

>> Replace the Driver Memory Mirror Module.

Perform BODY VERIFICATION TEST - VER 1.

8N - 62

POWER MIRRORS - ELECTRICAL DIAGNOSTICS

HB

B1D53,B1DA7–SWITCH POWER SUPPLY CIRCUIT LOW — MMM —

(CONTINUED)

HB

POWER MIRRORS - ELECTRICAL DIAGNOSTICS

8N - 63

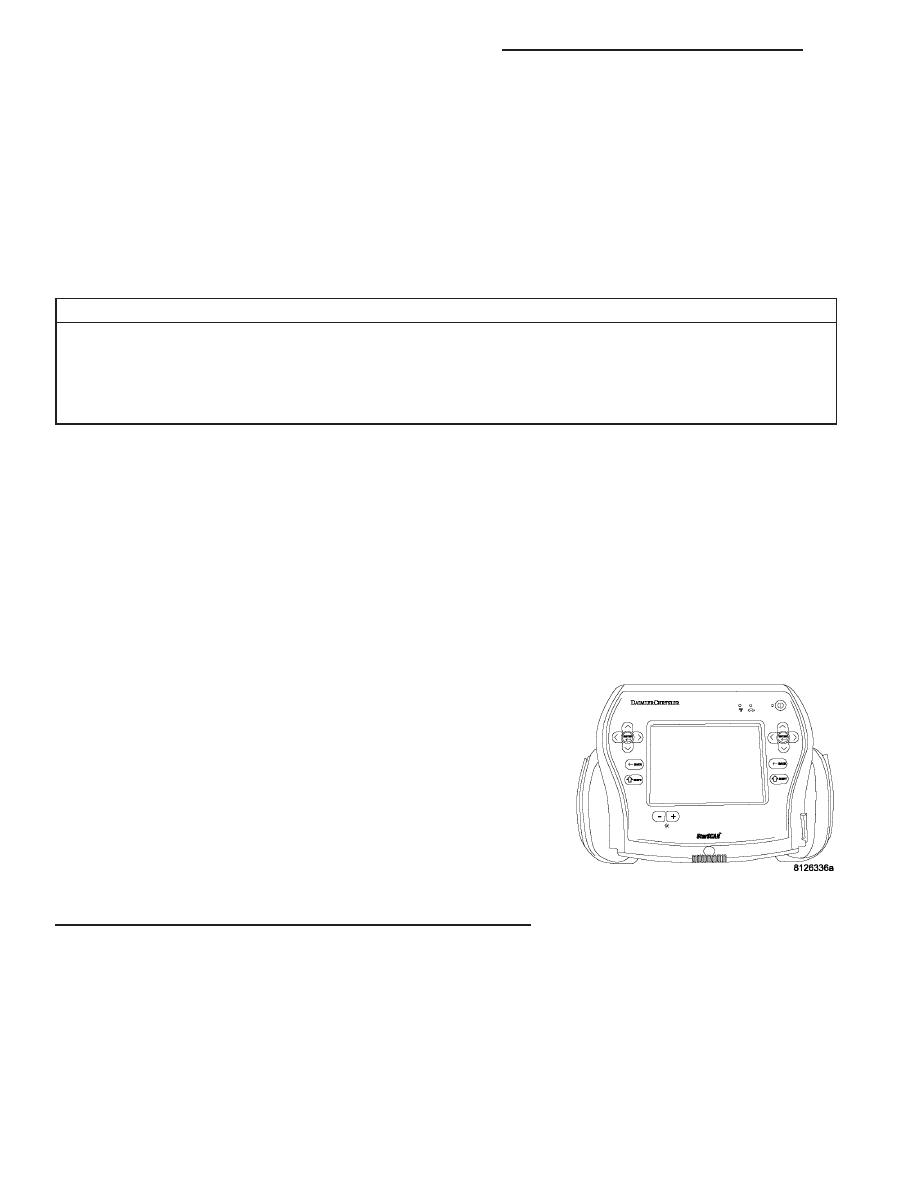

B1D4C-MEMORY SWITCH INPUT CIRCUIT HIGH – MEMORY MIRROR MODULE

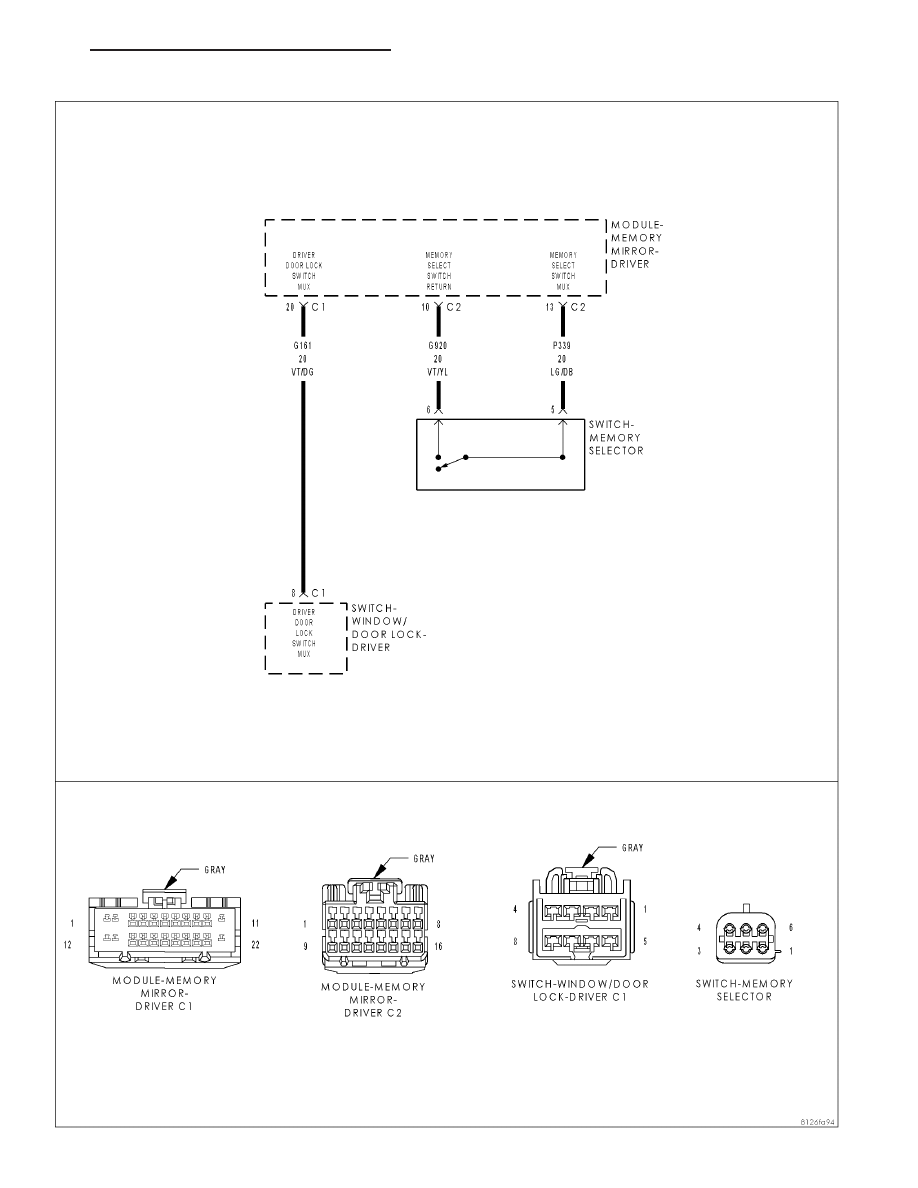

For the Power Memory Mirror System circuit diagram(Refer to 8 - ELECTRICAL/POWER MIRRORS - SCHEMAT-
ICS AND DIAGRAMS)

For a complete wiring diagram Refer to Section 8W.

When Monitored:
Continuously

Set Condition:
When the Door Lock Switch Mux circuit or the Memory Select Switch Mux circuit is above 5.25 volts for
over 30 msec.

Possible Causes

(G161) DRIVER DOOR LOCK SWITCH MUX WIRE SHORT TO VOLTAGE

(P339) MEMORY SELECT SWITCH MUX WIRE SHORT TO VOLTAGE

WINDOW/DOOR LOCK SWITCH

DRIVER MEMORY MIRROR MODULE

Theory of Operation

This code will only set in vehicles that have the Memory System. The supply circuit for the Memory Mirrors are
supplied by the Driver Memory Mirror Module, therefore both the Memory Select Switch Mux or the Door Lock
Switch Mux circuits can cause this DTC.

Diagnostic Test

1.

TEST FOR INTERMITTENT CONDITION

With the scan tool, record and erase DTC’s

Press the Memory Selector Switch several time in all positions.Cycle
the ignition from on to off 3 times.

Turn the ignition on.

With the scan tool, read DTC’s.

Does the scan tool display MEMORY SWITCH INPUT CIRCUIT
HIGH?

Yes

>> Go To 2

No

>> The conditions that caused this code to set are not

present at this time. Using the wiring diagram/schematic
as a guide, inspect the wiring and connectors.

Perform BODY VERIFICATION TEST - VER 1.

8N - 64

POWER MIRRORS - ELECTRICAL DIAGNOSTICS

HB

B1D4C-MEMORY SWITCH INPUT CIRCUIT HIGH – MEMORY MIRROR MODULE — (CONTINUED)
