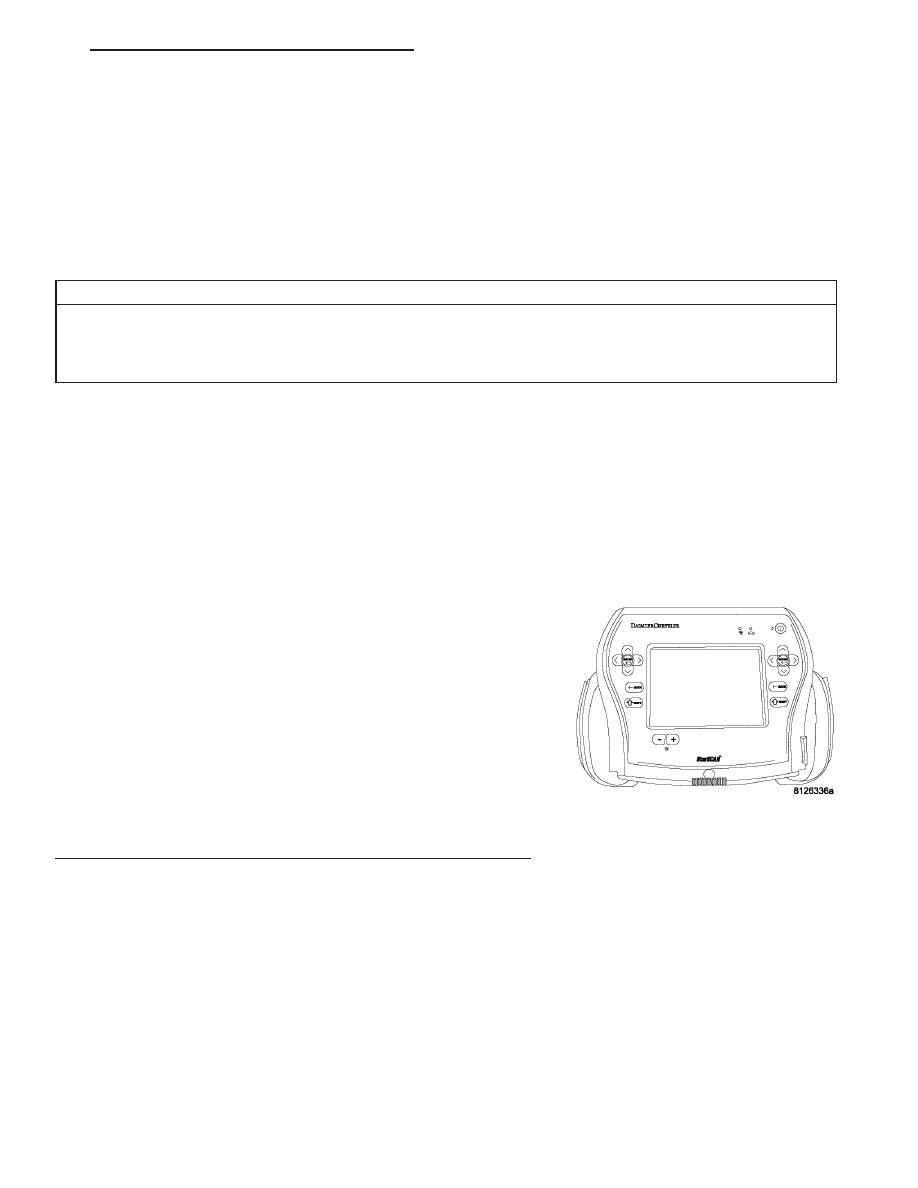

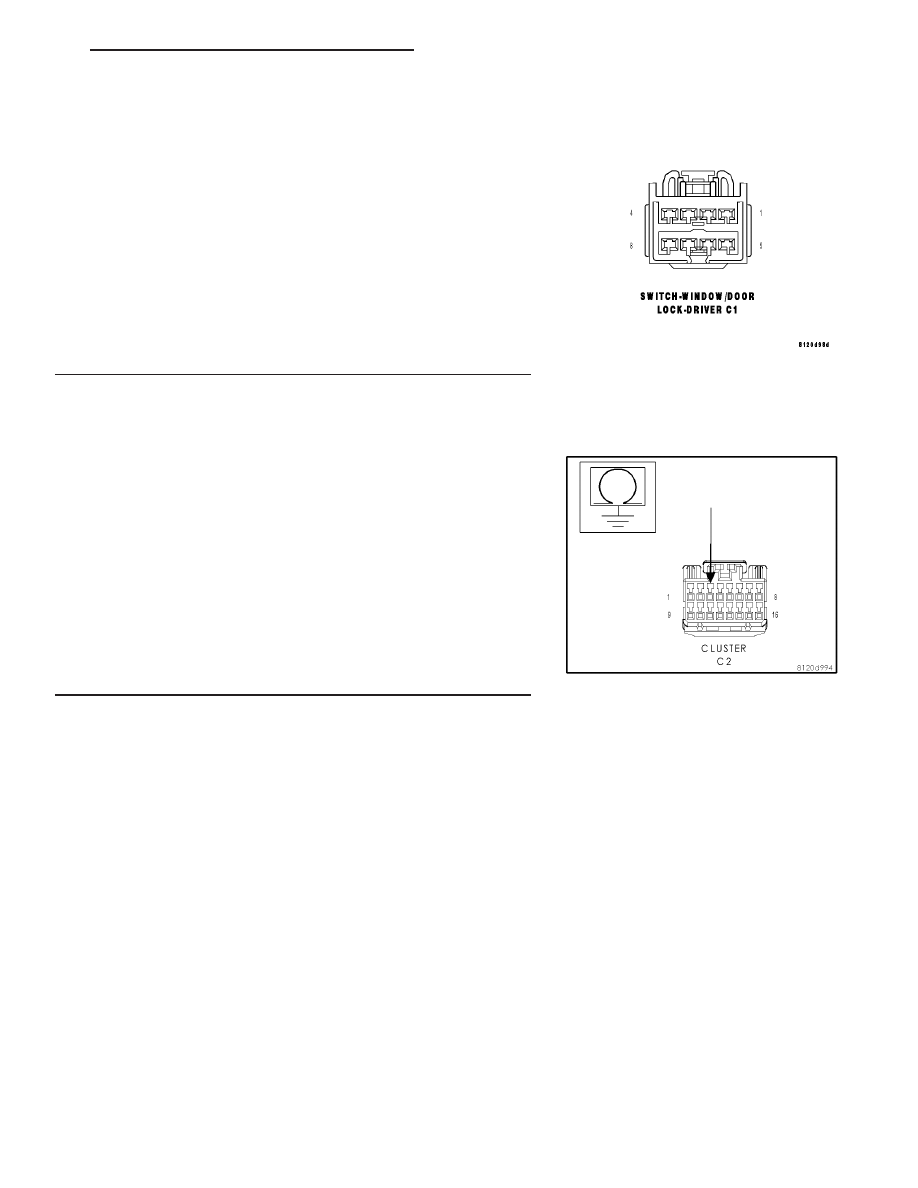

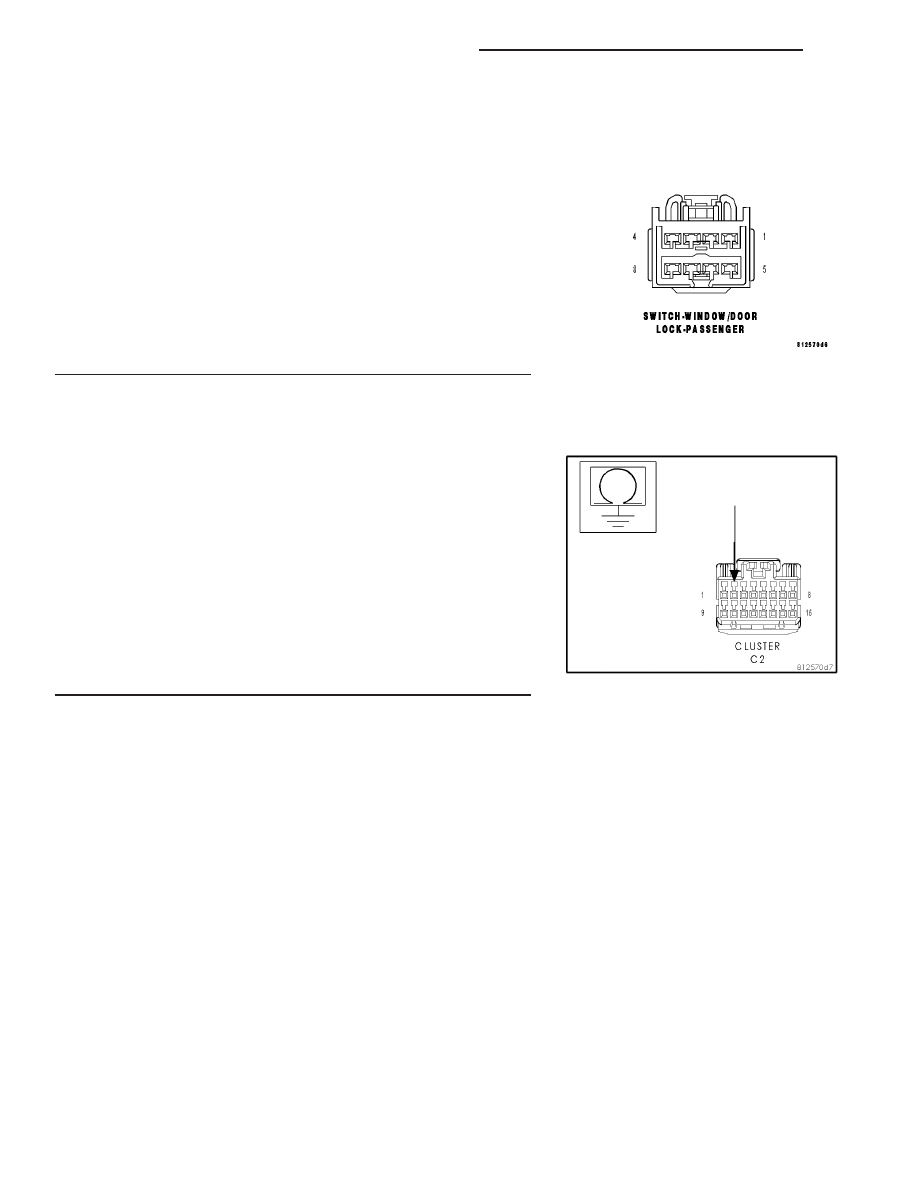

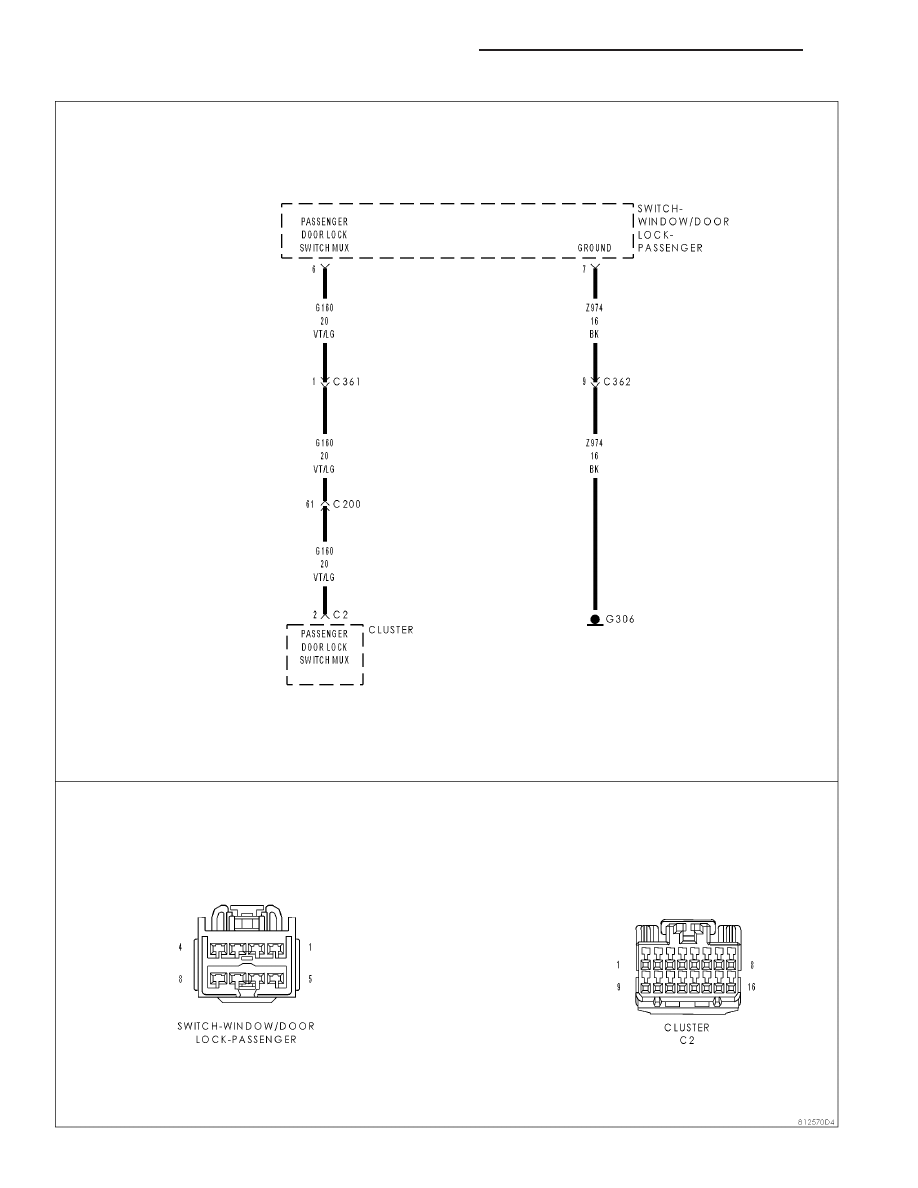

2. DOOR LOCK SWITCH SHORTED With the scan tool, erase DTC’s. Disconnect the Driver Window/Door Lock Switch connector. With the scan tool, read DTC’s. Does the scan tool display DRIVER DOOR LOCK/UNLOCK No >> Replace the Driver Window/Door Lock Switch. Perform BODY VERIFICATION TEST - VER 1. Yes >> Go To 3 3. (G161) DRIVER DOOR LOCK SWITCH MUX CIRCUIT PARTIAL Disconnect the Cluster C2 connector. Measure the resistance between ground and the (G161) Driver Door Is the resistance below 10000.0 ohms? Yes >> Repair the (G161) Driver Door Lock Switch Mux circuit for a short to ground. Perform BODY VERIFICATION TEST - VER 1. No >> Replace the Instrument Cluster. Perform BODY VERIFICATION TEST - VER 1. HB POWER LOCKS - ELECTRICAL DIAGNOSTICS 8N - 13 B1804–DRIVER DOOR LOCK/UNLOCK SWITCH INPUT STUCK UNLOCK— CLUSTER — (CONTINUED) |
