Dodge Durango (HB). Manual - part 361

3. Position the lens (1) to the overhead console hous-

ing (4) and snap the outboard edge back into
place.

4. Position the forward edge of the bezel (2) between

the two lenses, then press the rear edge of the
bezel firmly and evenly until it snaps back into the
housing.

5. Reconnect the battery negative cable.

VANITY LAMP

REMOVAL - BULB

NOTE: Vehicles equipped with optional vanity lamps have a mirror with a lamp that is integral to each sun
visor. Each lamp is independently controlled by an integral switch that is automatically actuated by the mir-
ror cover. The bulb types and service procedures are identical for both of these lamps.

1. Disconnect and isolate the battery negative cable.

2. Insert a small flat-bladed screwdriver on either side

near the top or the bottom between the vanity lamp
lens (2) and the lamp housing of the sun visor (1).

3. Carefully pry the lens outward until it unsnaps from

the lamp housing.

LAMPS/LIGHTING - INTERIOR - SERVICE INFORMATION

8L - 163

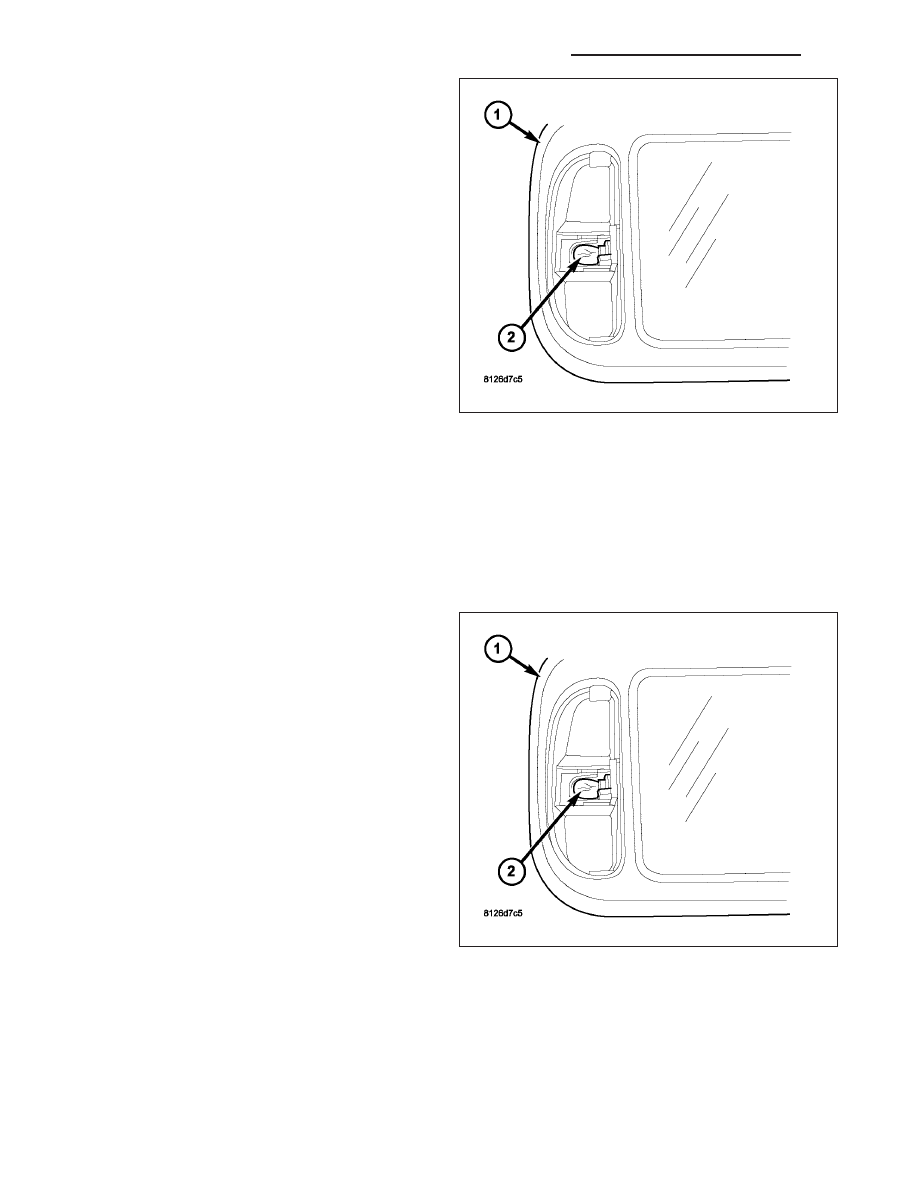

4. Using small needle-nose pliers, carefully grasp the

bulb (2) and pull the base out of the lamp socket.

INSTALLATION - BULB

CAUTION: Always use the correct bulb size and type for replacement. An incorrect bulb size or type may
overheat and cause damage to the lamp, the socket and/or the lamp wiring.

1. Using small needle-nose pliers, carefully grasp the

vanity lamp bulb (2) and align the base of the bulb
with the socket in the lamp housing of the sun visor
(1).

2. Push the bulb straight into the socket until the base

is fully seated.

8L - 164

LAMPS/LIGHTING - INTERIOR - SERVICE INFORMATION

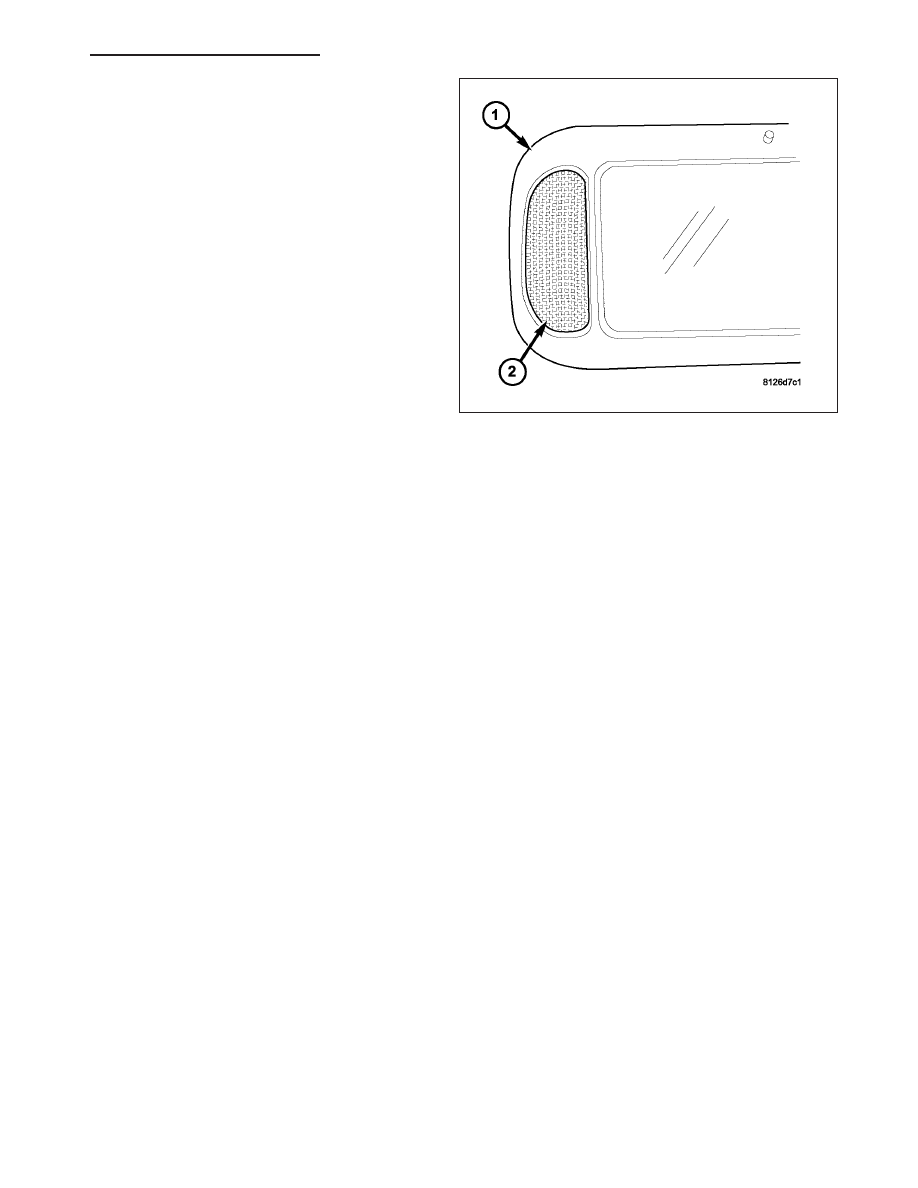

3. Insert one tab on the top or the bottom of the lens

(2) into the appropriate slot at the top or bottom of
the lamp housing.

4. Flex the lens far enough to engage the loose tab

into its slot in the lamp housing.

5. Reconnect the battery negative cable.

LAMPS/LIGHTING - INTERIOR - SERVICE INFORMATION

8L - 165
