CLEANING

The following information details the recommended
cleaning procedures for the battery and related com-
ponents. It is recommended that these procedures be
performed any time the battery or related components
must be removed (if required).

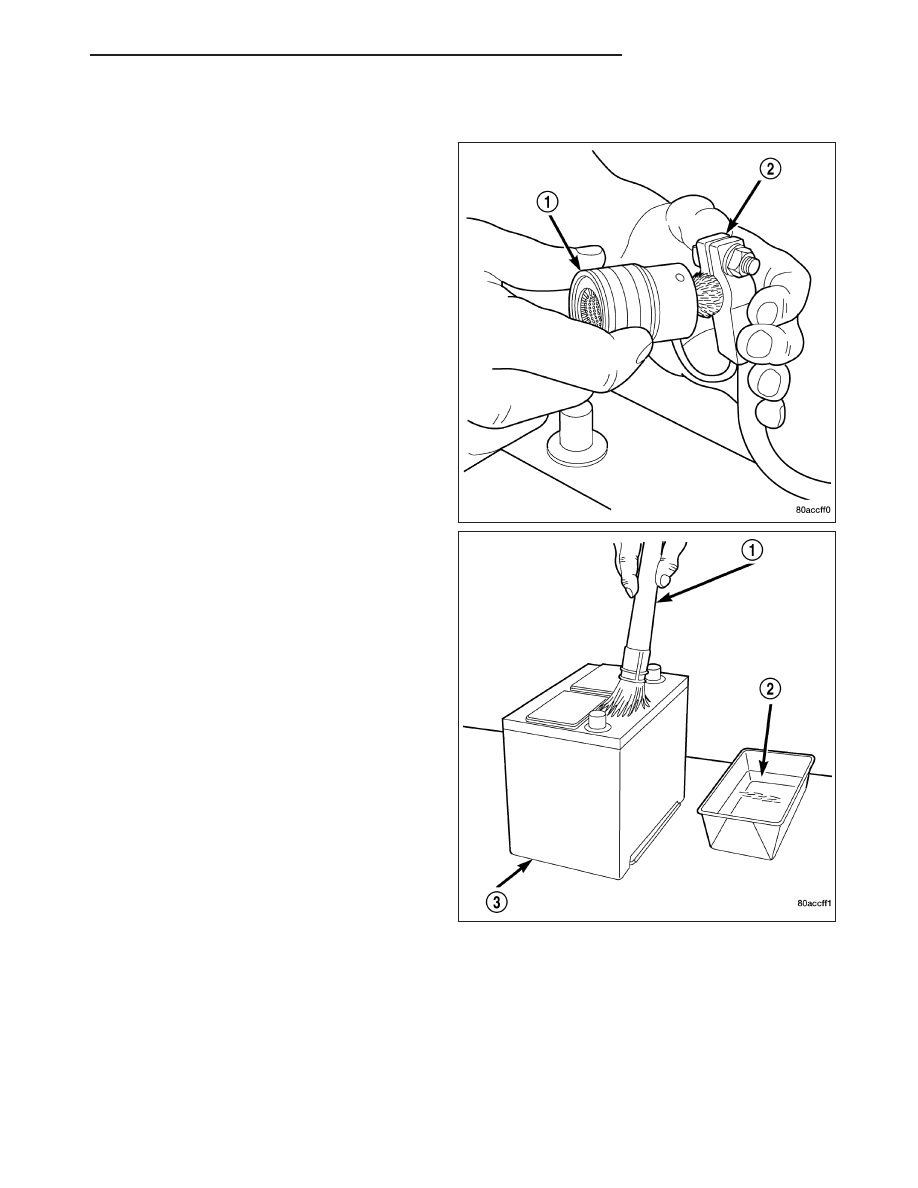

1. Clean the battery cable terminal clamps (2) of all

corrosion. Remove any corrosion using a wire
brush or a post and terminal cleaning tool (1), and
a sodium bicarbonate (baking soda) and warm
water cleaning solution.

2. Clean the battery tray and battery hold down hard-

ware of all corrosion. Remove any corrosion using
a wire brush (1) and a sodium bicarbonate (baking
soda) and warm water cleaning solution (2). Paint
any exposed bare metal.

3. If the removed battery is to be reinstalled, clean

the outside of the battery case and the top cover
with a sodium bicarbonate (baking soda) and warm
water cleaning solution (2) using a stiff bristle parts
cleaning brush (1) to remove any acid film. Rinse
the battery with clean water. Ensure that the clean-
ing solution does not enter the battery cells through
the vent holes. If the battery is being replaced,
confirm that the replacement battery is the correct
size and has the correct ratings for the vehicle.

4. Clean the battery thermal guard with a sodium

bicarbonate (baking soda) and warm water clean-
ing solution (2) using a stiff bristle parts cleaning
brush (1) to remove any acid film.

HB

BATTERY SYSTEM

8F - 5

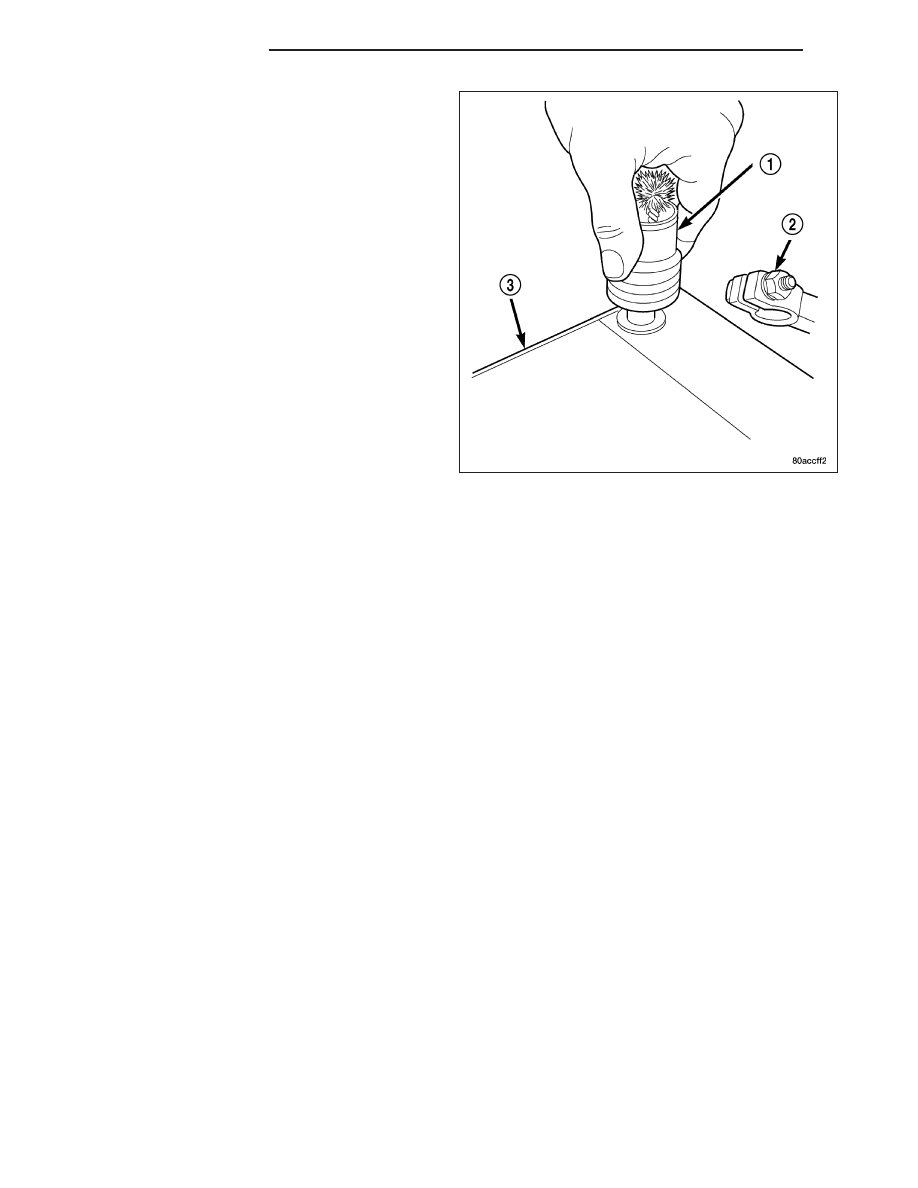

5. Clean any corrosion from the battery terminal posts

(2) with a wire brush or a post and terminal cleaner
(1) and a sodium bicarbonate (baking soda) and
warm water cleaning solution.

INSPECTION

The following information details the recommended inspection procedures for the battery and related components. It
is recommended that these procedures be performed any time the battery or related components must be removed
for vehicle service.

1. Inspect the battery cable terminal clamps for damage. Replace any battery cable that has a damaged or

deformed terminal clamp.

2. Inspect the battery tray and battery hold down hardware for damage. Replace any damaged parts.

3. Slide the thermal guard off of the battery case, if equipped. Inspect the battery case for cracks or other damage

that could result in electrolyte leaks. Also, check the battery terminal posts for looseness. Batteries with damaged
cases or loose terminal posts must be replaced.

4. Inspect the battery thermal guard for tears, cracks, deformation or other damage. Replace any battery thermal

guard that has been damaged.

5. Inspect the battery built-in test indicator sight glass (if equipped) for an indication of the battery condition. If the

battery is discharged, charge as required.

8F - 6

BATTERY SYSTEM

HB

SPECIAL TOOLS

BATTERY SYSTEM SPECIAL TOOLS

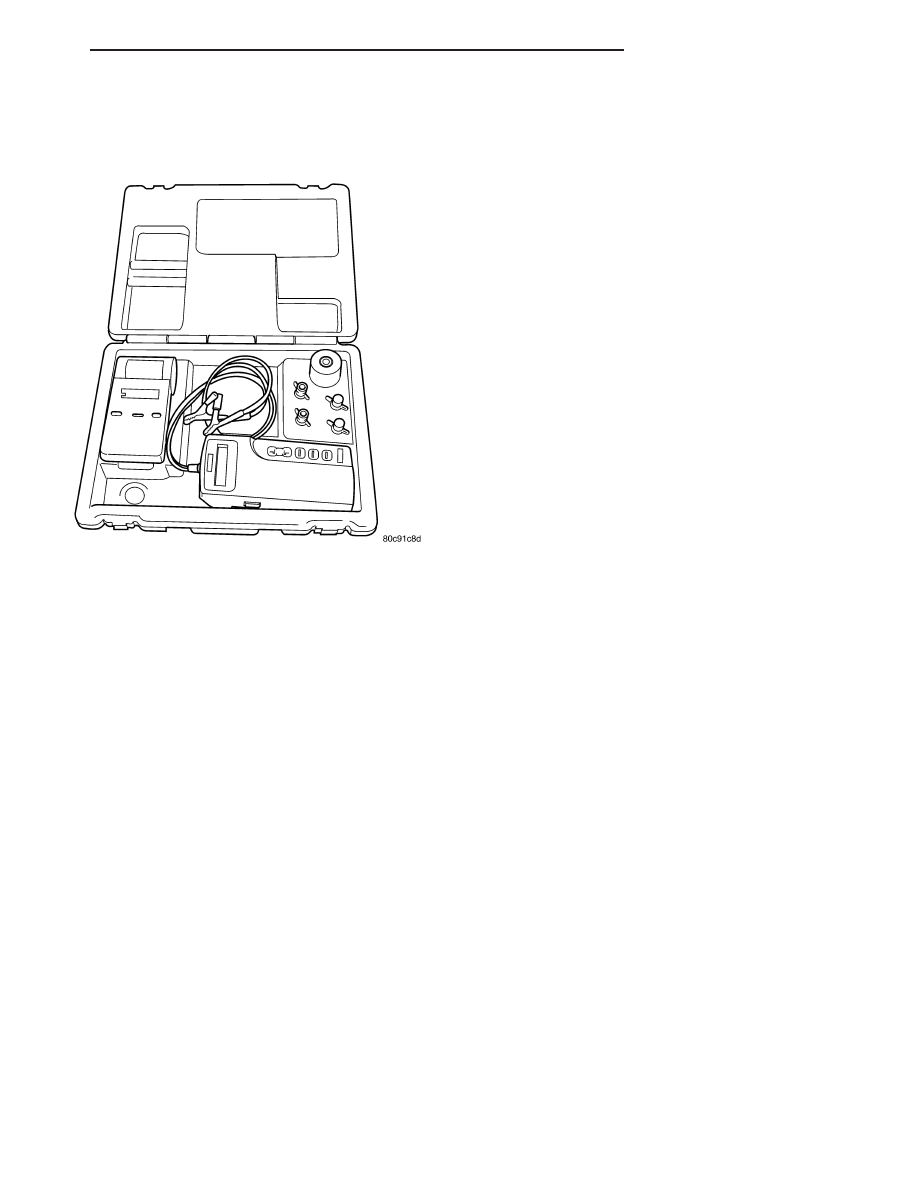

MICRO 420 BATTERY TESTER

HB

BATTERY SYSTEM

8F - 7

BATTERY

DESCRIPTION

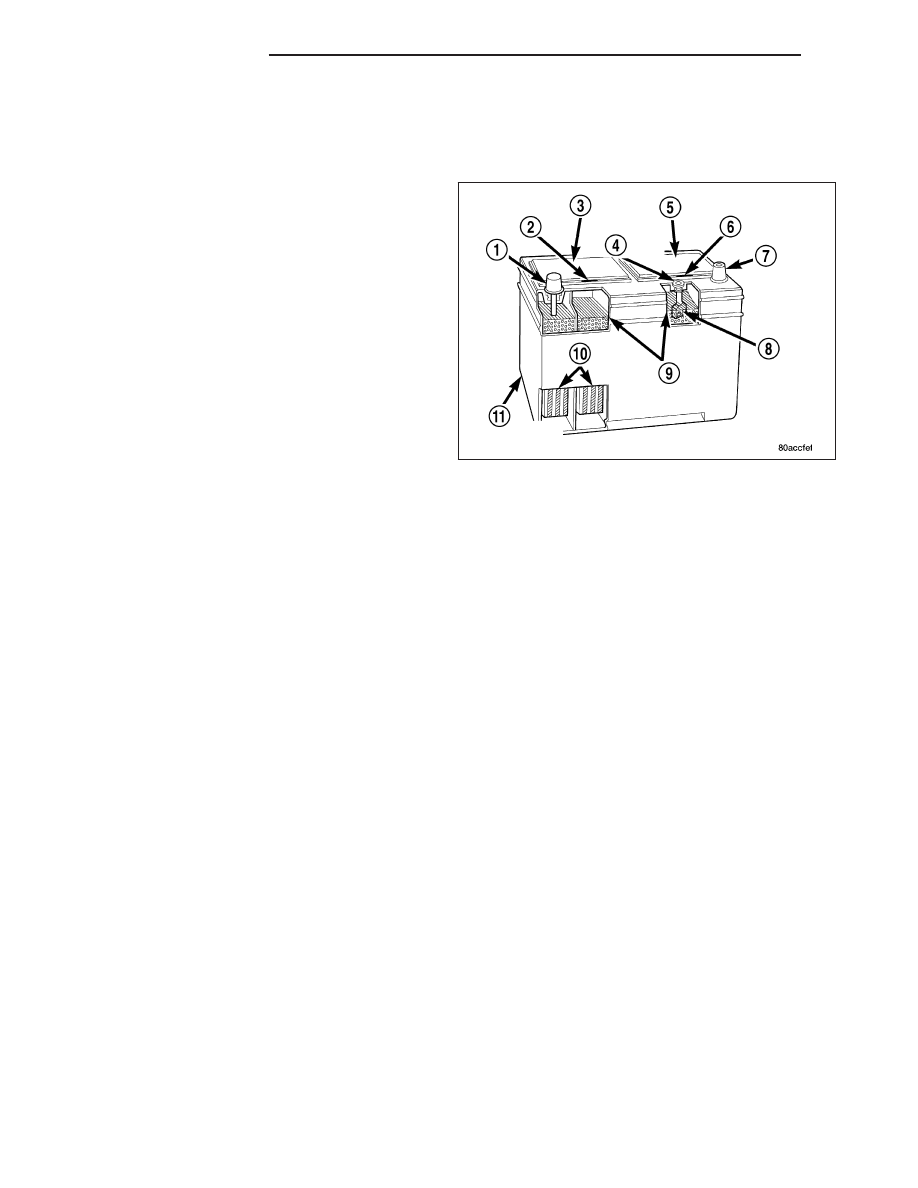

A large capacity, low-maintenance storage battery is
installed on this vehicle. Male post type terminals
(1&7) made of soft lead protrude from the top of the
molded plastic battery case to provide the means for
connecting the battery to the vehicle electrical system.
The battery positive terminal post (1) is physically
larger in diameter than the negative terminal post (7)
to ensure proper battery connection. The letters POS
and NEG are also molded into the top of the battery
case adjacent to their respective positive and negative
terminal posts for identification confirmation.

The battery is made up of six individual cells that are
connected in series. Each cell contains positively
charged plate groups (10) that are connected with
lead straps to the positive terminal post (1), and neg-
atively charged plate groups (10) that are connected
with lead straps to the negative terminal post (7).
Each plate consists of a stiff mesh framework or grid
coated with lead dioxide (positive plate) or sponge
lead (negative plate). Insulators or plate separators
made of a non-conductive material are inserted
between the positive and negative plates to prevent
them from contacting or shorting against one another.
These dissimilar metal plates are submerged in a sul-
furic acid and water solution called an electrolyte (9).

The battery has a built-in test indicator (hydrometer) (4). The color visible in the sight glass of the indicator will
reveal the battery condition. Water cannot be added to this battery. The battery is not sealed and has vent holes (2)
and (6) in the cell caps (3) and (5). The chemical composition of the metal coated plates within the low-maintenance
battery reduces battery gassing and water loss, at normal charge and discharge rates. Therefore, the battery should
not require additional water in normal service.

OPERATION

The battery is designed to store electrical energy in a chemical form. When an electrical load is applied to the
terminals of the battery, an electrochemical reaction occurs. This reaction causes the battery to discharge electrical
current from its terminals. As the battery discharges, a gradual chemical change takes place within each cell. The
sulfuric acid in the electrolyte combines with the plate materials, causing both plates to slowly change to lead sul-
fate. At the same time, oxygen from the positive plate material combines with hydrogen from the sulfuric acid, caus-
ing the electrolyte to become mainly water. The chemical changes within the battery are caused by the movement
of excess or free electrons between the positive and negative plate groups. This movement of electrons produces
a flow of electrical current through the load device attached to the battery terminals.

As the plate materials become more similar chemically, and the electrolyte becomes less acid, the voltage potential
of each cell is reduced. However, by charging the battery with a voltage higher than that of the battery itself, the
battery discharging process is reversed. Charging the battery gradually changes the sulfated lead plates back into
sponge lead and lead dioxide, and the water back into sulfuric acid. This action restores the difference in the elec-
tron charges deposited on the plates, and the voltage potential of the battery cells. For a battery to remain useful,
it must be able to produce high-amperage current over an extended period. A battery must also be able to accept
a charge, so that its voltage potential may be restored.
