Dodge Durango (HB). Manual - part 222





*CAN C DIAGNOSTIC (+) SHORTED TO CAN C DIAGNOSTIC (-) (CONTINUED)

For a complete wiring diagram Refer to Section 8W.

When Monitored:
When the scan tool queries the FCM.

Set Condition:
The scan tool has detected a shorted together condition on the CAN C Diagnostic circuits.

Possible Causes

(D52) CAN C DIAGNOSTIC (+) CIRCUIT SHORTED TO (D51) CAN C DIAGNOSTIC (-) CIRCUIT

FRONT CONTROL MODULE

Diagnostic Test

1.

CHECK THE STATUS OF THE ERROR MESSAGE

NOTE: Ensure the vehicle being tested is a CAN BUS VEHICLE. If not, false error messages may be dis-
played.

NOTE: Ensure the scan tool is updated to the latest software.
With the scan tool, record the error message.

Disconnect the scan tool from the DLC.

Cycle the ignition from on to off 3 times.

Turn the ignition on.

Does the scan tool display this same error message?

Yes

>> Go To 2

No

>> The conditions that caused this error message to set are not present at this time. Using the wiring dia-

gram/schematic as a guide, inspect the wiring and connectors.

2.

(D52) CAN C DIAGNOSTIC (+) CIRCUIT SHORTED TO (D51) CAN C DIAGNOSTIC (-) CIRCUIT

Turn the ignition off.

Disconnect the Front Control Module C1 harness connector.

Disconnect the scan tool from the DLC.

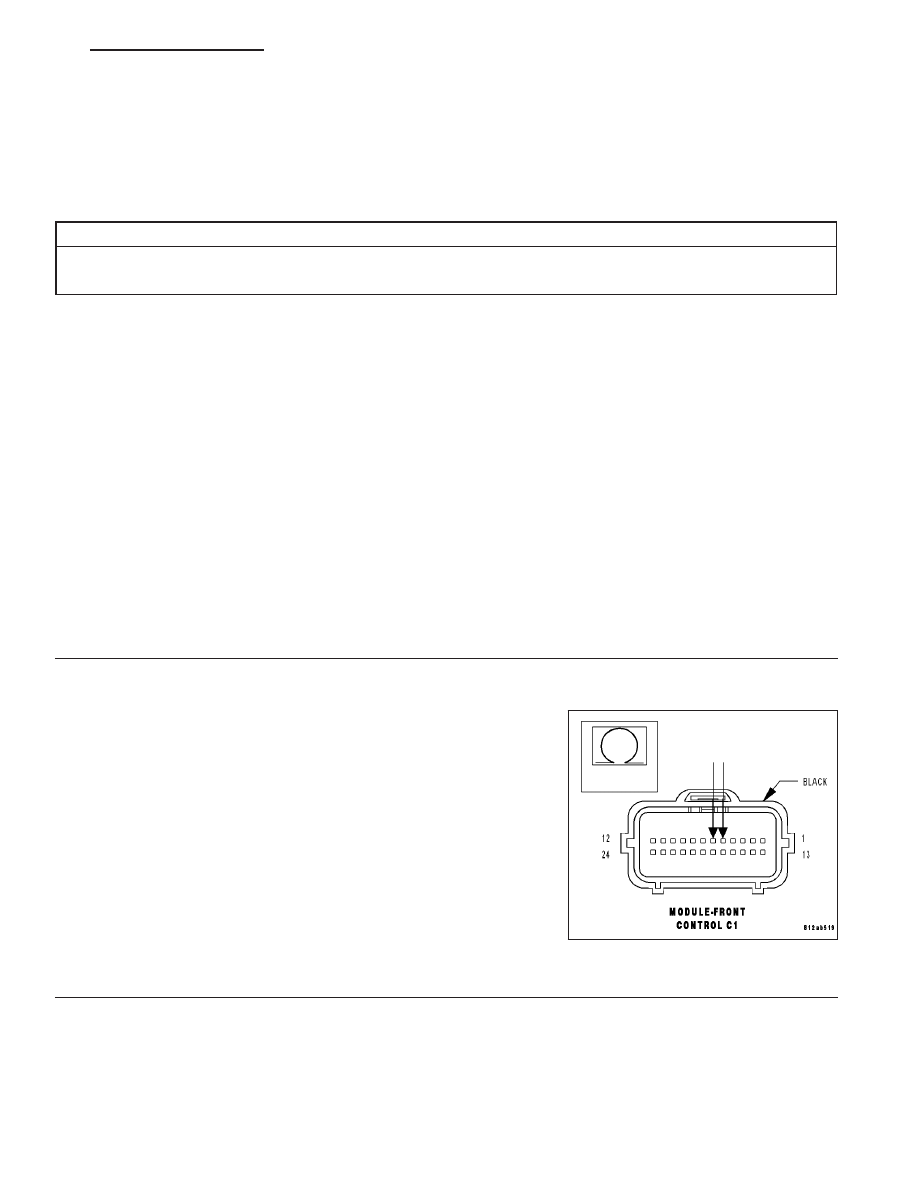

Measure the resistance between the (D52) CAN C Diagnostic (+) cir-
cuit and the (D51) CAN C Diagnostic (-) circuit.

Is the resistance below 100.0 ohms?

Yes

>> Repair the (D52) CAN C Diagnostic (+) circuit for a short

to the CAN C Diagnostic (-) circuit.

Perform BODY VERIFICATION TEST - VER 1.

No

>> Inspect the wiring and connectors for damage or shorted

circuits. If ok, replace the Front Control Module in accor-
dance with the service information.

Perform BODY VERIFICATION TEST - VER 1.

HB

ELECTRONIC CONTROL MODULES - ELECTRICAL DIAGNOSTICS

8E - 109

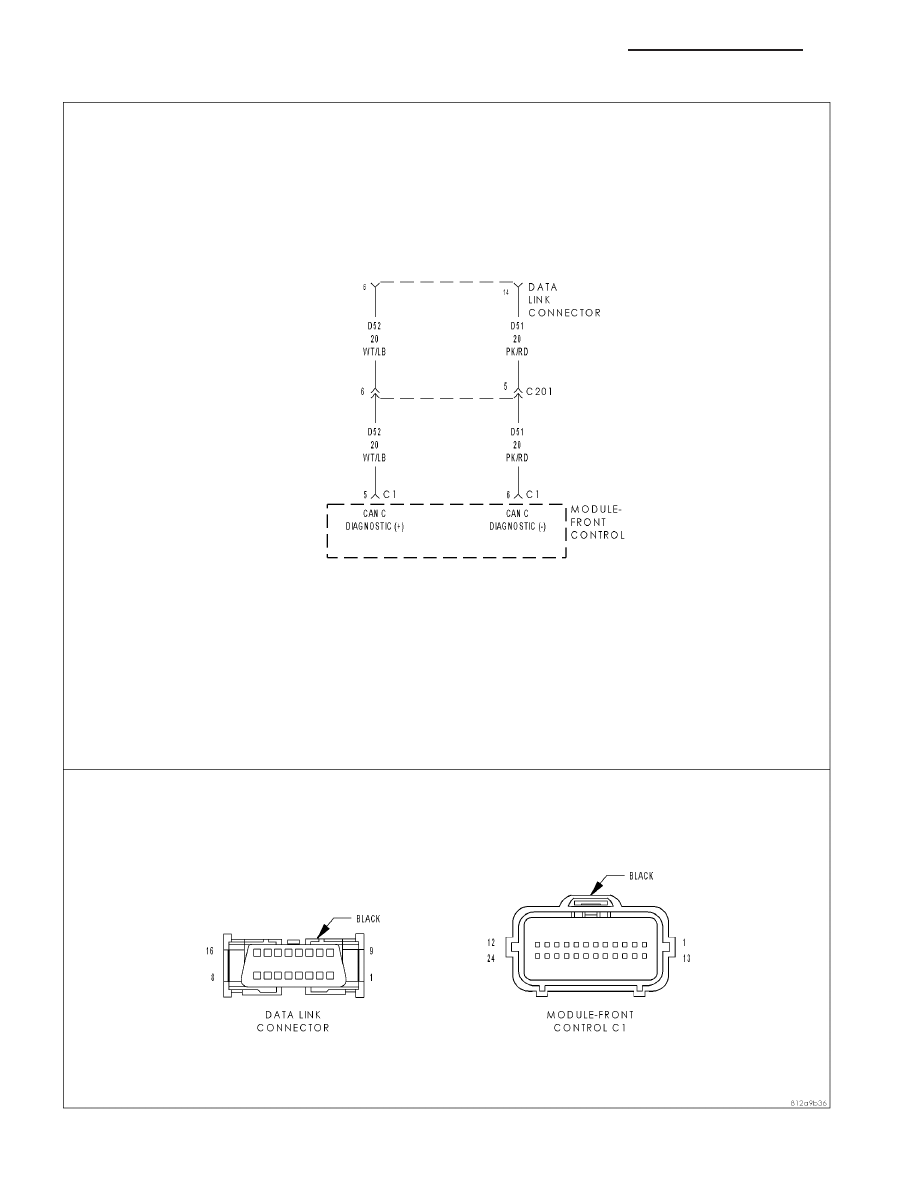

*CAN C DIAGNOSTIC (-) CIRCUIT OPEN

8E - 110

ELECTRONIC CONTROL MODULES - ELECTRICAL DIAGNOSTICS

HB

*CAN C DIAGNOSTIC (-) CIRCUIT OPEN (CONTINUED)

For a complete wiring diagram Refer to Section 8W.

When Monitored:
When the scan tool queries the FCM.

Set Condition:
The scan tool has detected an open condition on the (D51) CAN C Diagnostic (-) circuit.

Possible Causes

(D51) CAN C DIAGNOSTIC (-) CIRCUIT OPEN

FRONT CONTROL MODULE

Diagnostic Test

1.

CHECK THE STATUS OF THE ERROR MESSAGE

NOTE: Ensure the vehicle being tested is a CAN BUS VEHICLE. If not, false error messages may be dis-
played.

NOTE: Ensure the scan tool is updated to the latest software.
With the scan tool, record the error message.

Disconnect the scan tool from the DLC.

Cycle the ignition from on to off 3 times.

Turn the ignition on.

Does the scan tool display this same error message?

Yes

>> Go To 2

No

>> The conditions that caused this error message to set are not present at this time. Using the wiring dia-

gram/schematic as a guide, inspect the wiring and connectors.

HB

ELECTRONIC CONTROL MODULES - ELECTRICAL DIAGNOSTICS

8E - 111

*CAN C DIAGNOSTIC (-) CIRCUIT OPEN (CONTINUED)

2.

(D51) CAN C DIAGNOSTIC (-) CIRCUIT OPEN

Turn the ignition off.

Disconnect the Front Control Module C1 harness connector.

Disconnect the scan tool from the DLC.

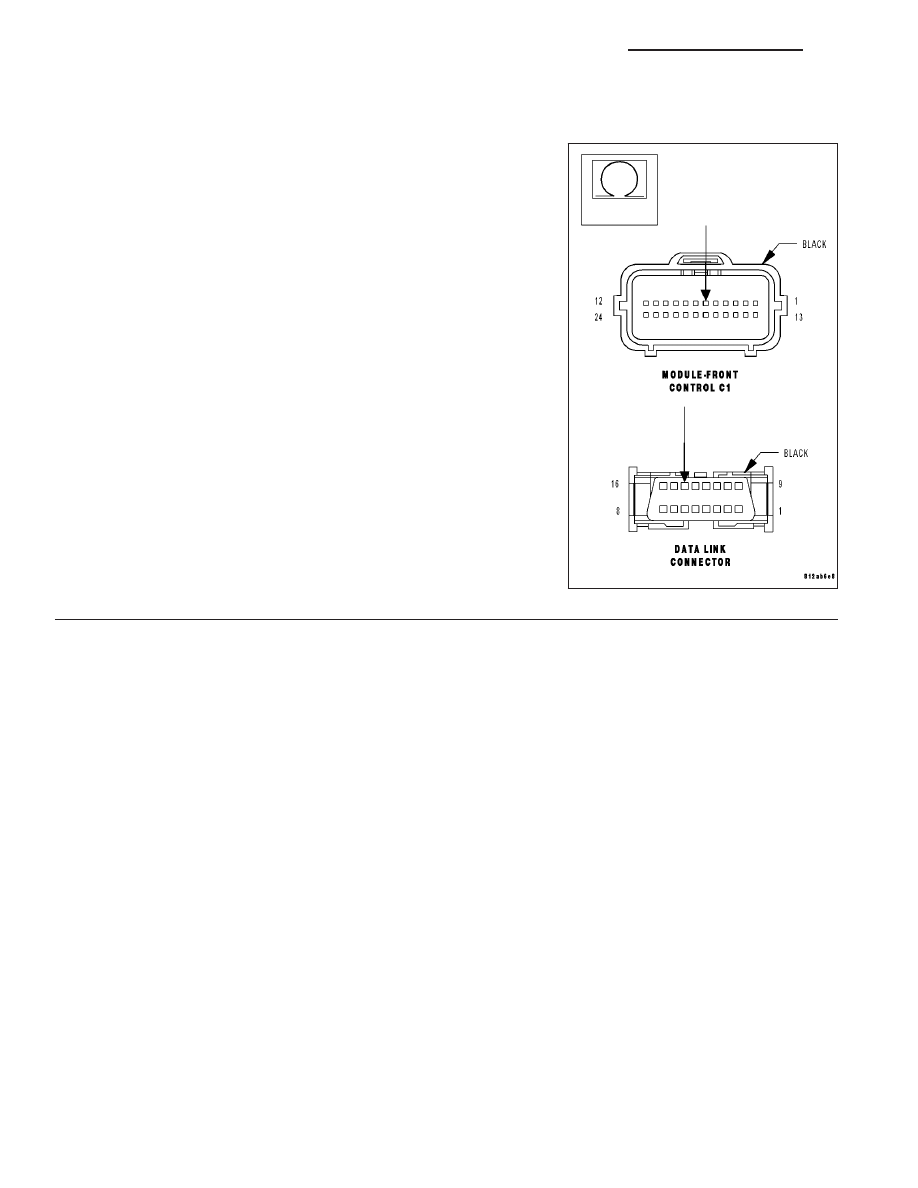

Measure the resistance of the (D51) CAN C Diagnostic (-) circuit
between the FCM connector and the DLC.

Is the resistance below 5.0 ohms?

Yes

>> Inspect the wiring and connectors for damage or shorted

circuits. If ok, replace the Front Control Module in accor-
dance with the service information.

Perform BODY VERIFICATION TEST - VER 1.

No

>> Repair the (D51) CAN C Diagnostic (-) circuit for an open.

Perform BODY VERIFICATION TEST - VER 1.

8E - 112

ELECTRONIC CONTROL MODULES - ELECTRICAL DIAGNOSTICS

HB
