Dodge Durango (HB). Manual - part 1557

REMOVAL

REAR CEILING AIR OUTLET

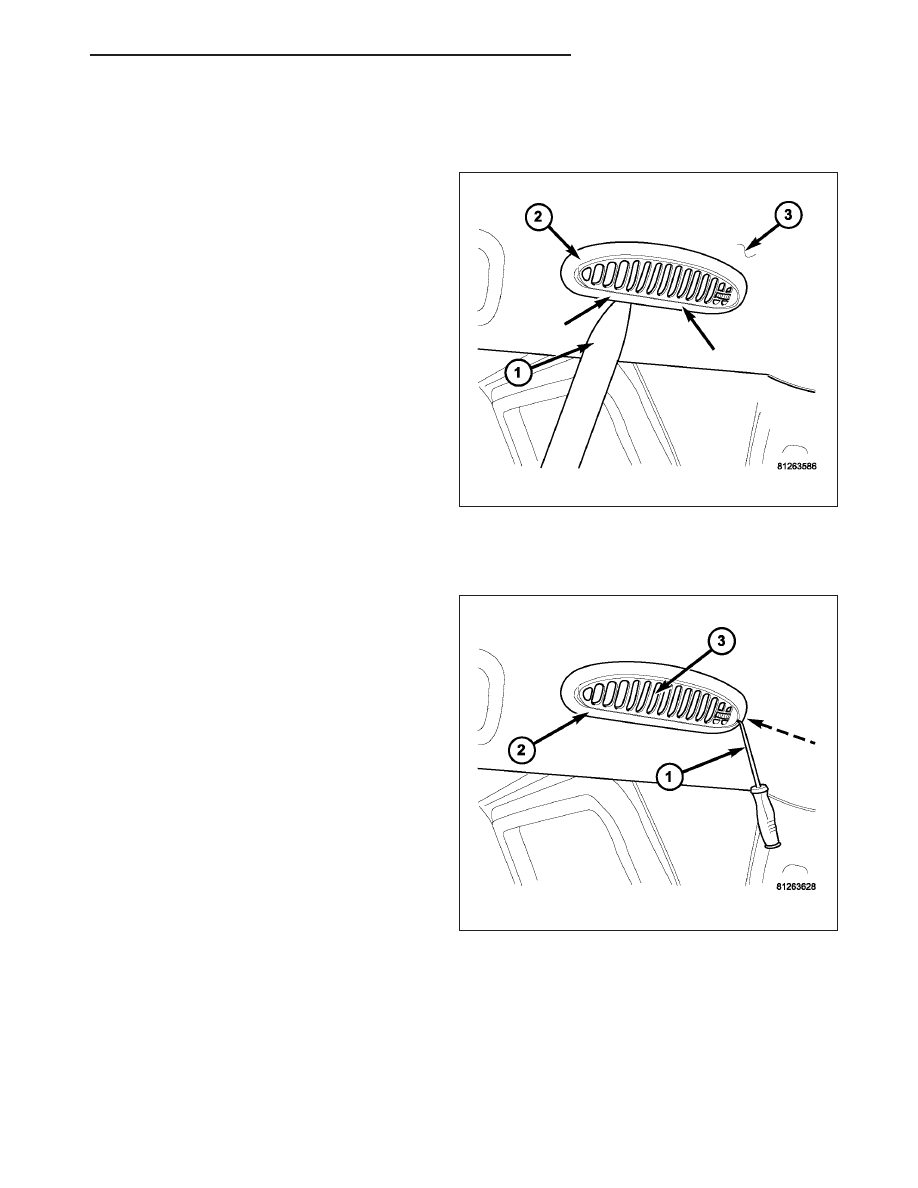

1. Using a trim stick or another suitable wide flat-

blade tool (1), gently pry between both bottom
ends of the rear ceiling air outlet bezel (2) and the
headliner (3) to release the snap clip retainers that
secure the air oulet bezel to the headliner.

2. Remove the rear ceiling air outlet(s) from the

headliner.

REAR CEILING AIR OUTLET GRILLE

1. Using a pick or another suitable tool (1), gently pry

between the right end of the rear ceiling air outlet
bezel (2) and the air outlet grille (3) to release the
snap clip retainer that secures the grille to the pivot
on the right side of the bezel.

HB

DISTRIBUTION - REAR

24 - 421

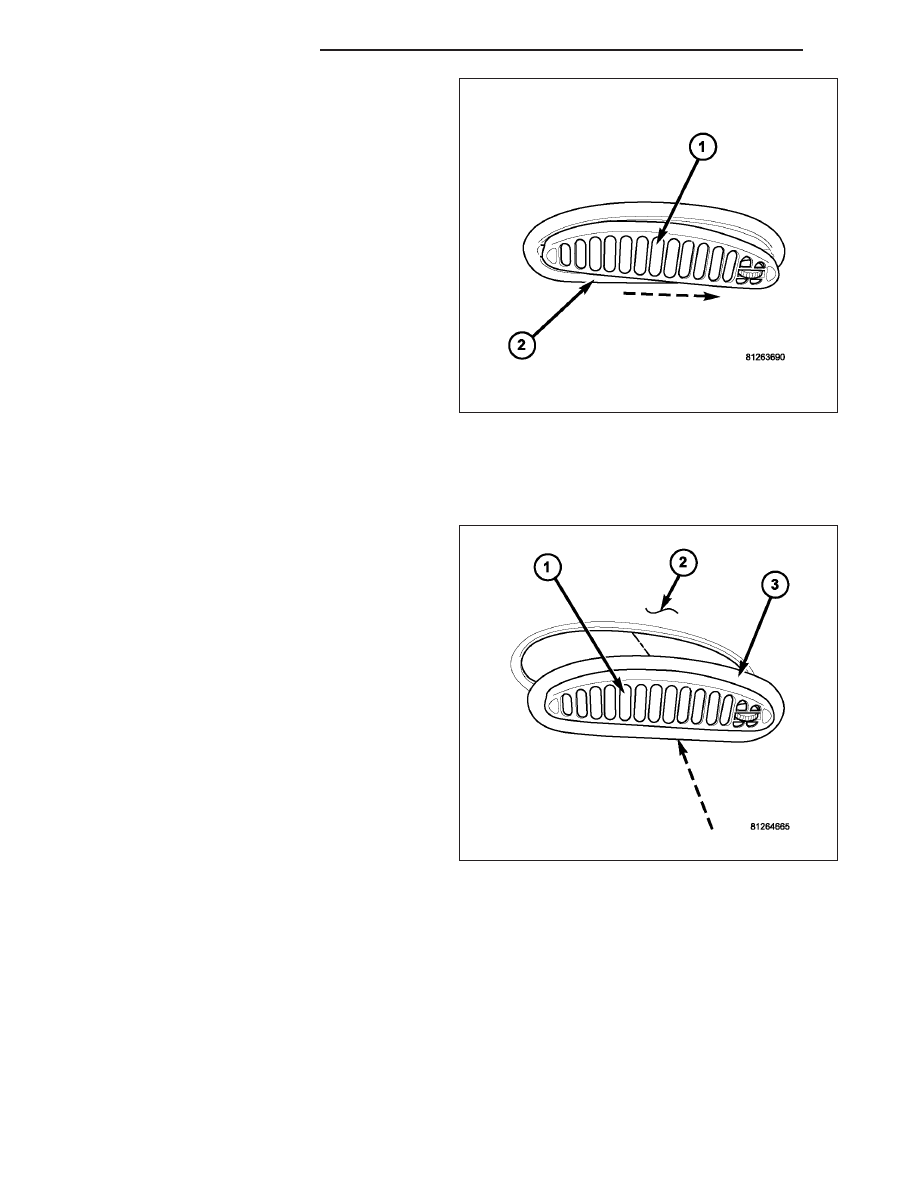

2. Remove the rear ceiling air outlet grille (1) from the

pivot on the left side of the air outlet bezel (2) by
moving the grille out and to the right of the bezel.

INSTALLATION

REAR CEILING AIR OUTLET

1. Position the rear ceiling air outlet(s) (1) into the

headliner (2).

2. Gently push the air outlet bezel (3) into the head-

liner until the snap clips in the headliner duct fully
engage the slots in the bezel.

24 - 422

DISTRIBUTION - REAR

HB

REAR CEILING AIR OUTLET GRILLE

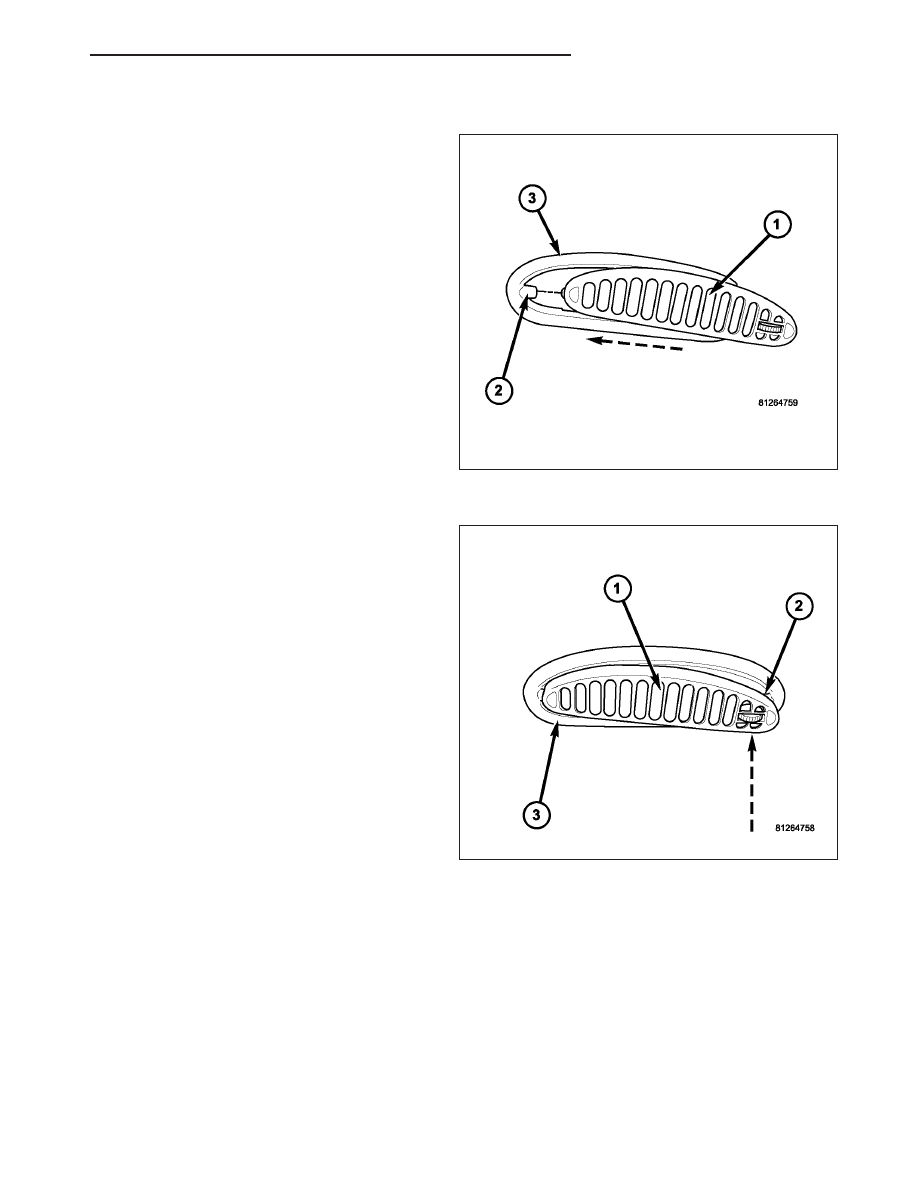

1. Install the rear ceiling air outlet grille (1) onto the

pivot shaft (2) on the left side of the air outlet bezel
(3).

2. Gently push the air outlet grille (1) onto the pivot

shaft (2) on the right side of the air outlet bezel (3).

HB

DISTRIBUTION - REAR

24 - 423
