INSTALLATION

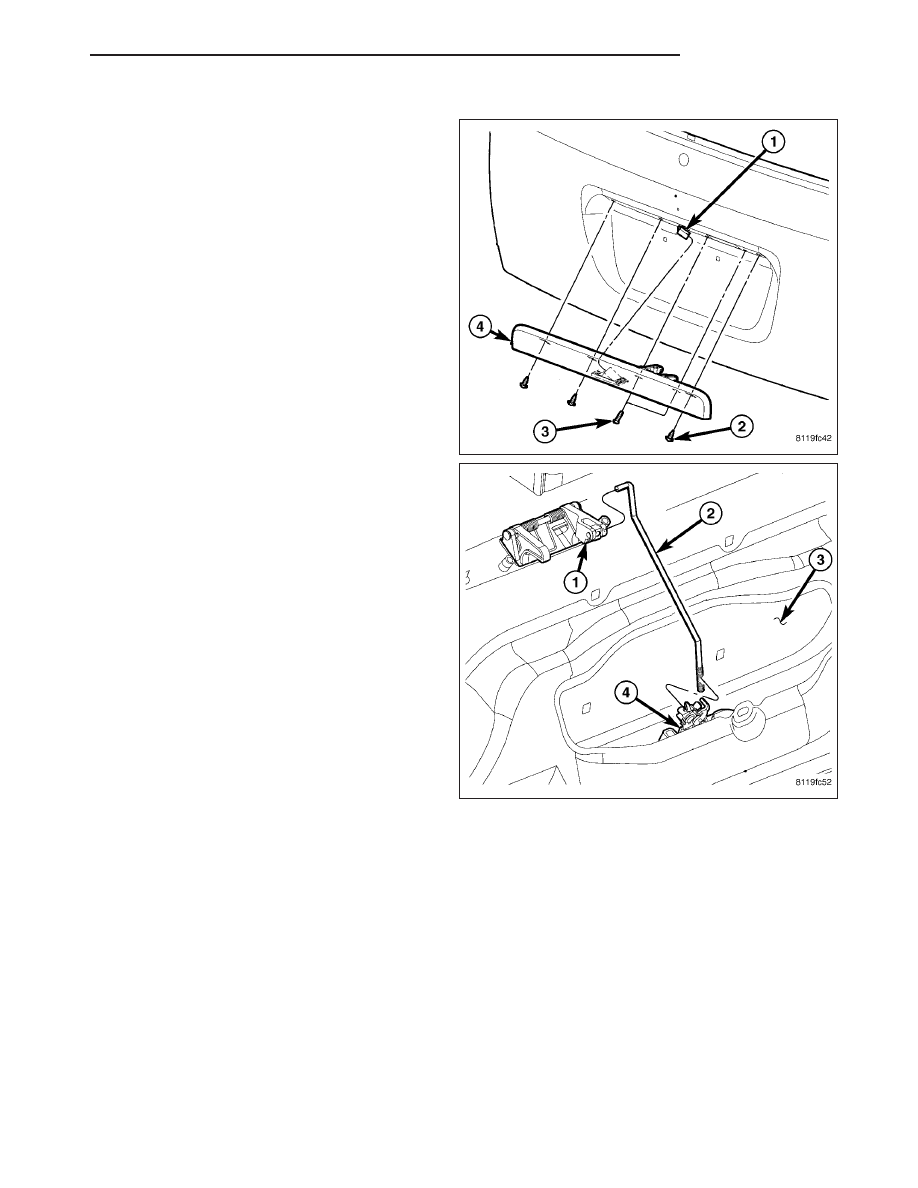

1. Connect the electrical connector (1) and install the

handle (4).

2. Install the screws (2 & 3).

3. Connect the latch actuator rod (2) to the handle

(1).

4. Install the trim panels. (Refer to 23 - BODY/DECK-

LID/HATCH/LIFTGATE/TAILGATE/TRIM PANEL -
INSTALLATION)

HB

LIFTGATE

23 - 69

LATCH

REMOVAL

1. Remove liftgate trim panels. (Refer to 23 - BODY/

LIFTGATE/TRIM PANEL - REMOVAL)

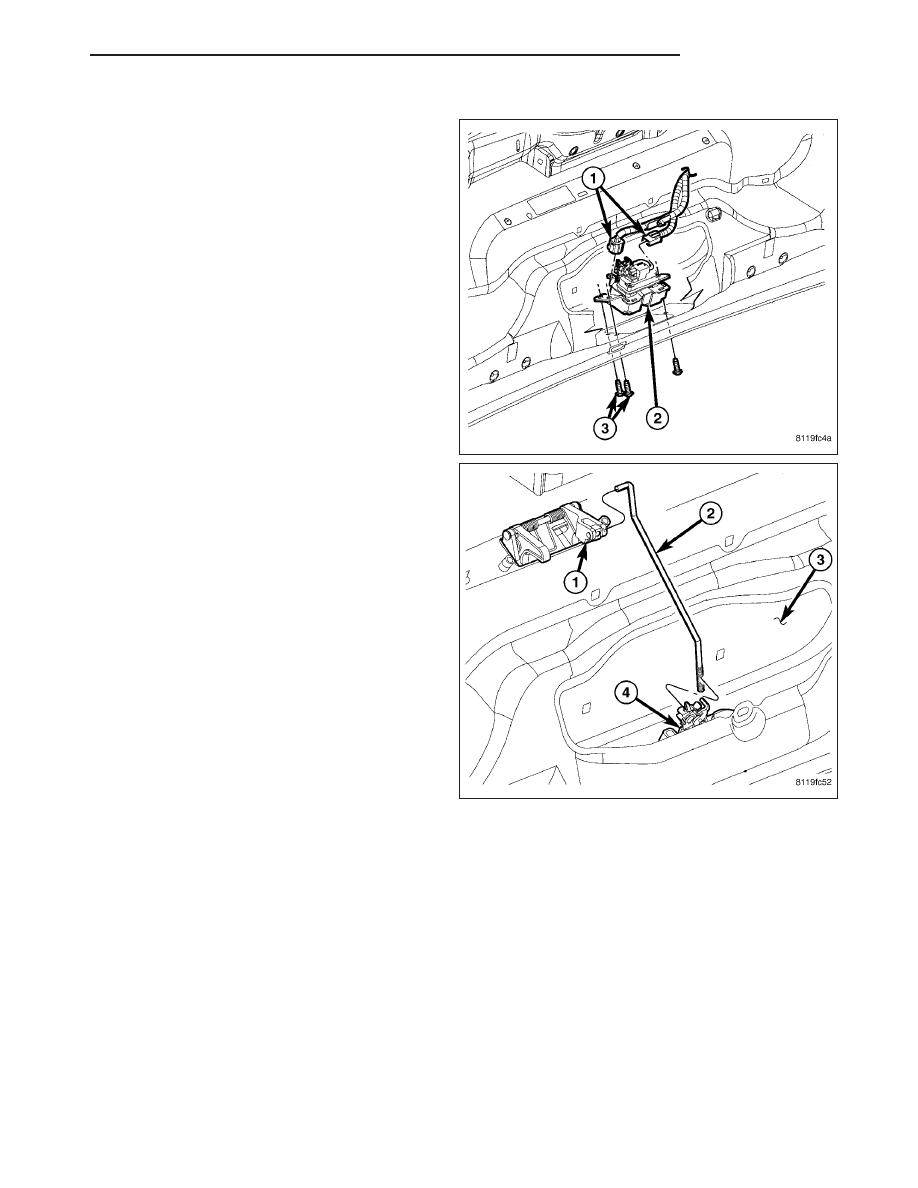

2. Disconnect the exterior handle actuator rod (2).

3. Disconnect the electrical connectors (1).

4. Remove the screws (3) and remove the latch (2).

23 - 70

LIFTGATE

HB

INSTALLATION

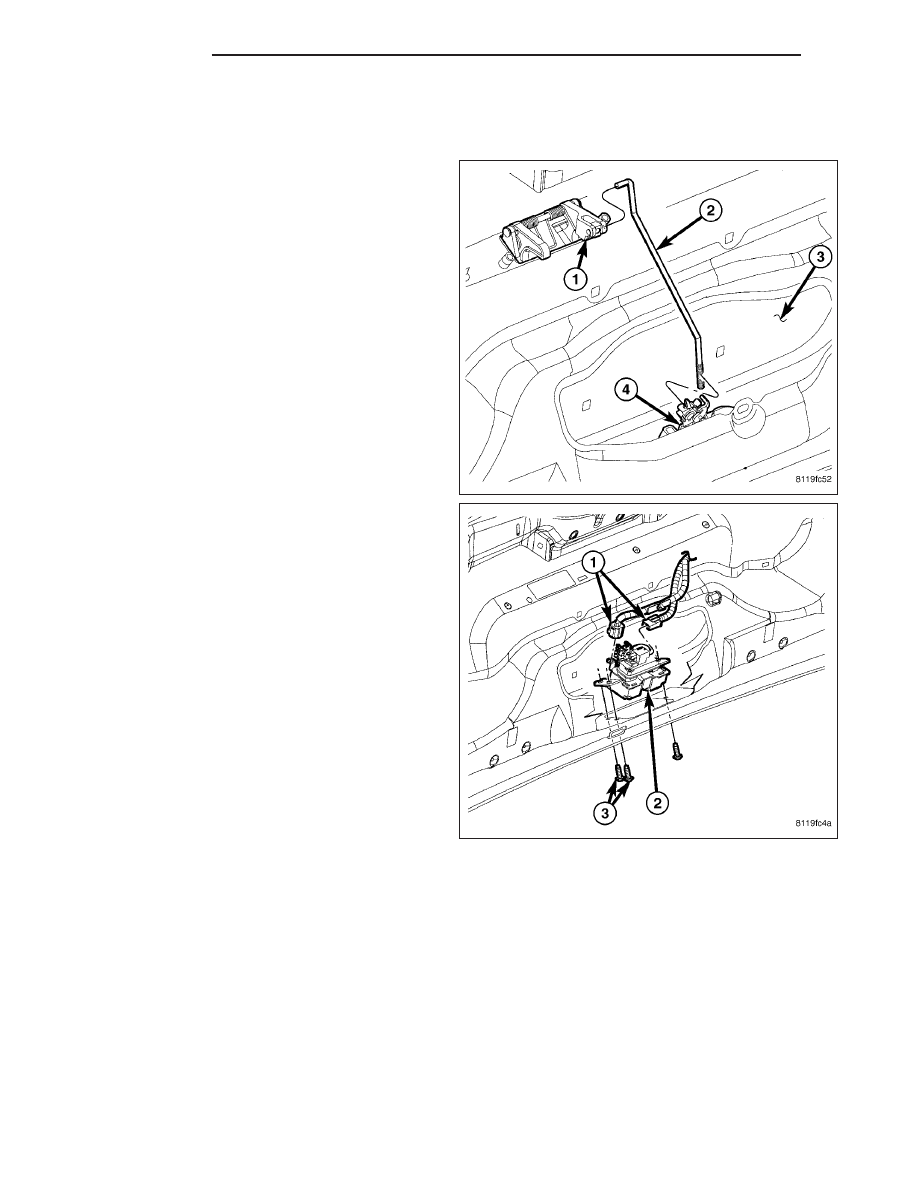

1. Position the latch (2) into the liftgate and install the

screws (3).

2. Tighten the screws to 11 N·m (95 in. lbs.).

3. Connect the electrical connectors (1).

Connect the latch actuator rod (2) to the exterior han-
dle (1) and the latch (4).

4. Install the trim panels. (Refer to 23 - BODY/LIFT-

GATE/TRIM PANEL - INSTALLATION)

HB

LIFTGATE

23 - 71

SUPPORT-STRUT

REMOVAL

WARNING: DO NOT REMOVE THE LIFTGATE SUP-
PORT RODS WITH THE LIFTGATE CLOSED. THE
SUPPORT ROD PISTONS ARE OPERATED BY
HIGH PRESSURE GAS AND COULD CAUSE PER-
SONAL INJURY AND/OR VEHICLE DAMAGE IF
THEY ARE REMOVED WITH THE PISTONS COM-
PRESSED (LIFTGATE CLOSED). ONCE REMOVED,
DO NOT ATTEMPT TO DISASSEMBLE OR REPAIR
THE SUPPORT RODS.

1. Open the liftgate and support.

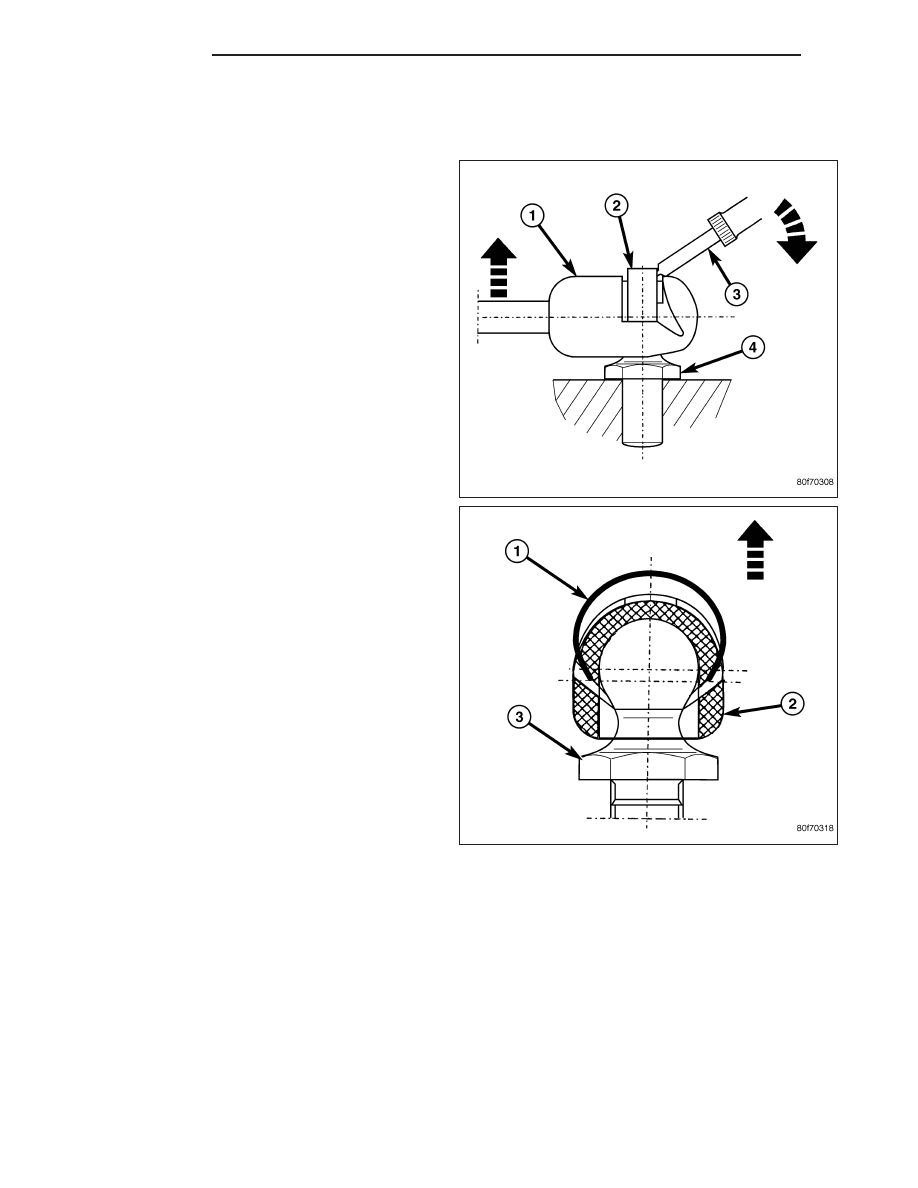

2. Using a small flat bladed tool (3), or equivalent,

release the retaining clips (2) while pulling the ball
socket (1) away from the ball stud (4).

NOTE: Lift the clips (1) only enough to release the
ball studs (3).

23 - 72

LIFTGATE

HB
