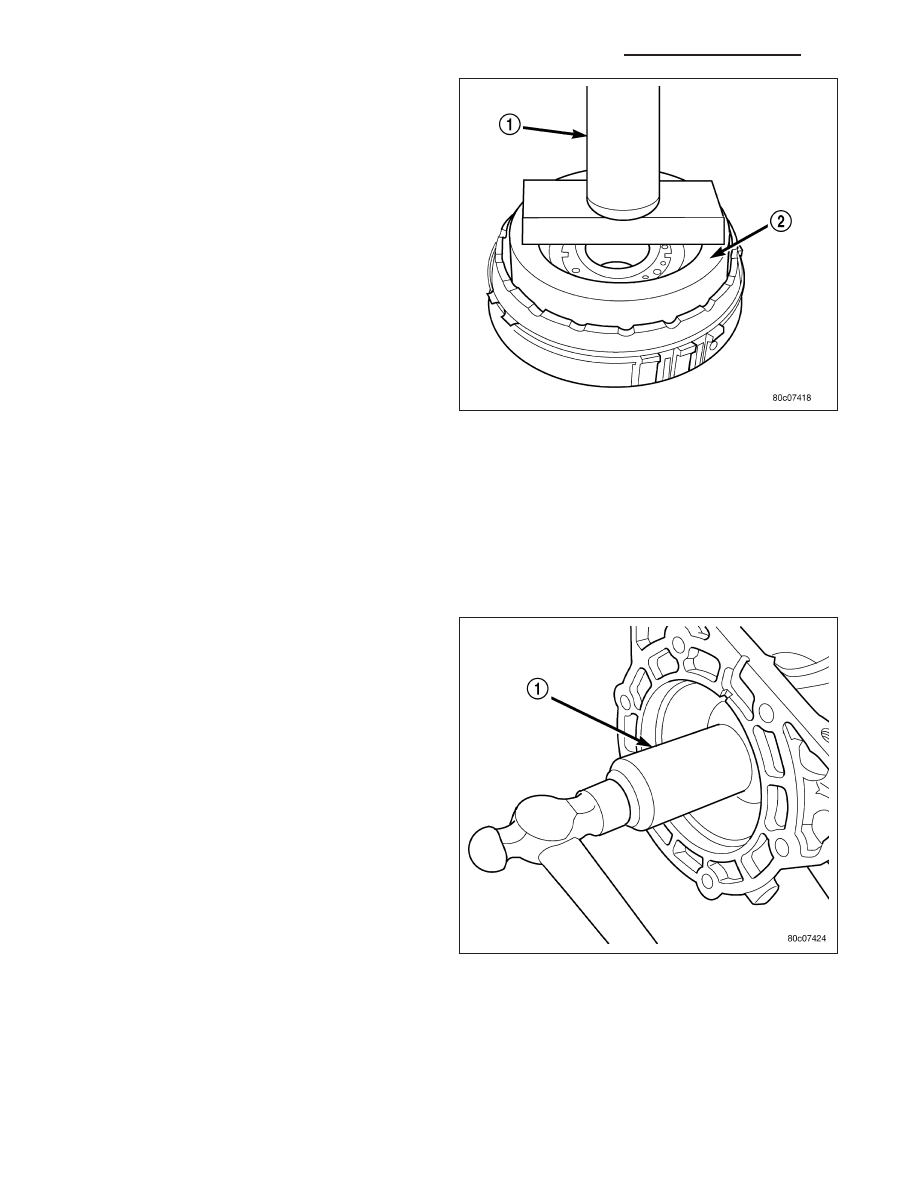

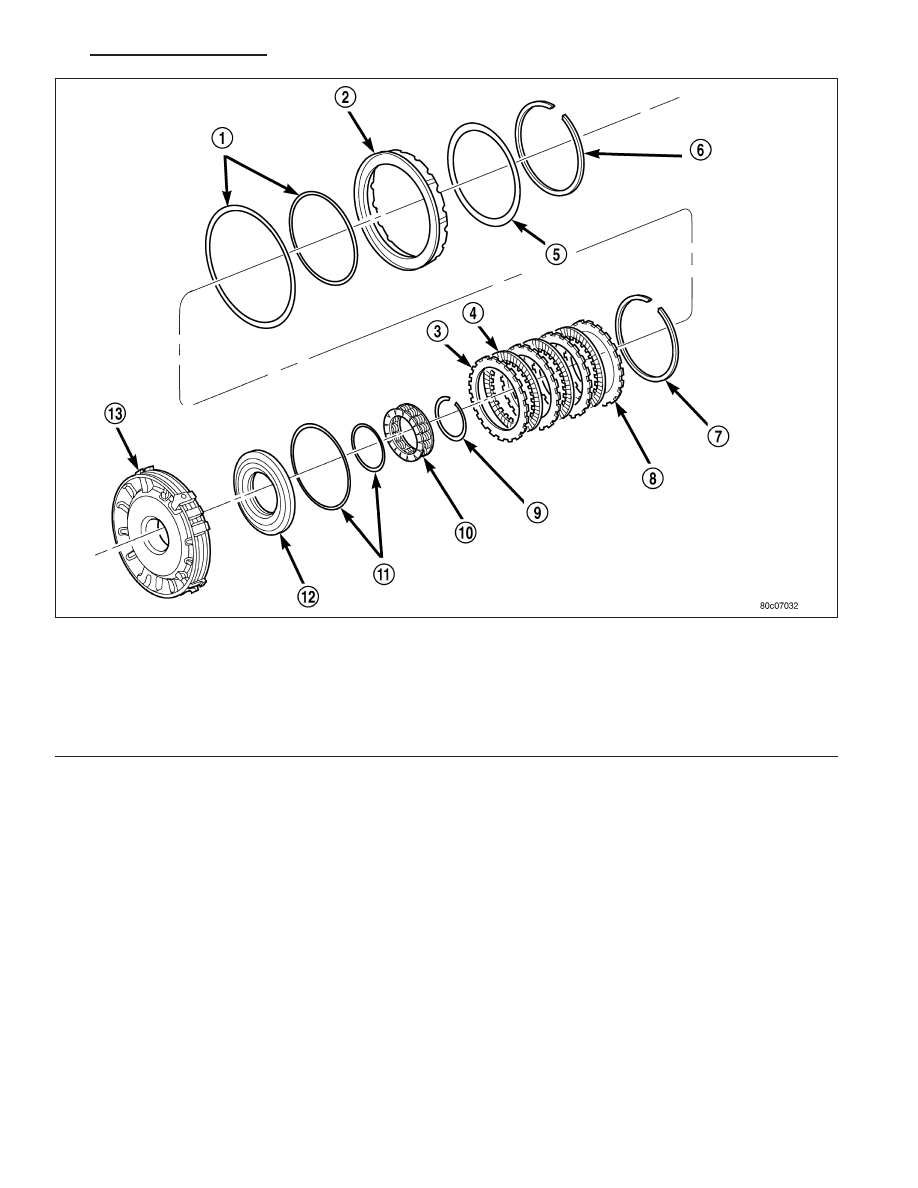

6. Assemble and install the 4C clutch pack (3, 4) into the retainer/bulkhead (13) with the steel separator plate against the piston. 7. Install the 4C reaction plate (8) and snap-ring (7) into the retainer/bulkhead (13). The 4C reaction plate is non- directional. 8. Measure the 4C clutch clearance. The correct clutch clearance is 0.77-1.39 mm (0.030-0.055 in.). The snap-ring (7) is selectable. Install the chosen snap-ring and re-measure to verify the selection. 9. Install the 2C piston (2) into the retainer/bulkhead (13). 10. Position the 2C Belleville spring (5) onto the 2C piston (2). 11. Position the 2C Belleville spring snap-ring (6) onto the 2C Belleville spring (5). 4C Retainer/Bulkhead Components 1 - SEAL 8 - REACTION PLATE 2 - 2C PISTON 9 - SNAP-RING 3 - PLATE 10 - RETURN SPRING 4 - DISC 11 - SEAL 5 - 2C BELLEVILLE SPRING 12 - 4C PISTON 6 - SNAP-RING 13 - 4C RETAINER/BULKHEAD 7 - SNAP-RING (SELECT) HB AUTOMATIC TRANSMISSION 545RFE - SERVICE INFORMATION 21 - 681 |
