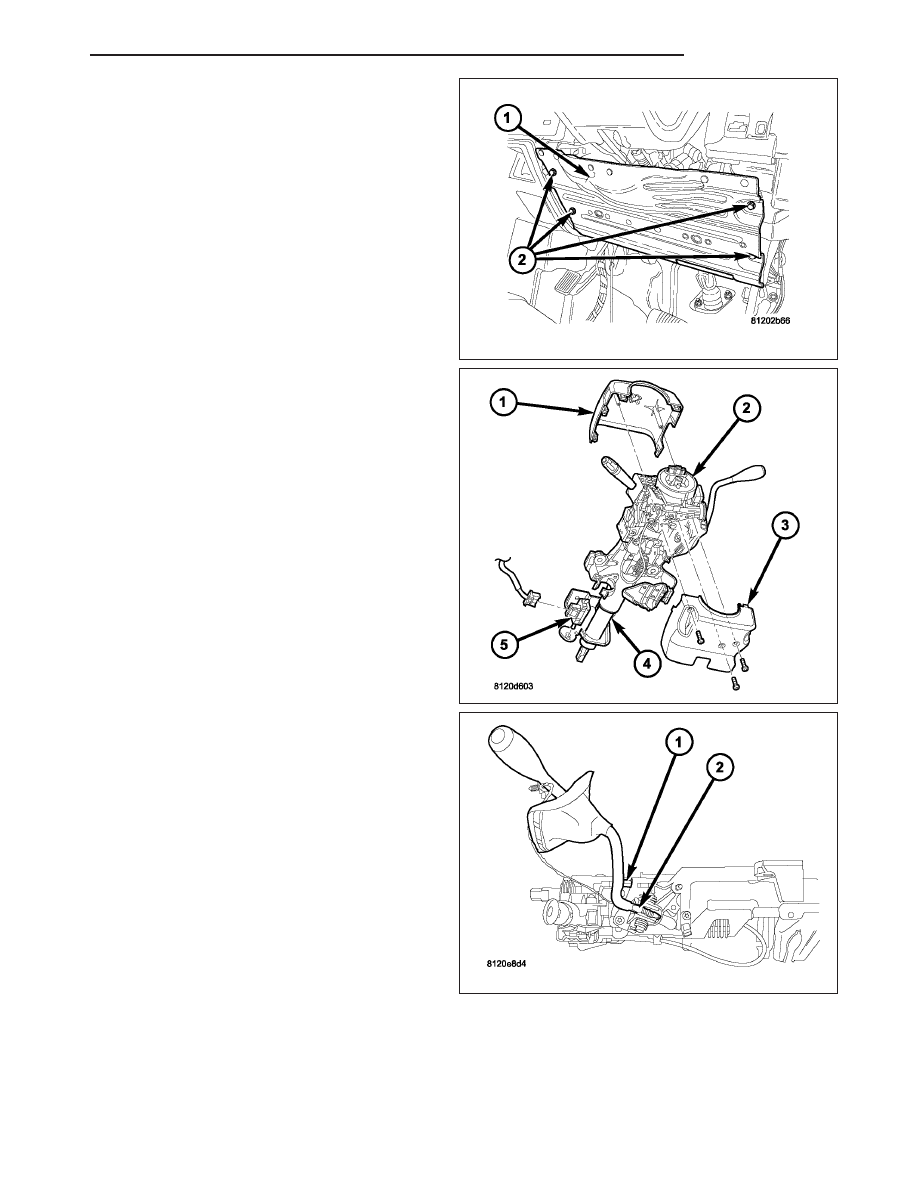

2. Remove the steering column opening reinforce-

ment (1).

3. Remove the tilt lever knob.

4. Remove the upper (1) and lower (3) column

shroud.

5. Remove and discard the brake light switch (5).

6. Loosen the column bolts and lower the column

enough to allow clearance for the gear shift lever
removal.

7. Disconnect the tow/haul switch harness.

8. Disconnect the shift cable from the shift lever (2).

9. Remove the SKIM.

10. Remove the gear shift lever mounting screws and

remove the lever (2).

11. Remove the blocker pin (1) from the inhibit link

slot.

HB

COLUMN

19 - 21

INSTALLATION

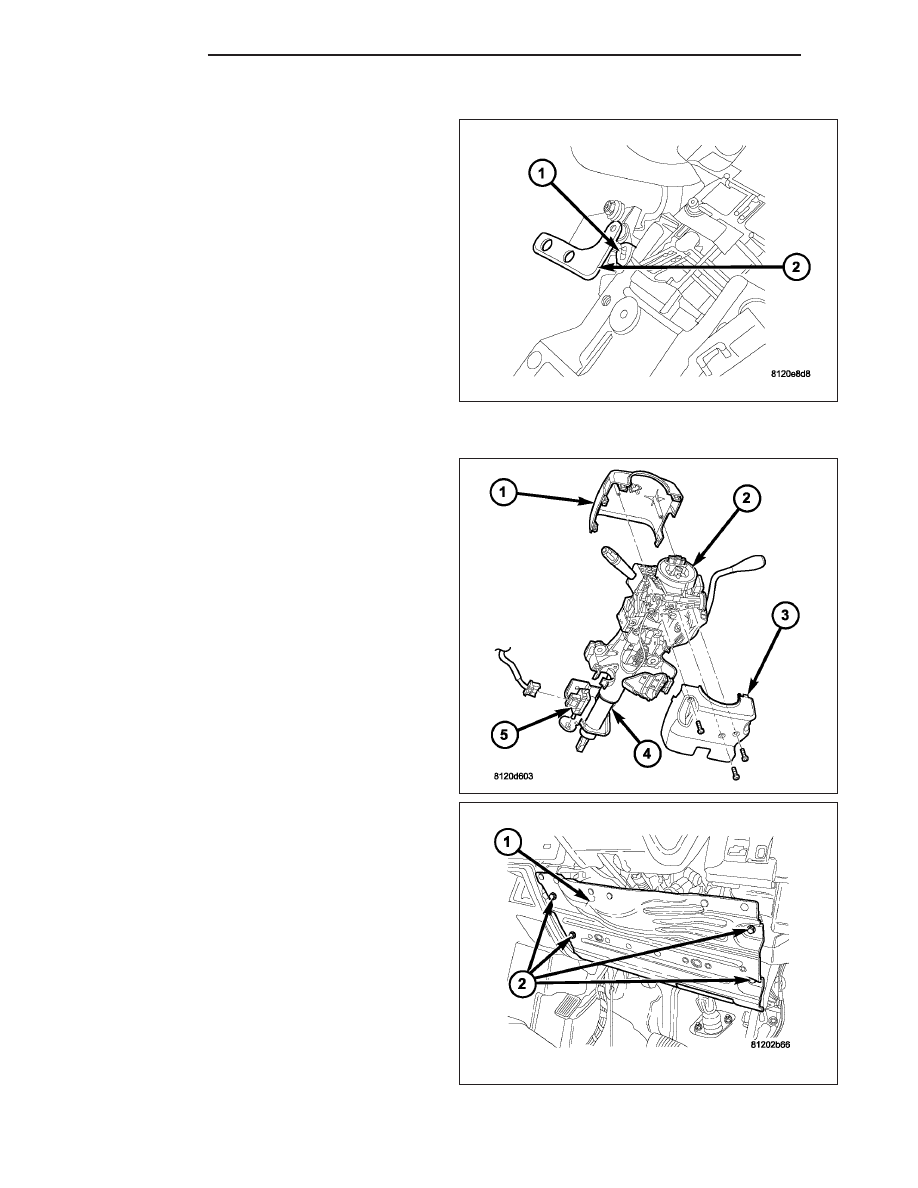

1. Install the lever assembly (2) using care to install

the pin in the blocker to slider slot (1) and install
the mounting screws and tighten to 12 N·m (105 in.
lbs.).

2. Cycle the key from ACC to RUN and ensure that

the blocker does not stick or bind.

3. Turn the key to the OFF position and ensure that

the shifter will not pull from the PARK position.

4. Connect the tow/haul switch harness.

NOTE: Route and tie off harness to original loca-
tion.

5. Connect the shift cable to the lever.

6. Ensure the gear shift lever and transmission are in

the PARK position and snap the cable adjust clip in
place.

7. Install a new brake light switch (5) (Refer to 8 -

ELECTRICAL/LAMPS/LIGHTING

-

EXTERIOR/

BRAKE LAMP SWITCH - INSTALLATION).

8. Install the SKIM and halo.

9. Install the upper (1) and lower (3) column shroud.

10. Install the tilt lever knob.

11. Install the column back into place and tighten the

four nuts to 28 N·m (250 in. lbs.).

12. Install the steering column opening reinforcement

(1). (Refer to 23 - BODY/INSTRUMENT PANEL/
KNEE BLOCKER - INSTALLATION).

19 - 22

COLUMN

HB

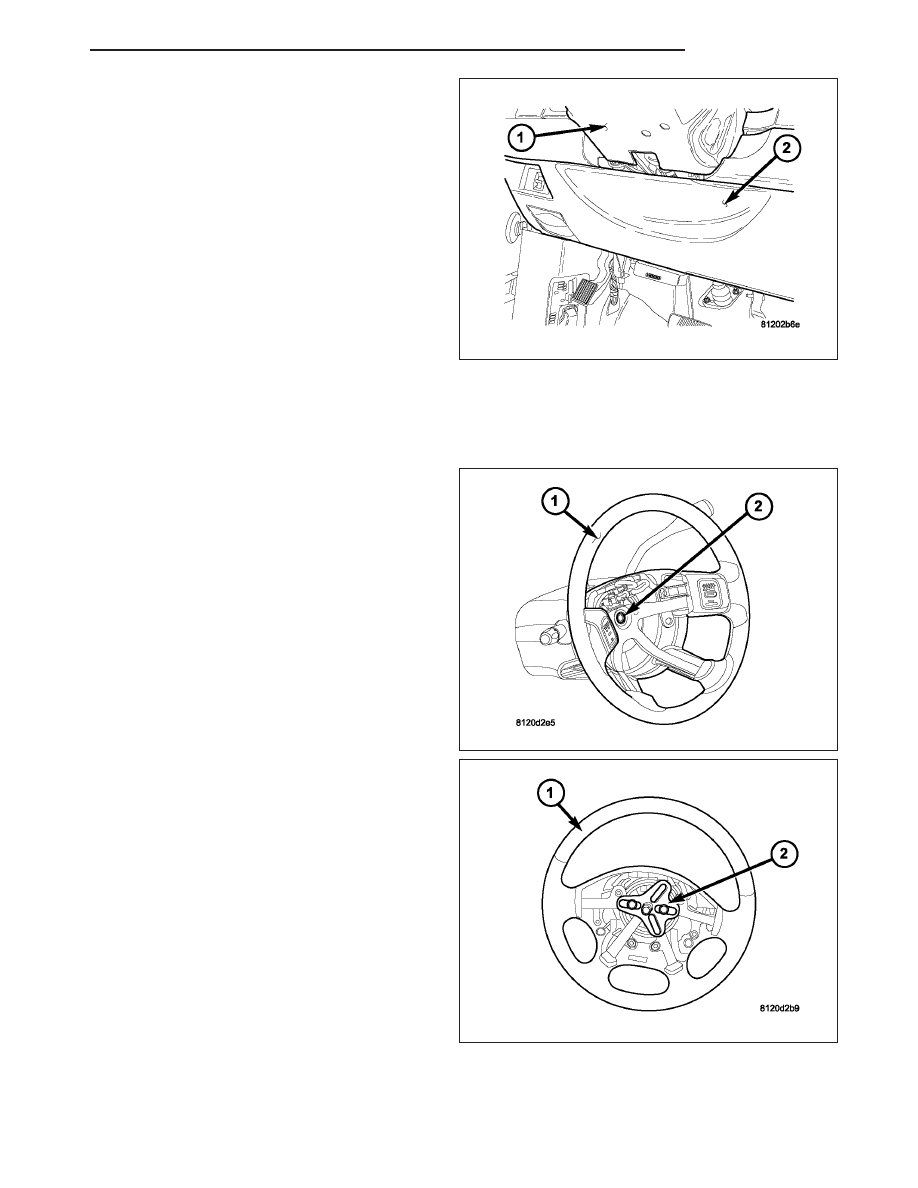

13. Install the steering column opening cover (2).

STEERING WHEEL

REMOVAL

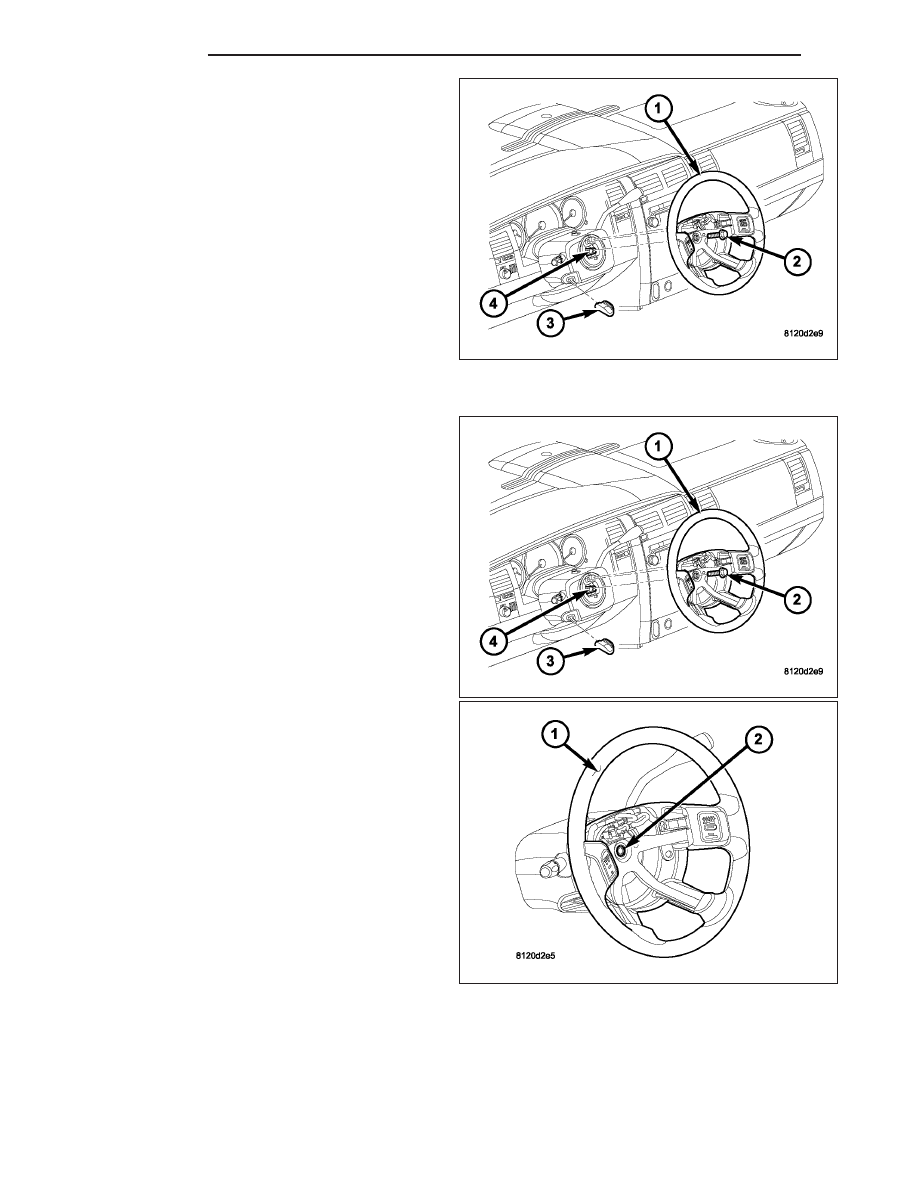

1. Disable and remove the driver’s side airbag. (Refer

to 8 - ELECTRICAL/RESTRAINTS/DRIVER AIR-
BAG - REMOVAL).

2. Partially remove the steering wheel bolt (2) and

leave the bolt in the column.

3. Install puller CJ98-1(2) or equivalent using the top

of the bolt to push on.

HB

COLUMN

19 - 23

4. Remove and discard the steering wheel bolt (2).

5. Remove the steering wheel (1).

INSTALLATION

NOTE: Do not reuse the old steering wheel bolt (2)
(a new bolt must be used)

NOTE: Make sure to align the spline on the steer-
ing wheel hub to the column shaft.

1. Install steering wheel (1) to the column (4).

NOTE: Be certain that the steering wheel mounting
bolt is tightened to the proper torque specification
to ensure proper clockspring operation.

2. Install the new steering wheel bolt (2). Tighten the

bolt to 61 N·m (45 ft. lbs.).

3. Install the driver’s side air bag to the steering

wheel

(1).

(Refer

to

8

-

ELECTRICAL/RE-

STRAINTS/DRIVER AIRBAG - INSTALLATION).

19 - 24

COLUMN

HB
