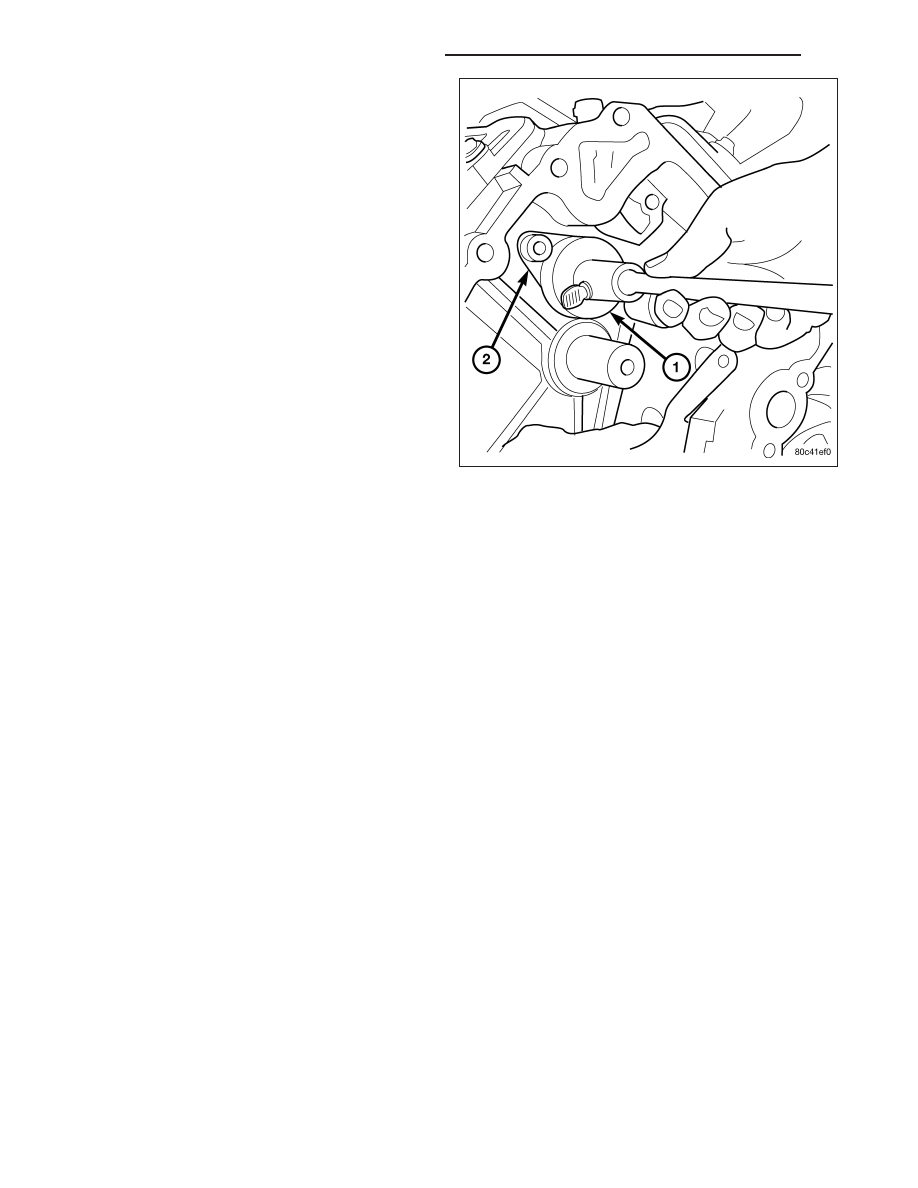

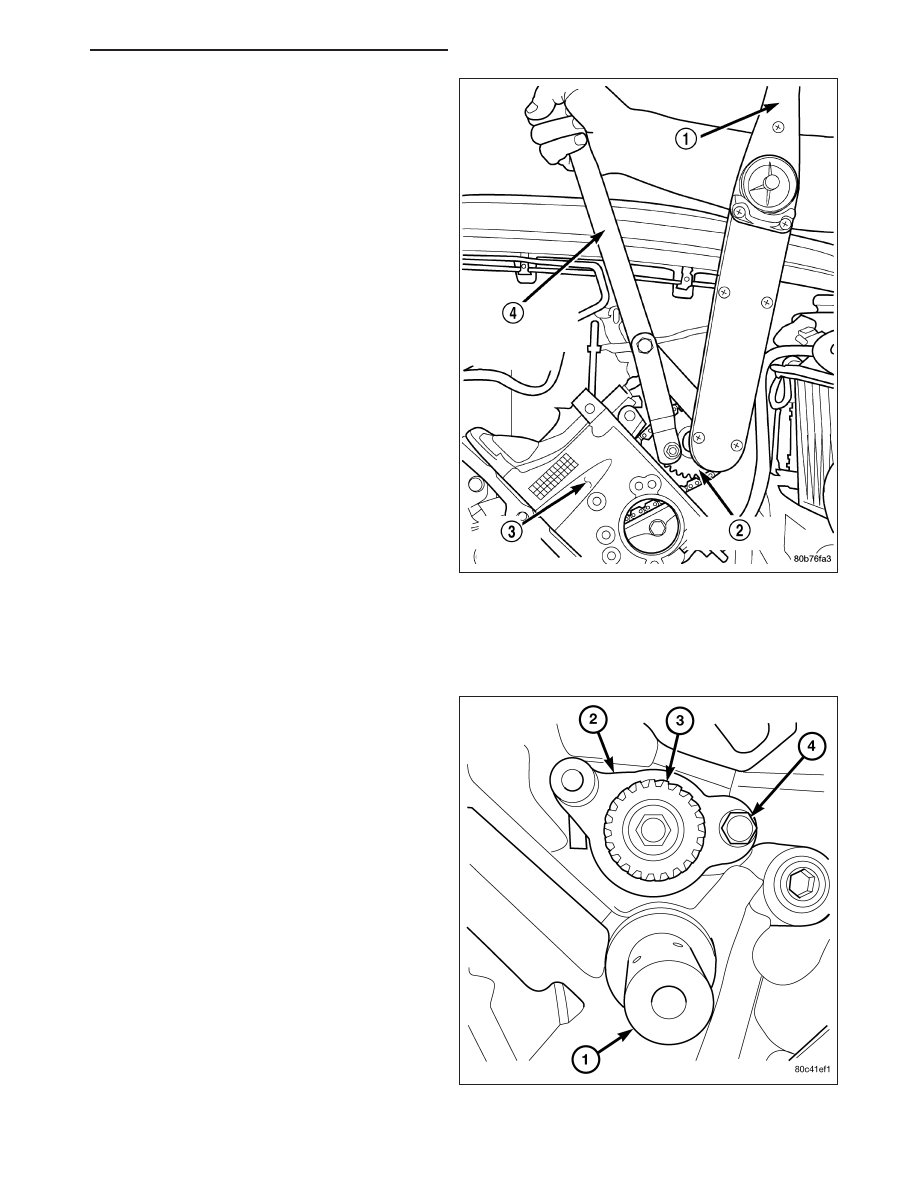

6. Position the camshaft drive gear onto the camshaft, remove oil from bolt then install the retaining bolt. 7. Remove Special Tool 8379. 8. Rotate the crankshaft two full revolutions, then ver- ify that the camshaft drive gear V6 marks are in 9. Install the cylinder head covers (Refer to 9 - ENGINE/CYLINDER HEAD/CYLINDER HEAD COVER(S) - INSTALLATION). SHAFT-BALANCE REMOVAL 1. Remove the primary and secondary timing chains. (Refer to 9 - ENGINE/VALVE TIMING/TIMING NOTE: The balance shaft and gear are serviced as HB ENGINE - 3.7L SERVICE INFORMATION 9 - 1179 |
