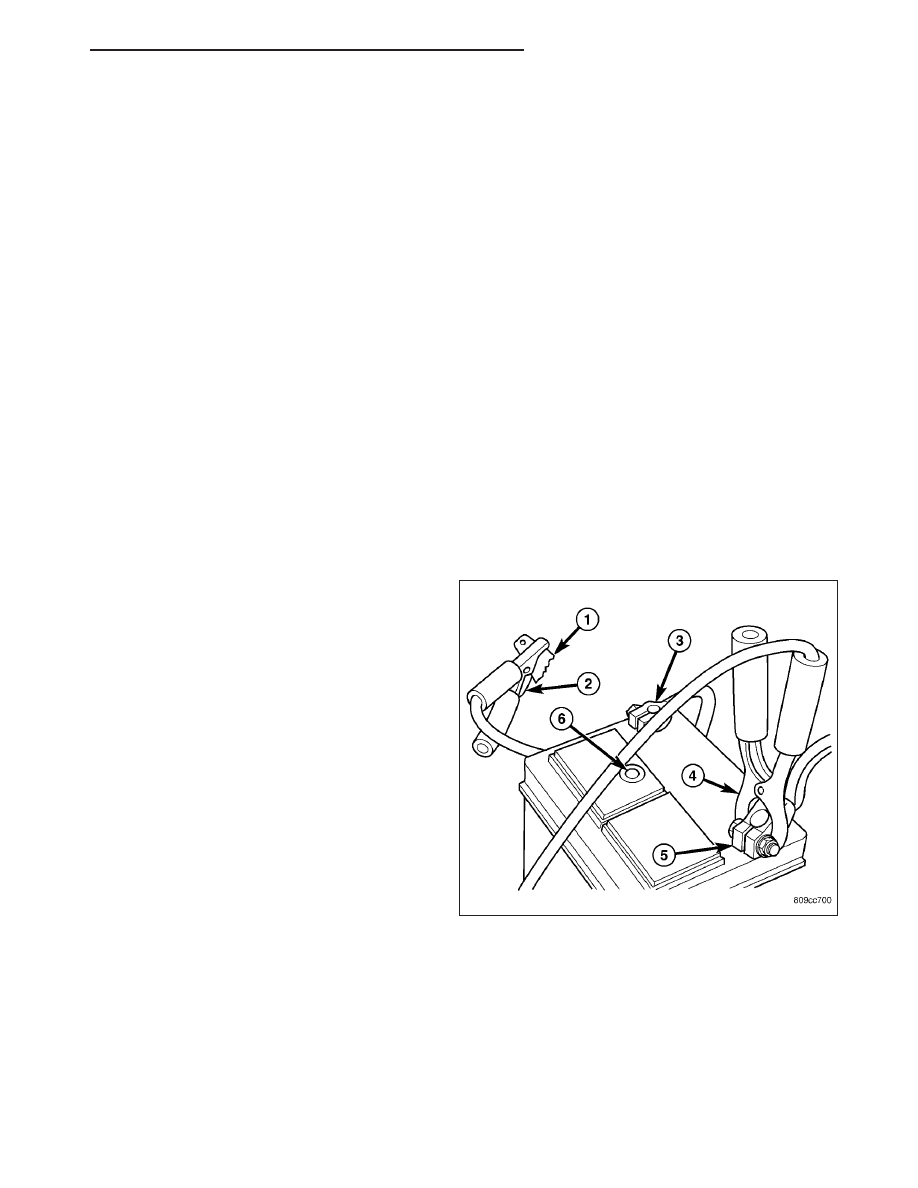

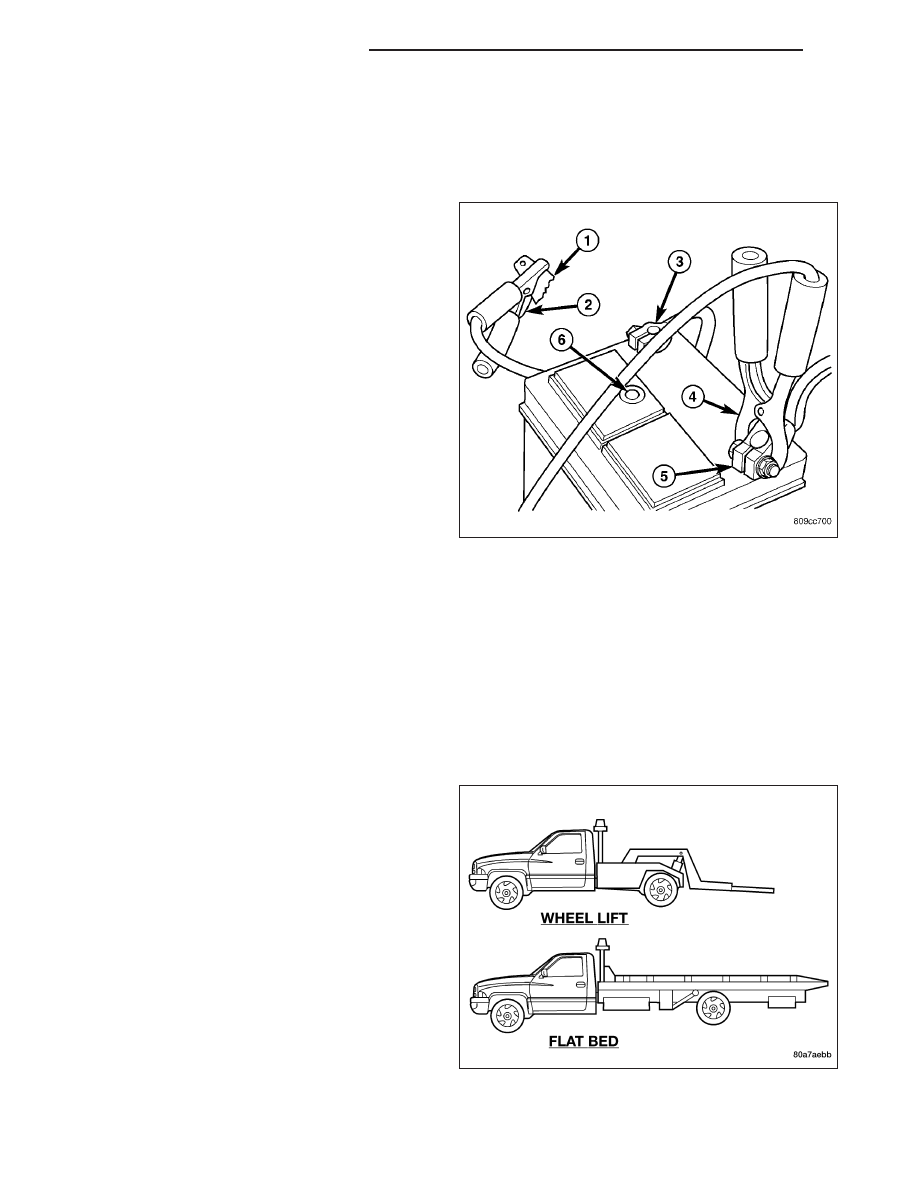

JUMP STARTING STANDARD PROCEDURE JUMP STARTING WARNING: REVIEW ALL SAFETY PRECAUTIONS AND WARNINGS IN THE BATTERY SYSTEM SECTION OF • DO NOT JUMP START A FROZEN BATTERY, PERSONAL INJURY CAN RESULT. • IF EQUIPPED, DO NOT JUMP START WHEN MAINTENANCE FREE BATTERY INDICATOR DOT IS YELLOW • DO NOT JUMP START A VEHICLE WHEN THE BATTERY FLUID IS BELOW THE TOP OF LEAD PLATES. • DO NOT ALLOW JUMPER CABLE CLAMPS TO TOUCH EACH OTHER WHEN CONNECTED TO A • DO NOT USE OPEN FLAME NEAR BATTERY. • REMOVE METALLIC JEWELRY WORN ON HANDS OR WRISTS TO AVOID INJURY BY ACCIDENTAL ARC- • WHEN USING A HIGH OUTPUT BOOSTING DEVICE, DO NOT ALLOW BATTERY VOLTAGE TO EXCEED 16 CAUTION: When using another vehicle as a booster, do not allow vehicles to touch. Electrical systems can TO JUMP START A DISABLED VEHICLE: 1. Raise hood on disabled vehicle and visually inspect engine compartment for: • Battery cable clamp condition, clean if necessary. • Frozen battery. • Yellow or bright color test indicator, if equipped. • Low battery fluid level. • Generator drive belt condition and tension. • Fuel fumes or leakage, correct if necessary. CAUTION: If the cause of starting problem on dis- 2. When using another vehicle as a booster source, park the booster vehicle within cable reach. Turn 3. On disabled vehicle, place gear selector in park or neutral and set park brake. Turn off all accessories. 4. Connect jumper cables to booster battery. RED clamp (4) to positive terminal (+). BLACK clamp (2) to negative (3) terminal (-). DO NOT allow clamps at opposite end of cables to touch, electrical arc will result. Review all 5. On disabled vehicle, connect RED jumper cable (4) clamp to positive (+) terminal. Connect BLACK jumper cable clamp to engine ground (1) as close to the ground cable attaching point as possible. 6. Start the engine in the vehicle which has the booster battery, let the engine idle a few minutes, then start the engine in the vehicle with the discharged battery. CAUTION: Do not crank starter motor on disabled vehicle for more than 15 seconds, starter will overheat HB LUBRICATION & MAINTENANCE 0 - 17 |
