Dodge Dakota (R1). Manual - part 712





Gearshift Adjustment Procedure

(1) Shift transmission into PARK.
(2) Release cable adjuster lock tab (underneath the

steering column) (Fig. 63) to unlock cable.

(3) Raise vehicle.
(4) Disengage the cable eyelet from the transmis-

sion manual shift lever.

(5) Verify transmission shift lever is in PARK

detent by moving lever fully rearward. Last rearward
detent is PARK position.

(6) Verify positive engagement of transmission

park lock by attempting to rotate propeller shaft.
Shaft will not rotate when park lock is engaged.

(7) Snap the cable eyelet onto the transmission

manual shift lever.

(8) Lower vehicle.
(9) Lock shift cable by pressing cable adjuster lock

tab upward until it snaps into place.

(10) Check engine starting. Engine should start

only in PARK and NEUTRAL

HOLDING CLUTCHES

DESCRIPTION

Three hydraulically applied multi-disc clutches are

used to hold some planetary geartrain components
stationary while the input clutches drive others. The
2C, 4C, and Low/Reverse clutches are considered
holding clutches. The 2C and 4C clutches are located
in the 4C retainer/bulkhead (Fig. 64), while the Low/
Reverse clutch is located at the rear of the transmis-
sion case (Fig. 65).

OPERATION

2C CLUTCH

The 2C clutch is hydraulically applied in second

gear by pressurized fluid against the 2C piston.
When the 2C clutch is applied, the reverse sun gear
assembly is held or grounded to the transmission
case by holding the reaction planetary carrier.

4C CLUTCH

The 4C clutch is hydraulically applied in second

prime and fourth gear by pressurized fluid against
the 4C clutch piston. When the 4C clutch is applied,
the reaction annulus gear is held or grounded to the
transmission case.

LOW/REVERSE CLUTCH

The Low/Reverse clutch is hydraulically applied in

park, reverse, neutral, and first gear, only at low
speeds, by pressurized fluid against the Low/Reverse
clutch piston. When the Low/Reverse clutch is
applied, the input annulus assembly is held or
grounded to the transmission case.

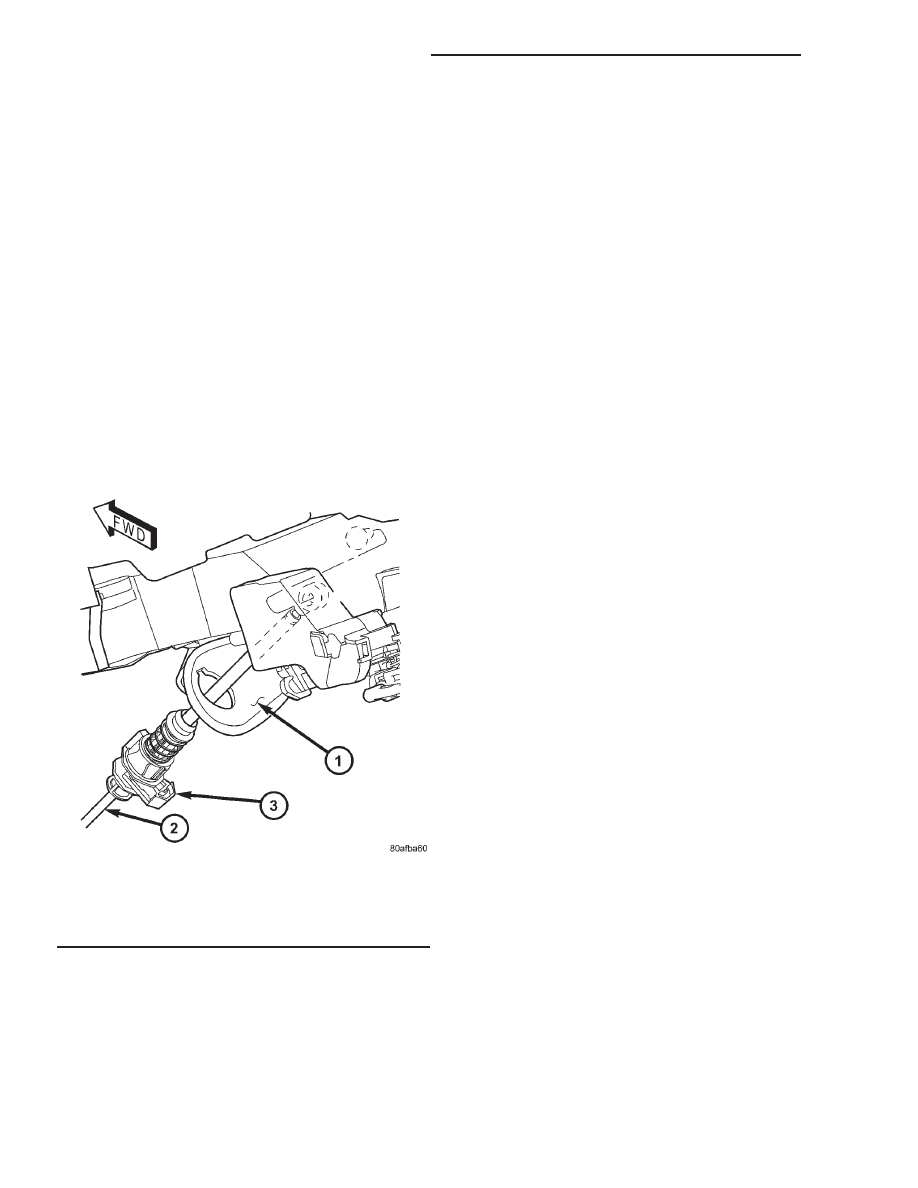

Fig. 63 Gearshift Cable at Steering Column

1 - STEERING COLUMN
2 - GEARSHIFT CABLE
3 - GEARSHIFT CABLE LOCK TAB

21 - 492

AUTOMATIC TRANSMISSION - 45RFE

AN

GEARSHIFT CABLE (Continued)

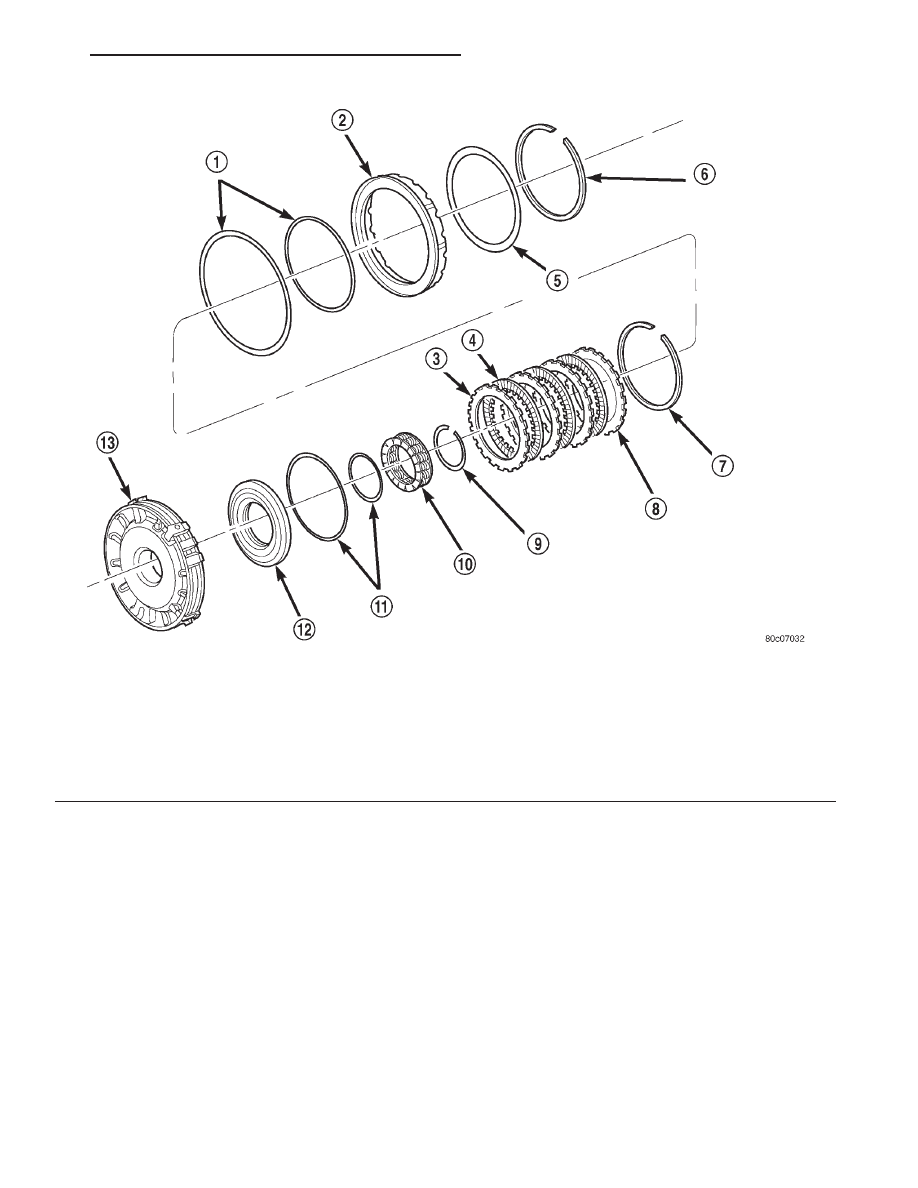

Fig. 64 2C and 4C Clutches

1 - SEAL

8 - REACTION PLATE

2 - 2C PISTON

9 - SNAP-RING

3 - PLATE

10 - RETURN SPRING

4 - DISC

11 - SEAL

5 - 2C BELLEVILLE SPRING

12 - 4C PISTON

6 - SNAP-RING

13 - 4C RETAINER/BULKHEAD

7 - SNAP-RING (SELECT)

AN

AUTOMATIC TRANSMISSION - 45RFE

21 - 493

HOLDING CLUTCHES (Continued)

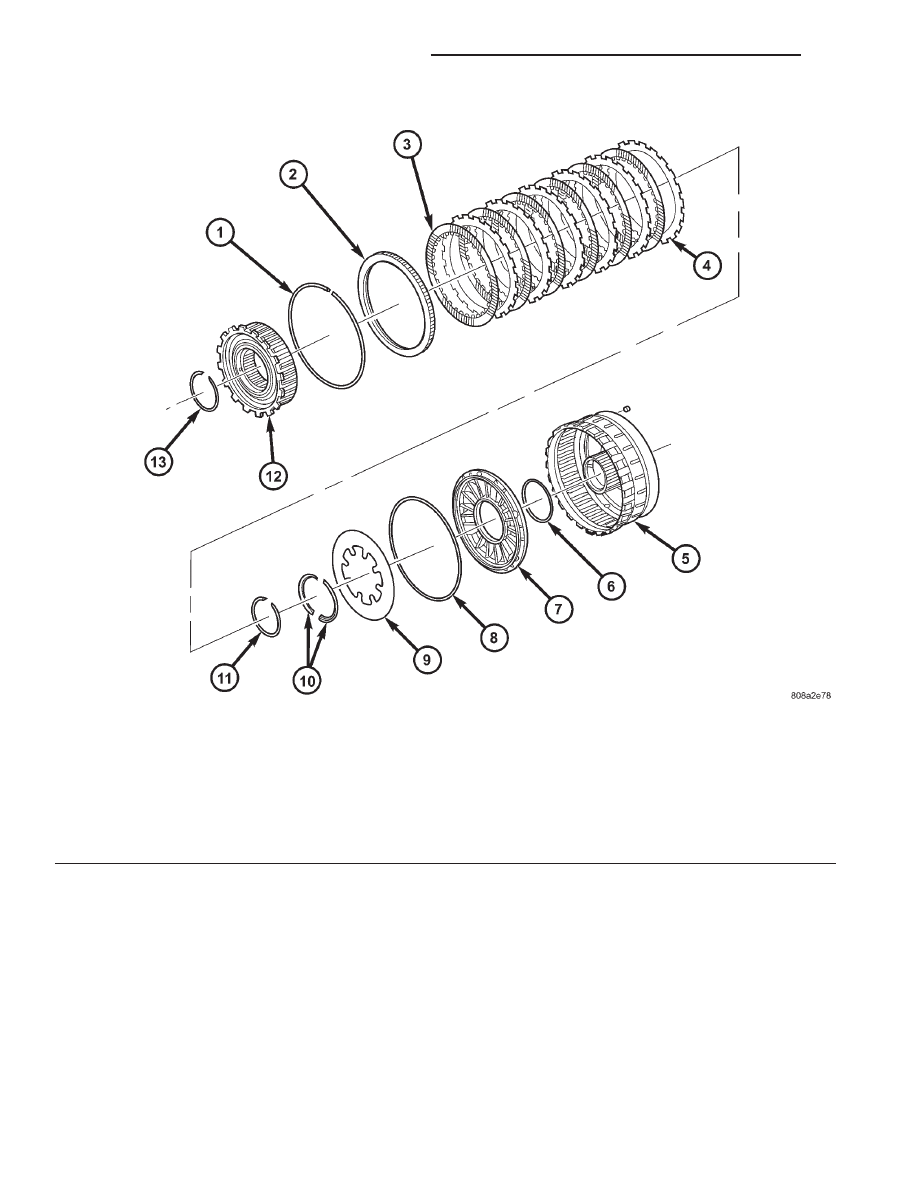

Fig. 65 Low/Reverse Clutch

1 - SNAP-RING (SELECT)

8 - SEAL

2 - REACTION PLATE

9 - BELLEVILLE SPRING

3 - DISC

10 - RETAINER

4 - PLATE

11 - SNAP-RING

5 - L/R CLUTCH RETAINER

12 - OVERRUNNING CLUTCH

6 - SEAL

13 - SNAP-RING

7 - PISTON

21 - 494

AUTOMATIC TRANSMISSION - 45RFE

AN

HOLDING CLUTCHES (Continued)

INPUT CLUTCH ASSEMBLY

DESCRIPTION

Three hydraulically applied input clutches are used

to drive planetary components. The underdrive, over-
drive, and reverse clutches are considered input
clutches and are contained within the input clutch
assembly (Fig. 66) and (Fig. 67). The input clutch
assembly also contains:

• Input shaft

• Input hub

• Clutch retainer

• Underdrive piston

• Overdrive/reverse piston

• Overdrive hub

• Underdrive hub

OPERATION

The three input clutches are responsible for driving

different components of the planetary geartrain.

UNDERDRIVE CLUTCH

The underdrive clutch is hydraulically applied in

first, second, second prime, and third (direct) gears
by pressurized fluid against the underdrive piston.
When the underdrive clutch is applied, the under-
drive hub drives the input sun gear.

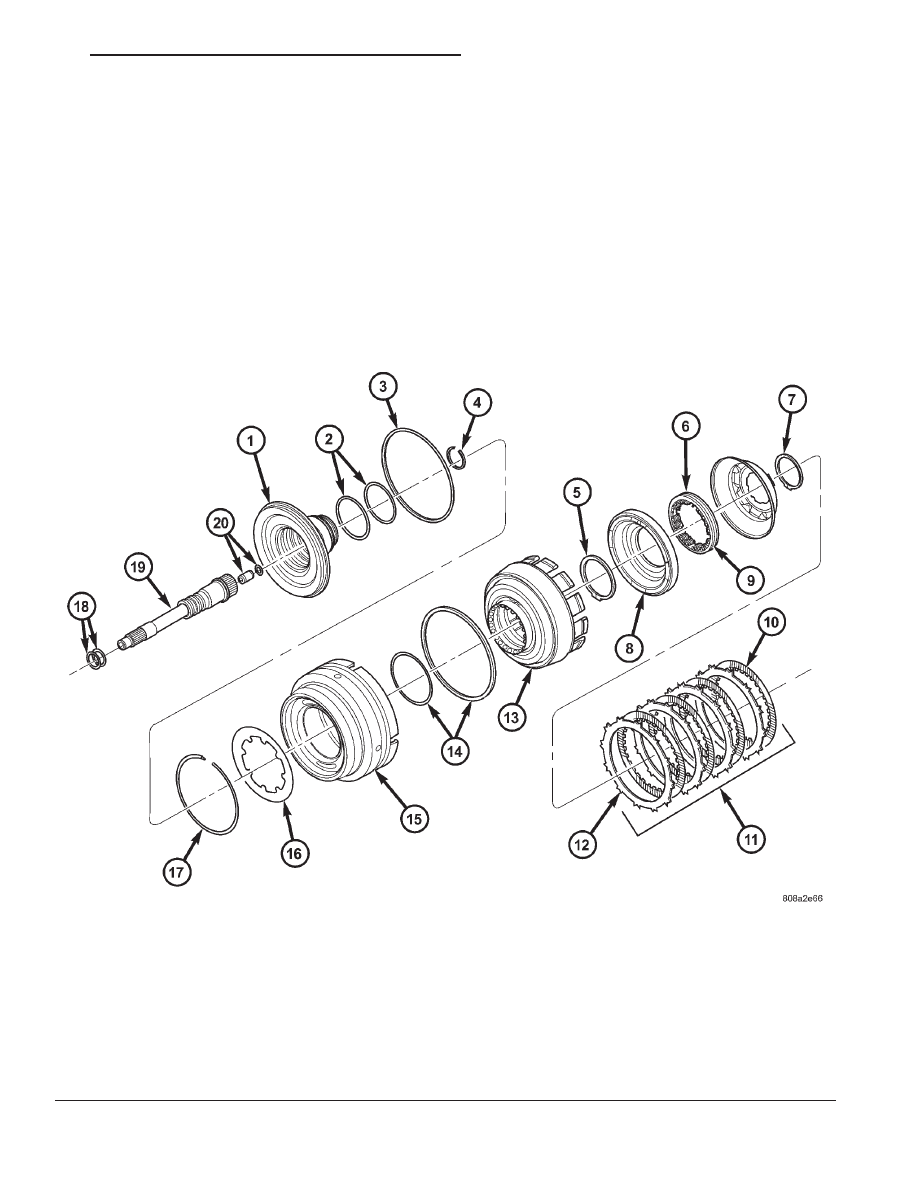

Fig. 66 Input Clutch Assembly - Part 1

1 - INPUT CLUTCH HUB

11 - UD CLUTCH

2 - O-RING SEALS

12 - PLATE

3 - SEAL

13 - CLUTCH RETAINER

4 - SNAP-RING

14 - SEAL

5 - SNAP-RING

15 - OD/REV PISTON

6 - UD BALANCE PISTON

16 - BELLEVILLE SPRING

7 - SNAP-RING

17 - SNAP-RING

8 - UD PISTON

18 - SEAL RINGS

9 - SPRING

19 - INPUT SHAFT

10 - DISC

20 - LUBRICATION CHECK VALVE AND SNAP-RING

AN

AUTOMATIC TRANSMISSION - 45RFE

21 - 495
