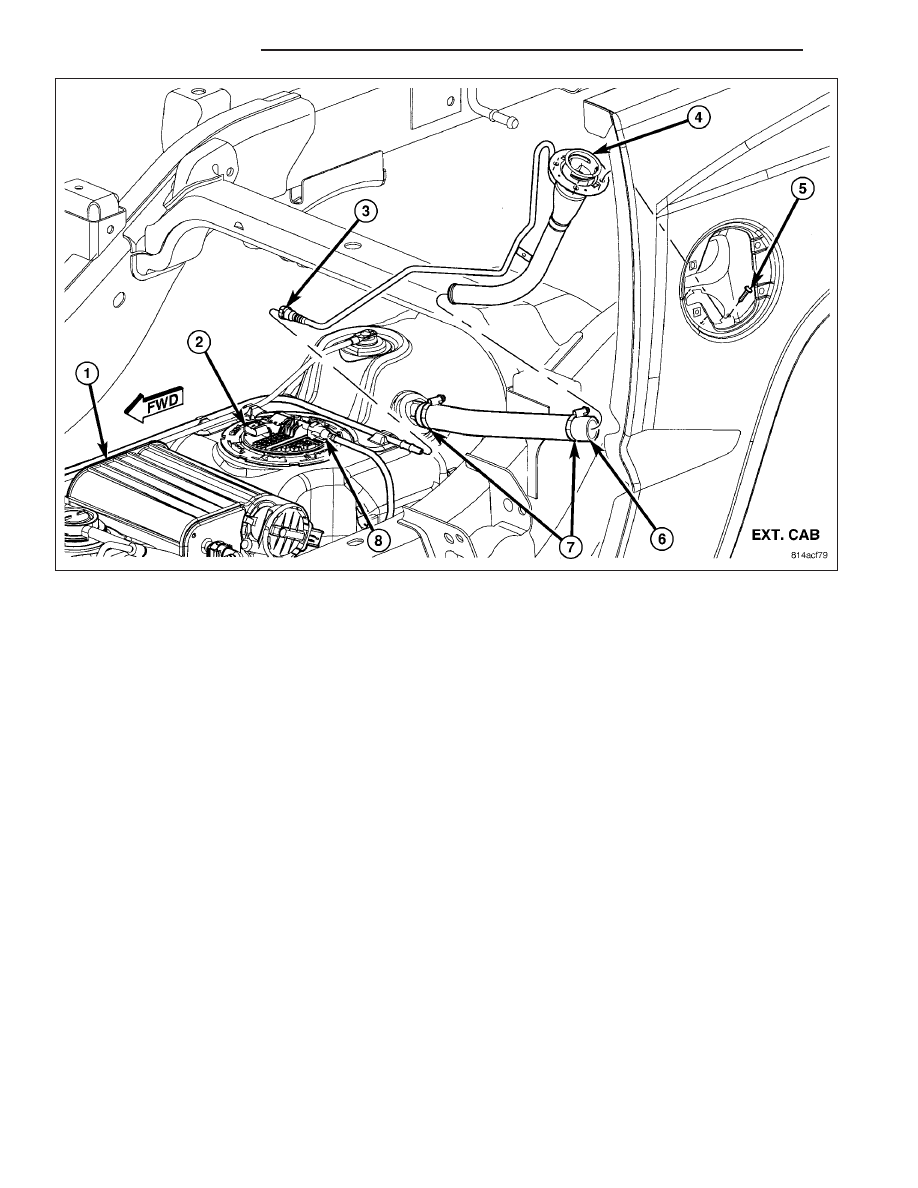

10. Connect vent line (3).

11. Connect rubber fill hose (6) to fuel tank fitting and tighten hose clamps (7).

12. The vapor/vacuum lines and hoses must be firmly connected. Also check the vapor/vacuum lines at the

NVLD pump, NVLD filter and EVAP canister purge solenoid for damage or leaks. If a leak is present, a
Diagnostic Trouble Code (DTC) may be set.

13. If equipped, install fuel tank skid plate.

14. Install plastic liner in front of left-rear tire/wheel.

15. Install left-rear tire/wheel.

16. Lower vehicle.

17. Fill fuel tank with fuel.

18. Start engine and check for fuel leaks near top of module.

14 - 22

FUEL DELIVERY

ND

FILTER-INLET

DESCRIPTION

Refer to Fuel Pump Module for information.

REGULATOR-FUEL PRESSURE

DESCRIPTION

Refer to Fuel Pump Module for information.

FILTER-FUEL

DESCRIPTION

Refer to Fuel Pump Module for information.

ND

FUEL DELIVERY

14 - 23

FUEL INJECTION

TABLE OF CONTENTS

page

page

PEDAL-ACCELERATOR

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

. . . . . . . . . . . . . . . . . . . . . . . . . 25

SENSOR-CRANKSHAFT POSITION

. . . . . . . . . . . . . . . . . . . . . . . . . 25

. . . . . . . . . . . . . . . . . . . . . . . . . . . 26

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

. . . . . . . . . . . . . . . . . . . . . . . . . 29

INJECTOR-FUEL

. . . . . . . . . . . . . . . . . . . . . . . . . 30

OPERATION - FUEL INJECTOR

. . . . . . . . . . . . 30

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

. . . . . . . . . . . . . . . . . . . . . . . . . 31

RELAY-FUEL PUMP

. . . . . . . . . . . . . . . . . . . . . . . . . 31

. . . . . . . . . . . . . . . . . . . . . . . . . . . 32

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

. . . . . . . . . . . . . . . . . . . . . . . . . 32

MOTOR-IDLE AIR CONTROL

. . . . . . . . . . . . . . . . . . . . . . . . . 32

. . . . . . . . . . . . . . . . . . . . . . . . . . . 33

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

. . . . . . . . . . . . . . . . . . . . . . . . . 35

SENSOR-INTAKE AIR TEMPERATURE

. . . . . . . . . . . . . . . . . . . . . . . . . 36

. . . . . . . . . . . . . . . . . . . . . . . . . . . 37

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

. . . . . . . . . . . . . . . . . . . . . . . . . 39

SENSOR-MAP

. . . . . . . . . . . . . . . . . . . . . . . . . 40

. . . . . . . . . . . . . . . . . . . . . . . . . . . 41

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

. . . . . . . . . . . . . . . . . . . . . . . . . 44

SENSOR-OXYGEN

. . . . . . . . . . . . . . . . . . . . . . . . . 45

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

. . . . . . . . . . . . . . . . . . . . . . . . . 46

THROTTLE BODY

. . . . . . . . . . . . . . . . . . . . . . . . . 46

. . . . . . . . . . . . . . . . . . . . . . . . . . . 46

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

. . . . . . . . . . . . . . . . . . . . . . . . . 48

CABLE-THROTTLE CONTROL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

. . . . . . . . . . . . . . . . . . . . . . . . . 52

SENSOR-THROTTLE POSITION

. . . . . . . . . . . . . . . . . . . . . . . . . 55

. . . . . . . . . . . . . . . . . . . . . . . . . . . 56

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

. . . . . . . . . . . . . . . . . . . . . . . . . 57

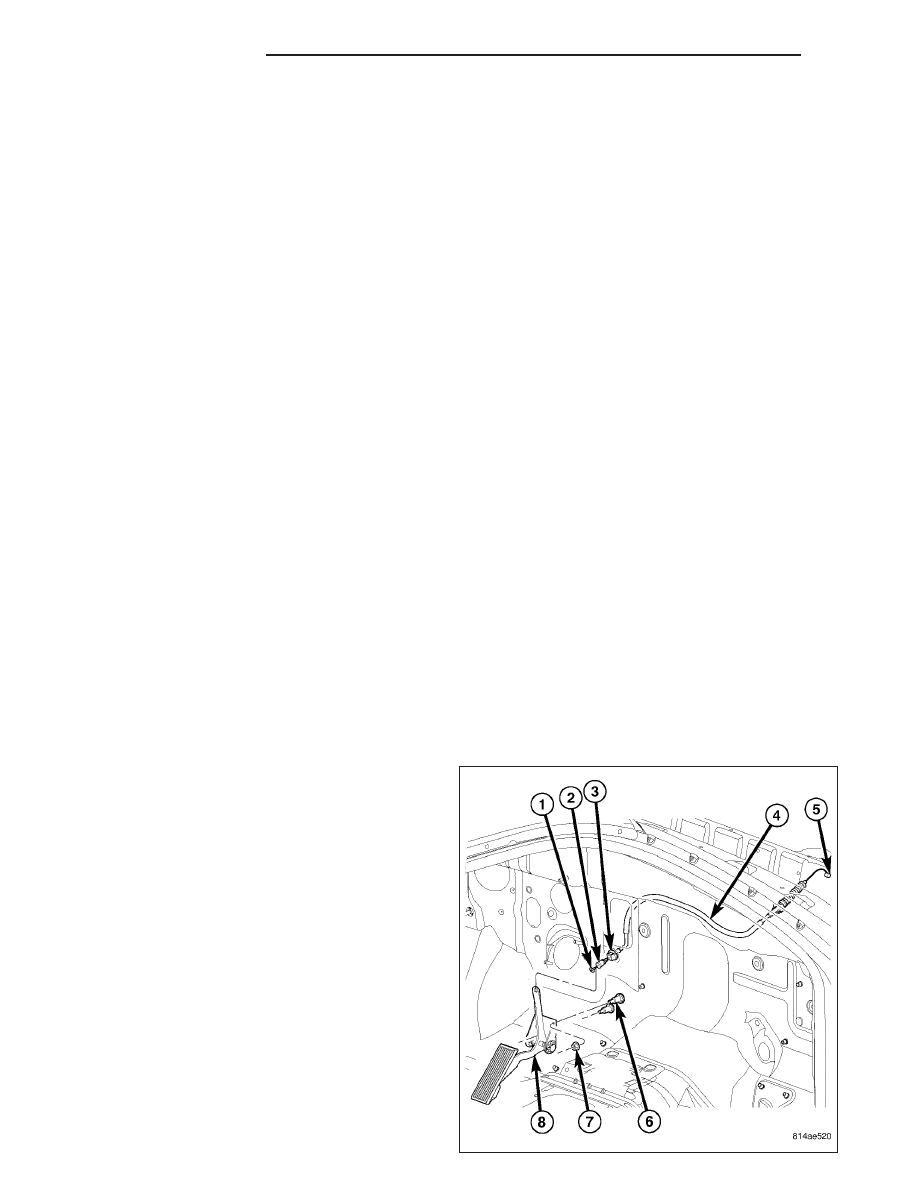

PEDAL-ACCELERATOR

REMOVAL

The accelerator pedal is serviced as a complete
assembly (8) including the bracket.

The accelerator cable (4) is connected to the upper
part of the accelerator pedal arm by a plastic retainer
(clip) (2). This plastic retainer snaps into the top of the
accelerator pedal arm.

1. From inside the vehicle, hold up accelerator pedal.

Remove plastic cable retainer (clip) (2) and throttle
cable core wire from upper end of accelerator
pedal arm. Plastic cable retainer (clip) snaps into
pedal arm.

2. Remove two accelerator pedal mounting bracket

nuts (7). Remove accelerator pedal assembly (8).

14 - 24

FUEL INJECTION

ND

INSTALLATION

The accelerator pedal is serviced as a complete
assembly (8) including the bracket.

The accelerator cable is connected to the upper part
of the accelerator pedal arm by a plastic retainer (clip)
(7). This plastic retainer snaps into the top of the
accelerator pedal arm.

1. Place accelerator pedal assembly (8) over two

mounting studs (6).

2. Install and tighten two mounting nuts (7). Refer to

Torque Specifications.

3. Slide throttle cable (1) into opening slot in top of

pedal arm.

4. Push plastic cable retainer (clip) (2) into accelerator

pedal arm opening until it snaps into place.

5. Before starting engine, operate accelerator pedal to

check for any binding.

SENSOR-CRANKSHAFT POSITION

DESCRIPTION

3.7L V-6

The Crankshaft Position (CKP) sensor (2) is mounted
into the right rear side of the cylinder block. It is posi-
tioned and bolted into a machined hole.

ND

FUEL INJECTION

14 - 25
