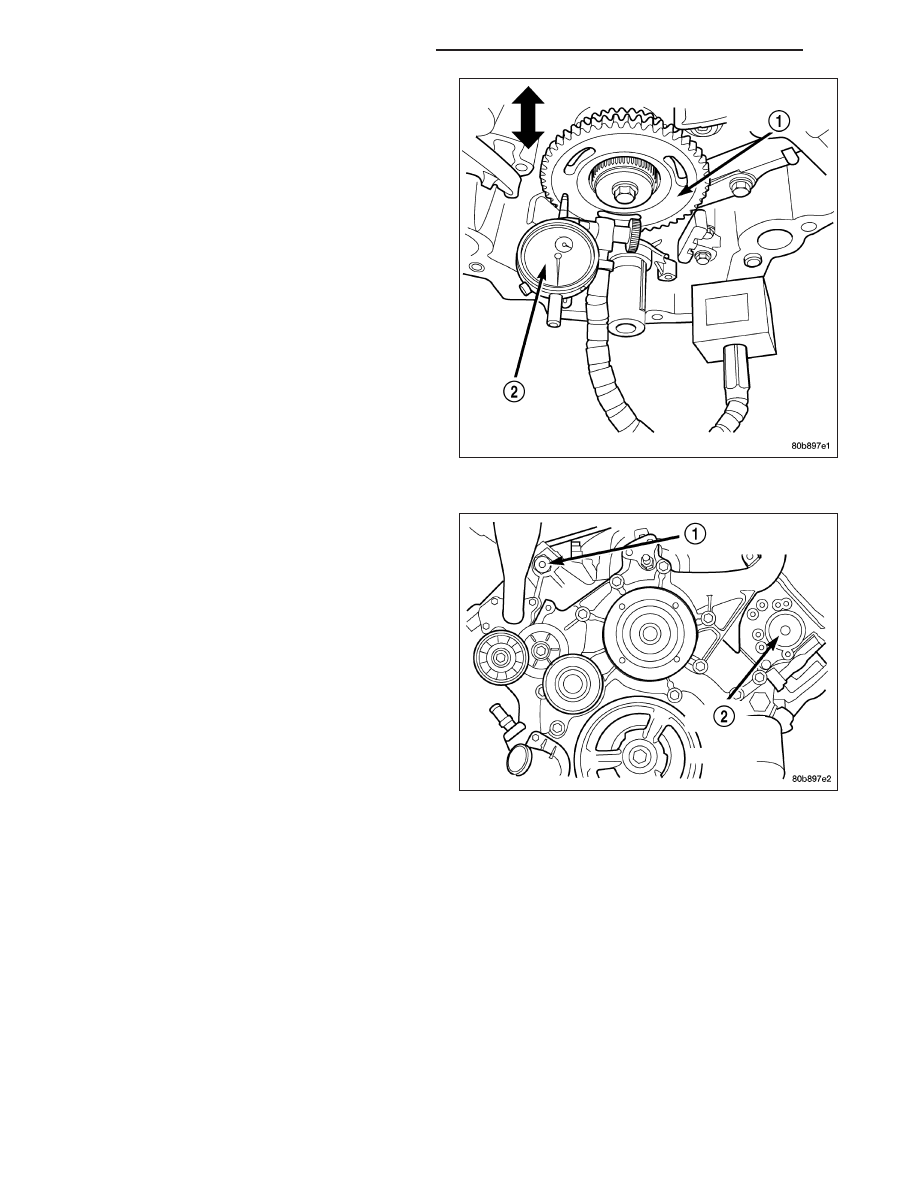

21. After installing all chains, it is recommended that
the idler gear end play be checked. The end play
must be within 0.10 -0.25 mm (0.004 - 0.010 in.).
If not within specification, the idler gear ( 1) must
be replaced.
22. Install timing chain cover and crankshaft damper
(Refer to 9 - ENGINE/VALVE TIMING/TIMING
BELT / CHAIN COVER(S) - INSTALLATION) and
(Refer to 9 - ENGINE/ENGINE BLOCK/VIBRA-
TION DAMPER - INSTALLATION).
23. Install cylinder head covers (Refer to 9 - ENGINE/
CYLINDER HEAD/CYLINDER HEAD COVER(S) -
INSTALLATION).
NOTE: Before installing threaded plug in right cyl-
inder head, the plug must be coated with sealant
to prevent leaks.
24. Coat the large threaded access plug (2) with
Mopar
T
Thread Sealant with Teflon, then install
into the right cylinder head and tighten to 81 N·m
(60 ft. lbs.).
25. Install the oil fill housing.
26. Install access plug (1) in left cylinder head.
27. Install power steering pump (Refer to 19 -
STEERING/PUMP - INSTALLATION).
28. Fill cooling system (Refer to 7 - COOLING -
STANDARD PROCEDURE).
29. Connect negative cable to battery.
