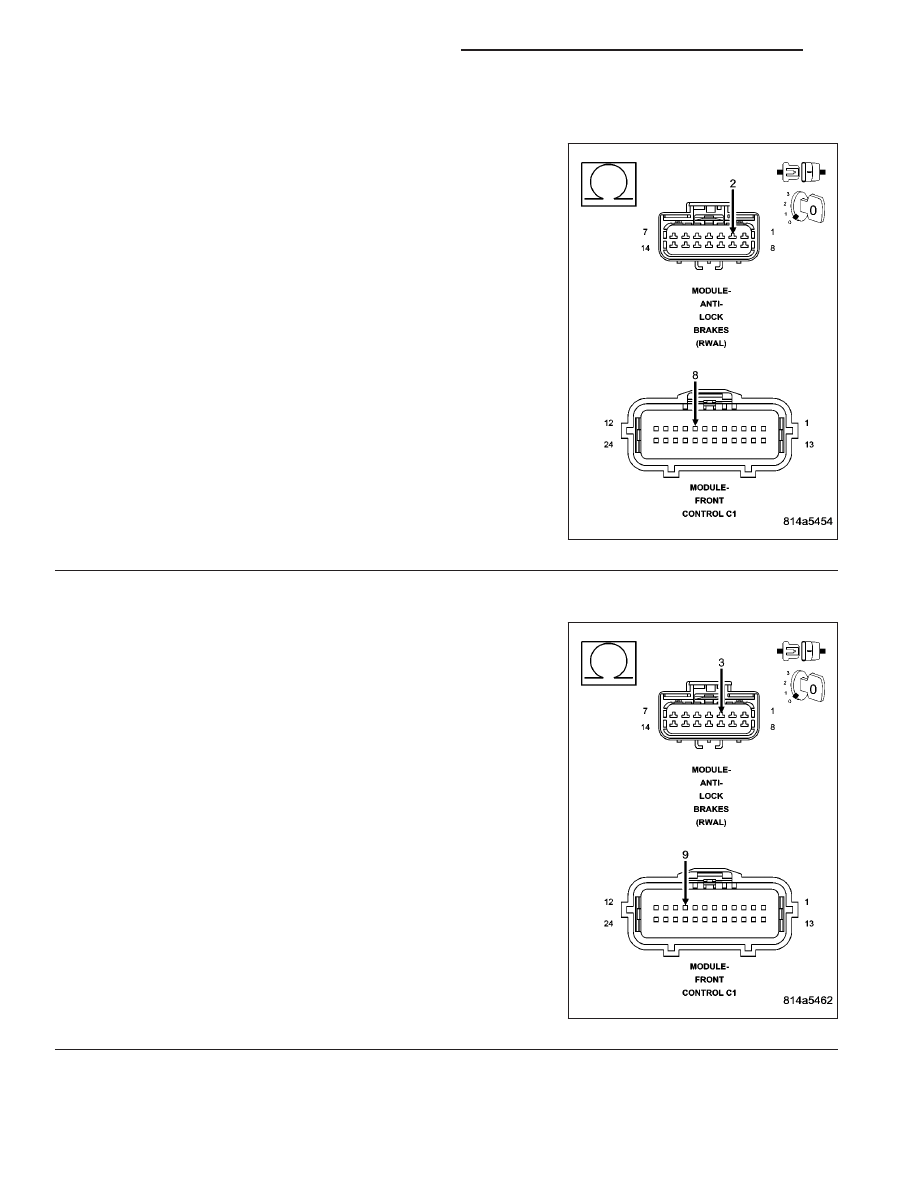

U0002–CAN C BUS OFF PERFORMANCE (EBC125) (CONTINUED) 3. (D65) CAN C BUS (+) CIRCUIT OPEN Turn the ignition off. Disconnect the Anti-lock Brake Module harness connector. Disconnect the Front Control Module C1 harness connector. Measure the resistance of the (D65) CAN C Bus (+) circuit between Is the resistance above 2.0 ohms? Yes >> Repair the (D65) CAN C Bus (+) circuit for an open. Perform the ABS Verification Test — VER 1 (Refer to 5 - No >> Go to 4 4. (D64) CAN C BUS (-) CIRCUIT OPEN Measure the resistance of the (D64) CAN C Bus (-) circuit between Is the resistance above 2.0 ohms? Yes >> Repair the (D64) CAN C Bus (-) circuit for an open. Perform the ABS Verification Test — VER 1 (Refer to 5 - No >> Go to 5 5 - 110 BRAKES - ABS ELECTRICAL DIAGNOSTICS ND |
