Chrysler Le Baron, Dodge Dynasty, Plymouth Acclaim. Manual - part 135





• Park

• Neutral

• Reverse

• Second Gear

No upshifts or downshifts are allowed while in the

Limp-in mode. The position of the manual valve
alone allows the three ranges that are available.

Although engine performance will be reduced while

in this mode, the vehicle can be driven in for service.

DRB II SCAN TOOL

The DRB II scan tool is a diagnostic read-out box

designed by Chrysler to gain access to the on-board
diagnostics. These on-board diagnostics are found on
all Chrysler-built cars and trucks.

The DRB II scan tool has a few diagnostic capabil-

ities by itself. To perform most diagnostic tests, a
program cartridge must be inserted. It contains the
diagnostic test programs.

There are scan tools available from other manufac-

tures that can be used on Chrysler vehicles. How-
ever, the diagnostic test procedures in this manual
have been designed for use with the Chrysler’s DRB
II scan tool.

The DRB II scan tool operates by communicating

with the module of the vehicle system being tested.
To communicate with the transmission control mod-
ule, the DRB II scan tool must be connected to the

blue CCD bus connector located under the instru-
ment panel. Refer to the ‘‘Using the DRB II Scan
Tool’’ manual or the Diagnostic Procedures Manual
for information on how to use the DRB II scan tool.

DIAGNOSTIC TROUBLE CODE CHARTS

Below is a brief description of what each section of

the diagnostic trouble code charts are addressing.
• DIAGNOSTIC TROUBLE CODE-Tells the code
number and name (as shown on the DRB II scan
tool).
• BACKGROUND-A brief description of the circuit
that the transmission control module is monitoring.
• WHEN CHECKED-The point of time or condition
when the transmission control module makes it’s sys-
tem check.
• ARMING CONDITIONS-The parameters that
must be met before a code can be set.
• FAULT CONDITION-What the transmission con-
trol module saw that is determined to be a problem.
(ie. voltage to high or low, switch/solenoid problems)
• FAULT SET TIME-Refers to the amount of time
(in seconds) a failure must occur before a diagnostic
trouble code is set in memory.
• EFFECT-Refers to how the fault effects transaxle
operations.
• POSSIBLE CAUSE-Refers to the systems or cir-
cuits which could cause the fault to be recorded.

21 - 146

TRANSAXLE

Ä

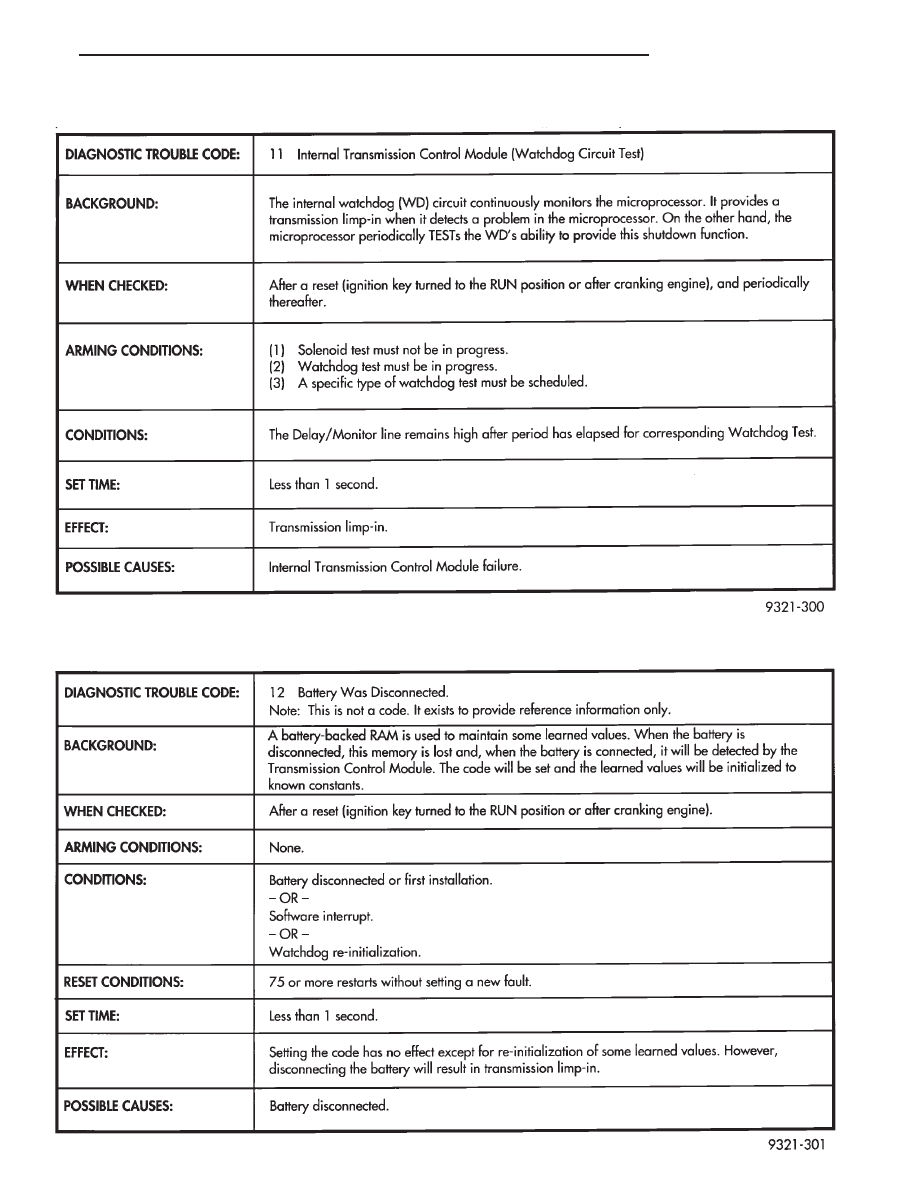

DIAGNOSTIC TROUBLE CODE 11

DIAGNOSTIC TROUBLE CODE 12

Ä

TRANSAXLE

21 - 147

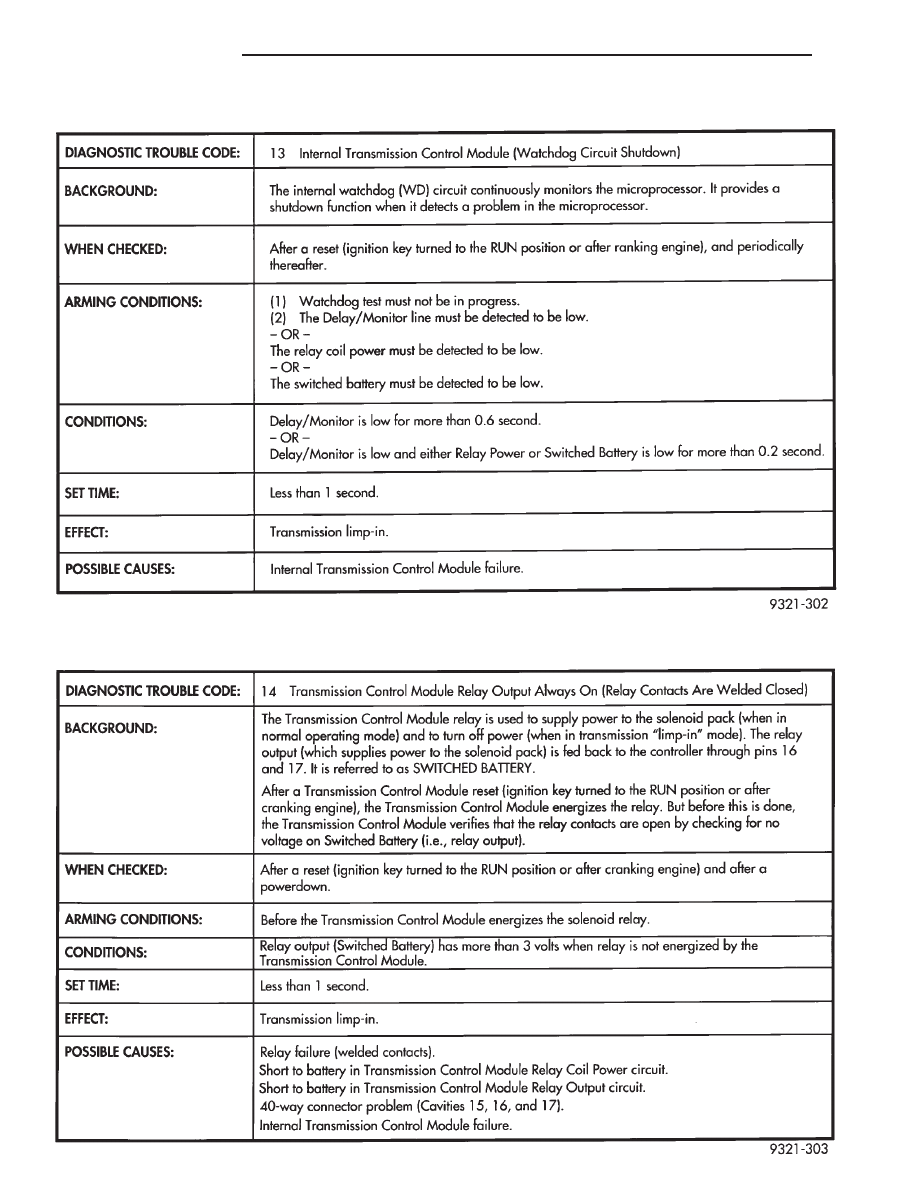

DIAGNOSTIC TROUBLE CODE 13

DIAGNOSTIC TROUBLE CODE 14

21 - 148

TRANSAXLE

Ä

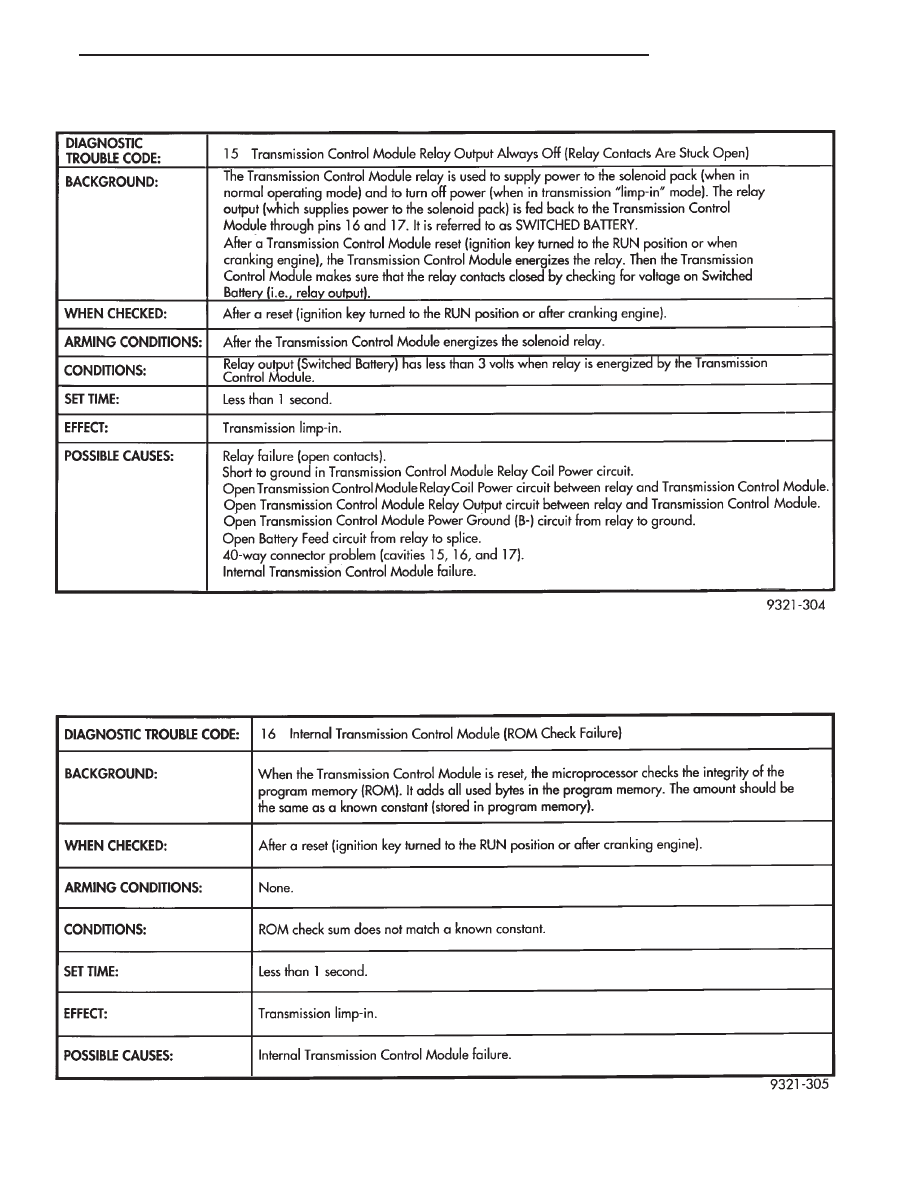

DIAGNOSTIC TROUBLE CODE 15

DIAGNOSTIC TROUBLE CODE 16

Ä

TRANSAXLE

21 - 149
