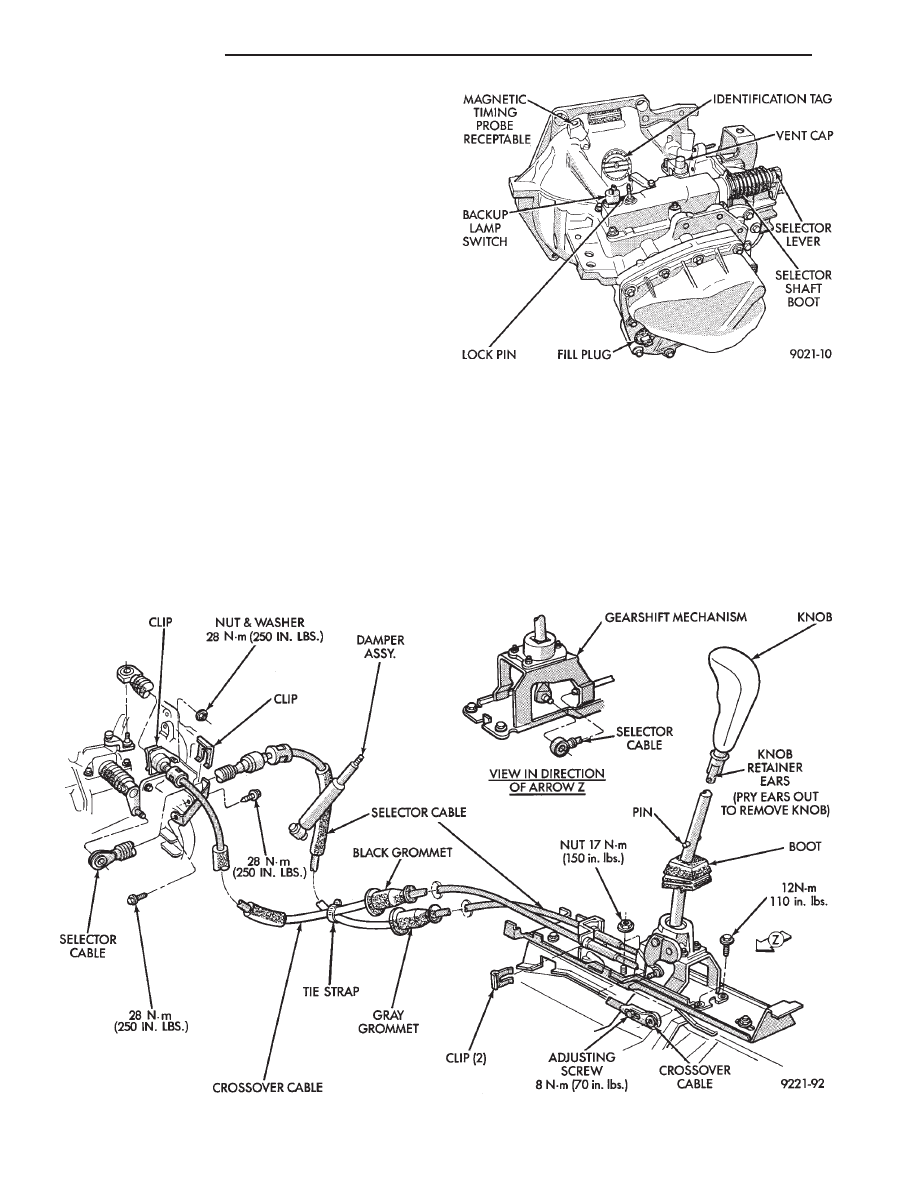

A-568 HEAVY—DUTY MANUAL TRANSAXLE The greater torque of the high output turbo engines require a stronger transmission. It includes a die-cast as follows: 1st—3.31, 2nd—1.89, 3rd—1.28, 4th—0.94, 5th—0.71, Reverse—3.14. Final drive ratio To reduce wear, this transaxle, in common with other manual transaxles, uses SAE 5W-30 engine oil as the IDENTIFICATION A-523, A-543, and A-568: the transaxle model, assem- bly number, build date, and final-drive ratio are Certain transaxle assemblies utilize high- strength Steel in various gears to provide adequate The last eight digits of the Vehicle Identification Number (V.I.N.) are stamped on a raised boss on top GEARSHIFT LINKAGE ADJUSTMENT (CABLE Before replacing the gearshift selector cable or crossover cable for a hard-shifting complaint, dis- Fig. 2 A-523, A-543, and A-568 Transaxle Identification Fig. 3 Gearshift Mechanism 21 - 2 TRANSAXLE Ä |
