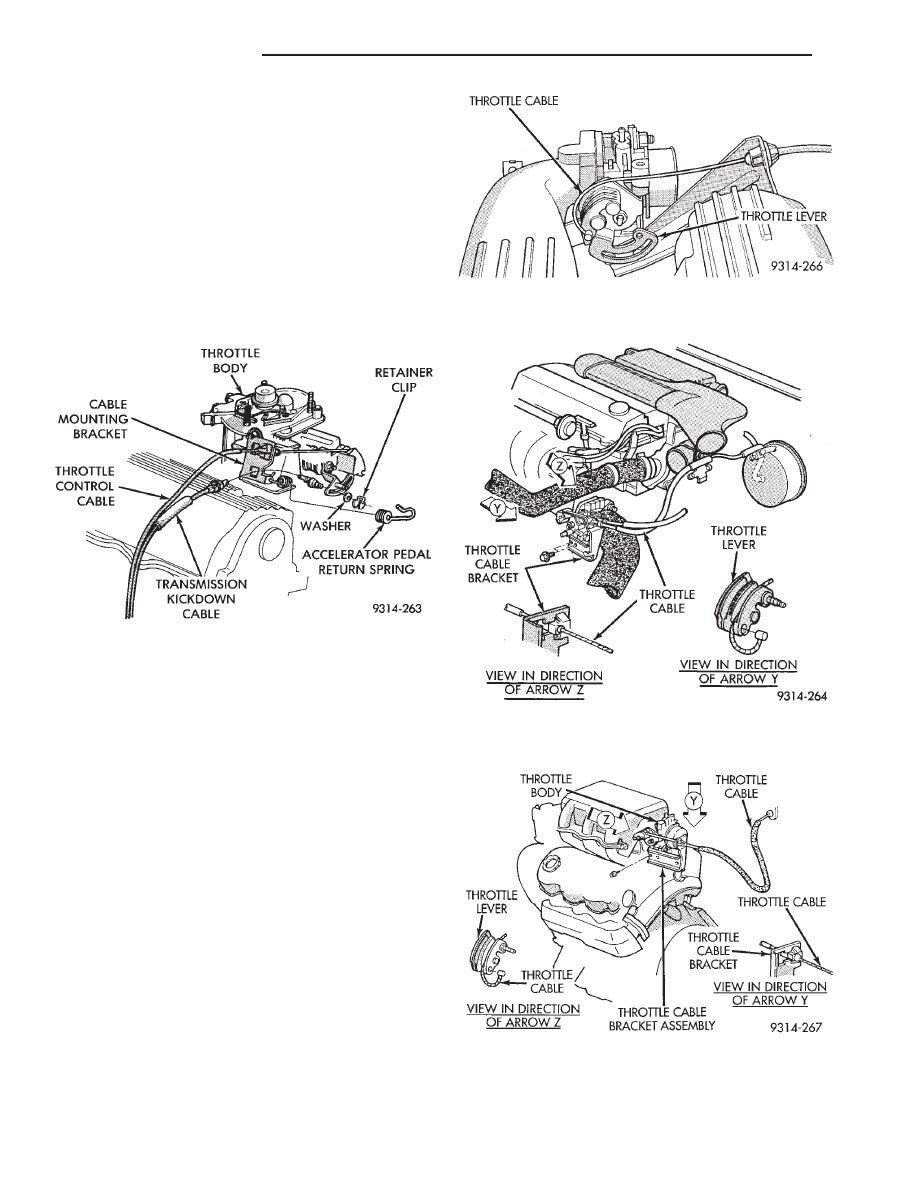

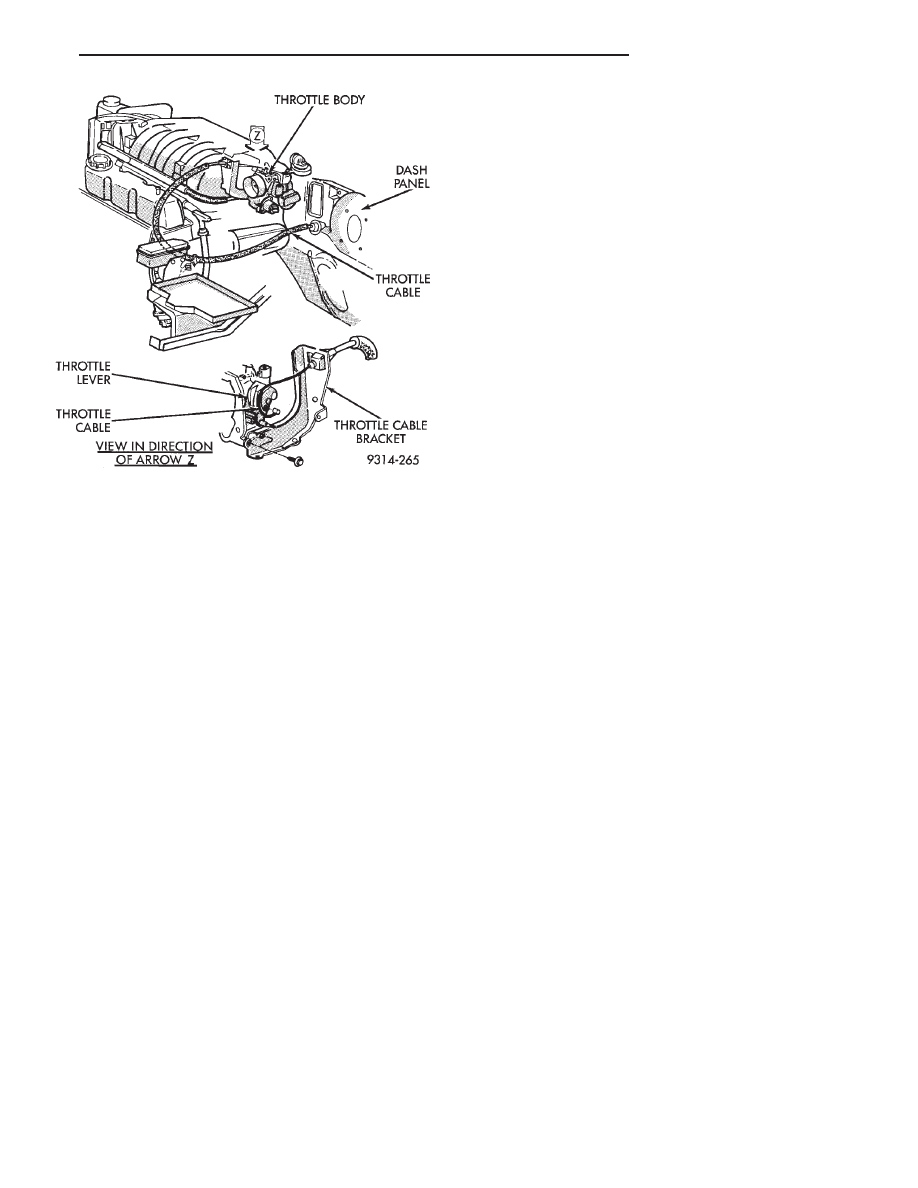

(2) From inside the vehicle, hold up the pedal and install the throttle cable and cable retainer in the (3) From the engine compartment, hold the throt- tle body lever in the wide open position and install THROTTLE CABLE REMOVAL (1) Working from the engine compartment, hold throttle lever in the wide open position and remove (2) From inside the vehicle, hold the throttle pedal up and remove the cable retainer and cable from up- (3) Remove retainer clip from throttle cable and grommet at the dash panel (Fig. 2). (4) From the engine compartment, pull the throttle cable out of the dash panel grommet. The grommet (5) Remove the throttle cable from the throttle bracket by carefully compressing both retaining tabs INSTALLATION (1) From the engine compartment, push the hous- ing end fitting into the dash panel grommet. (2) Install cable housing (throttle body end) into the cable mounting bracket on the engine. (3) From inside the vehicle, hold up pedal and feed throttle cable core wire through hole in upper end of (4) Install cable retainer clip (Fig. 2). tle lever to the wide open position and install throt- Fig. 3 Throttle Cable Attachment to Throttle Body—2.2L/2.5L TBI Engine Fig. 4 Throttle Cable Attachment to Throttle Body—2.5L MPI Flexible Fuel Engine Fig. 5 Throttle Cable Attachment to Throttle Body—Turbo III Engine Fig. 6 Throttle Cable Attachment to Throttle Body—3.0L Engine 14 - 22 FUEL SYSTEMS Ä |
