GLASS AND MIRRORS  9L-7

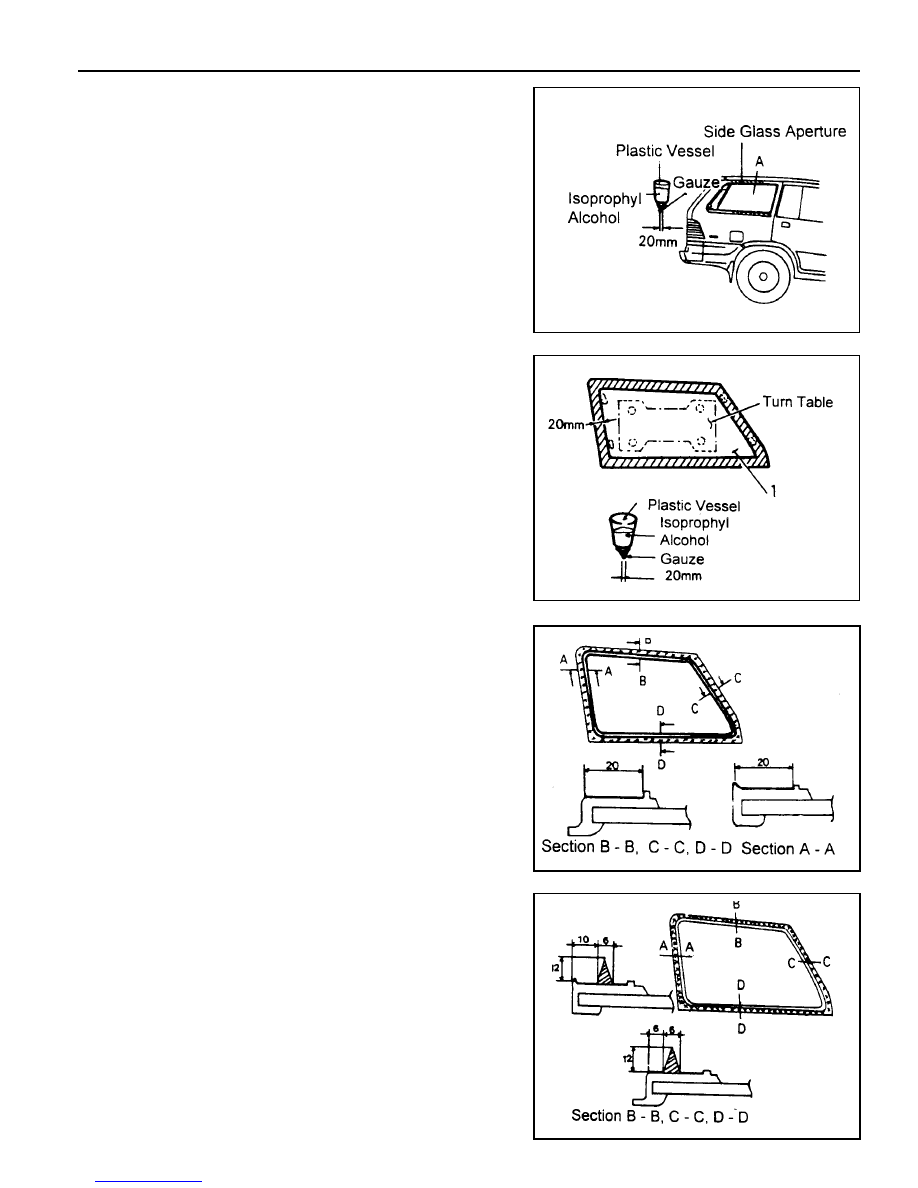

Installation of Side Glass

For installation, refer to 'Installation of Windshield'.

1. Clean as the same procedure of windshield mounting flange

(Apply primer).

l

Clean as the same procedure of windshield cleaning,

however keep 20mm from the edge of glass.

2. Apply primer to the side glass.

l

Use sufficiently mixed primer in a mixer over 10 minutes.

l

Be careful not to contaminate other parts due to over
application.

l

Duration : 1 minute - 24 hours (reapply after 24 hours).

l

Never use the primer containing deposits or floating
materials.

l

Do not apply primers which is over its duration.

l

Do not reuse a gauze over 20 times.

l

Apply evenly to glass.

3. Apply seaant to the side glass.

l

Turn over the glass and apply sealant.

l

Uneven application of sealant may cause water leakage
after installation of the glass.

9L-8  GLASS AND MIRRORS

Tightening Torque

7.7 Nm

4. Before installation, ensure that the stay bolt washer is

inserted.

5. Using suction holders, install the side glass within 5minutes

after application of sealant.

GLASS AND MIRRORS  9L-9

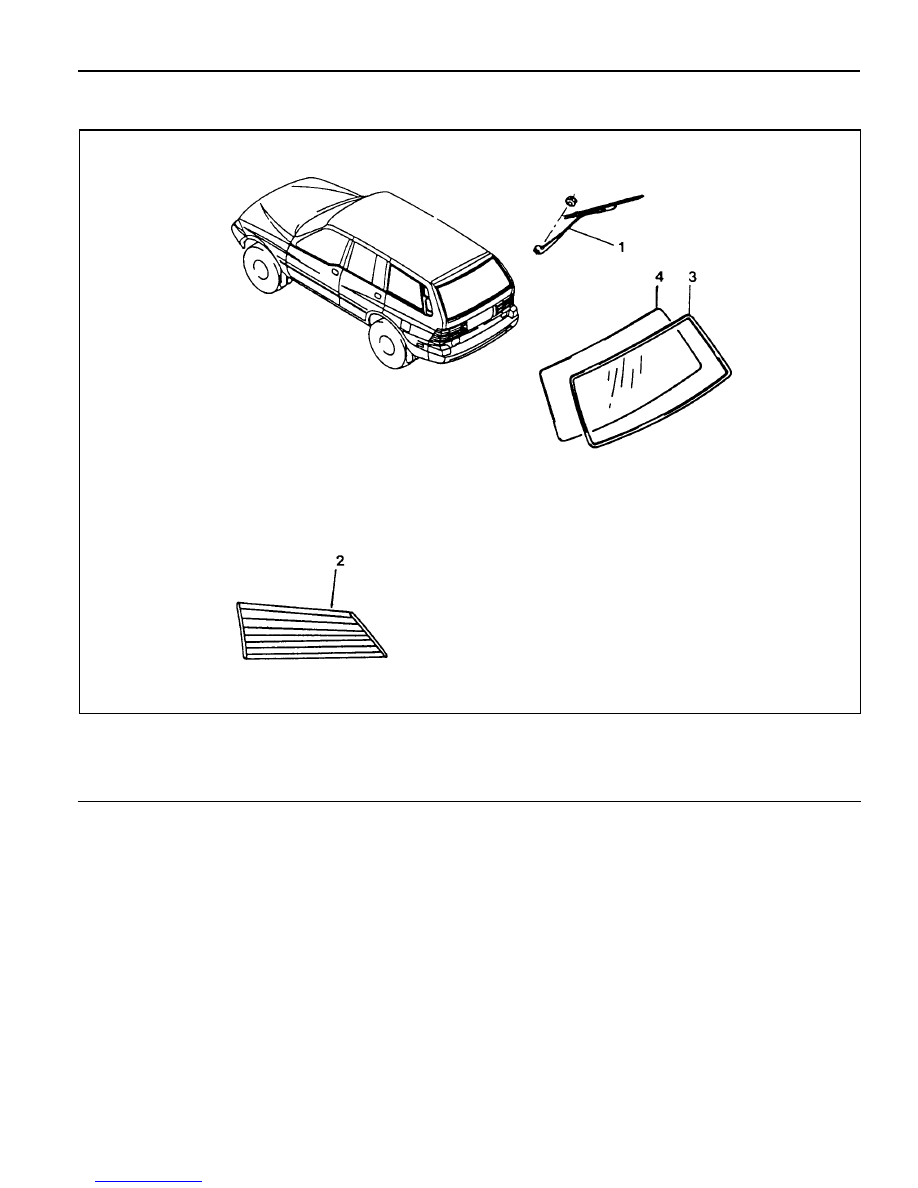

TAILGATE GLASS

1 Wiper Arm and Blade Assembly
2 Heating Lines

3 Tailgate Trim
4 Tailgate Glass

Notice

Removal and installation is as shown in upper drawings.

9L-10  GLASS AND MIRRORS

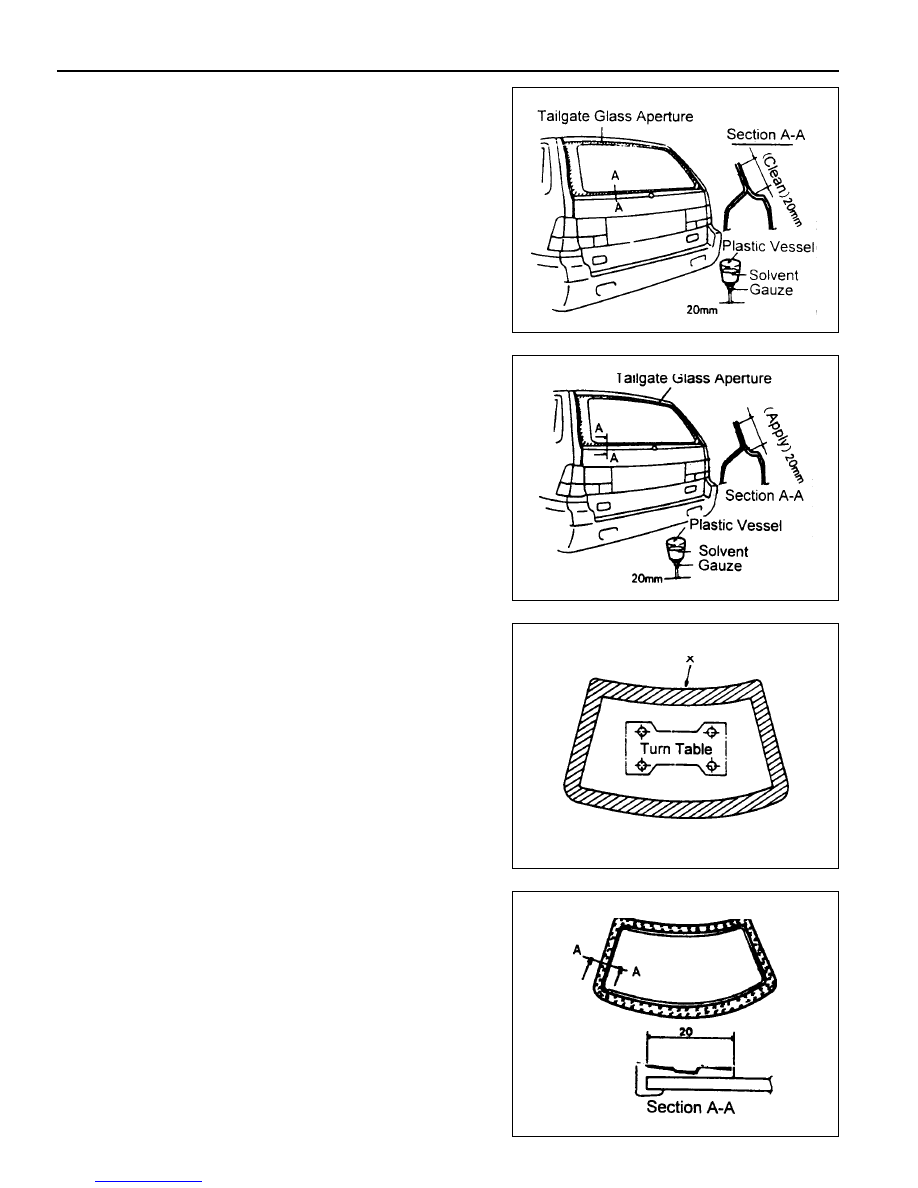

Installation of Tailgate Glass

1. Clean the tailgate flange.

l

Do not reuse a gauze over 20 times.

l

Saturate the gauze in solvent (Isoprophyl alcohol).

l

Keep the cleaned surface to be cleaned.

l

Apply body primer to the cleaned and dry flange.

- If flange is oiled or contaminated, primer can not be

applied.

2. Apply primer after cleaning of tailgate flange.

l

Keep primers in a refrigerator(-2

°

C - +5

°

C).

l

Use sufficiently mixed primer in a mixer over 10 minutes.

l

Apply primer within 2 hours after opening.

l

Do not apply primers which is over its druation.

l

Apply evenly to the flange.

l

Duration : 3 minutes - 8 hours (reapply after 8 hours).

l

If primer is applied to the body, clean off immediately
with solvent.

l

Be careful not to contaminate other parts.

3. Clean the tailgate galss.

l

Clean the glass keeping 15mm from the edge of glass.

l

Do not reuse a gauze over 20 times.

l

Saturate the gauze in solvent(Isoprophyl alcohol).

l

Do not touch the cleaned galss surface.

l

Apply glass primer to the cleaned and dry glass surface.
If glass is oiled or contaminated, primer can not be
applied.

4. Apply primer to the tailgate glass.

l

Use sufficiently mixed primer in a mixer over 10 minutes.

l

Be careful not to contaminate other parts due to over
application.

l

Duration : 1 minute - 24 hours(reapply after 24 hours).

l

Never use the primer containing deposits or floating
materials.

l

Do not use primers which is over its duration.

l

Do not reuse a gauze over 20 times.

l

Apply evenly to glass.
