5A-92  AUTOMATIC TRANSMISSION

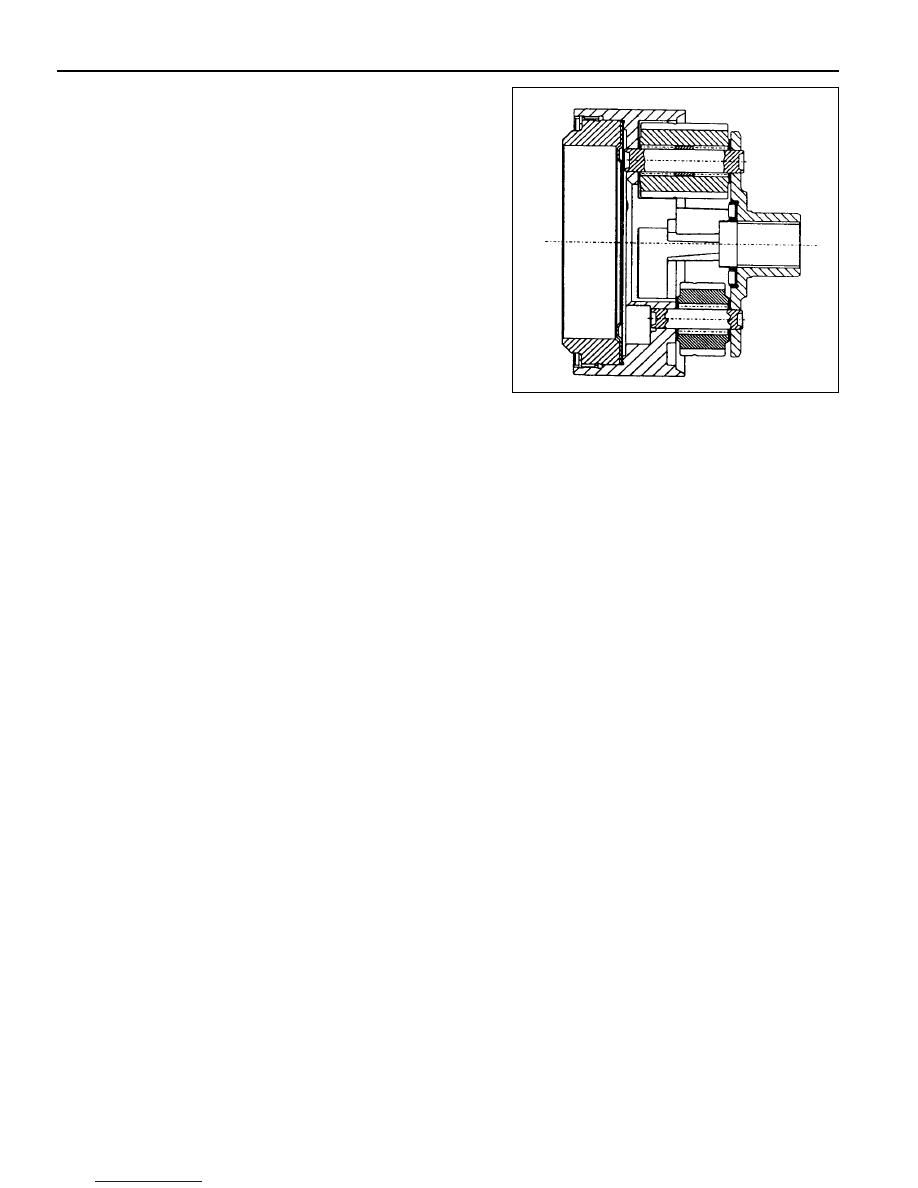

Planet Carrier and Centre Support

To remove the planet carrier and centre support, proceed as
follows.

1. Separate the planet carrier and centre support from the

output shaft. Remove the thrust bearings from the output
shaft and the planet carrier.

2. Separate the centre support from the planet carrier by

rotating it anti-clockwise.

3. Lift the one way clutch from the planet carrier.

4. Remove the circlip retaining the one way clutch outer race

in the planet carrier and remove the race.

5. Remove the one way clutch retainer from the planet carrier.

Pump

Note that the following valves are housed in the pump cover:

l

Solenoid 7

l

C1 bias valve

l

Converter clutch control valve

l

Converter clutch regulator valve

l

Primary regulator valve

To remove the pump, proceed as follows.

1. Remove the wiring loom retainer plate and remove

solenoid 7 with a T30 Torx bit.

2. Remove the five washer head bolts from the cover plate

using a multi-point 8 mm socket.

3. Remove the five Torx head screws from the cover plate

(Torx bit No. 30). Note that the odd screw holds the pump
body to the pump body cover.

Notice

Do not strike the converter support tube to loosen the
pump body.

4. Separate the pump body from the pump cover.

5. Lift the cover plate from the cover.

6. Remove the two ball check valves and one spring from

the pump cover.

Notice

Some of the valves and plugs are preloaded by springs
and may unexpectedly fall out of the cover when the pins
are removed.

7. Depress the plug inward and remove the retaining pin for

each of the four valves.

8. Remove the four valves, plugs and springs.

9. Remove the pump gears from the pump body.

10. Remove the lip seal from the front of the pump body.

AUTOMATIC TRANSMISSION  5A-93

Valve Body

To disassemble the valve body, proceed as follows.

1. Remove the detent spring and retainer plate using a T40 Torx bit.

Notice

Be aware that the manual valve will fall out of the valve body.

2. Take note of the angular relationship of the solenoid terminals

to the valve body, then slide the manual valve out of the lower
valve body.

3. Remove the solenoid and valve assembly as follows:

l

solenoid 1

l

solenoid 2

l

solenoid 3

l

solenoid 4

l

solenoid 5

l

solenoid 6

4. Place the valve body assembly on the bench with the upper

body uppermost.

5. Remove the 24 clamping screws with a No. 30 Ton bit. Separate

the upper and lower valve bodies by lifting the upper body and
the separator plate together.

6. Upper body over and place it on the bench with the separator

plate uppermost.

7. Lift the separator plate and gaskets from the upper valve body.

8. Remove the five nylon check balls exposed in the valve body.

9. Remove the retainer plate, plug, spring and reverse lockout

valve.

10. Remove the two filters (and the large nylon check ball) from the

lower valve body.

Notice

Once the pins are removed, the plates are loose in the valve
body and will drop out when the valve body is turned over.

11. Remove the keeper plates and pins from the 1-2,2-3,3-4, BAR

and CAR valves. The pins can be removed with a magnet.

12. Remove the 1-2,2-3 and 3-4 shift valves.

Notice

The plug is preloaded by the spring and may unexpectedly fall
out of the valve body.

13. Depress the 4-3 sequence valve plug and remove the keeper

plate.

14. Remove the plug, valve and spring.

15. Depress the solenoid 5 valve. Remove the keeper pin and

remove the valve and spring.

Notice

The valve is preloaded by the spring and may unexpectedly fall
out of the valve body.

16. Depress the line pressure release valve, remove the keeper

pin, disc (if fitted), spring and valve.

17. Drive out the roll pin and remove the spring and ball check valve

adjacent to the BAR valve.

5A-94  AUTOMATIC TRANSMISSION

ASSEMBLY PROCEDURE

The transmission is assembled in modular fashion and details
of assembly for each module are given under the appropriate
subject. Refer to table 8.1 (at the end of Section 8.3) for the
torque specifications to be applied, and to table 9.10 in section
9.6 for details of all special tools required, when performing
assembly procedures. Technicians overhauling these
transmissions will also require a selection of good quality Torx
bit sockets, in particular numbers 30,40 and 50, and an 8 mm,10
mm and 12 mm double hex socket.

Transmission

Notice

1. Ensure that the B1R circlip is fitted to the case. (If this is not

fitted, the valve will peen its way into and through the
separator plate.)

2. Ensure that the ‘E’ clip is fitted to the cross shaft.

3. Ensure that all aspects of the parking mechanism are

working.

To assemble the transmission, proceed as follows:

1. Turn the transmission case upside down on the bench and

mount it to the transmission cradle No.0555-331895.

2. Install all fittings, plugs and the breather, applying a sealant

where applicable, Tighten the fittings to specifications.
Ensure that the breather is clear, and check that the lube
fitting in the rear of the case is fitted and clear of obstruction.

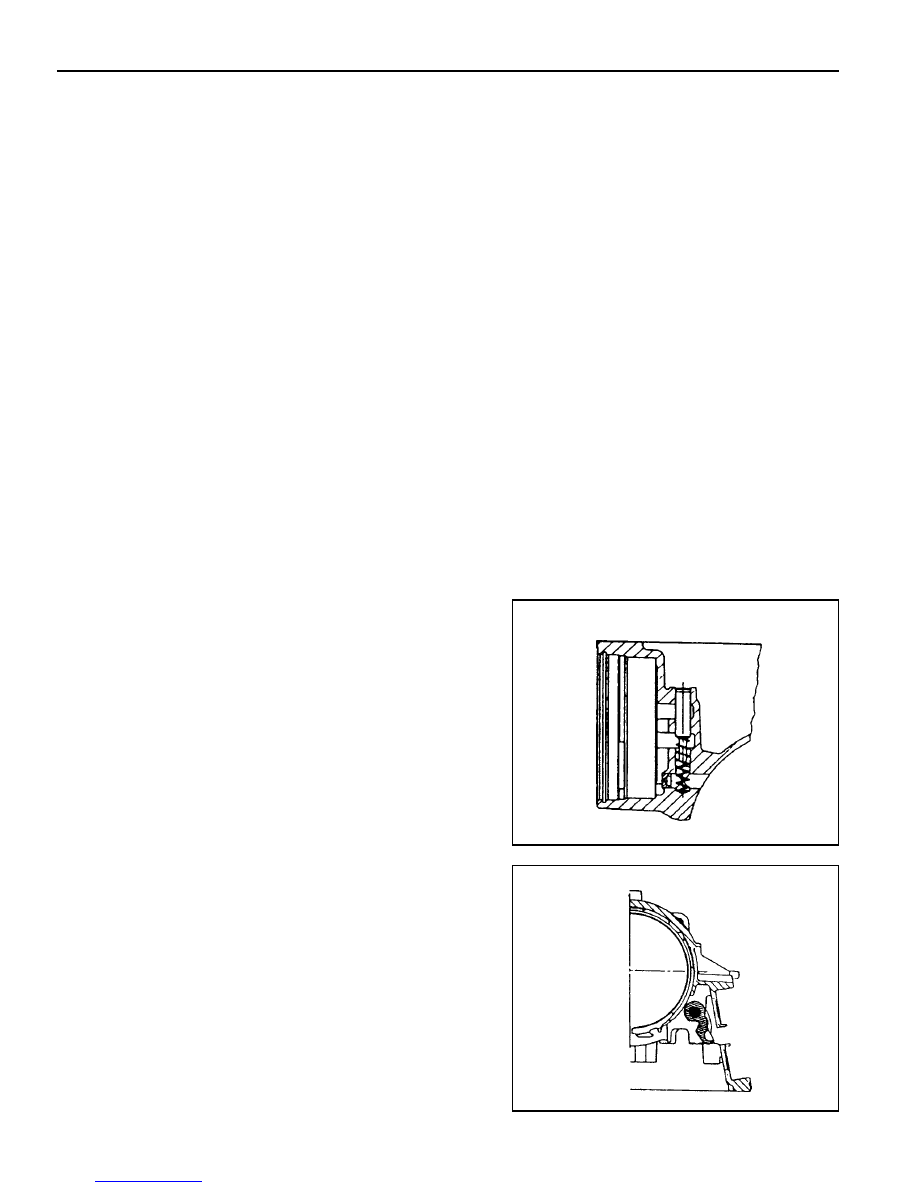

3. Assemble the B1R valve and spring, and secure with the

irclip. Refer to  Ensure that the circlip is completely seated
in its groove.

4. Install the rear servo lever and pivot pin.

Notice

The lever must pivot freely on its pin.

AUTOMATIC TRANSMISSION  5A-95

Notice

Care must be taken when applying sealant to ensure that it is
not applied between the pin and the lever.

5. Assemble the park rod lever, complete with the return spring

and pivot pin, applying a small amount of sealant to the
outer end of the pivot pin.

Notice

That the lever must pivot freely on its pin and the spring
must return the park rod lever to its correct location.

6. Secure the pivot pin with the circlip.

Notice

The pawl must pivot freely on its pin.

7. Install the parking pawl pivot pin and spring.

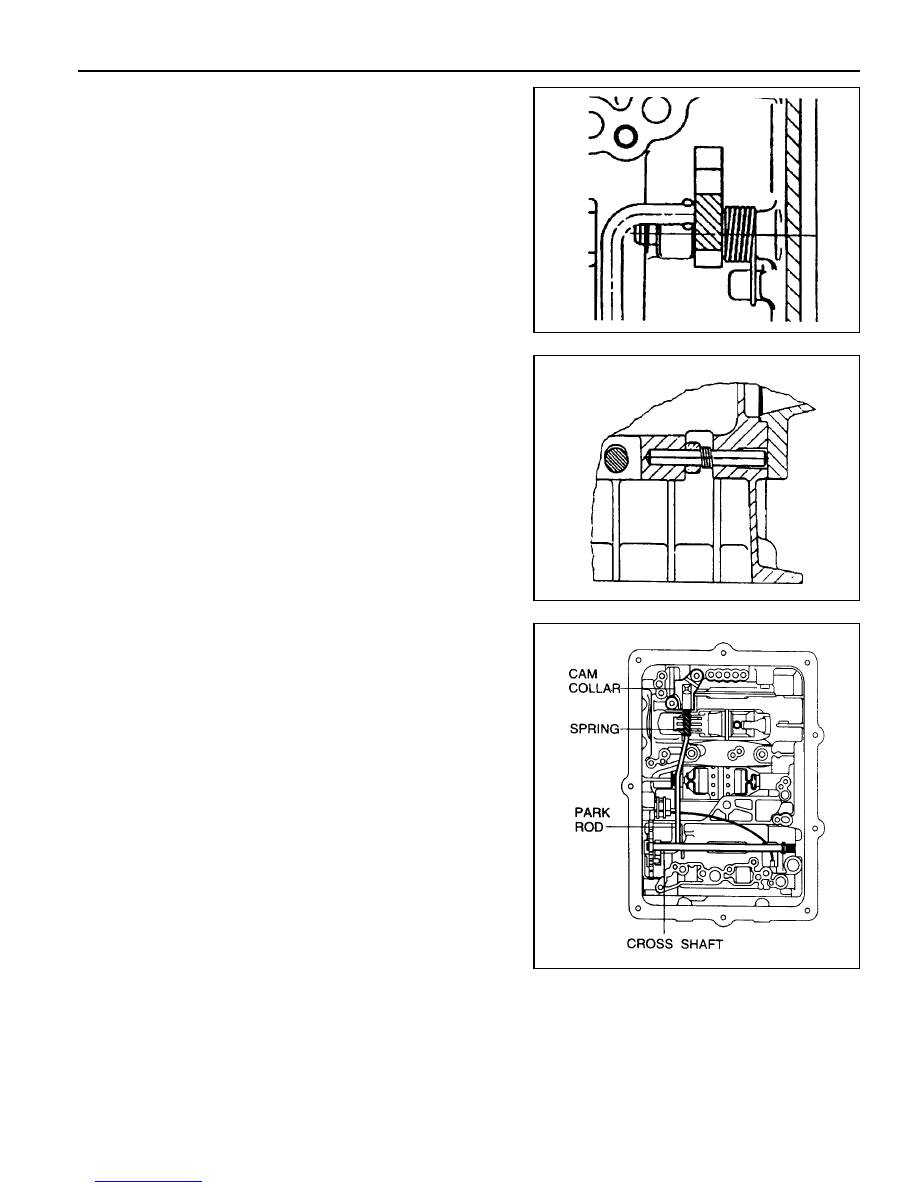

8. Connect the park rod to the manual valve detent lever.

Ensure the spring and cam collar is firmly installed on the
rod.
