1F3-48  OM600 ENGINE CONTROLS

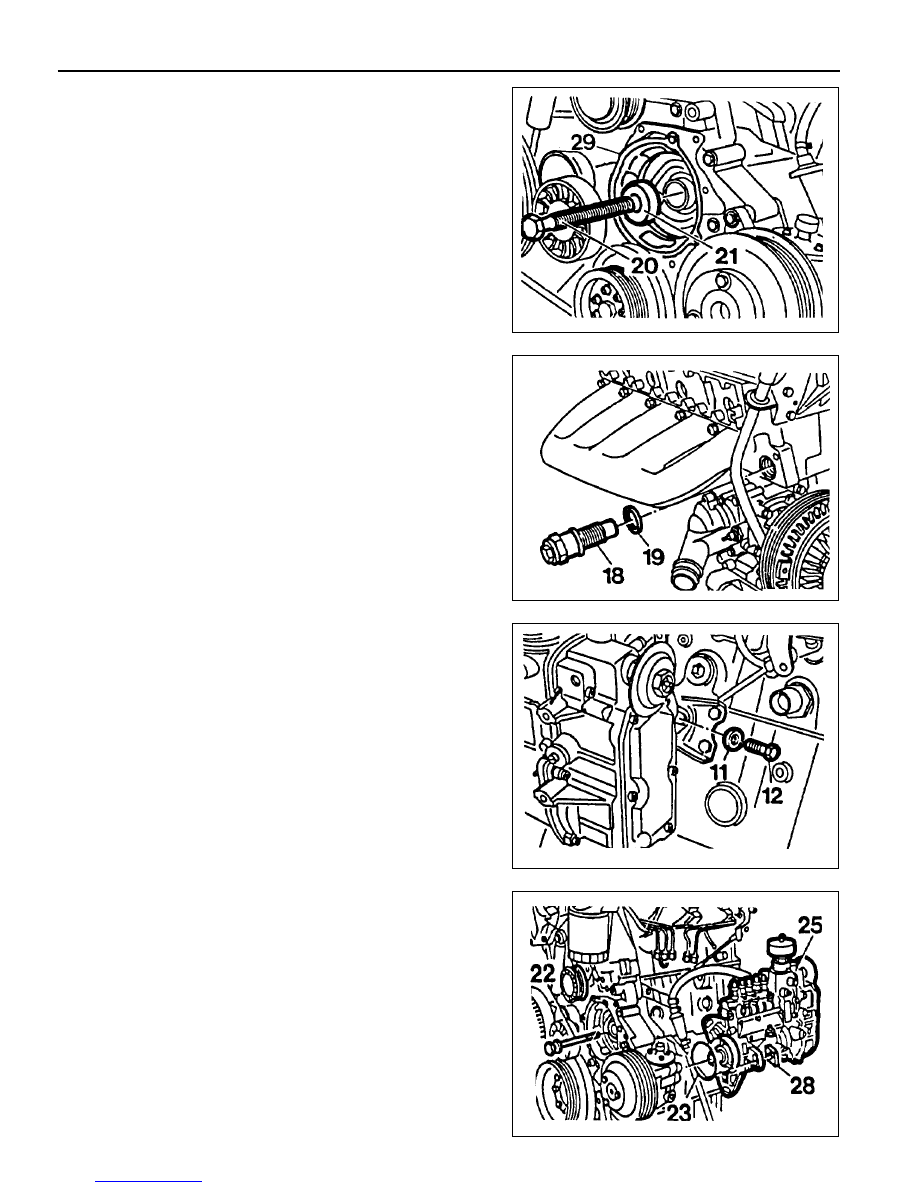

10. Install the assembly cage (29) and remove the bolt (20)

and pull off the washer (21).

Notice

Be careful that the bolt (20) is left hand thread.

Assembly Cage 601 589 05 14 00

11. Remove the chain tensioner (18) and seal (19).

12. Remove the bolt (12) and pull off the washer (11).

13. Remove the bolt (22) and pull off the square nut (28).

14. Pull out the fuel injection pump (25) and seal (23).

OM600 ENGINE CONTROLS  1F3-49

Installation Procedure

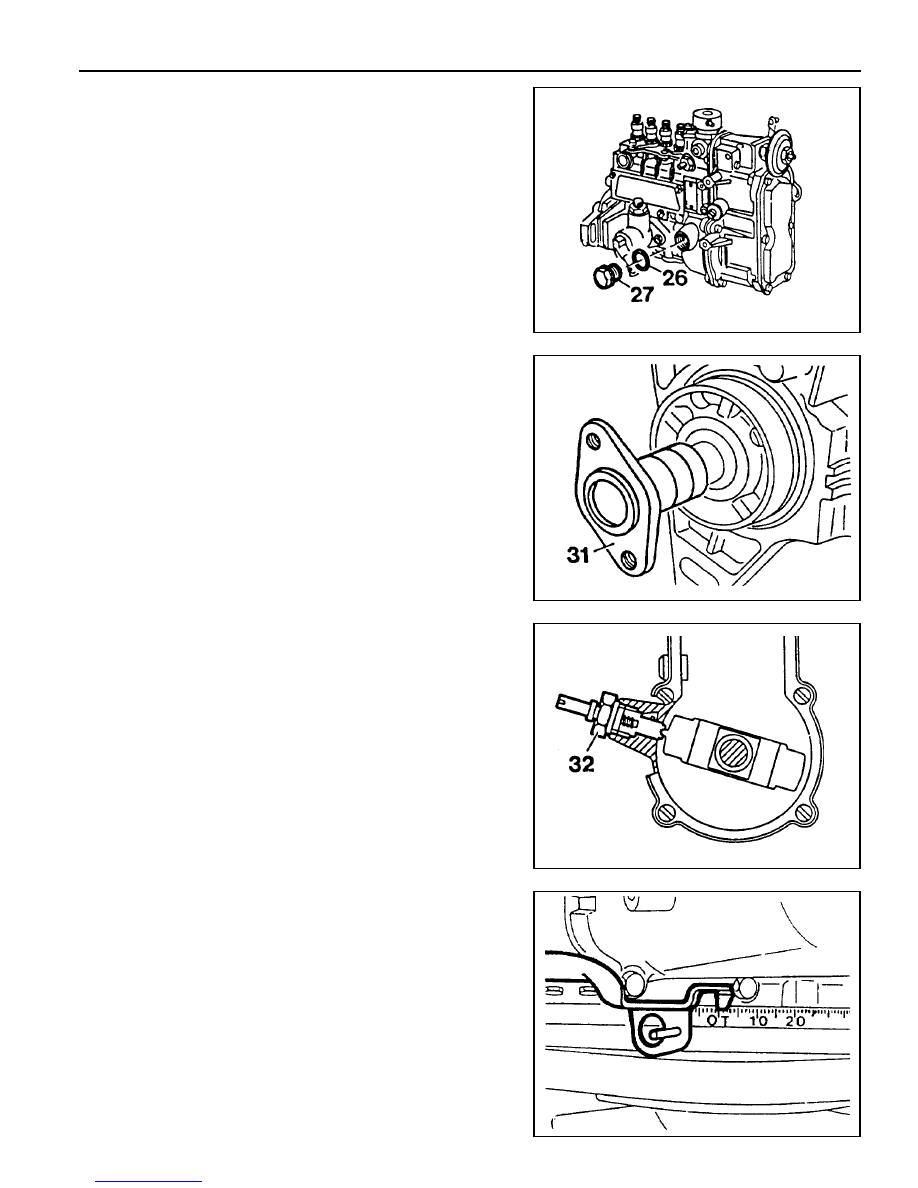

1. Remove the screw plug (27) and seal (26) and collect oil in

a vessel.

2. Insert flange (31) onto the injection pump camshaft and

turn until the cam of the governor is visible in the hole.

Flange 601 589 00 08 00

3. Tighten the locking screw.

Locking Screw 601 589 05 21 00

4. Ensure that the No.1 cylinder is positioned at ATDC 15°.

1F3-50  OM600 ENGINE CONTROLS

10. Connect the fuel pipes

Notice

Replace the seal.

Box Wrench Insert 000 589 77 03 00

Return Line

Fuel Injection Line

Fuel feed Line

Suction and Pressure Line

46 Nm

18 Nm

13 Nm

13 Nm

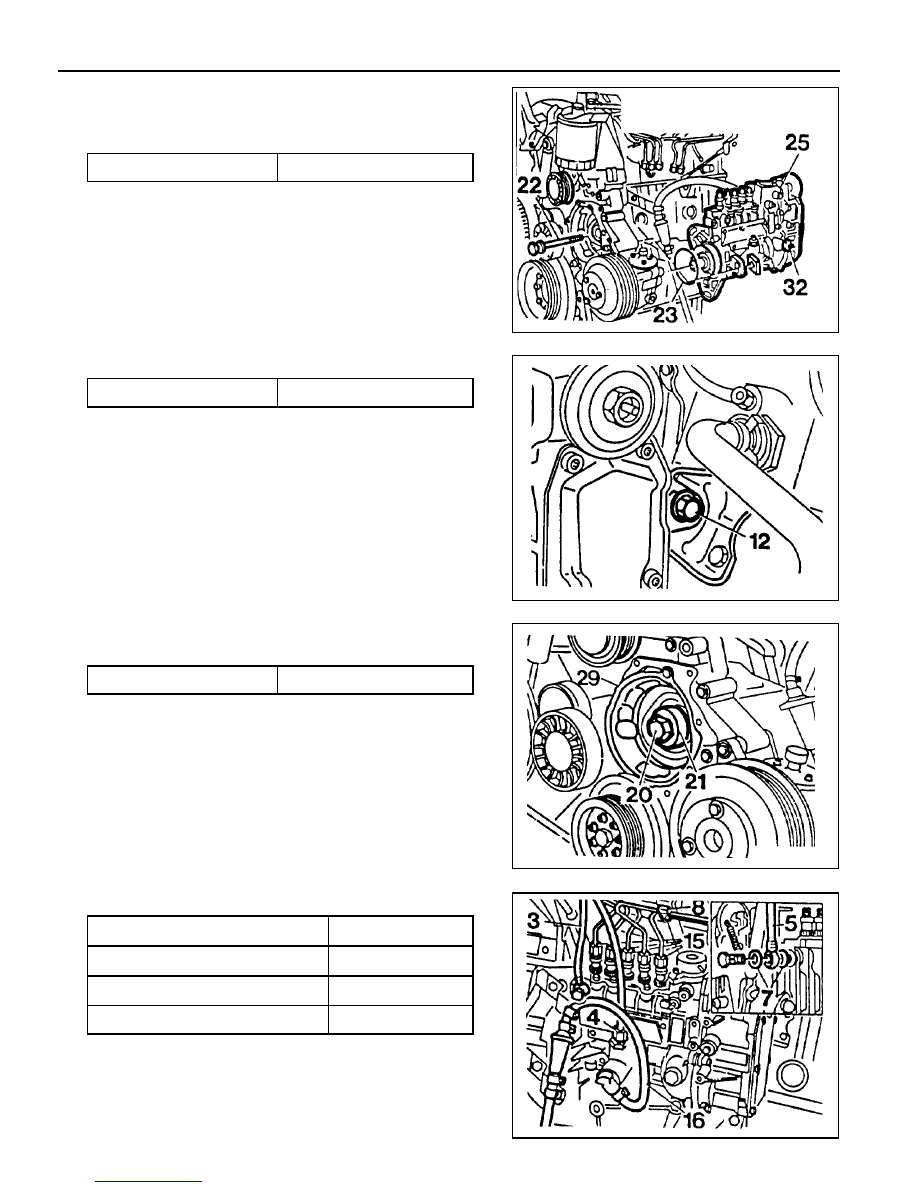

5. Coat the new seal (23) with engine oil and install it.

6. Insert the fuel injection pump (25) and tighten the bolts

(22).

7. Remove the locking screw (32).

Tightening Torque

23 Nm

8. Tighten the bolt(12).

9. Insert the washer (21) and tighten the bolts (20) and then

remove the assembly cage (29).

Tightening Torque

23 Nm

Tightening Torque

46 Nm

OM600 ENGINE CONTROLS  1F3-51

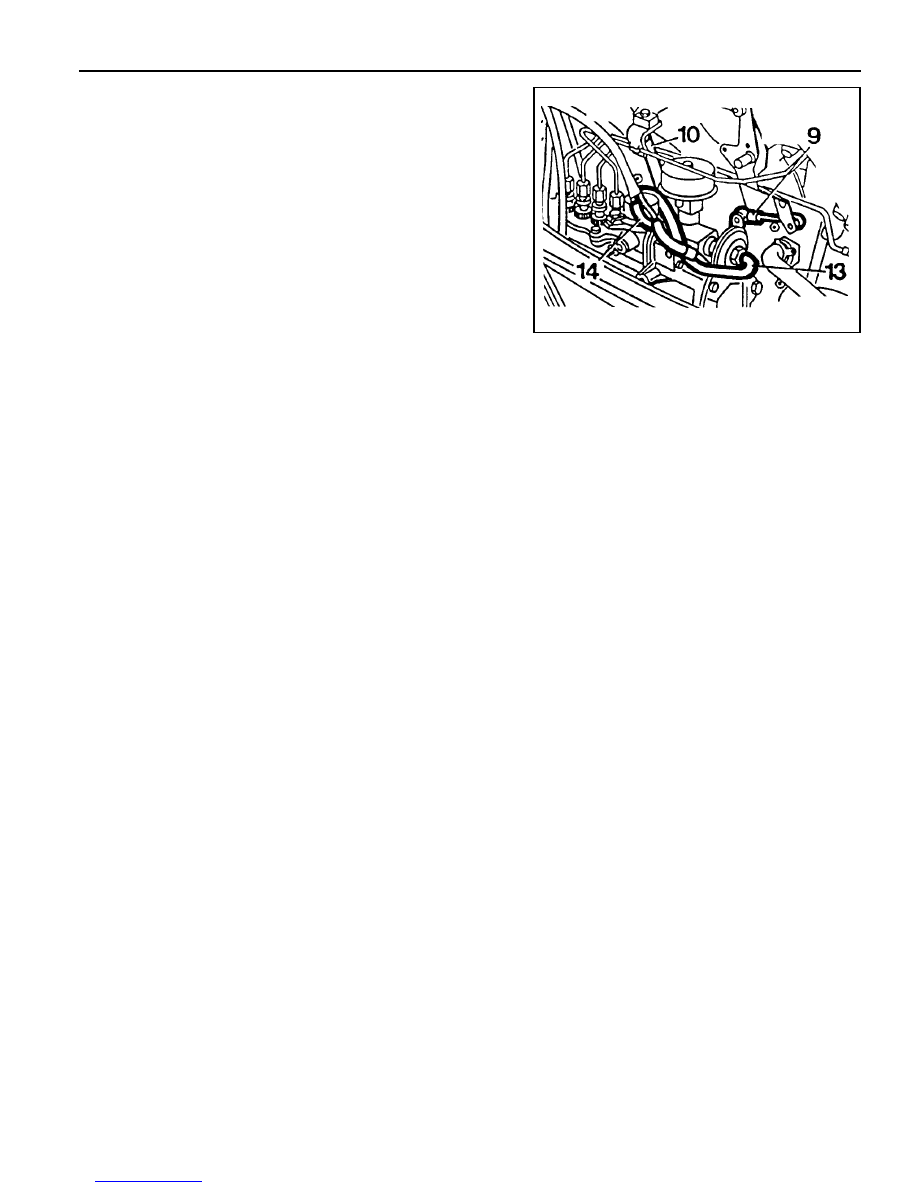

12. Connect the vacuum line (13, 14).

13. Connect the connecting rod (9).

14. Connect the accelerator control damper (10).

(Manual transmission vehicle)

15. Install the chain tensioner.

16. Install the vacuum pump.

17. Check the start of delivery.

18. Adjust the idle speed.

11. Assemble the plastic clip (8).
