M161 ENGINE ELECTRICAL  1E2-7

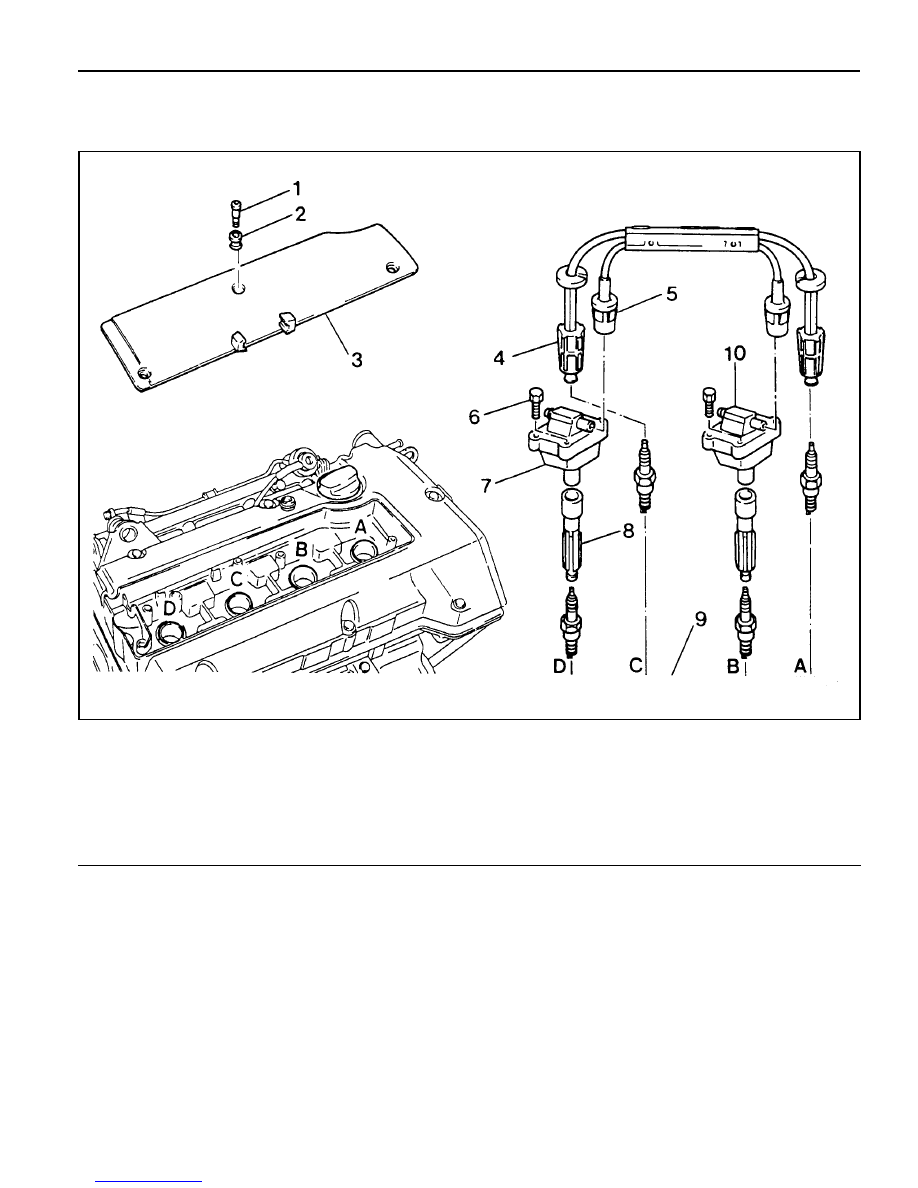

SPARK PLUG

Preceding Work : Removal of intake air duct

Tools Required

119 589 01 09 00  Spark Plug Wrence

1 Screw (3 pieces) .................................. 9 - 11 Nm
2 Adaptor (3 pieces)
3 Ignition Coil Cable Cover
4 Spark Plug Connector
5 Ignition Coil Connector

6 Bolts (M6 X 25, 4 pieces) ..................... 9 - 11 Nm
7 Ignition Coil (T1/1)
8 Coupling Plug
9 Spark Plug ......................................... 25 - 30 Nm

10 Ignition Coil (T1/2)

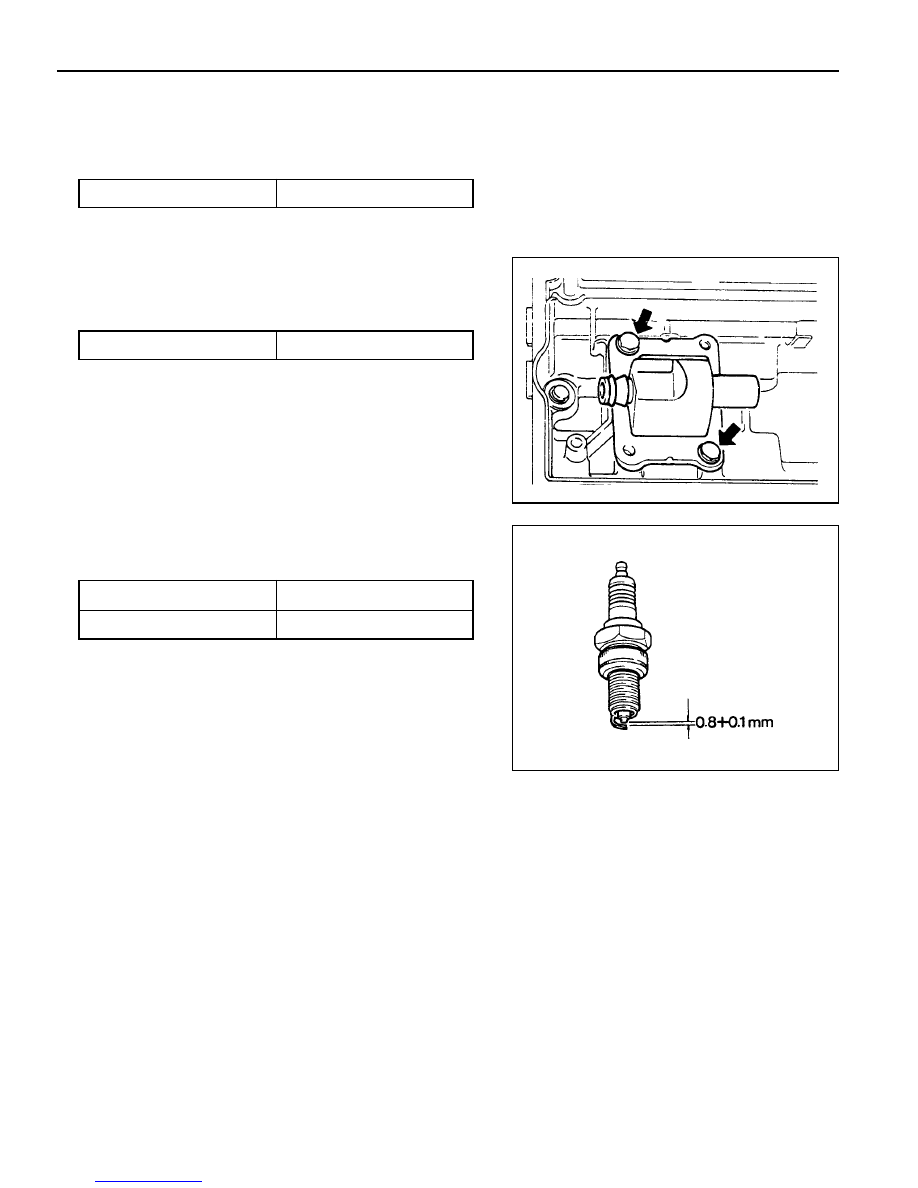

1E2-8  M161 ENGINE ELECTRICAL

Tightening  Torque

9 - 11Nm

Replacement Procedure

1. Unscrew the three screws(1) and remove the ignition coil

cable cover

Installation Notice

Tightening Torque

Clearance

25 - 30 Nm

0.8 + 0.1 mm

2. Disconnect the cable from ignition coil and spark plug.

4. Using the special tool, remove the spark plug .

Installation Notice

Spark Plug Wrench    119 589 01 09 00

Notice

l

Tighten the spark plug with specified torque.

l

Install the ignition coil to number 2 and 4 cylinder, and

connect the cable to number 1, 4 and 2, 3 cylinder

- T1/1 : cylinder 1 and 4

- T1/2 : cylinder 2 and 3

3. Unscrew two bolts(M6 X 25) from each ignition coil and

remove the ignition coil(arrow) .

Installation Notice

Tightening  Torque

9 - 11Nm

 M161 ENGINE ELECTRICAL  1E2-9

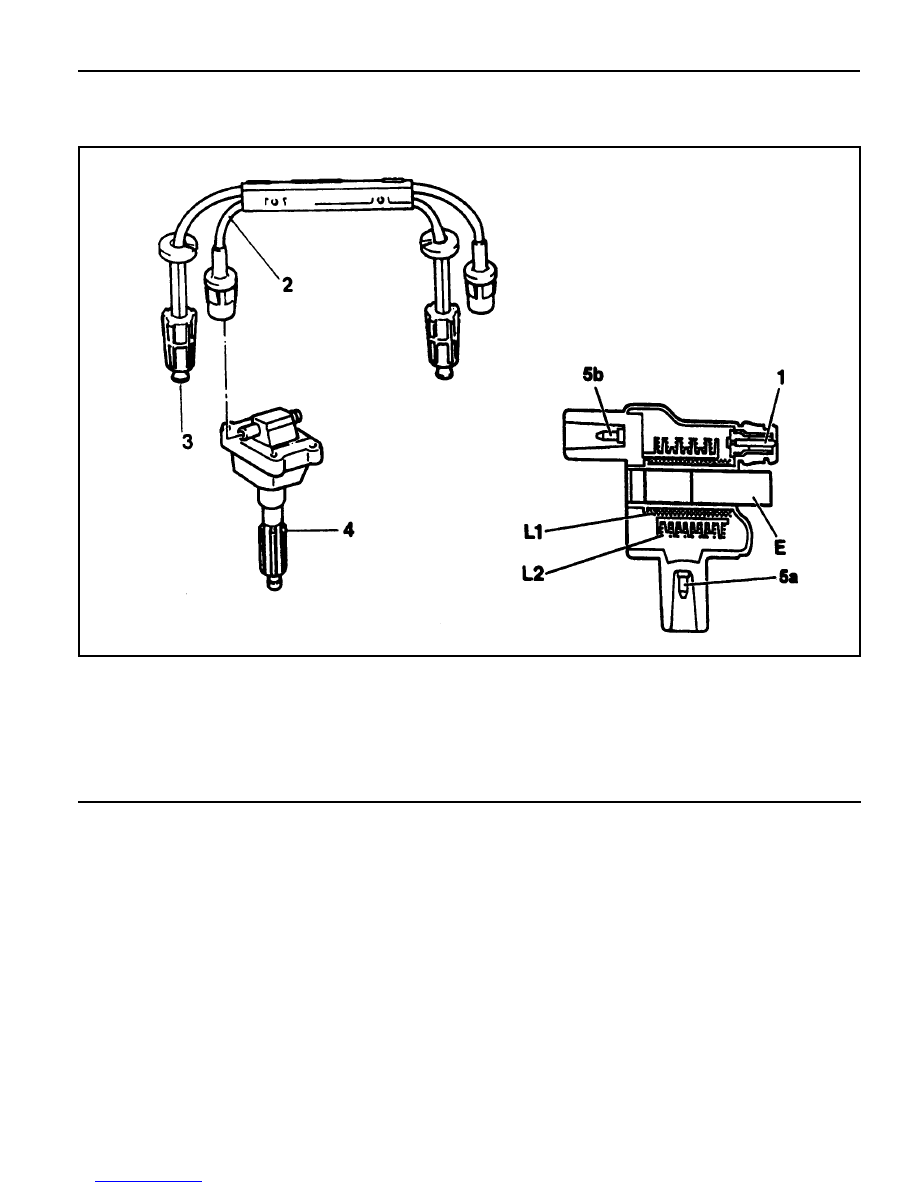

IGNITION CABLE

Preceding Work : Removal of intake air duct

1 Control Cable Connection
2 Ignition Cable
3 Spark Plug Connector
4 Coupling Plug

5a, 5b

Secondary Voltage Connection

E Iron Core

L1

Secondary Ignition Coil

L2

Primary Ignition Coil

1E2-10  M161 ENGINE ELECTRICAL

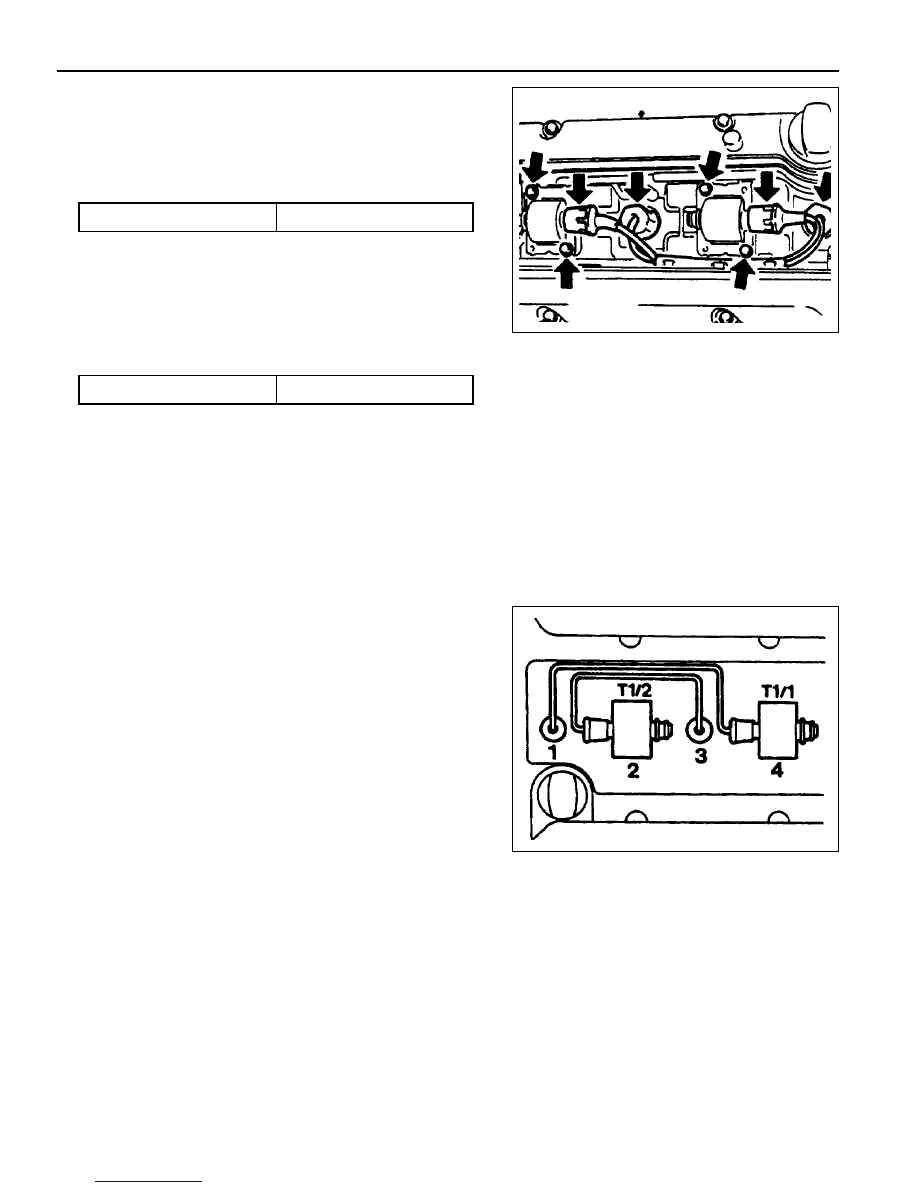

Ignition Cable and Cable Lay-out

1. Firing Order : 1-3-4-2

2. T1/1 : Connect the cylinder 1 + 4

3. T1/2 : Connect the cylinder 2 + 3

Removal & Installation Procedure

1. Disconnect the battery negative cable.

2. Unscrew the 3 screws and remove the ignition cable duct

cover.

Installation Notice

3. Seperate the cable from the ignition cable and the spark

plug.

4. Remove the 2 bolts from each ignition cable and remove

the ignition cables.

Installation Notice

Install the ignition cable to the cylinder 2 and 4 and connect
the cable from 1 to 4, and from 2 to 3.

- T1/1 : Cylinder 1 and 4

- T1/2 : Cylinder 2 and 3

5. Installation should follow the removal procedure in the

reverse order.

Tightening  Torque

9 - 11 Nm

Tightening  Torque

9 - 11 Nm
