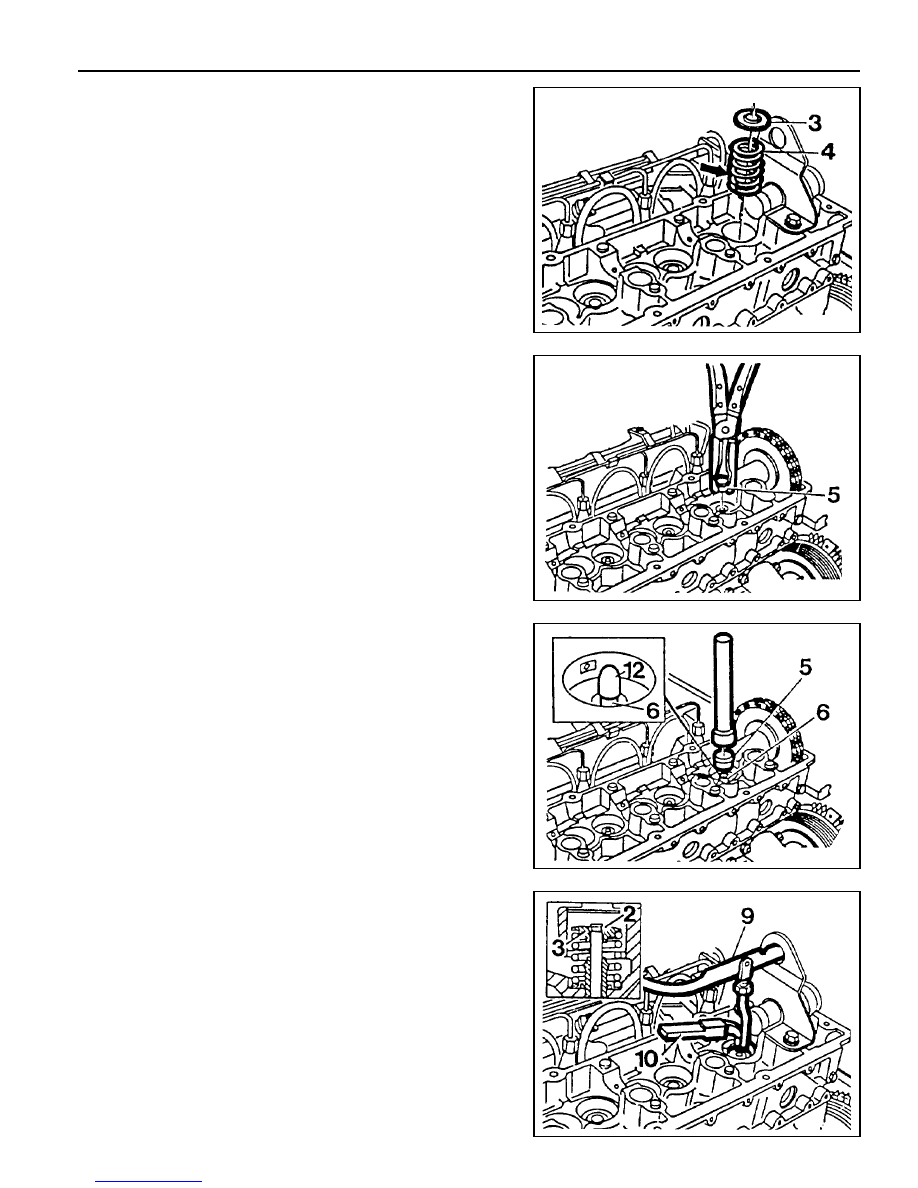

OM600 ENGINE MECHANICAL 1B3-115 6. Remove the spring retainer(3) and valve spring (4). 7. Remove the valve stem seal (5). Pliers 104 589 00 37 00 8. Insert the cap (12) onto the valve (6) and install the new valve stem seal (5) and then remover the cap. Drift 601 589 02 43 00 9. By pressing the spring seat with press lever (9), install the valve cotters(2) with magnetic finger (10). Notice Be careful not to damage guide bore of the valve tappet. Press Lever 667 589 00 31 00 Magnetic Finger 116 589 06 63 00 |
