1B2-28  M161 ENGINE MECHANICAL

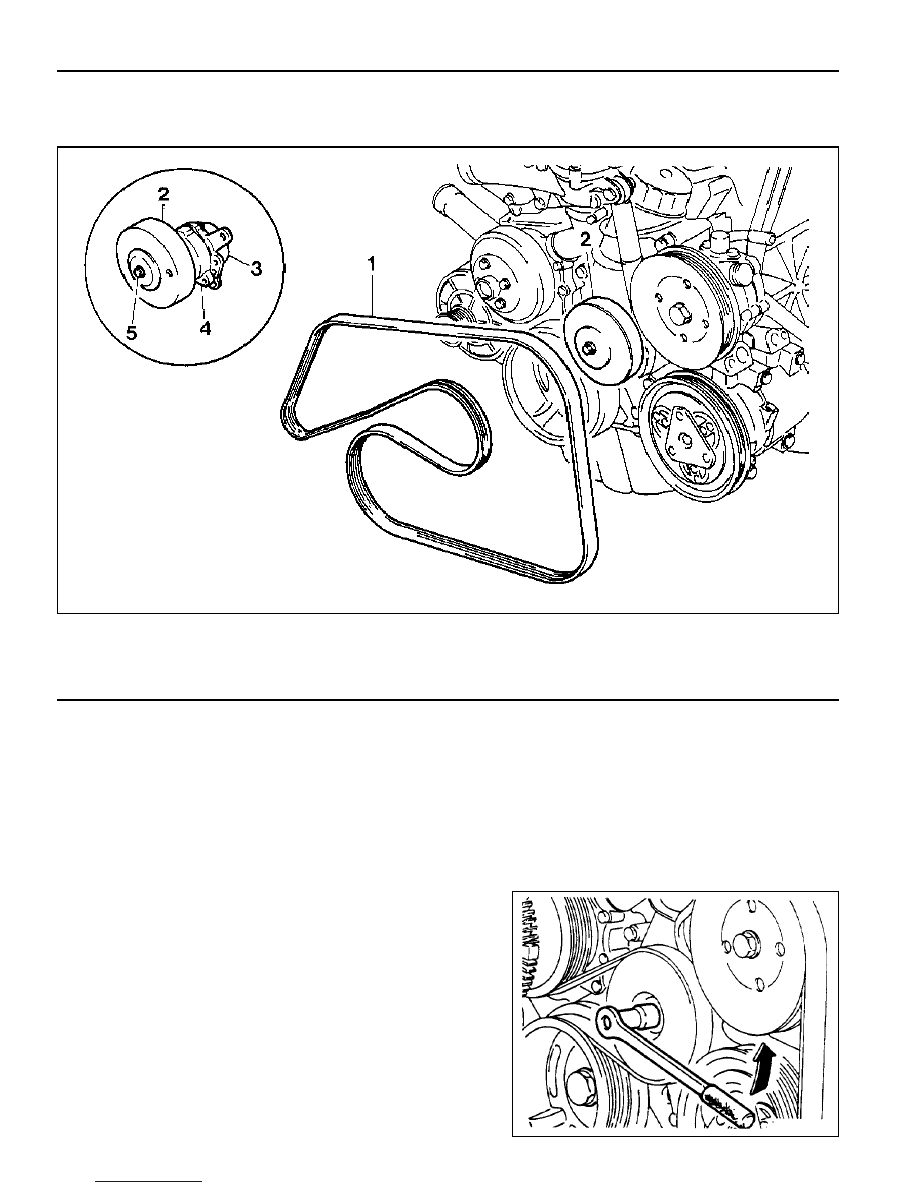

POLY V-BELT

Preceding Work : Removal of cooling fan

1 Poly V-belt (2,155 mm)
2 Belt Tensioning Pulley

Removal & Installation Procedure

1. Release the belt tension by turning the stud on the cap with

12 sided wrench or spanner counterclockwise.

2. Remove the poly v-belt.

Notice

Check the belt for damage and tensioning pulley bearing
point for wear and replace them if necessary.

3. Install the belt after prying the tensioning pulley.

3 Belt Tensioner

M161 ENGINE MECHANICAL  1B2-29

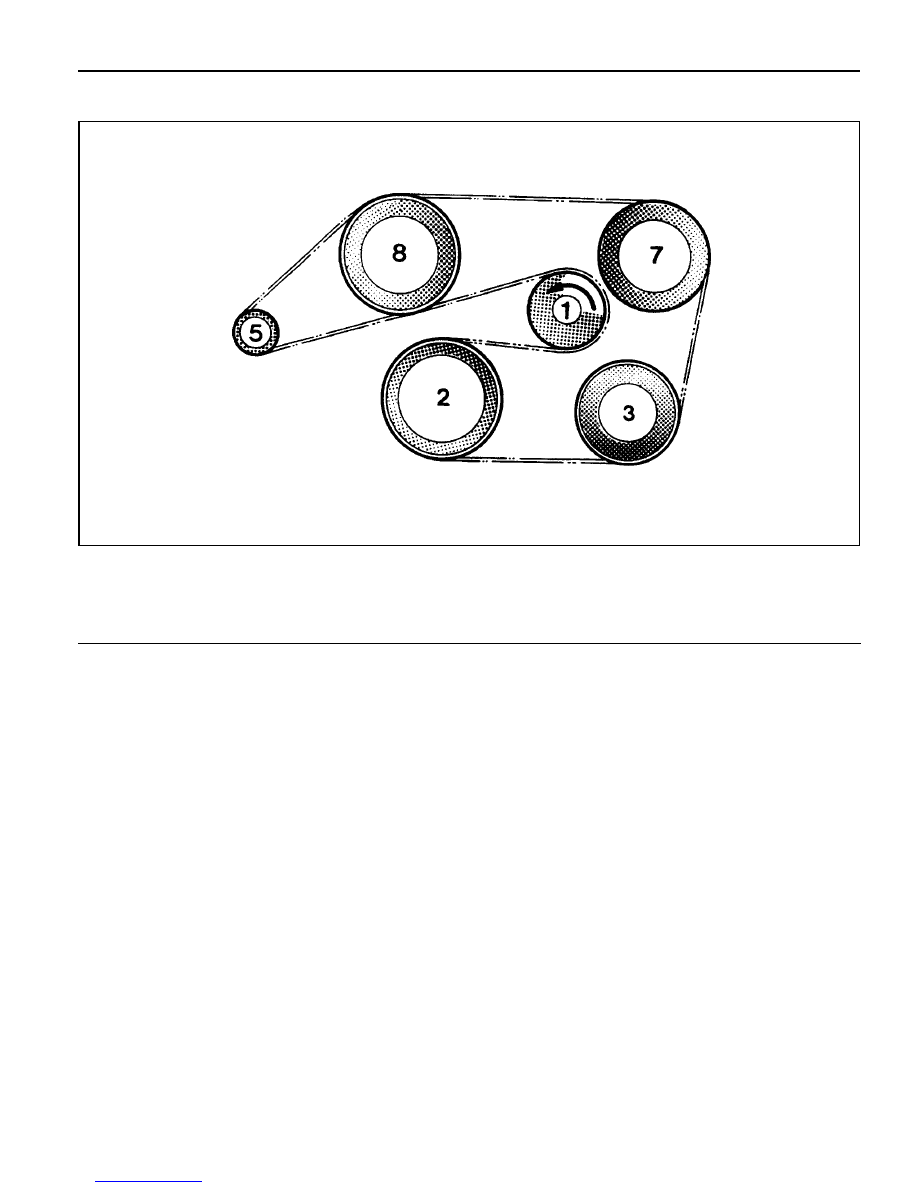

Poly V-belt Arrangement

1 Belt Tensioning Pulley
2 Crankshaft Belt Pulley
3 A/C Compressor Pulley

5 Alternator Pulley
7 Power Steering Pump Pulley
8 Water Pump Pulley

1B2-30  M161 ENGINE MECHANICAL

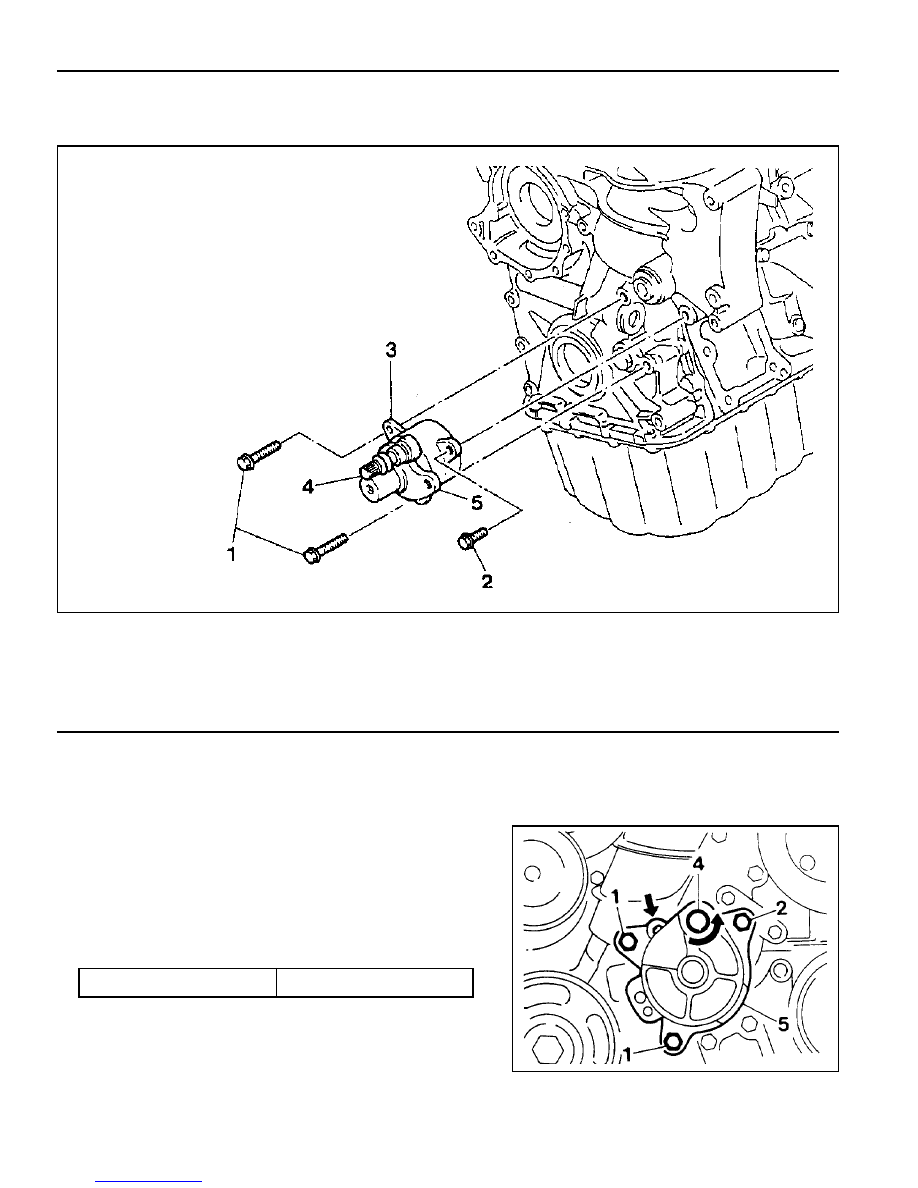

TENSIONING DEVICE

Preceding Work : Removal of tensioning device shock absorber

1 Bolt (M8 x 75, 2 pieces) +

Washer .......................................... 22.5-27.5 Nm

2 Bolt (M8 x 25, 1 pieces) +

Washer .......................................... 22.5-27.5 Nm

Removal & Installation Procedure

1. Turn the stud bolt to counterclockwise.

2. Insert the pin (111 589 01 15 00) into the hole in tensioning

arm.

3. Unscrew the bolts (1, 2) and remove the tensioning device.

Installation Notice

4. Installation should follow the removal procedure in the

reverse order.

3 Tensioning Device
4 Stud bolt
5 Tensioning Arm

Tightening  Torque

22.5 - 27.5 Nm

M161 ENGINE MECHANICAL  1B2-31

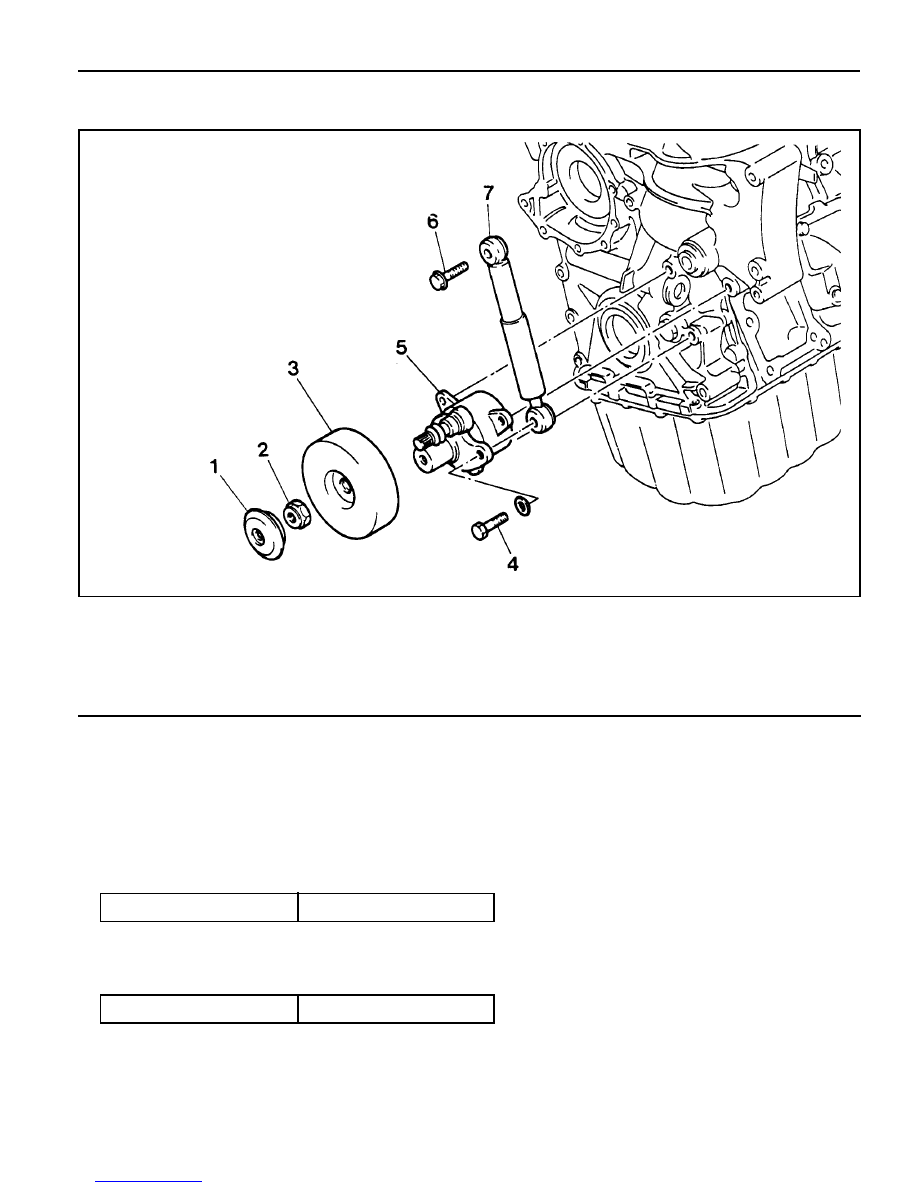

TENSIONING DEVICE SHOCK ABSORBER

1 End Cover
2 Nut ................................................. 40.5-49.5 Nm
3 Tensioning Pulley
4 Bolt (M8 X 25) + Washer ................ 22.5-27.5 Nm

Removal & Installation Procedure

1. Remove the end cover (1).

2. Remove the nut (2) and remove the tensioning pulley (3).

Installation Notice

5 Tensioning Device
6 Bolt (M8 X 35) + Washer ................ 22.5-27.5 Nm
7 Shock Absorber

Tightening  Torque

40.5 - 49.5 Nm

3. Unscrew the bolts (4,6) and remove the shock absorber

(7).

Installation Notice

Tightening Torque

22.5-27.5 Nm
