1B1-112 M162 ENGINE MECHANICAL
Service Data Standard

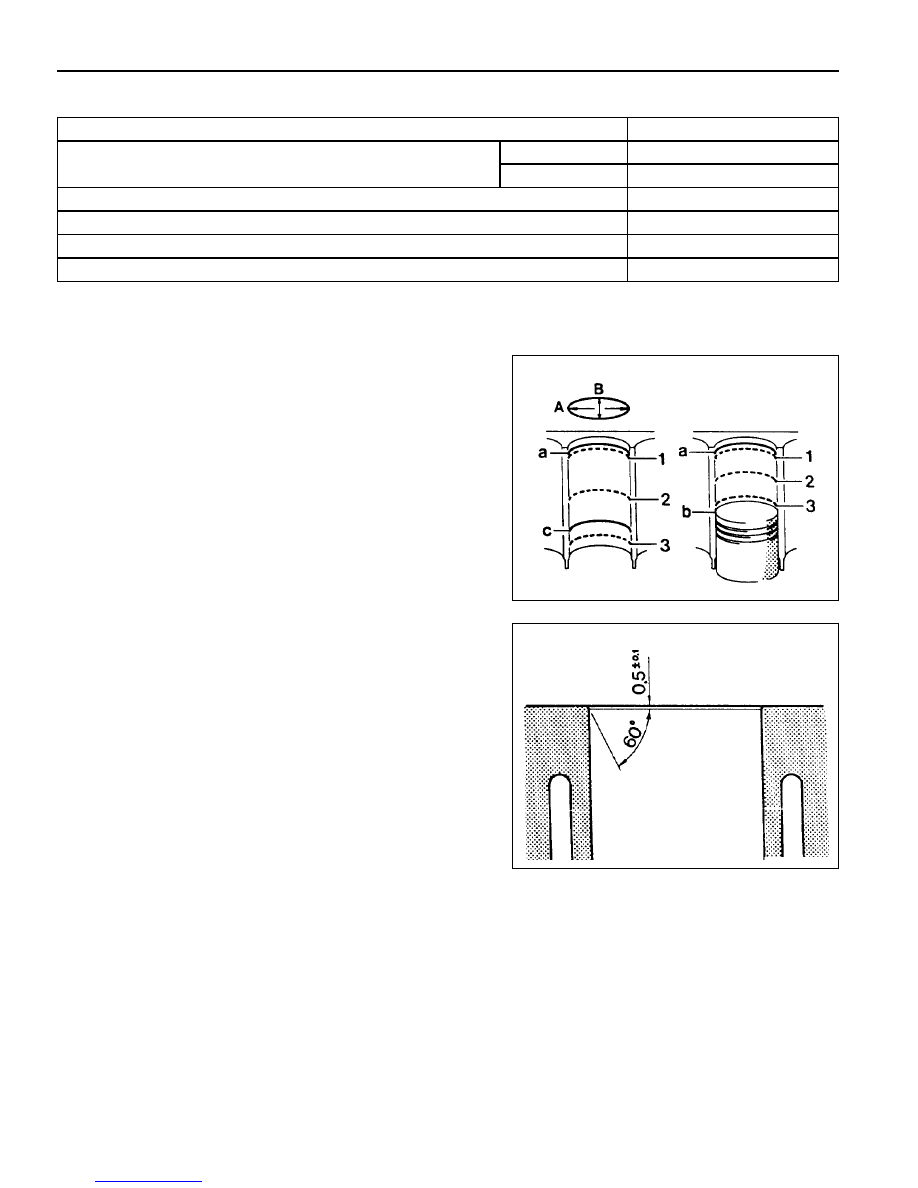

Measurement of Cylinder Bore
1. Clean the cylinder wall.
2. Using a internal diameter gauge, measure the bore size in
axial and transverse direction at three points (1,2,3).
1,2,3. Measuring Points
A. Axial Direction
B. Transverse Direction
a. Location of the No.1 Piston Ring at TDC
b. Location of the Piston BDC
c. Location of the Oil Ring at BDC

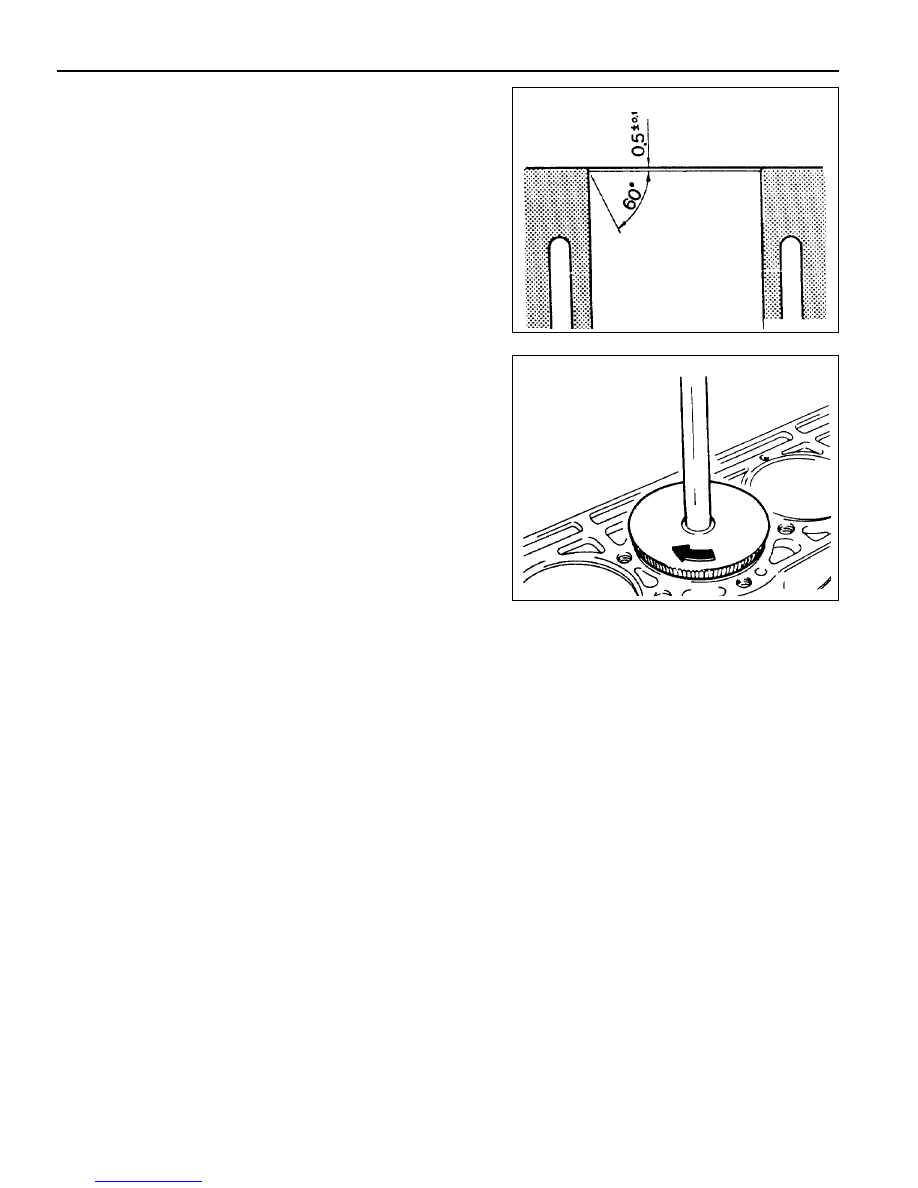

Chamfer Angle
Wear Limit in Longitudinal and Transverse Direction
Permissible Deviation of Cylinder Out-of-round

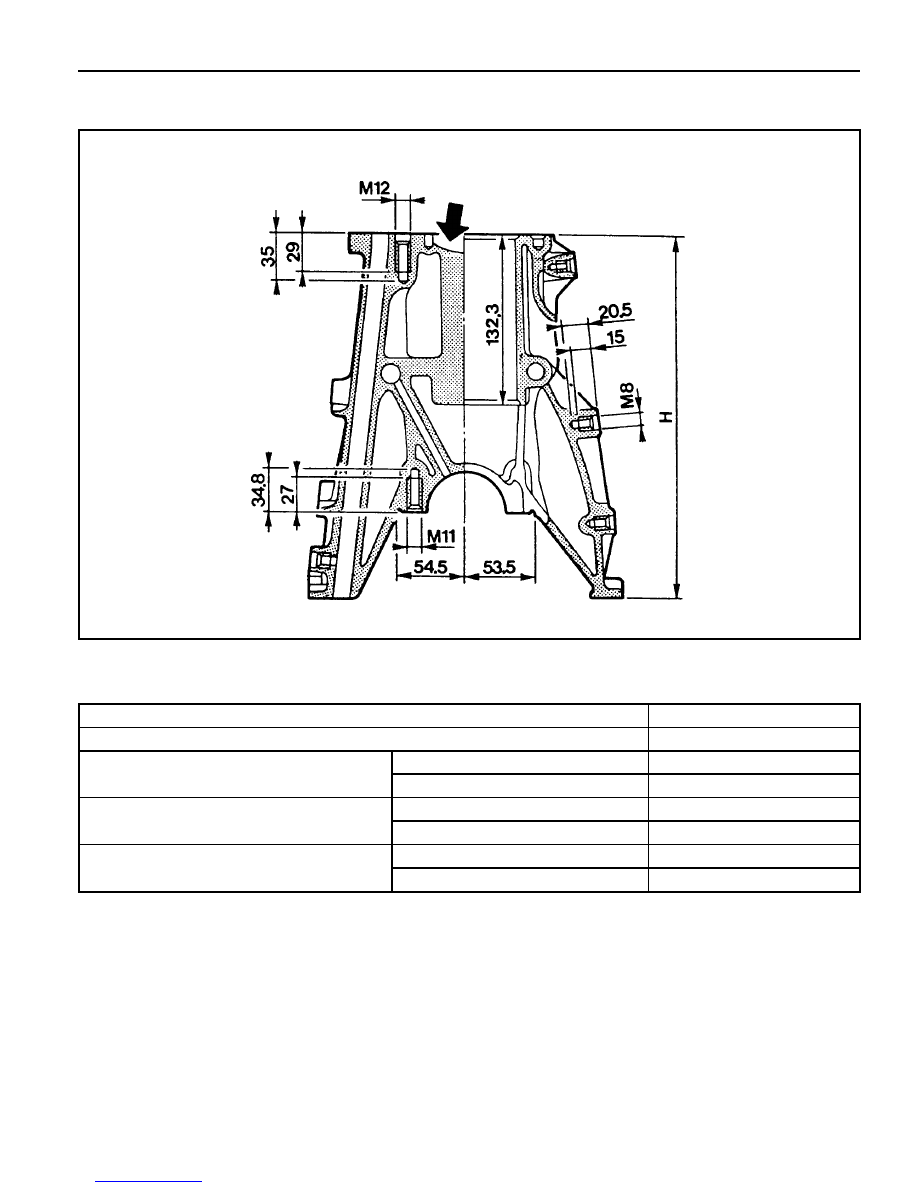

Permissible Deviation of Rectangular Cylinder Height (Except Chamfered Area)
Basic Peak-to-valley Height After Final Honing and Brushing
Chamfer Angle
Honing Angle
When new
Wear limit
0.1 mm
0.007 mm
0.05 mm
0.05 mm
0.003 - 0.006 mm
60°
50° ± 10°
