9Q – 6  ROOF

D19C561A

Installation Procedure

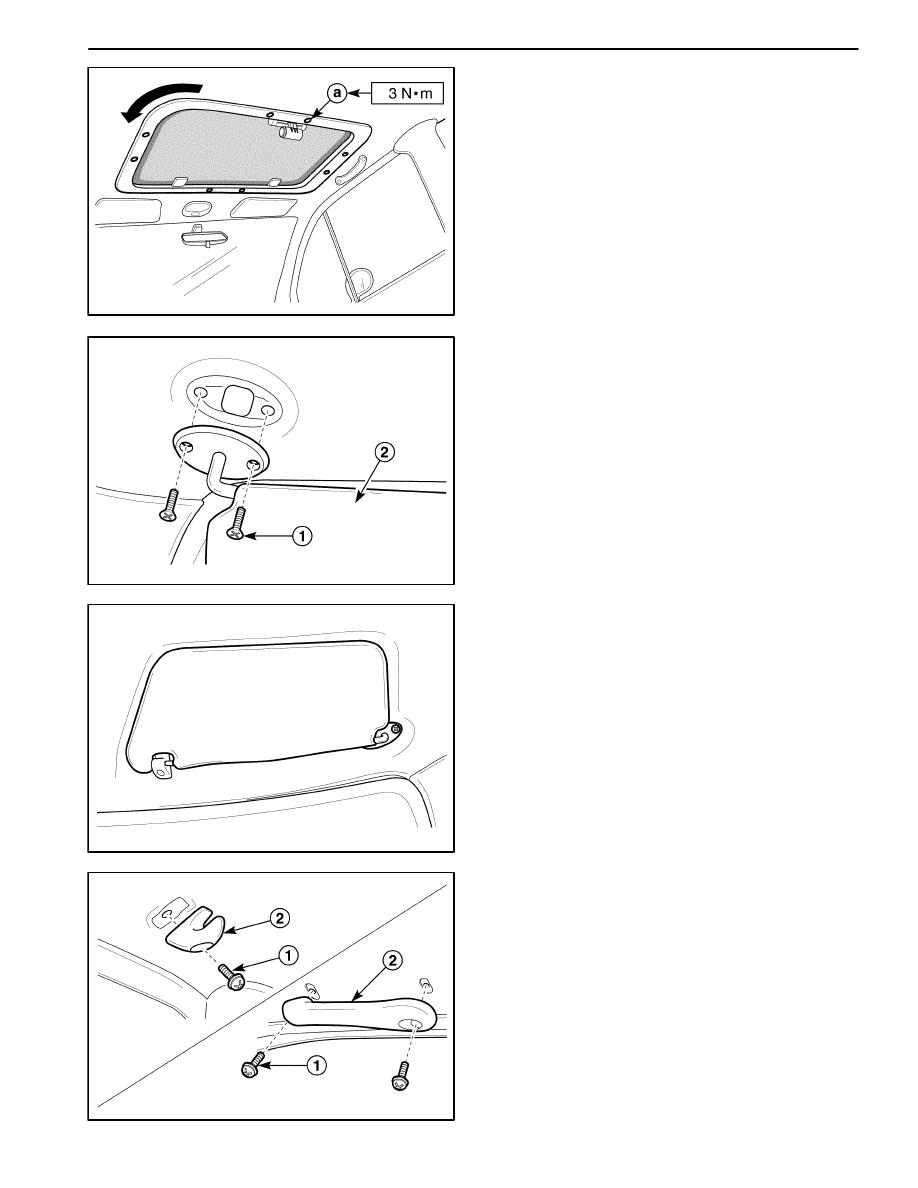

1. Install the upper sunroof frame.

2. Install the lower sunroof frame with the screws (a).

3. Install the inside sunroof molding.

4. Install the screen with the clips and the lock.

Tighten

Tighten the screws to 3 N

S

m (27 lb-in).

Notice: When installing the lower sunroof frame, make
sure to tighten the screws previously as shown the fig-
ure and tighten all the screws.

D109C562

SUN VISORS

Removal Procedure

1. Remove the sun visors.

D

Remove the screws (1).

D

Remove the sun visors (2).

D109C563

Installation Procedure

1. Install the sun visors with the screws.

D109C564

PASSENGER ASSIST HANDLE OR
THE COAT HOOK

Removal Procedure

1. Remove the passenger assist handle or the coat

hook from the headliner.

D

Remove the screws (1).

D

Remove the coat hook or the assist handle (2).

ROOF  9Q – 7

D109C565

Installation Procedure

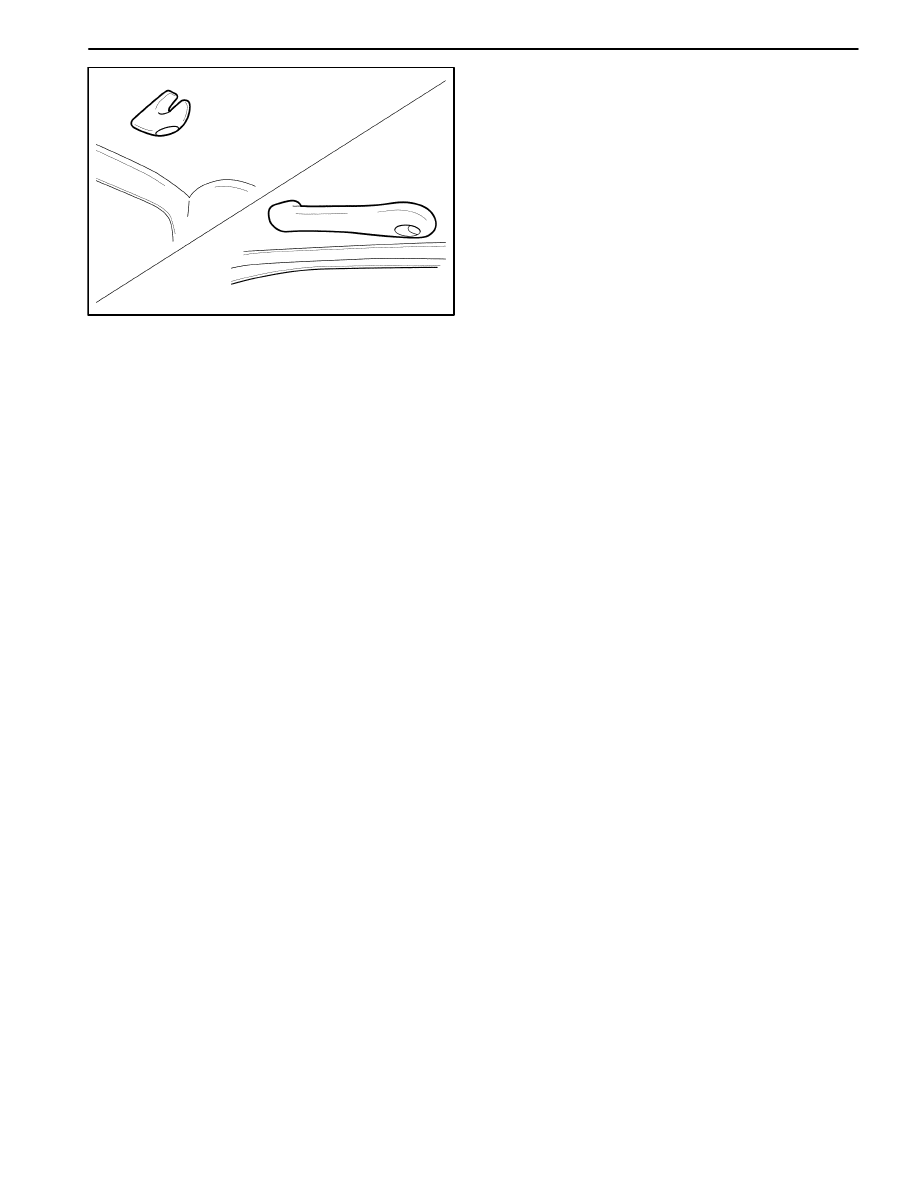

1. Install the passenger assist handle or the coat hook

to the headliner with the screws.

9Q – 8  ROOF

SPECIFICATIONS

FASTENER TIGHTENING SPECIFICATIONS

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

Application

ÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁ

N

S

m

ÁÁÁÁÁÁ

ÁÁÁÁÁÁ

Lb-Ft

ÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁ

Lb-In

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

Sunroof Frame Screws

ÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁ

3

ÁÁÁÁÁÁ

ÁÁÁÁÁÁ

ÁÁÁÁÁÁ

–

ÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁ

27
