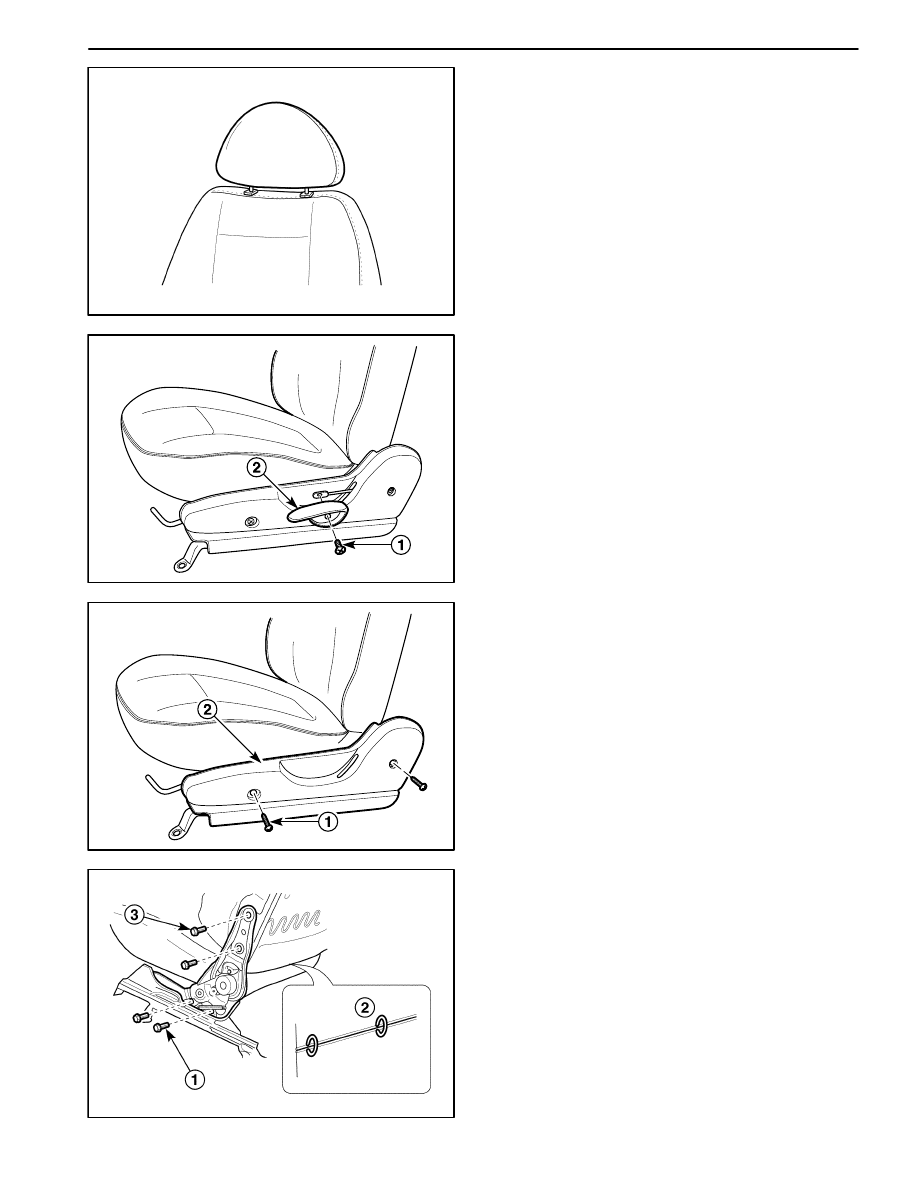

9H – 6  SEATS

D109B531

Installation Procedure

1. Install the head restraint into the guide sleeves. Press

down in order to engage the stop pin.

D109B532

FRONT SEATBACK

Removal Procedure

1. Disconnect the negative battery.

2. Remove the front seat assembly. Refer to “Front

Seats” in this section.

3. Remove the recliner knob from the front seat.

D

Remove the screw (1).

D

Remove the recliner knob (2).

D109B533

4. Remove the recliner cover from the front seat.

D

Remove the screws (1).

D

Remove the recliner cover (2).

D109B534

5. Remove the recliner from the front seat.

D

Remove the bolts on the seat cushion (1).

D

Remove the seatback cover hog rings.

D

Remove the seatback cover (2).

D

Remove the bolts on the seatback (3).

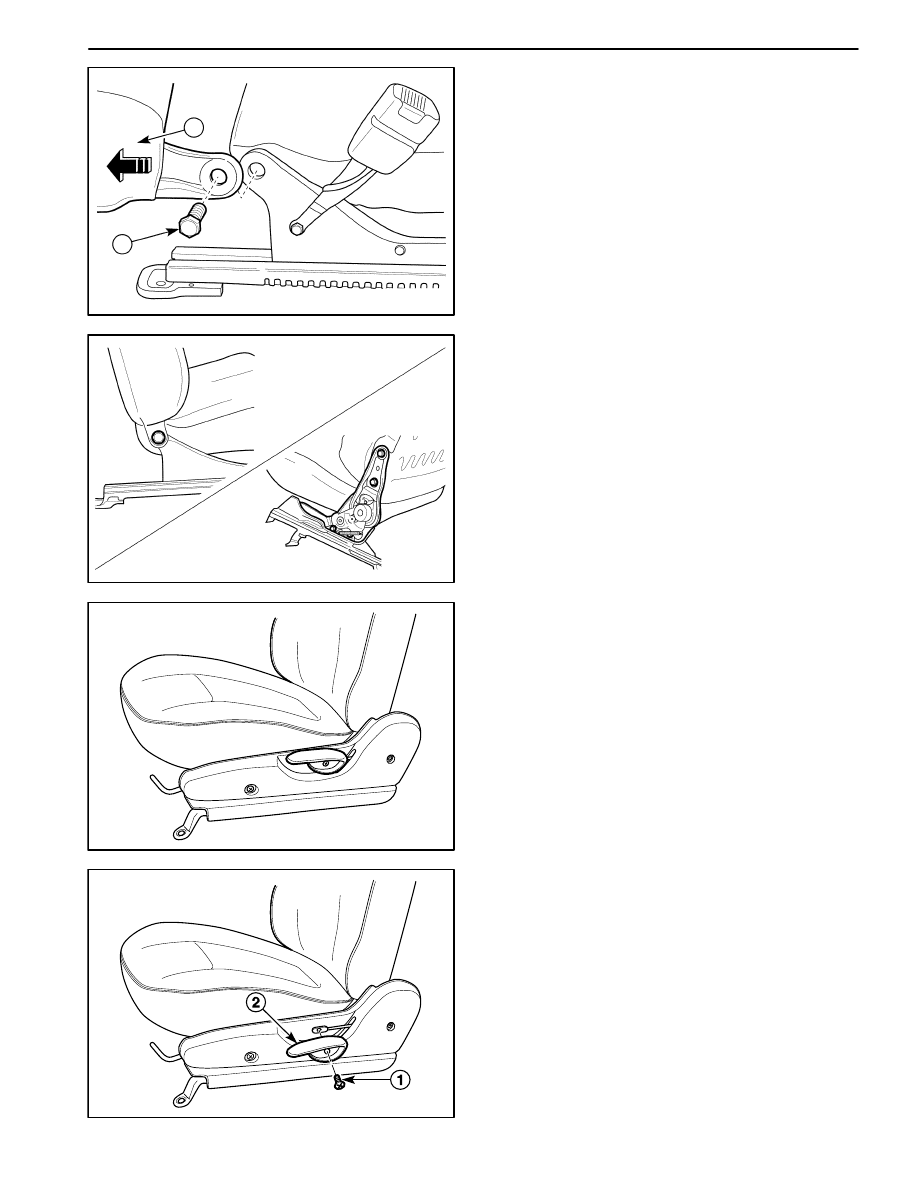

SEATS  9H – 7

D109B535

2

1

6. Remove the seatback bolt from the seat cushion (1).

7. Remove the seatback assembly (2).

D109B536

Installation Procedure

1. Install the seatback assembly with the bolt.

2. Install the recliner with the bolts

3. Install the seatback cover with the hog rings.

D109B537

4. Install the recliner knob and the cover with the

screws.

5. Install the front seat assembly. Refer to “Front Seat”

in this section.

6. Connect the negative battery cable.

D109B532

FRONT SEAT CUSHION

Removal Procedure

1. Disconnect the negative battery cable.

2. Remove the front seat assembly. Refer to “Front

Seat” in this section.

3. Remove the seat belt buckle. Refer to Section 8A,

Seat Belts.

4. Remove the recliner knob.

D

Remove the screw (1).

D

Remove the recliner knob (2).

9H – 8  SEATS

D109B533

5. Remove the recliner cover.

D

Remove the screws (1).

D

Remove the recliner cover (2).

D109B538

6. Remove the seat cushion.

D

Remove the recliner bolts on the seat cushion (1).

D

Remove the seatback bolt (2).

D

Remove the seat cushion (3).

D109B536

Installation Procedure

1. Install the seat cushion with the seatback bolt and the

recliner bolts.

D109B537

2. Install the recliner cover and the recliner knob with the

screws.

3. Install the seat belt buckle. Refer to Section 8A, Seat

Belts.

4. Install the front seat assembly. Refer to “Front Seats”

in this section.

5. Connect the negative battery cable.

SEATS  9H – 9

D109B539

FRONT SEATS GUIDE RAIL

Removal Procedure

1. Disconnect the negative battery cable.

2. Remove the front seat assembly. Refer to “Front

Seats” in this section.

3. Remove the guide rail from the seat.

D

Remove the bolts (1).

D

Remove the guide rail (2).

D109B540

Installation Procedure

1. Install the guide rail to the seat with the bolts.

2. Install the front seat assembly. Refer to “Front Seat”

in this section.

3. Connect the negative battery cable.

D109B539

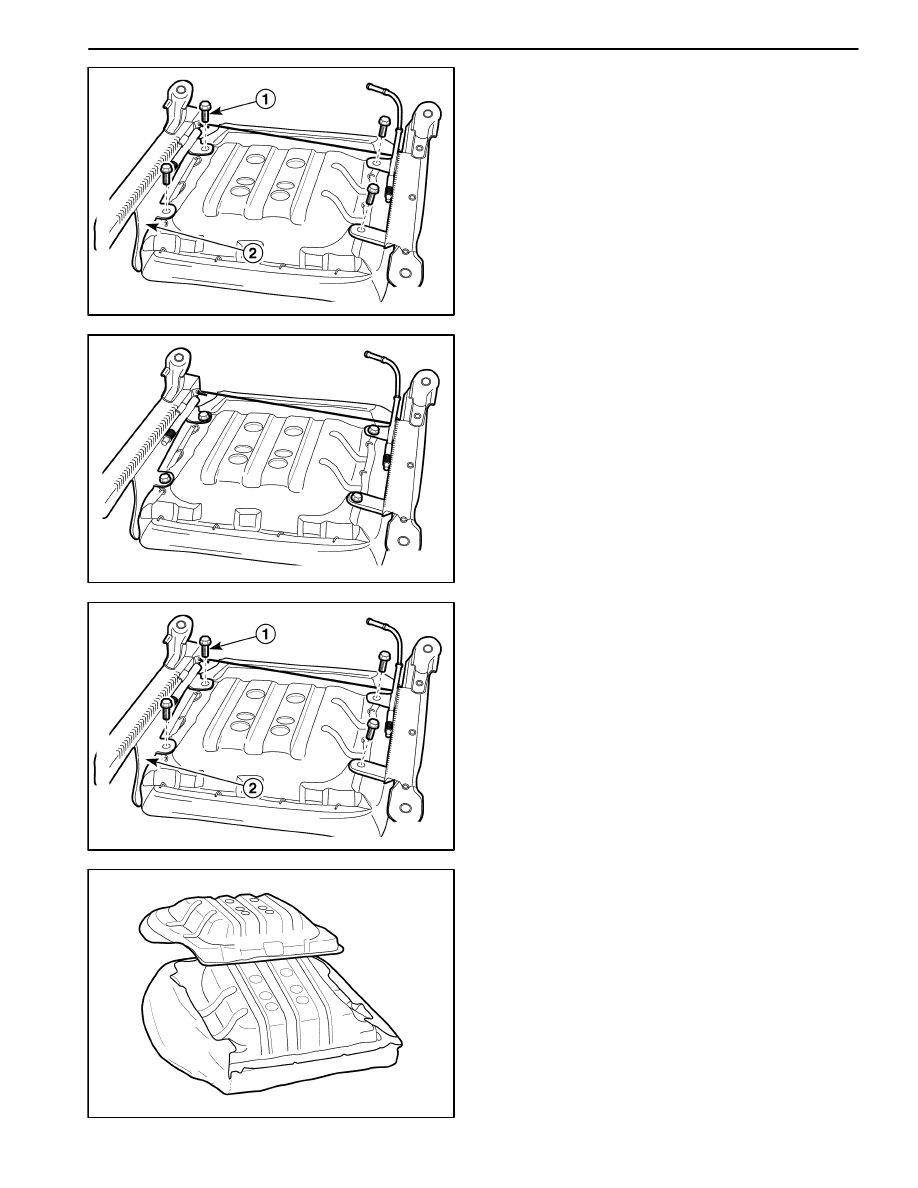

FRONT SEAT CUSHION FRAME

Removal Procedure

1. Disconnect the negative battery cable.

2. Remove the front seat cushion. Refer to “Front Seat

Cushion” in this section.

3. Remove the guide rail.

D

Remove the bolts (1).

D

Remove the guide rail (2).

D109B541

4. Remove the seat cushion cover.

D

Remove the hog rings.

5. Remove the seat cushion frame.
