Daewoo Matiz (2003 year). Manual - part 240

9D – 10  WIPERS/WASHER SYSTEMS

D19D533A

1.5–2.0 N

S

m

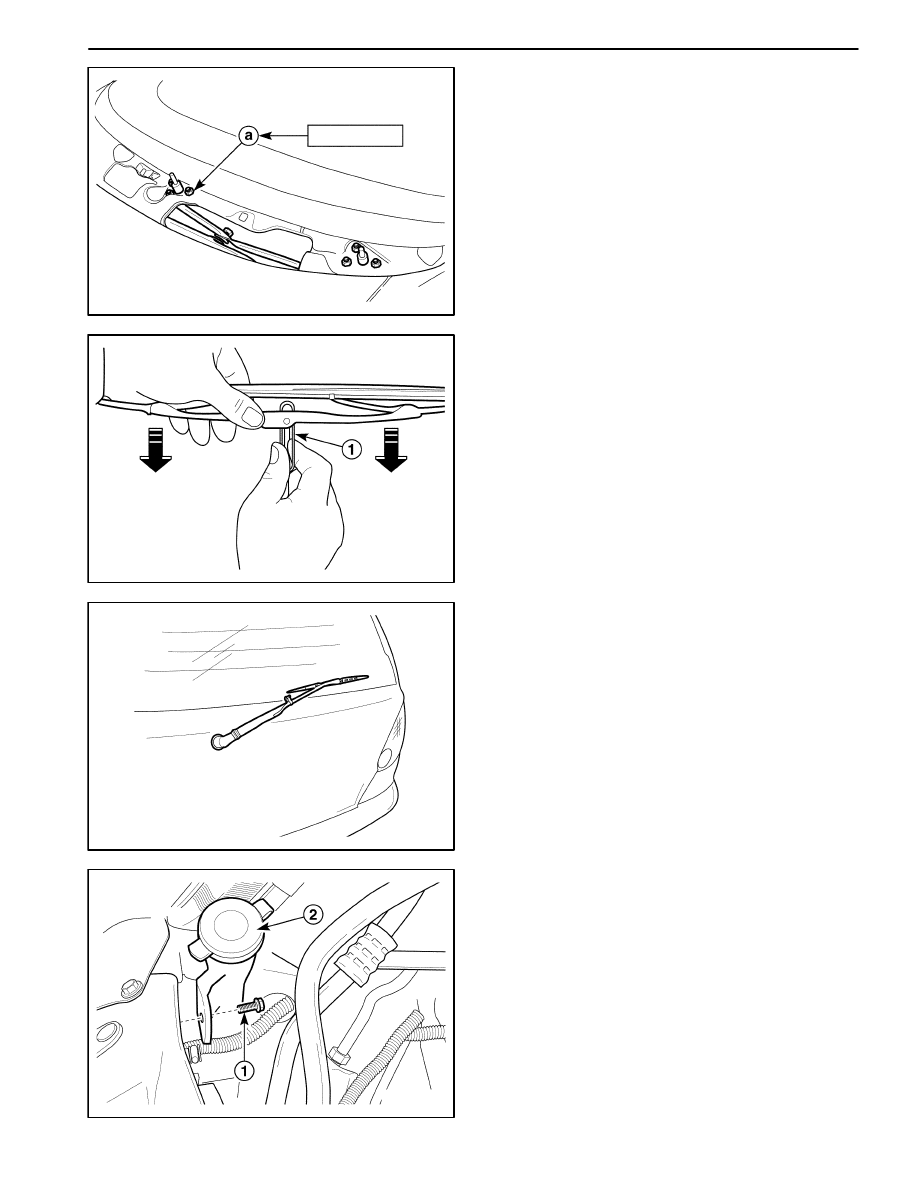

Installation Procedure

1. Install the wiper linkage with the wiper linkage nuts.

Tighten

Tighten the wiper linkage nuts to 1.5–2.0 N

S

m (13–18

lb-in).

a. Wiper linkage nut.

2. Install the wiper motor linkage ball.

3. Install the cowl vent grille. Refer to Section 9R, Body

Front End.

4. Install the windshield wiper arms. Refer to ”Wind-

shield Wiper Arm” in this section.

D109D534

WINDSHIELD WIPER BLADE

Removal Procedure

1. Pull the wiper blade off the arm by pushing the wiper

blade retaining clip (1).

D109D535

Installation Procedure

1. Install the wiper blade to the arm.

D109D536

WASHER RESERVOIR

Removal Procedure

1. Disconnect the negative battery cable.

2. Remove the washer reservoir inlet.

D

Remove the bolt (1).

D

Remove the washer reservoir inlet (2).

WIPERS/WASHER SYSTEMS  9D – 11

D19D537A

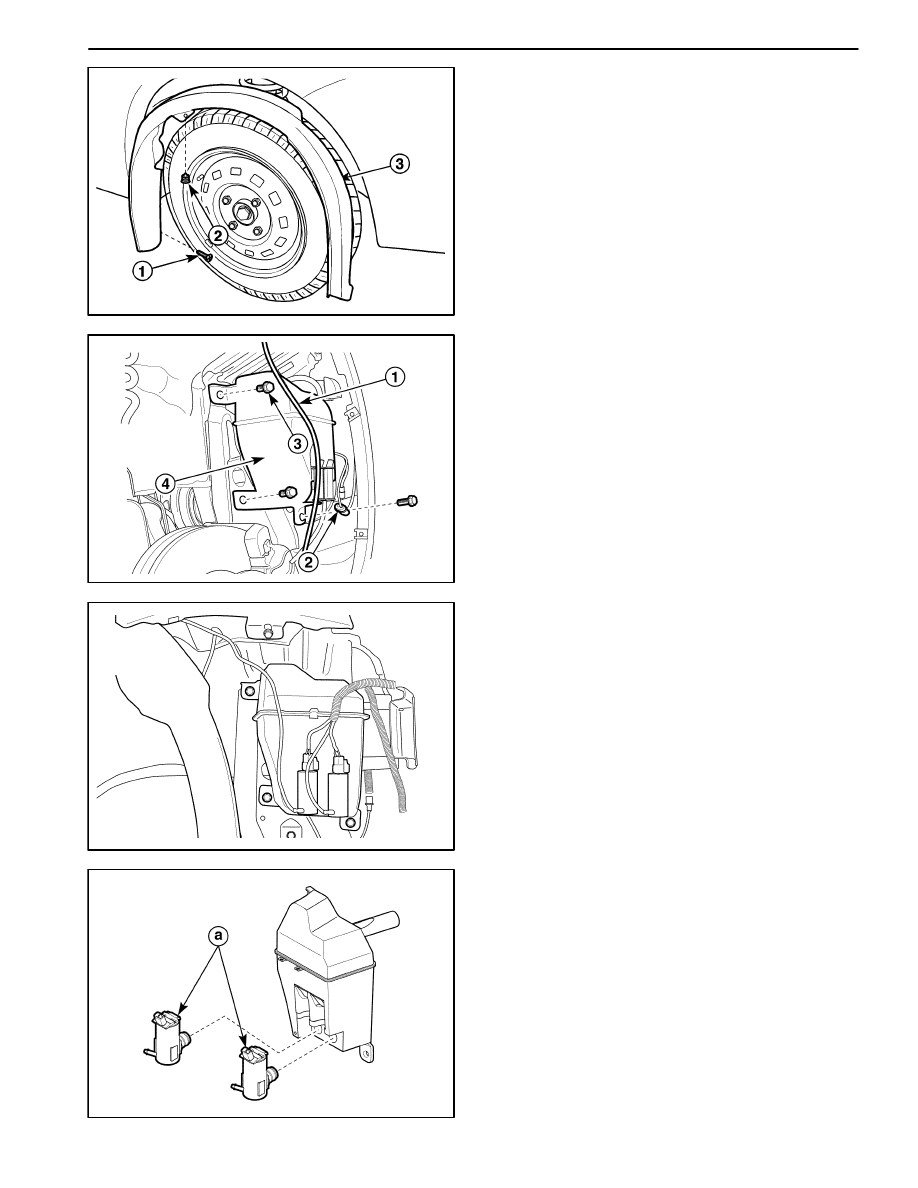

3. Raise and suitably support the vehicle.

4. Remove the front RH wheelhouse splash shield.

D

Remove the screws (1).

D

Remove the clips (2).

D

Remove the wheelhouse splash shield (3).

D109D538

5. Remove the washer  reservoir  assembly.

D

Drain the washer fluid.

D

Disconnect the washer hose connector (1).

D

Disconnect the washer pump electrical connector
(2).

D

Remove the bolts (3).

D

Remove the washer reservoir assembly (4).

D109D539

Installation Procedure

1. Install the washer reservoir assembly with the bolts.

2. Connect the washer pump electrical connector.

3. Connect the washer hose connector.

4. Install the front RH wheelhouse splash shield with the

screws and the clips.

5. Lower the vehicle.

6. Install the washer reservoir with the bolt.

7. Connect the negative battery cable.

D109D540

WASHER PUMP

Removal Procedure

1. Disconnect the negative battery cable.

2. Remove the washer reservoir assembly. Refer to

“Washer Reservoir” in this section.

3. Drain the washer fluid.

4. Remove the wiper motor from the washer reservoir

assembly.

a. Washer pump.

9D – 12  WIPERS/WASHER SYSTEMS

D109D539

Installation Procedure

1. Install the wiper motor to the washer reservoir assem-

bly.

2. Install the washer reservoir assembly.

Refer to “Washer Reservoir” in this section.

3. Connect the negative battery cable.

4. Fill the washer reservoir.

D109D541

WINDSHIELD WASHER NOZZLE

Removal Procedure

1. Remove the cowl vent grille. Refer to Section 9R,

Body Front End.

2. Remove the washer nozzle from the cowl vent grille.

D

Disconnect the washer nozzle hose (1).

D

Remove the washer nozzle (2).

D109D542

Installation Procedure

1. Install the washer nozzle to the cowl vent grille.

2. Install the washer nozzle hose to the washer nozzle.

3. Install the cowl vent grille.

Refer to Sec-

tion 9R, Body Front  End.

D109D543

REAR WINDOW WASHER NOZZLE

Removal Procedure

1. Remove the washer nozzle from the wiper arm.

D

Disconnect the washer nozzle hose (1).

D

Remove the washer nozzle (2).

WIPERS/WASHER SYSTEMS  9D – 13

D109D535

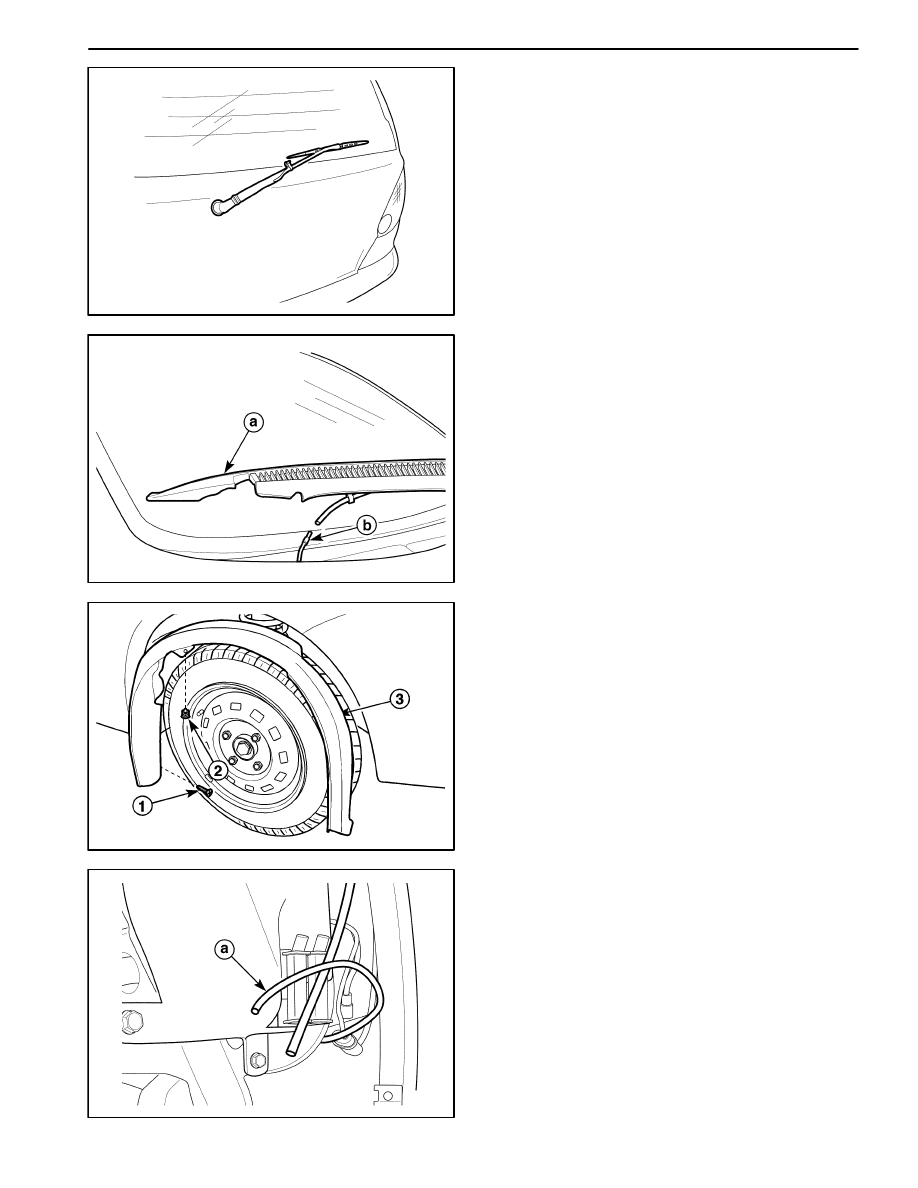

Installation Procedure

1. Install the washer nozzle to the wiper arm assembly.

D

Install the washer nozzle hose in the wiper arm re-
turn spring.

D

Fix the washer nozzle into the wiper arm.

D

Install the washer nozzle hose to the pivot cap con-
nector.

D109C522

WASHER HOSE

Removal Procedure

1. Remove the cowl vent grille. Refer to Section 9R,

Body Front End.

a. Cowl vent grille.

2. Disconnect the washer hose connector.

b. Washer hose connector.

D19D537A

3. Raise and suitably support the vehicle.

4. Remove the front RH wheel.

5. Remove the front RH wheel house splash shield.

D

Remove the screws (1).

D

Remove the clips (2).

D

Remove the wheel house splash shield (3).

D109D544

6. Disconnect the washer hose from the washer pump.

a. Washer hose.
